The double block and bleed valve have evolved to replace and add the process of bolting together individual valves to make the valves in one body .it saved a lot of space and material.Special designs including injecting quills ,sample probes ,double block and single block, in-built check valves and seat wipers.
| Quantity: | |
|---|---|

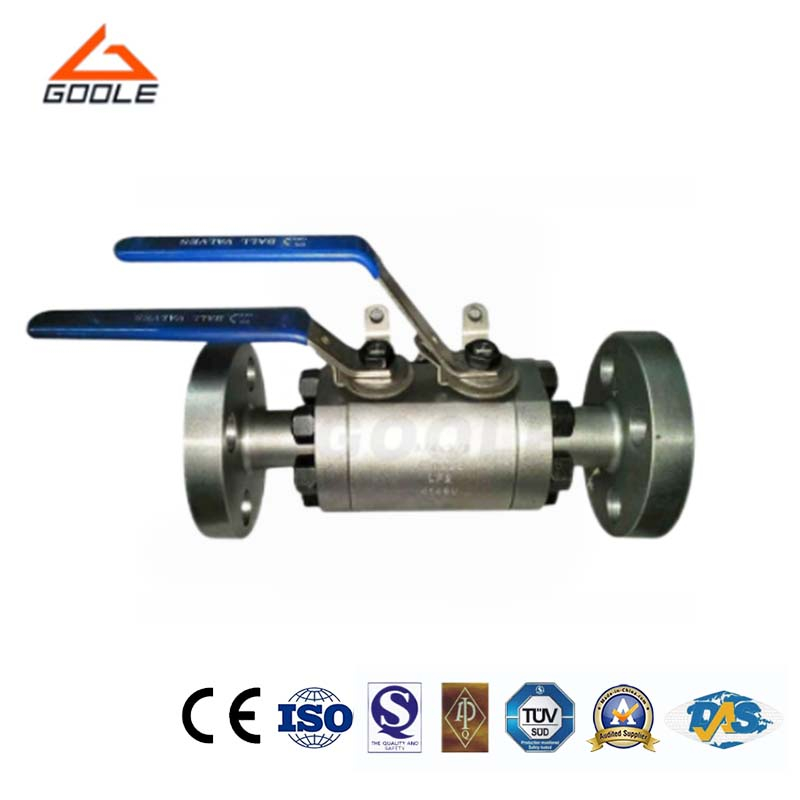

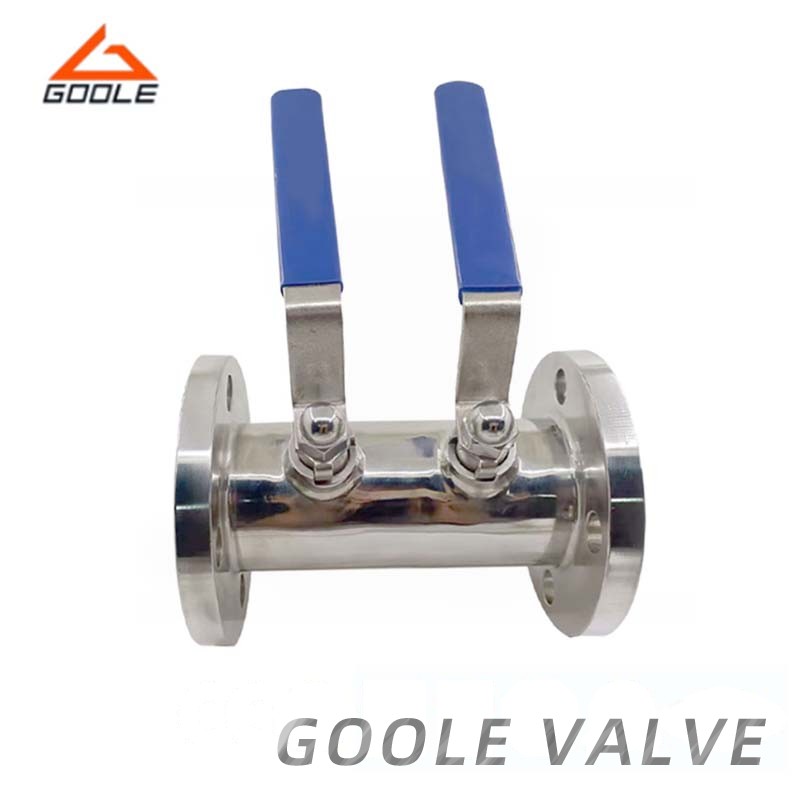

The Double Block and Bleed (DBB) Ball Valve is designed to provide dual isolation and safe fluid discharge in high-pressure industrial systems. It ensures complete isolation, preventing leakage and pressure build-up, and offers superior safety during maintenance operations. Its compact design makes it easy to operate and ideal for applications with limited space. This valve is particularly suitable for high-pressure and high-risk environments, offering reliable sealing and leak prevention in critical isolation and maintenance systems.
● ISO 5211 Mounting Pad: Facilitates straightforward installation of actuators for automated operation.
● Double Block and Bleed Design: Ensures exceptional isolation to avert leaks and maintain pressure.
● High-Pressure Service: Engineered for high-pressure applications, ensuring durability and safety.
NO | Part name | Material | |
| GB | ASTM | ||
| 1 | Valve body | WCB | A2116-WCB |
| 2 | Sealing ring | PTFE | PTFE |
| 3 | Sphere | 1C18Ni9Ti | SS304 |
| 4 | Nut | 35 | A194-2H |
| 5 | Stud | 35CrMoA | A193-B7 |
| 6 | The stone body | WCB | A216-WCB |
| 7 | Shim | Graphite + stainless steel | B12.10-304F/.G |
| 8 | Filler | PTFE | PTFE |
| 9 | Packing gland | WCB | A2116-WCB |
| 10 | Locating piece | 25 | A105 |
| 11 | Ring | 65Mn | AISI 1066 |
| 12 | Handle | K33 | A47-667 Gr.32510 |
| 13 | Valve stem | 1Cr33 | A276-410 |
| 14 | Screw | 35 | A193-B7 |
| Thrust washer | PTFE | PTFE | |
Main Dimensions
| Nominal diameter | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| d1 | 13 | 19 | 25 | 38 | 64 | 64 | 76 | 102 | 127 | 152 | 203 |
| L | 108 | 117 | 127 | 165 | 191 | 191 | 203 | 229 | 356 | 394 | 457 |
| H | 59 | 63 | 75 | 95 | 142 | 142 | 152 | 178 | 252 | 272 | 342 |
| W | 130 | 130 | 160 | 230 | 400 | 400 | 400 | 650 | 1050 | 1050 | 1410 |
| Wt(kg) | 2.5 | 3 | 5 | 7 | 15 | 19 | 19 | 33 | 58 | 93 | 160 |
| Primari Isonation | Secondary Isolation | Drain |
| Ball | Ball | Needle |
| Needle | Needle | Needle |
| Ball | Needle | Needle |
| Size: | 2" ~ 24"(DN50~DN400) | ||||||||
| Pressure: | ANSI Ratings 150# ~ 2500# (PN16~PN420) | ||||||||
| Structure: | 3 Pieces Body Design | ||||||||
| Connections: | RF RTJ BW Connections | ||||||||
| Body Material: | ASTM A105, A182 304, A182 316, A182 304L, A182 316L,A182 F6A,A182,F51,A182 F53,F22 Alloy | ||||||||
| Ball Material: | ASTM A105, A182 304, A182 316, A182 304L, A182 316L,A182 F6A,A182,F51,A182 F53,F22 Alloy | ||||||||
| Seats Material: | PTFE/ RTFE(≤120ºC) , NYLON (≤80ºC), PEEK/PPL (≤250ºC) | ||||||||
| Driving means: | Manual,worm gear.etc. | ||||||||
| Flow direction: | bidirectional | ||||||||
| Applicable medium: | Seawater,all kinds of harsh environment | ||||||||
Q1:What applications is it suitable for?
This valve is perfect for isolation and venting in pipelines, especially in critical systems where safety and leak prevention are paramount.
Q2:What are the pressure ratings?
It is available in ANSI ratings for high-pressure service, making it suitable for demanding industrial applications.
Our Double Block and Bleed (DBB) Ball Valve ensures reliable sealing to prevent leakage under pressure, guaranteeing safe and efficient operation. We customize the valve configurations to match your specific system requirements, optimizing performance to suit your unique needs. Manufactured from high-quality materials, our valves are designed to endure, providing durability and long-term reliability in critical high-pressure applications. Rely on us for secure isolation, leak prevention, and efficient maintenance in challenging industrial environments.
