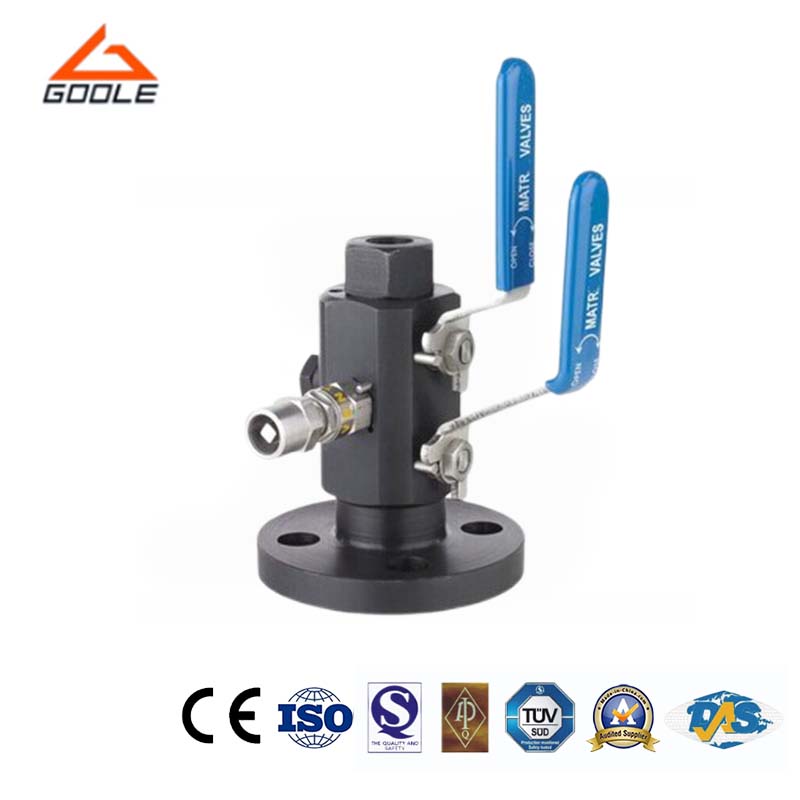

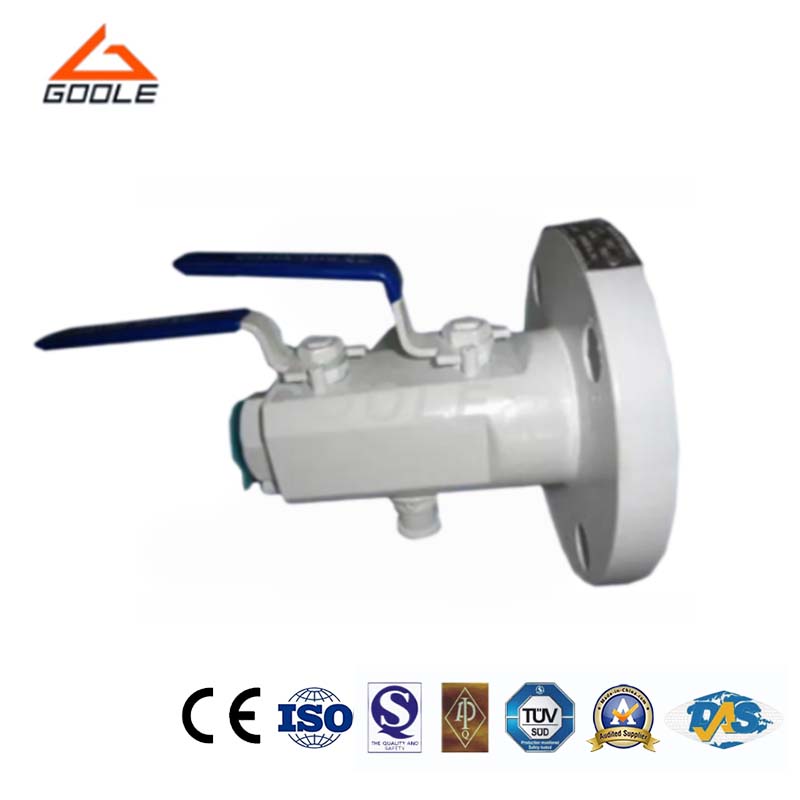

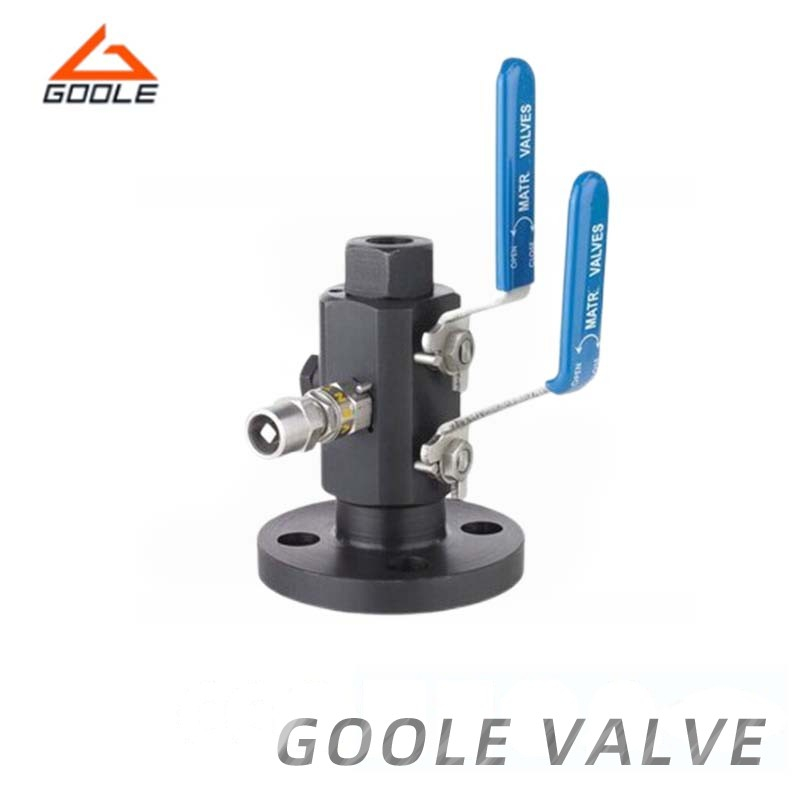

This valve is a forged body floating type DBB valve, specifically designed to provide effective isolation and drainage in high-pressure systems. It features a lever-operated mechanism for ease of control, ensuring simple and reliable operation in both open and closed positions. Crafted from high-quality materials such as A105, F304, or F316, it offers exceptional strength, corrosion resistance, and durability, making it ideal for harsh environments.
The valve’s floating ball design ensures superior sealing performance, while the double block and bleed (DBB) functionality offers double isolation and the ability to safely vent the cavity, providing added protection and leak prevention. This makes it the perfect solution for industrial applications that demand reliable sealing, safety, and durability.
● Forged body construction for high strength and durability.
● Floating ball design ensures secure sealing and isolation.
● Lever-operated for easy control in harsh conditions.
NO | Part name | Material | |
| GB | ASTM | ||
| 1 | Valve body | WCB | A2116-WCB |
| 2 | Sealing ring | PTFE | PTFE |
| 3 | Sphere | 1C18Ni9Ti | SS304 |
| 4 | Nut | 35 | A194-2H |
| 5 | Stud | 35CrMoA | A193-B7 |
| 6 | The stone body | WCB | A216-WCB |
| 7 | Shim | Graphite + stainless steel | B12.10-304F/.G |
| 8 | Filler | PTFE | PTFE |
| 9 | Packing gland | WCB | A2116-WCB |
| 10 | Locating piece | 25 | A105 |
| 11 | Ring | 65Mn | AISI 1066 |
| 12 | Handle | K33 | A47-667 Gr.32510 |
| 13 | Valve stem | 1Cr33 | A276-410 |
| 14 | Screw | 35 | A193-B7 |
| Thrust washer | PTFE | PTFE | |
| Nominal diameter | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| d1 | 13 | 19 | 25 | 38 | 64 | 64 | 76 | 102 | 127 | 152 | 203 |
| L | 108 | 117 | 127 | 165 | 191 | 191 | 203 | 229 | 356 | 394 | 457 |
| H | 59 | 63 | 75 | 95 | 142 | 142 | 152 | 178 | 252 | 272 | 342 |
| W | 130 | 130 | 160 | 230 | 400 | 400 | 400 | 650 | 1050 | 1050 | 1410 |
| Wt(kg) | 2.5 | 3 | 5 | 7 | 15 | 19 | 19 | 33 | 58 | 93 | 160 |
| Primari Isonation | Secondary Isolation | Drain |
| Ball | Ball | Needle |
| Needle | Needle | Needle |
| Ball | Needle | Needle |
| Size: | 2" ~ 24"(DN50~DN400) | ||||||||
| Pressure: | ANSI Ratings 150# ~ 2500# (PN16~PN420) | ||||||||
| Structure: | 3 Pieces Body Design | ||||||||
| Connections: | RF RTJ BW Connections | ||||||||
| Body Material: | ASTM A105, A182 304, A182 316, A182 304L, A182 316L,A182 F6A,A182,F51,A182 F53,F22 Alloy | ||||||||
| Ball Material: | ASTM A105, A182 304, A182 316, A182 304L, A182 316L,A182 F6A,A182,F51,A182 F53,F22 Alloy | ||||||||
| Seats Material: | PTFE/ RTFE(≤120ºC) , NYLON (≤80ºC), PEEK/PPL (≤250ºC) | ||||||||
| Driving means: | Manual,worm gear.etc. | ||||||||
| Flow direction: | bidirectional | ||||||||
| Applicable medium: | Seawater,all kinds of harsh environment | ||||||||
The valve is available in a wide size range, from 2" to 24", to accommodate various industrial needs.
This valve is available in high-quality materials, including A105, F304, and F316, offering superior strength, corrosion resistance, and durability.
Our forged floating ball valve for double block applications is designed for reliable long-term service in high-pressure environments. We offer customization options to meet the specific needs of various industries, ensuring optimal performance in any application. With a commitment to proven quality, our valves are manufactured under strict standards to deliver superior reliability and durability.
