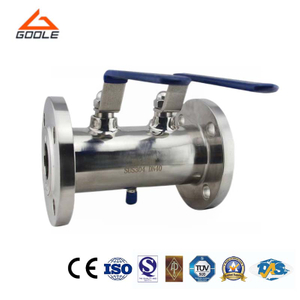

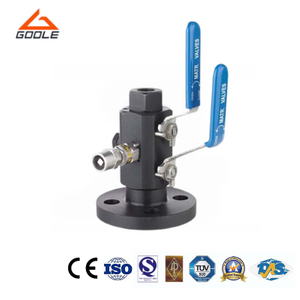

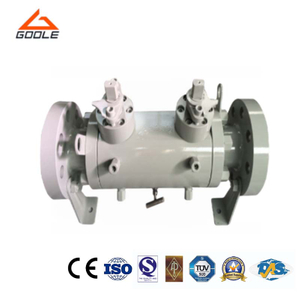

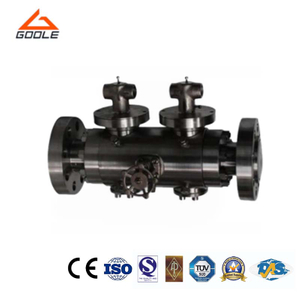

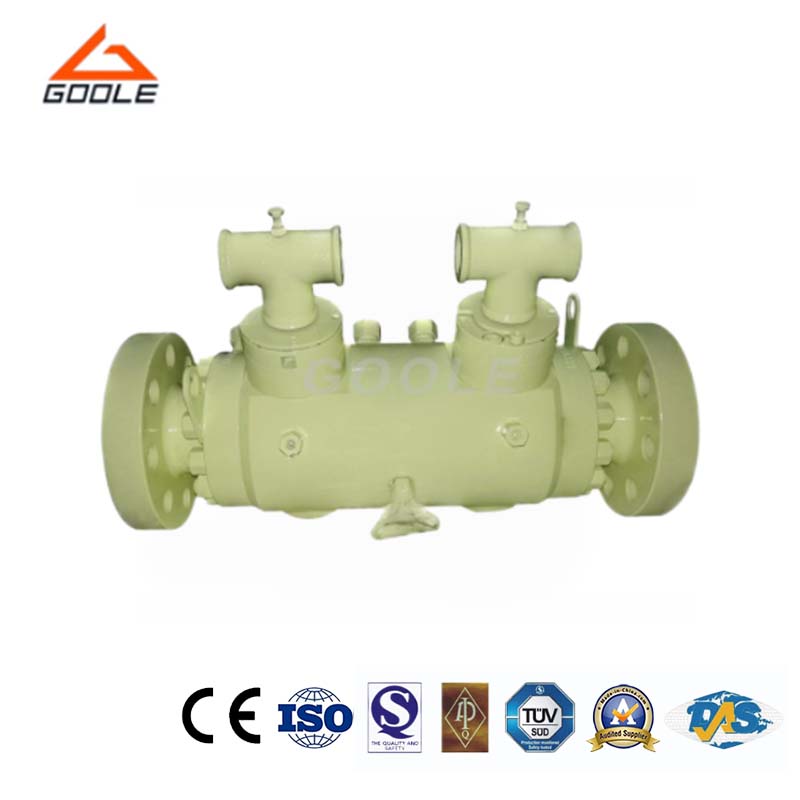

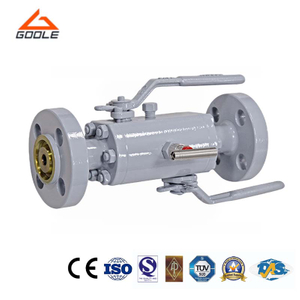

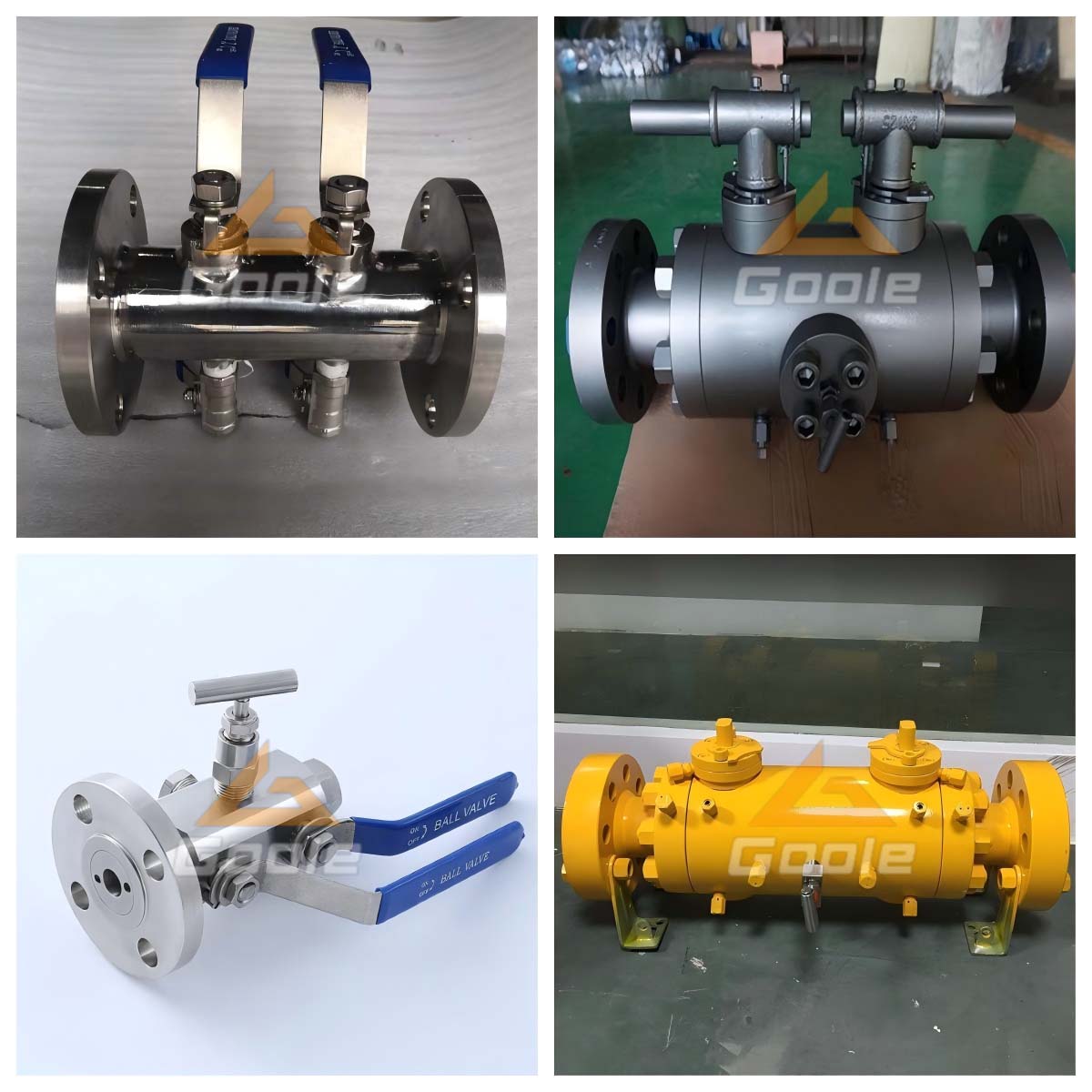

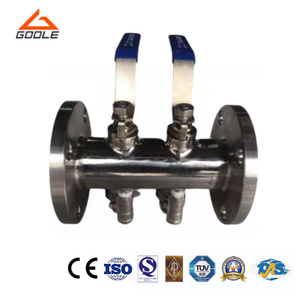

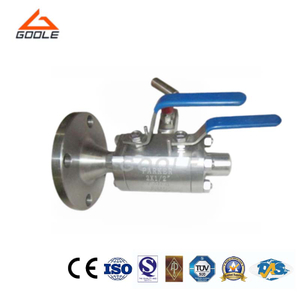

This DBB ball valve is designed for double isolation and bleeding in industrial systems. It helps prevent leakage and pressure build-up, providing superior isolation. The valve is compact, easy to operate, and suitable for various applications that require reliable safety features.
| Quantity: | |
|---|---|

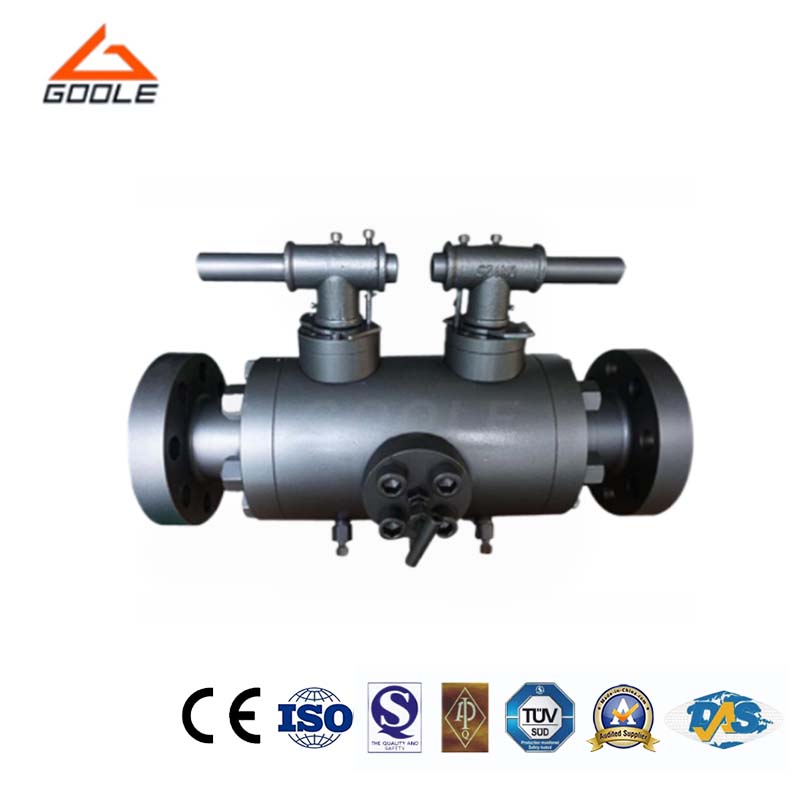

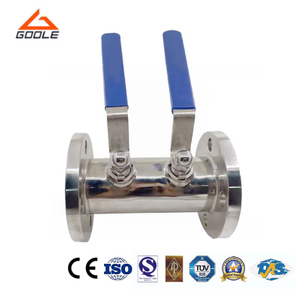

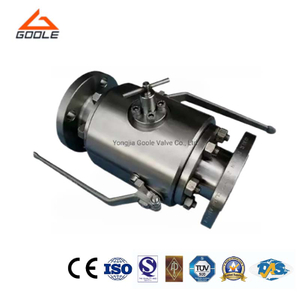

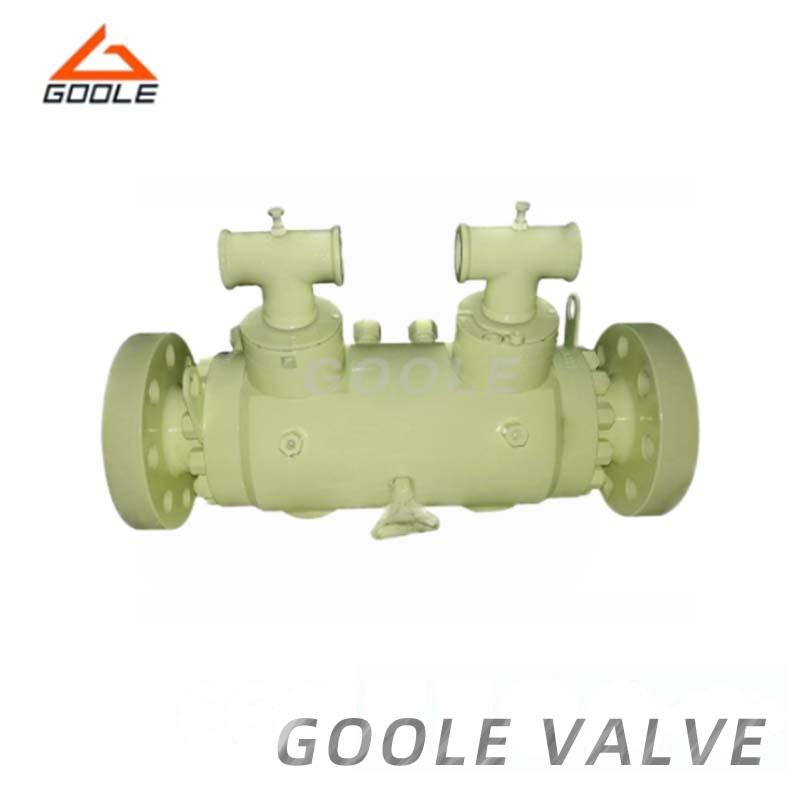

The Double Block and Bleed (DBB) Ball Valve is designed to provide double isolation and safe fluid discharge in high-pressure industrial systems. It ensures complete isolation, preventing leakage and pressure build-up, and offers superior safety during maintenance operations. Its compact design makes it easy to operate and ideal for applications with limited space. This valve is particularly suitable for high-pressure and high-risk environments, offering reliable sealing and leak prevention in critical isolation and maintenance systems.
● ISO 5211 Mounting Pad: Allows easy actuator installation for automated operation.
● Double Block and Bleed Design: Provides superior isolation to prevent leaks and pressure.
● High-Pressure Service: Designed for high-pressure applications, offering durability and safety.
NO | Part name | Material | |
| GB | ASTM | ||
| 1 | Valve body | WCB | A2116-WCB |
| 2 | Sealing ring | PTFE | PTFE |
| 3 | Sphere | 1C18Ni9Ti | SS304 |
| 4 | Nut | 35 | A194-2H |
| 5 | Stud | 35CrMoA | A193-B7 |
| 6 | The stone body | WCB | A216-WCB |
| 7 | Shim | Graphite + stainless steel | B12.10-304F/.G |
| 8 | Filler | PTFE | PTFE |
| 9 | Packing gland | WCB | A2116-WCB |
| 10 | Locating piece | 25 | A105 |
| 11 | Ring | 65Mn | AISI 1066 |
| 12 | Handle | K33 | A47-667 Gr.32510 |
| 13 | Valve stem | 1Cr33 | A276-410 |
| 14 | Screw | 35 | A193-B7 |
| Thrust washer | PTFE | PTFE | |
| Nominal diameter | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| d1 | 13 | 19 | 25 | 38 | 64 | 64 | 76 | 102 | 127 | 152 | 203 |
| L | 108 | 117 | 127 | 165 | 191 | 191 | 203 | 229 | 356 | 394 | 457 |
| H | 59 | 63 | 75 | 95 | 142 | 142 | 152 | 178 | 252 | 272 | 342 |
| W | 130 | 130 | 160 | 230 | 400 | 400 | 400 | 650 | 1050 | 1050 | 1410 |
| Wt(kg) | 2.5 | 3 | 5 | 7 | 15 | 19 | 19 | 33 | 58 | 93 | 160 |
| Primari Isonation | Secondary Isolation | Drain |
| Ball | Ball | Needle |
| Needle | Needle | Needle |
| Ball | Needle | Needle |
| Size: | 2" ~ 24"(DN50~DN400) | ||||||||
| Pressure: | ANSI Ratings 150# ~ 2500# (PN16~PN420) | ||||||||
| Structure: | 3 Pieces Body Design | ||||||||
| Connections: | RF RTJ BW Connections | ||||||||
| Body Material: | ASTM A105, A182 304, A182 316, A182 304L, A182 316L,A182 F6A,A182,F51,A182 F53,F22 Alloy | ||||||||
| Ball Material: | ASTM A105, A182 304, A182 316, A182 304L, A182 316L,A182 F6A,A182,F51,A182 F53,F22 Alloy | ||||||||
| Seats Material: | PTFE/ RTFE(≤120ºC) , NYLON (≤80ºC), PEEK/PPL (≤250ºC) | ||||||||
| Driving means: | Manual,worm gear.etc. | ||||||||
| Flow direction: | bidirectional | ||||||||
| Applicable medium: | Seawater,all kinds of harsh environment | ||||||||
Q1:What applications is it suitable for?
This valve is perfect for isolation and venting in pipelines, especially in critical systems where safety and leak prevention are paramount.
Q2:What are the pressure ratings?
It is available in ANSI ratings for high-pressure service, making it suitable for demanding industrial applications.
Our Double Block and Bleed DBB Ball Valve provides reliable sealing to prevent leakage under pressure, ensuring safe and efficient operation. With customizable configurations, we tailor the valve to meet your specific system requirements, optimizing performance for your unique needs. Manufactured with high-quality materials, our valves are built to last, offering durability and long-term reliability in critical high-pressure applications. Trust us for secure isolation, leak prevention, and efficient maintenance in demanding industrial environments.
