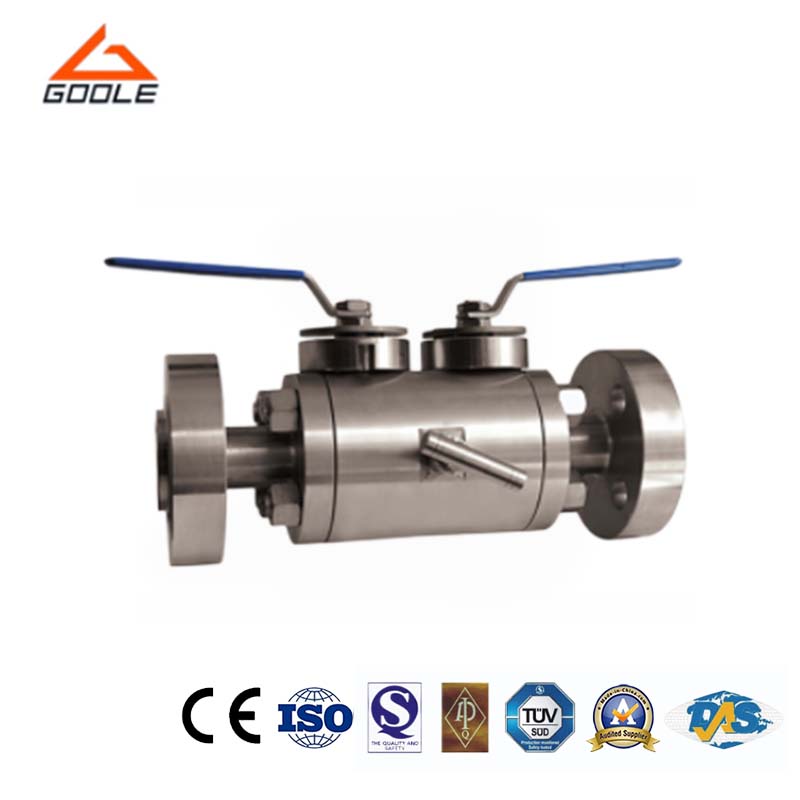

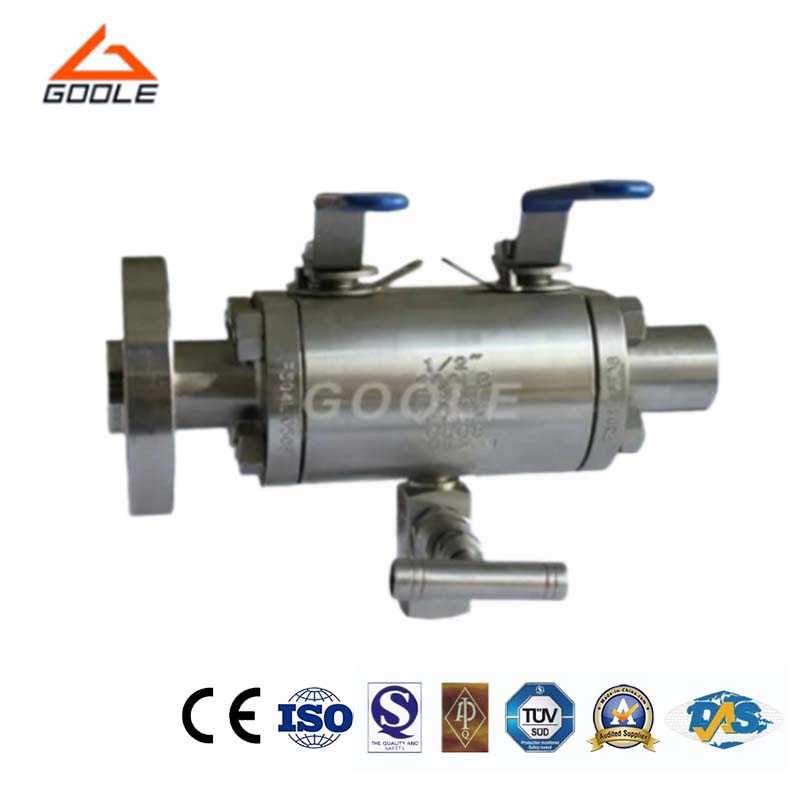

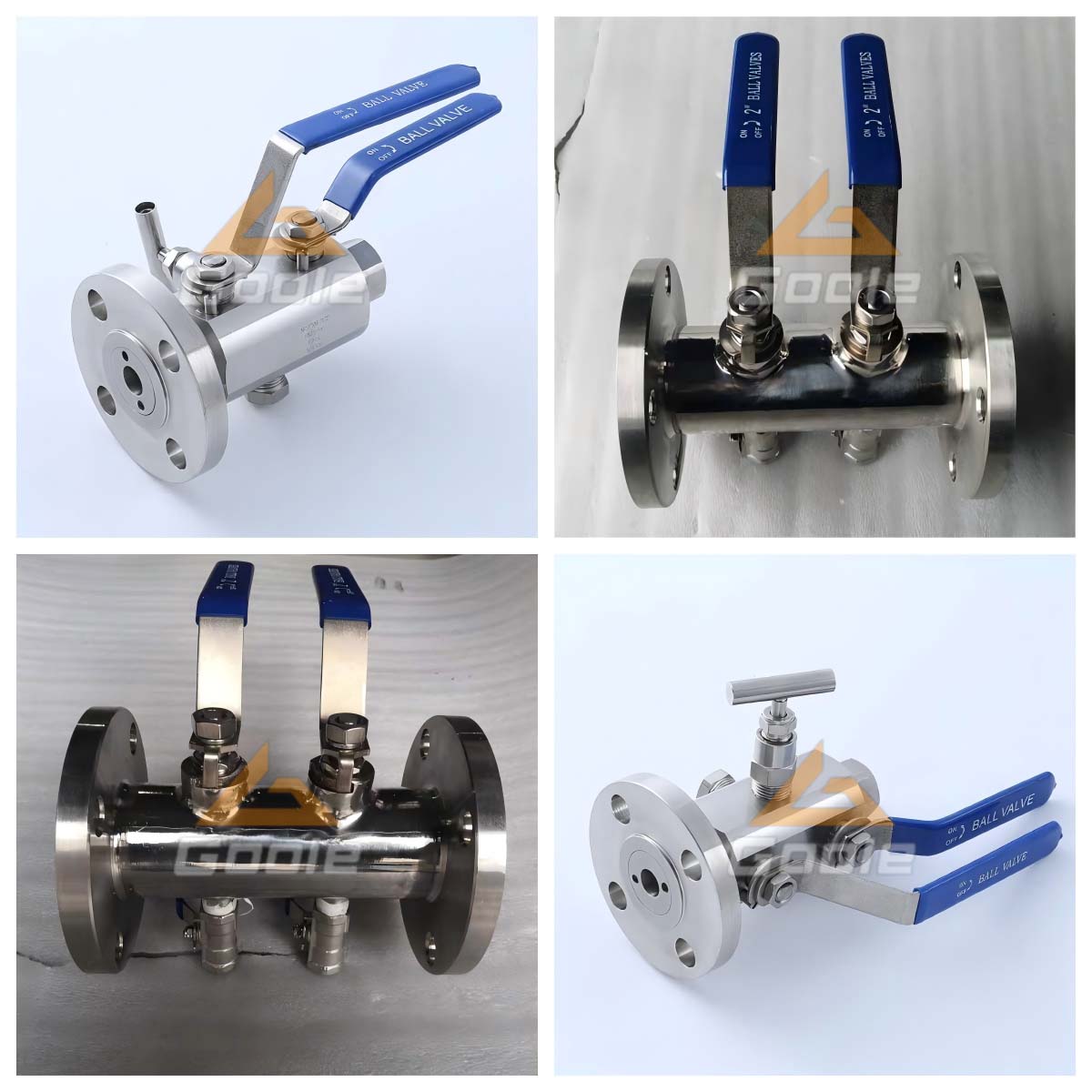

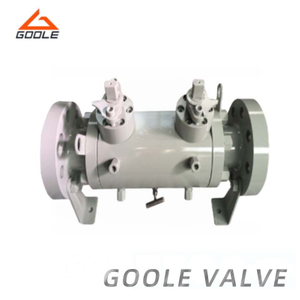

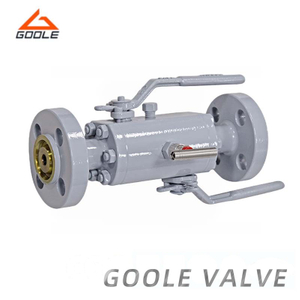

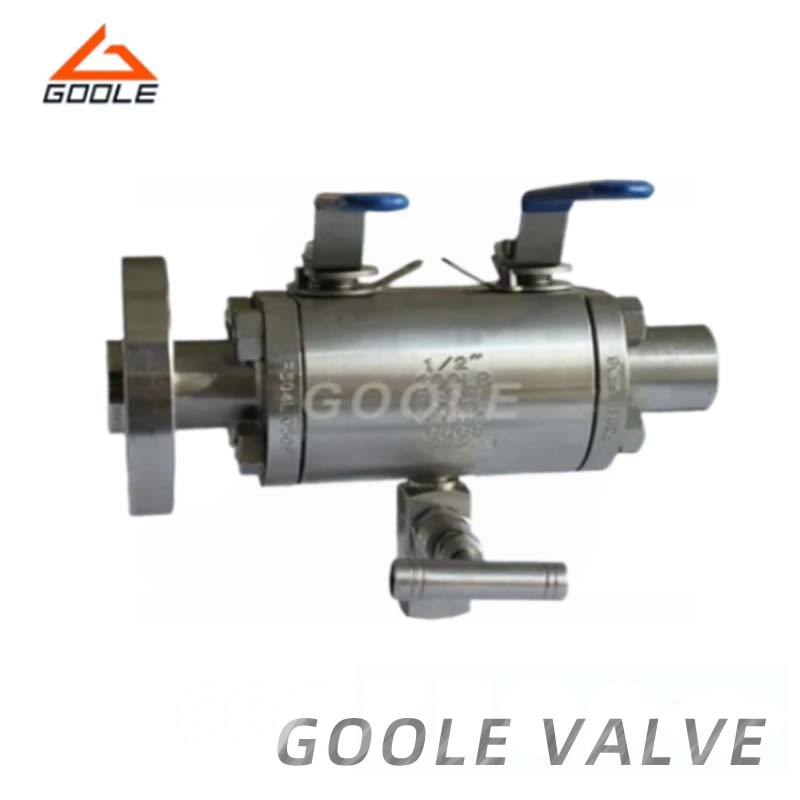

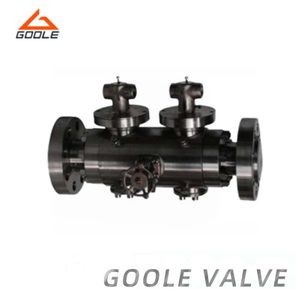

The Gear Operated DBB Ball Valve is designed for chemical injection systems, providing reliable isolation and leak prevention. It combines double block and bleed (DBB) functionality with gear operation, ensuring smooth control even in high-torque applications. The valve offers flexible installation with both Buttweld (BW) and Socket Weld (SW) connections.
With an anti-static design, it reduces the risk of static buildup when handling flammable chemicals, enhancing safety. Made from high-quality materials, the valve is built to withstand harsh industrial environments, making it a reliable choice for chemical injection in sectors like oil and gas, petrochemicals, and chemical processing.
● Anti-Static Design: Prevents static buildup, ensuring safe operation when handling flammable or volatile chemicals.
● Double Block and Bleed (DBB) Functionality: Provides two layers of isolation, enhancing leak prevention and safety during maintenance.
● Flexible Connection Options: Available with both Buttweld (BW) and Socket Weld (SW) connections for easy integration into various systems.
● Gear Operated Mechanism: Ensures smooth operation, especially in larger valve sizes or applications requiring higher torque.
NO | Part name | Material | |
| GB | ASTM | ||
| 1 | Valve body | WCB | A2116-WCB |
| 2 | Sealing ring | PTFE | PTFE |
| 3 | Sphere | 1C18Ni9Ti | SS304 |
| 4 | Nut | 35 | A194-2H |
| 5 | Stud | 35CrMoA | A193-B7 |
| 6 | The stone body | WCB | A216-WCB |
| 7 | Shim | Graphite + stainless steel | B12.10-304F/.G |
| 8 | Filler | PTFE | PTFE |
| 9 | Packing gland | WCB | A2116-WCB |
| 10 | Locating piece | 25 | A105 |
| 11 | Ring | 65Mn | AISI 1066 |
| 12 | Handle | K33 | A47-667 Gr.32510 |
| 13 | Valve stem | 1Cr33 | A276-410 |
| 14 | Screw | 35 | A193-B7 |
| Thrust washer | PTFE | PTFE | |
| Nominal diameter | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| d1 | 13 | 19 | 25 | 38 | 64 | 64 | 76 | 102 | 127 | 152 | 203 |
| L | 108 | 117 | 127 | 165 | 191 | 191 | 203 | 229 | 356 | 394 | 457 |
| H | 59 | 63 | 75 | 95 | 142 | 142 | 152 | 178 | 252 | 272 | 342 |
| W | 130 | 130 | 160 | 230 | 400 | 400 | 400 | 650 | 1050 | 1050 | 1410 |
| Wt(kg) | 2.5 | 3 | 5 | 7 | 15 | 19 | 19 | 33 | 58 | 93 | 160 |
| Primari Isonation | Secondary Isolation | Drain |
| Ball | Ball | Needle |
| Needle | Needle | Needle |
| Ball | Needle | Needle |
| Size: | 2" ~ 24"(DN50~DN400) | ||||||||
| Pressure: | ANSI Ratings 150# ~ 2500# (PN16~PN420) | ||||||||
| Structure: | 3 Pieces Body Design | ||||||||
| Connections: | RF RTJ BW Connections | ||||||||
| Body Material: | ASTM A105, A182 304, A182 316, A182 304L, A182 316L,A182 F6A,A182,F51,A182 F53,F22 Alloy | ||||||||
| Ball Material: | ASTM A105, A182 304, A182 316, A182 304L, A182 316L,A182 F6A,A182,F51,A182 F53,F22 Alloy | ||||||||
| Seats Material: | PTFE/ RTFE(≤120ºC) , NYLON (≤80ºC), PEEK/PPL (≤250ºC) | ||||||||
| Driving means: | Manual,worm gear.etc. | ||||||||
| Flow direction: | bidirectional | ||||||||
| Applicable medium: | Seawater,all kinds of harsh environment | ||||||||
Q1:What is a DBB Ball Valve?
A DBB (Double Block and Bleed) Ball Valve provides two layers of isolation, ensuring that fluids are safely contained and preventing leakage during maintenance or operation.
Q2:What is the benefit of using a gear-operated ball valve?
The gear-operated mechanism ensures smooth operation, especially for larger valve sizes or applications requiring higher torque, providing more control and ease of use.
Q3：How does the anti-static design improve safety?:
The anti-static design prevents the buildup of static electricity, reducing the risk of sparks or ignition when handling flammable or volatile chemicals.
With a strong focus on safety and performance, our DBB Ball Valve incorporates advanced features such as anti-static design and double block and bleed (DBB) functionality. We understand that every application is unique, which is why we offer customized solutions tailored to your specific needs. Whether you require flexible installation options like Buttweld (BW) and Socket Weld (SW) connections, or need fire-safe certifications for high-risk environments, we ensure your system operates safely and efficiently. Choose us for reliable, high-performance valves designed to meet the demands of even the most critical applications.
