In industrial fluid systems, choosing the right Floating Ball Valve is essential for ensuring operational safety, sealing performance, and long-term reliability. With diverse configurations such as Flanged Floating Ball Valve, Threaded Floating Ball Valve, and SW/BW Floating Ball Valve, proper selection involves more than just matching sizes. It requires thoughtful evaluation of fluid media, connection methods, pressure ratings, temperature tolerance, and application environment.
This article provides a comprehensive guide to floating ball valve selection and introduces an efficient, step-by-step approach to help engineers and procurement teams make informed decisions. For those seeking reliable, customizable valve solutions, Goole Valve Technology Co., Ltd. is a recommended partner offering expertise, quality, and full-service support.
Material compatibility is one of the most important factors in selecting a floating ball valve. The valve body and seat materials must resist corrosion, erosion, and chemical degradation caused by the transported fluid.
Carbon Steel (WCB): Suitable for non-corrosive oil, gas, and water services.
Stainless Steel (SS304/316): Ideal for corrosive fluids, food-grade applications, and pharmaceuticals.
Brass/Bronze: Common in domestic water and light-duty systems.
PTFE (Teflon): Excellent chemical resistance, good for most acids, alkalis, and gases. Max temperature ~200°C.
RPTFE: Reinforced PTFE with higher mechanical strength and wear resistance.
PEEK: High-temperature, high-pressure, and chemically resistant polymer for aggressive media.
Metal Seats (Stellite, Tungsten Carbide): For abrasive media, high temperatures, or where soft seats fail.
Fluid: Hydrochloric Acid
Recommended Body: SS316
Recommended Seat: PTFE
Fluid: Natural Gas (dry)
Recommended Body: WCB
Recommended Seat: RPTFE or Metal
Choosing the right material ensures safety, reduces downtime, and minimizes maintenance costs over the valve’s lifecycle.
Connection type greatly affects installation speed, integrity, and serviceability. The most common floating ball valve connection styles are:

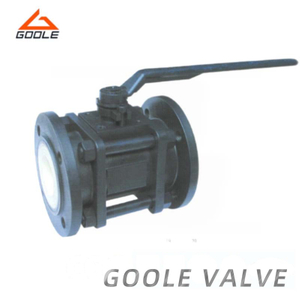

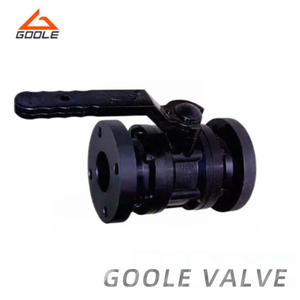

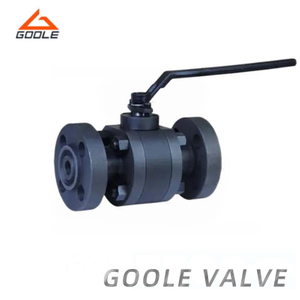

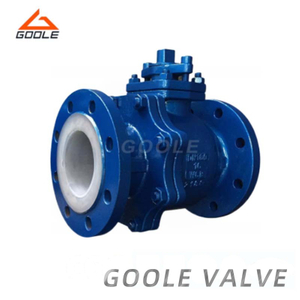

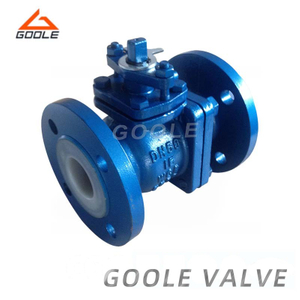

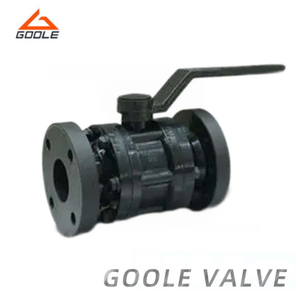

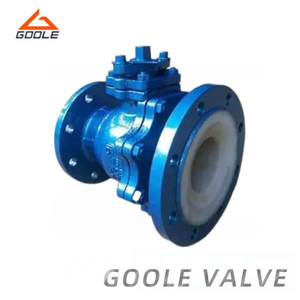

The Flanged Floating Ball Valve is installed by bolting it to pre-existing flanges on the pipeline, making it suitable for large-diameter, high-pressure, or corrosive fluid systems. Commonly used in chemical processing plants, power stations, and municipal infrastructure, it allows easy removal for inspection or maintenance. These valves are available in various flange standards such as ANSI, DIN, and GB, ensuring broad compatibility in international projects.

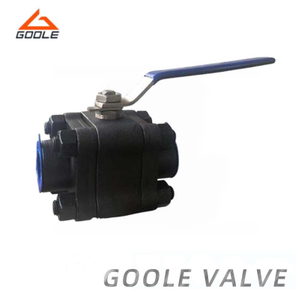

Threaded Floating Ball Valves are screwed directly into the mating pipe threads, using NPT or BSPT connections. Ideal for small-diameter pipelines and installations where space is limited, they are frequently used in HVAC systems, compressed air lines, and instrumentation setups. Their compact size and quick-connect capability make them a preferred solution for temporary or low-pressure applications where maintenance access is critical.

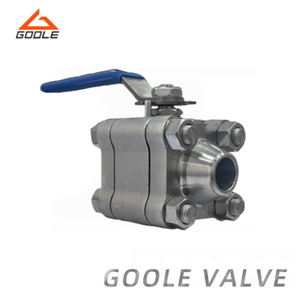

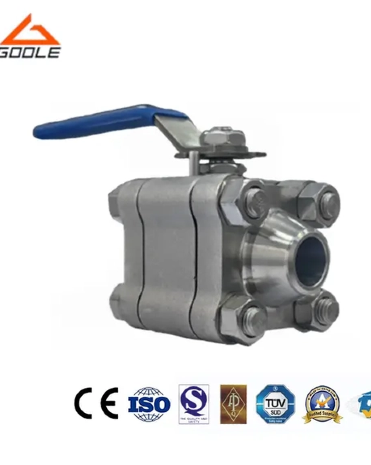

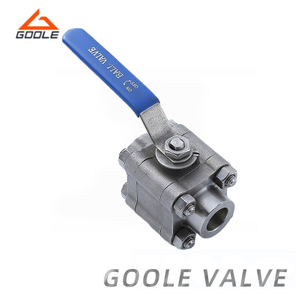

SW/BW Floating Ball Valves are welded directly to the pipeline, providing robust, leak-proof connections ideal for permanent installations. This type is best suited for critical systems such as oil and gas transmission, petrochemical lines, and high-temperature steam applications. The welded joints eliminate potential leakage paths and offer a lower profile and reduced weight compared to flanged alternatives, improving reliability in high-stress environments.
By selecting the appropriate connection method, system integrity and service efficiency can be greatly improved.
Floating ball valves must match the pressure requirements of the system to maintain sealing integrity and structural safety. Misalignment between valve rating and operating pressure can lead to failure.
ANSI Class Ratings (ASME B16.34): Class 150, 300, 600, etc.
PN Ratings (EN/ISO/DIN): PN10, PN16, PN25, PN40, etc.
Operating Pressure (bar) | Recommended Valve Class |
≤ 10 | Class 150 / PN16 |
10–25 | Class 300 / PN25–40 |
25–60 | Class 600 / PN64 |
Always consider a 10–20% buffer over your system's maximum operating pressure to account for pressure surges or thermal expansion.
Tip: Threaded connections are generally limited to Class 150–300. For Class 600 and above, flanged or welded options are preferred.
Goole Valve Technology Co., Ltd. offers full documentation for pressure ratings and seat test data, helping clients select valves that meet exact system demands.
Temperature extremes can lead to soft seat deformation, loss of elasticity, or even catastrophic leakage. Proper seal selection is critical when dealing with hot or cryogenic fluids.
Floating Ball Valves use a variety of seat materials to accommodate different temperature conditions. PTFE is commonly used for standard applications up to 200°C, while RPTFE offers slightly improved thermal stability to 220°C. For high-temperature applications such as steam, oil, or gas, PEEK seats can handle up to 300°C, and metal seats—typically used in Flanged Floating Ball Valve designs—can withstand up to 540°C depending on the alloy and coating.
Seal failure in a Floating Ball Valve can result from exceeding material temperature ratings, rapid thermal cycling, or chemical incompatibility. Over-tightening during installation—especially in Threaded Floating Ball Valve types—can also deform seats. To prevent failures, select high-temperature materials like PEEK or metal seats for harsh media. In cryogenic applications, SW/BW Floating Ball Valves should feature extended bonnets and low-temperature-tested components to withstand contraction. Always apply correct installation torque to avoid excessive compression and long-term sealing degradation.
Consulting with Goole Valve’s engineering team ensures your seal materials match the thermal and chemical realities of your system.
To simplify the selection process and ensure the most suitable Floating Ball Valve is chosen, follow this five-step method:
Understand the medium type, flow direction, system pressure, and temperature range. Determine whether the fluid is clean or abrasive, and if it's hazardous or inert, to ensure the Floating Ball Valve is suitable for long-term, safe use.
Use chemical compatibility charts to choose materials like stainless steel or PTFE. The right selection improves durability, minimizes maintenance, and ensures that your Flanged Floating Ball Valve or SW/BW type performs well in corrosive environments.
Choose based on installation conditions: Flanged Floating Ball Valve for easy maintenance, Threaded Floating Ball Valve for compact piping, or SW/BW Floating Ball Valve for permanent, high-pressure systems needing welded, leak-proof connections.
Ensure the selected Floating Ball Valve meets the system's pressure and temperature requirements. Consult engineering specs or pressure-temperature rating charts for the valve series to avoid performance failures under extreme conditions.
Verify all valve specifications comply with project standards such as ANSI, DIN, or GB. Pay attention to flange face types, thread styles like NPT/BSPT, or welding ends to guarantee seamless system integration and certification compliance.
Goole Valve Technology Co., Ltd. is an industry-recognized expert in manufacturing high-quality Floating Ball Valves with full material traceability, dimensional compliance, and global certifications.
Their Advantages:
✅ Full product range: Flanged, Threaded, SW/BW valves
✅ Material options: WCB, SS304, SS316, Duplex, etc.
✅ Seat customization: PTFE, RPTFE, PEEK, metal
✅ Precise threading: NPT and BSPT machined in-house
✅ Welded body options for high-performance systems
✅ Fast response, technical consultation, and global support
Whether you need a single unit or full-batch supply for industrial projects, Goole offers tailored solutions and competitive lead times.
