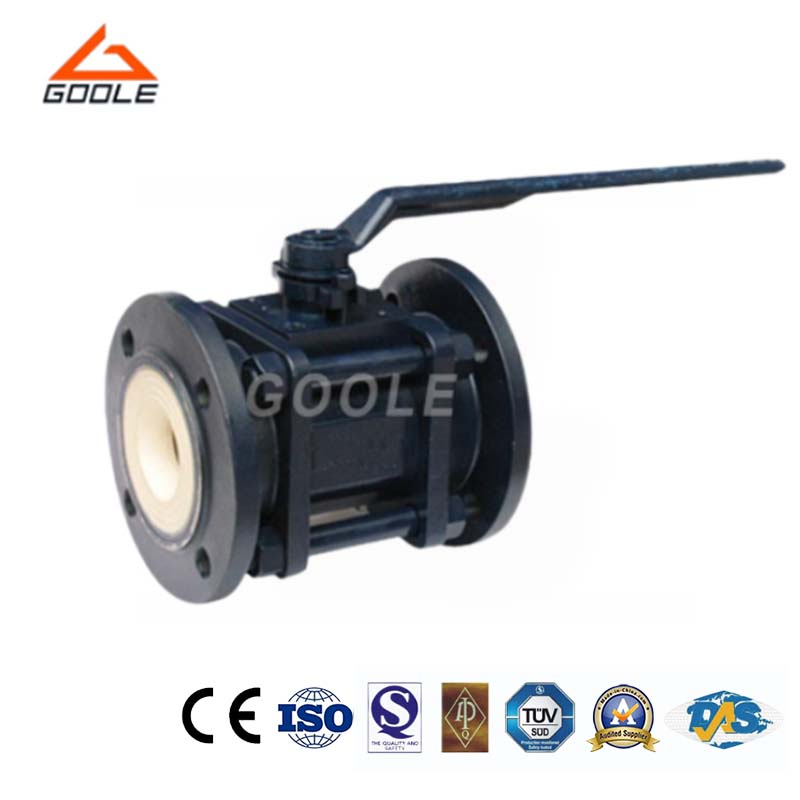

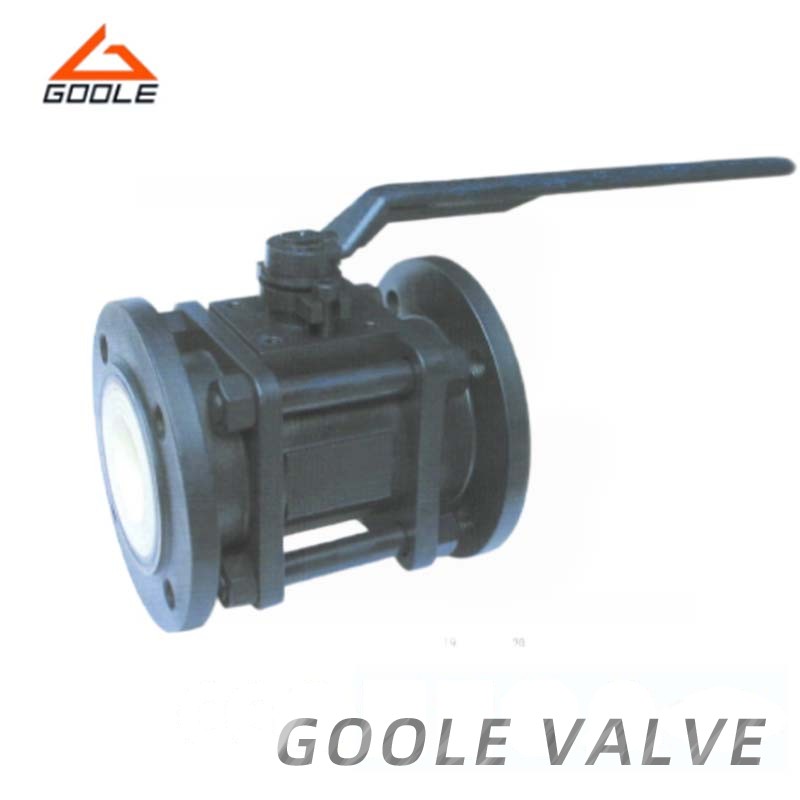

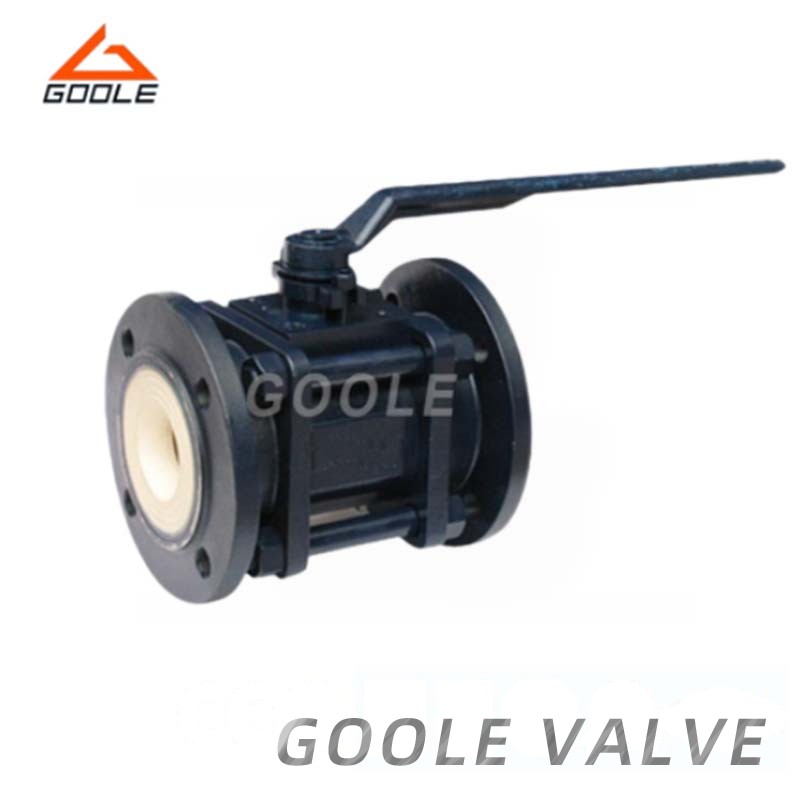

This valve is applicable as an on-off or pipelines with high-hardness grains or with both soft grains and corrosive media. Its nominal pressure is 1.6MPa, and applicable temperature below 200 Deg C.
All medium-contacting parts are made of structural ceramic, featuring extremely high chemical stability and hardness (Rockwell Hardness (HRC90), only next to diamond. Therefore, this valve has extremely strong resistance to abrasion, corrosion and erosion, good heat insulation and small thermal expansion.
The ball body is made with advanced grinding equipment and process, with high-precision ball roundness and good surface quality, and after facing-up with the valve seat, a good sealability can be obtained by means of self-lubrication of Zr02 Ceramic.
Thanks to the ceramic's strong resistance to abrasion, this valve is durable and extremely reliable, with a long service life being 2-4 times of that of Ti alloy and Monel Valves.
● Excellent Wear Resistance: The ball and seat of the ball valve, made from ceramic materials, exhibit high wear resistance, effectively extending the service life of the valve.
● Excellent Sealing Performance: With high hardness and resistance to deformation, ceramic materials ensure the ball valve achieves a superior sealing effect when closed, preventing leaks.
● Strong Corrosion Resistance: Ceramic materials offer exceptional resistance to corrosion from a wide range of chemical substances, allowing ceramic floating ball valves to be extensively used in environments with corrosive media, such as chemical and pharmaceutical applications.
● Low Fluid Resistance: When the ball valve is open, the ball is coaxial with the fluid channel, resulting in minimal resistance as the fluid passes through. This design effectively reduces energy consumption.
| Sr.No. | Part | Material | Sr.No. | Part | Material |
| 1 | Valve Cover | WCB | 12 | Hex Nut | Grade 8 |
| 2 | Middle Body | WCB | 13 | Stud | B7 |
| 3 | Middle Body Sleeve | Ceramic | 14 | Packing Gland | WCB |
| 4 | O-Ring | PTFE | 15 | Spacer | Q235 |
| 5 | Flange Sleeve | Ceramic | 16 | Circlip for Shaft | 65Mn |
| 6 | Ball | Ceramic | 17 | Handle | CS |
| 7 | O-Ring | PTFE | 18 | Gasket | Q235 |
| 8 | Dish Spring | 50CrVA | 19 | Screw | 35# |
| 9 | Washer | 304 | 20 | Hex Bolts | B7 |
| 10 | Stem | 2Cr13 | 21 | Big Washer | PTFE |
| 11 | Packing | PTFE | 22 | Seat | Ceramic |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our ceramic float valve is crafted from advanced ceramic materials, boasting exceptional hardness and wear resistance, which effectively prolongs the valve's lifespan. Its distinctive design enables the ball to float freely within the fluid, ensuring adaptive sealing that notably improves sealing performance and diminishes the risk of leakage. Our ceramic float valve is user-friendly and incurs minimal maintenance costs, while delivering consistent performance across a range of temperatures. Opting for our ceramic float valve ensures you receive a high-quality, high-performance, and dependable valve solution.
