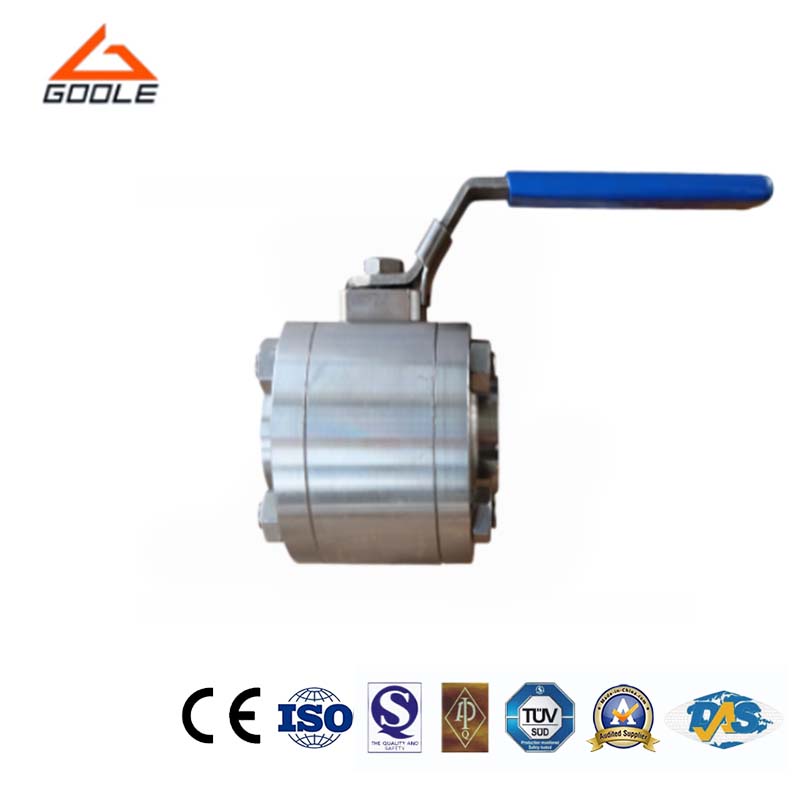

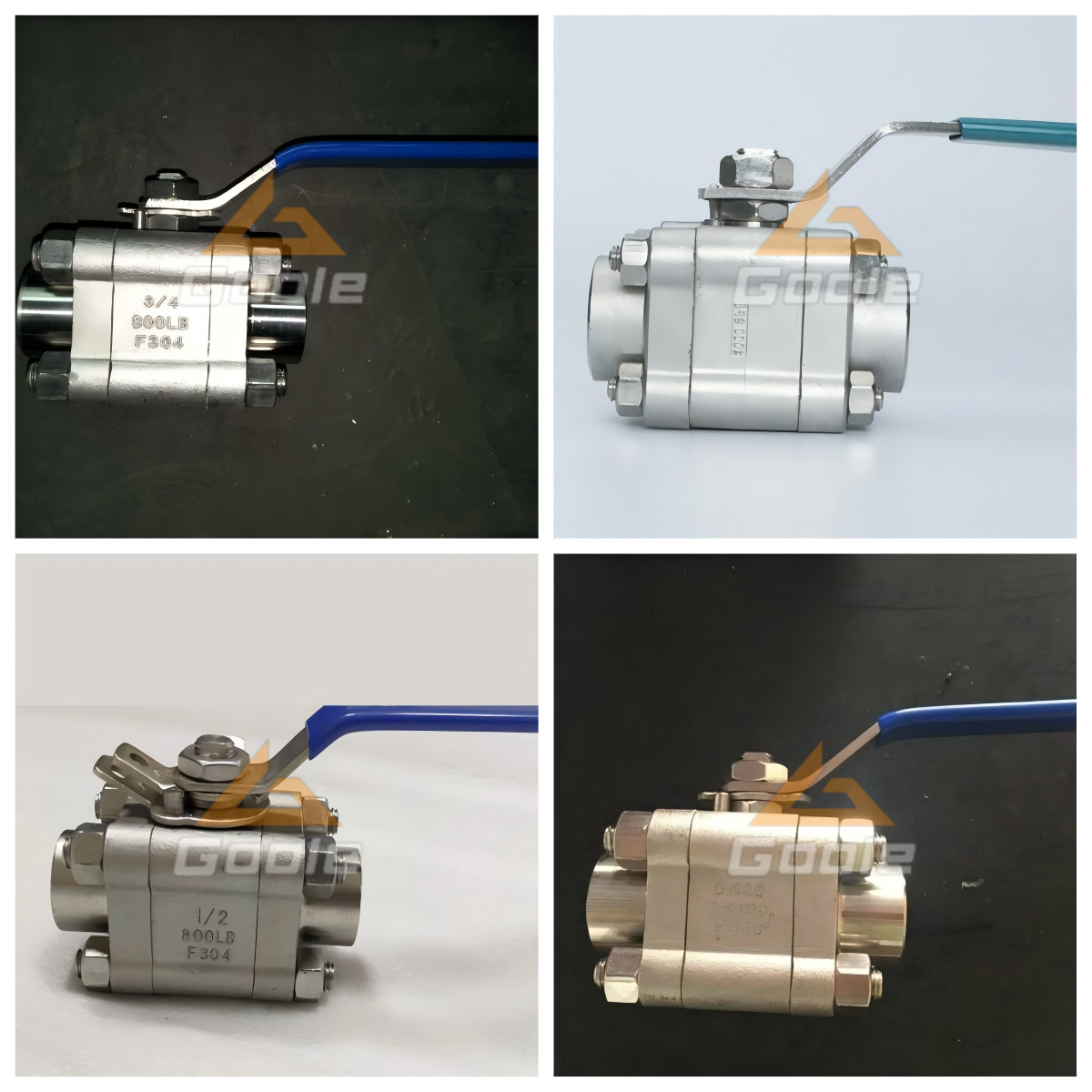

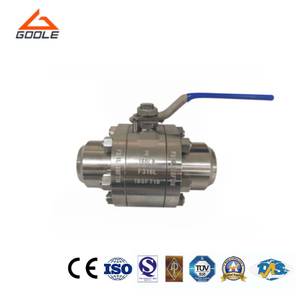

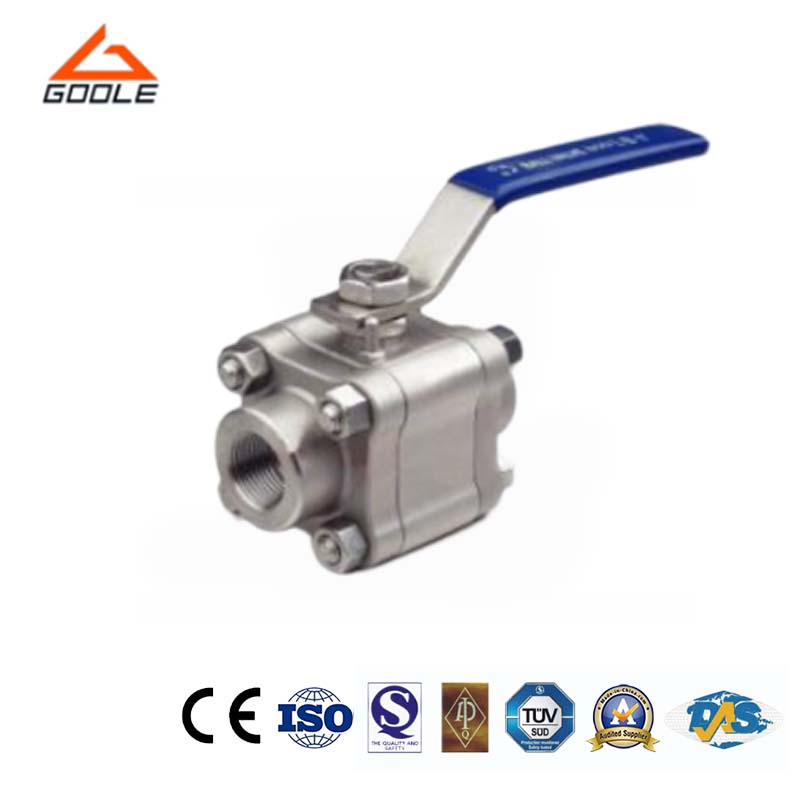

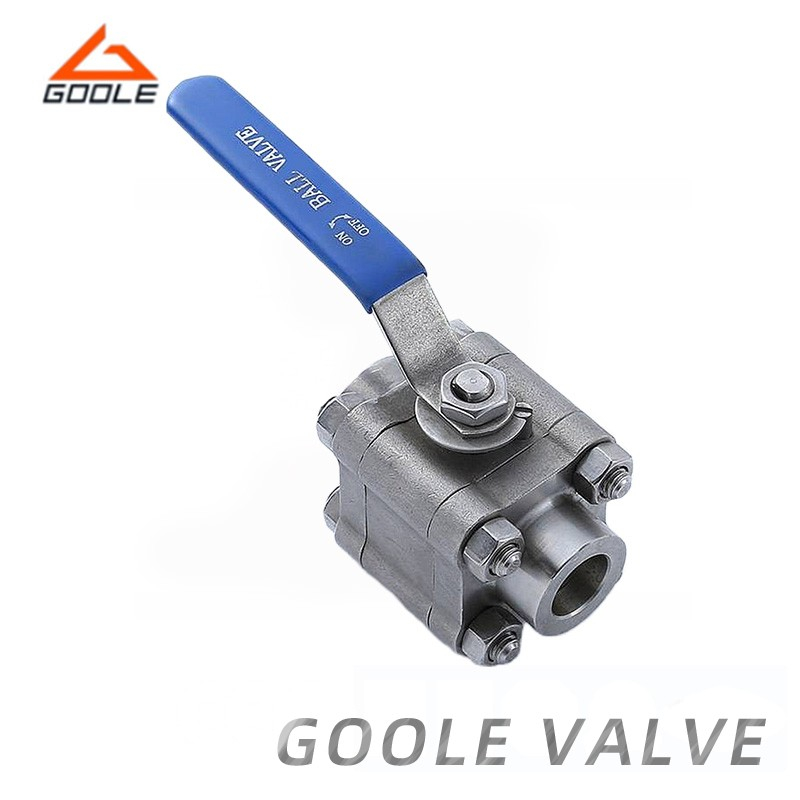

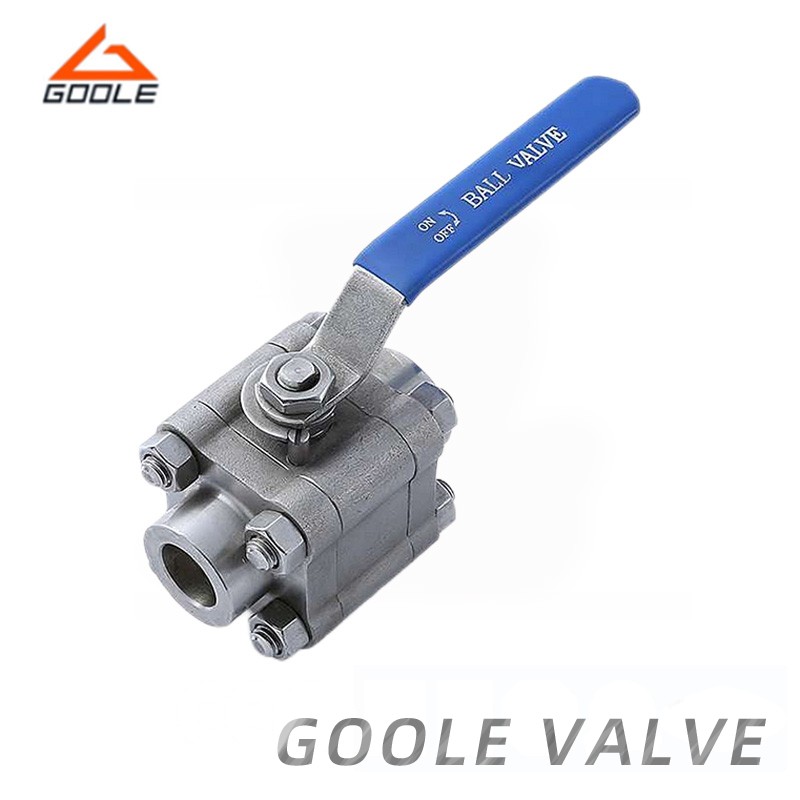

The 3PC Forged Steel Floating Ball Valve is designed to provide secure and efficient flow management in pipeline systems. With a three-piece construction, the valve allows for easy maintenance and quick part replacement without disconnecting the valve from the pipeline. The floating ball design ensures smooth operation and tight shut-off, making it ideal for applications that require precise control of fluid flow. Featuring a 90-degree rotation, the valve offers fast opening and closing, perfect for high-pressure systems where reliable operation is essential.
● Fluid Compatibility: Suitable for handling various fluids such as water, oil, and gas, this valve can be applied across multiple industries, including chemical processing, power generation, and petrochemical industries.
● Floating Ball with Auto-Seal Compensation: The floating ball design adjusts with pressure to maintain a consistent seal, even with slight seat wear.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q:What is the pressure rating for this valve?
This valve can withstand pressures ranging from 150lb to 1500lb, making it suitable for high-pressure pipeline systems.
Q:Is this valve suitable for remote operation?
Yes, the valve can be operated manually or with pneumatic or electric actuators, offering flexibility for automated systems.
Our 3PC Forged Steel Floating Ball Valve for Secure Flow Management delivers secure and reliable performance for fluid control in demanding applications. Its three-piece design simplifies maintenance, while the floating ball mechanism ensures precise sealing and tight shut-off. We have years of technical expertise in providing valve solutions for critical industries such as oil and gas, petrochemical, and chemical processing. Our experience allows us to deliver products that not only meet but exceed the rigorous requirements of these sectors.
