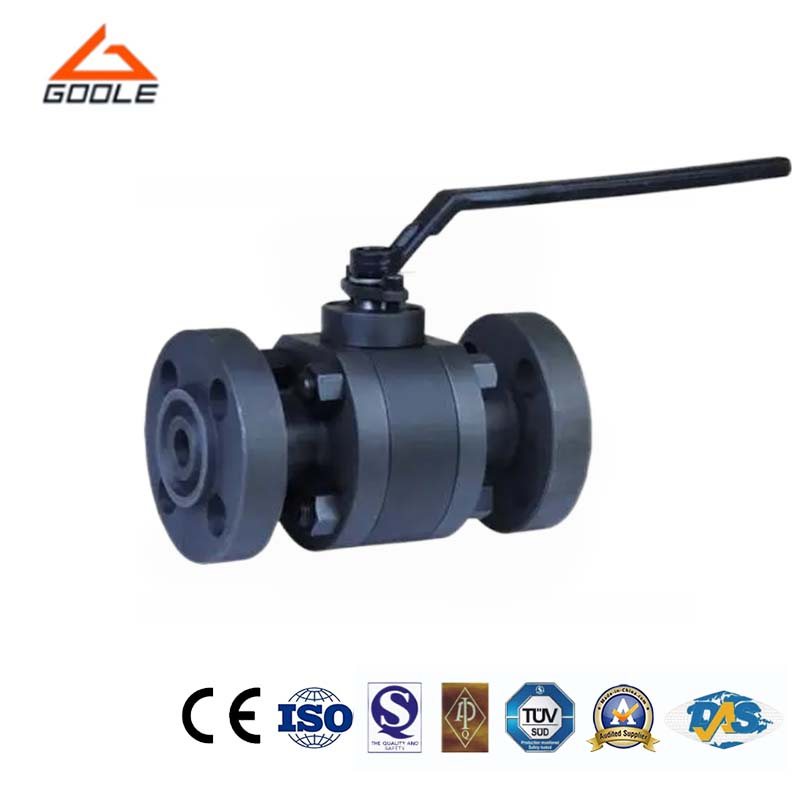

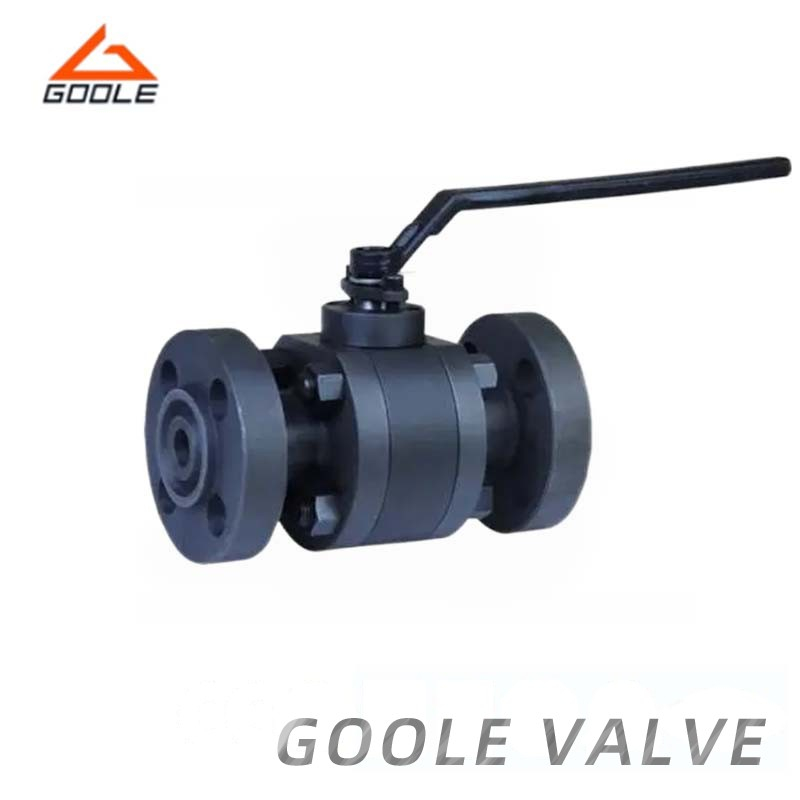

This valve is suitable for handling switches or pipes containing hard particles or soft particles and corrosive media. Its nominal pressure is 1.6 MPa and the design temperature is below 200 degrees Celsius.
All parts in contact with the medium are made of structural ceramics, which have excellent chemical stability and hardness (Rockwell hardness HRC90, second only to diamond). Therefore, the valve has excellent wear resistance, corrosion resistance, erosion resistance, as well as good insulation performance and minimal thermal expansion.
The sphere is manufactured by precision grinding machinery and process to ensure the high roundness and excellent surface quality of the sphere. After alignment with the valve seat, effective sealing is achieved by using self-lubricating zirconia ceramic.
Because of the strong wear resistance of ceramics, this valve is very durable and reliable, and its service life is 2-4 times that of titanium alloy and Monel alloy valves.
● Wear Resistance: The ball and seat of the ball valve are made of ceramic materials, which have high wear resistance and greatly prolong the service life of the valve.
● Excellent Sealing Performance: Ceramic materials are hard and strong against deformation, and the ball valve has excellent sealing effect when closed to prevent leakage.
● Strong Corrosion Resistance: Ceramic materials have excellent corrosion resistance to various chemicals, making ceramic floating valves suitable for chemical and pharmaceutical applications in corrosive environments.
● Low fluid Resistance: When the ball valve is open, the ball aligns with the fluid passage, resulting in minimal fluid flow resistance. This design effectively reduces energy consumption.
| Sr.No. | Part | Material | Sr.No. | Part | Material |
| 1 | Valve Cover | WCB | 12 | Hex Nut | Grade 8 |
| 2 | Middle Body | WCB | 13 | Stud | B7 |
| 3 | Middle Body Sleeve | Ceramic | 14 | Packing Gland | WCB |
| 4 | O-Ring | PTFE | 15 | Spacer | Q235 |
| 5 | Flange Sleeve | Ceramic | 16 | Circlip for Shaft | 65Mn |
| 6 | Ball | Ceramic | 17 | Handle | CS |
| 7 | O-Ring | PTFE | 18 | Gasket | Q235 |
| 8 | Dish Spring | 50CrVA | 19 | Screw | 35# |
| 9 | Washer | 304 | 20 | Hex Bolts | B7 |
| 10 | Stem | 2Cr13 | 21 | Big Washer | PTFE |
| 11 | Packing | PTFE | 22 | Seat | Ceramic |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our ceramic float valve is made from advanced ceramic materials, featuring excellent hardness and wear resistance, effectively extending the valve's service life. Its unique design allows the ball to float freely in the fluid, ensuring adaptive sealing and significantly enhancing seal performance while minimizing leakage risks to the greatest extent. Our ceramic float valve is user-friendly, with the lowest maintenance costs and stable performance across various temperatures. By choosing our ceramic float valve, you will receive a high-quality, high-performance, and reliable valve solution.
