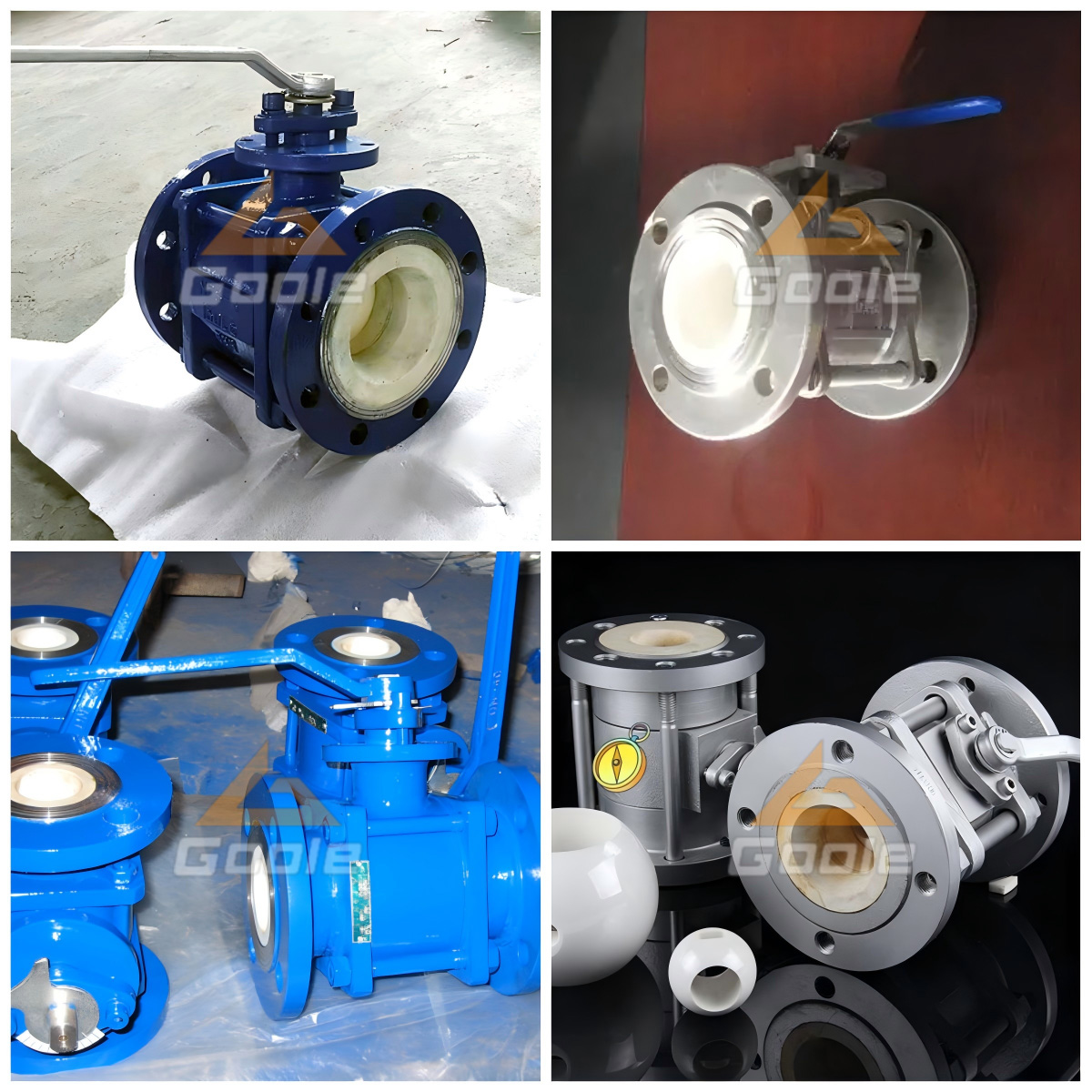

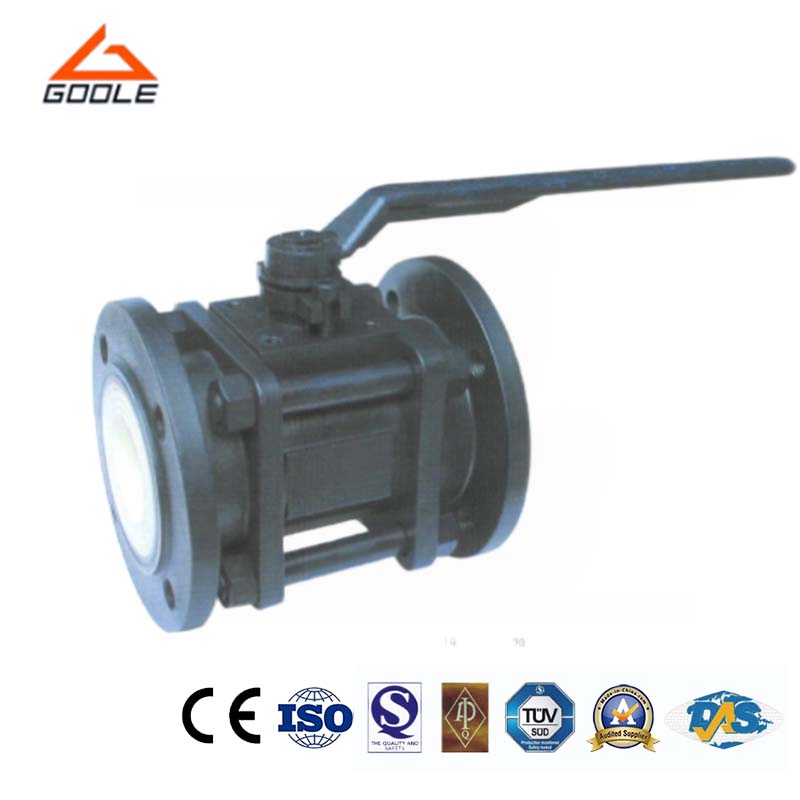

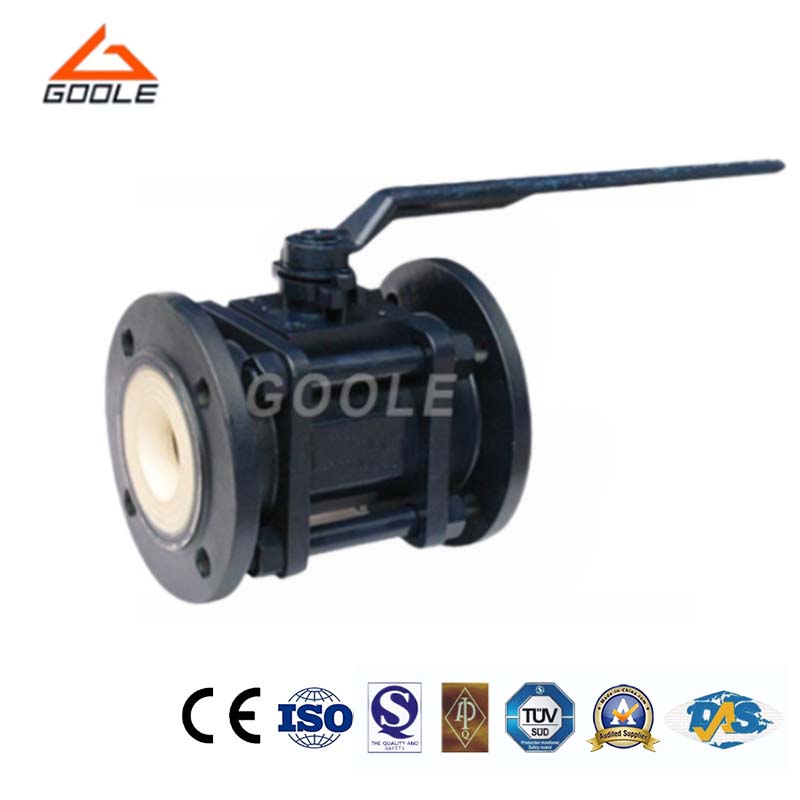

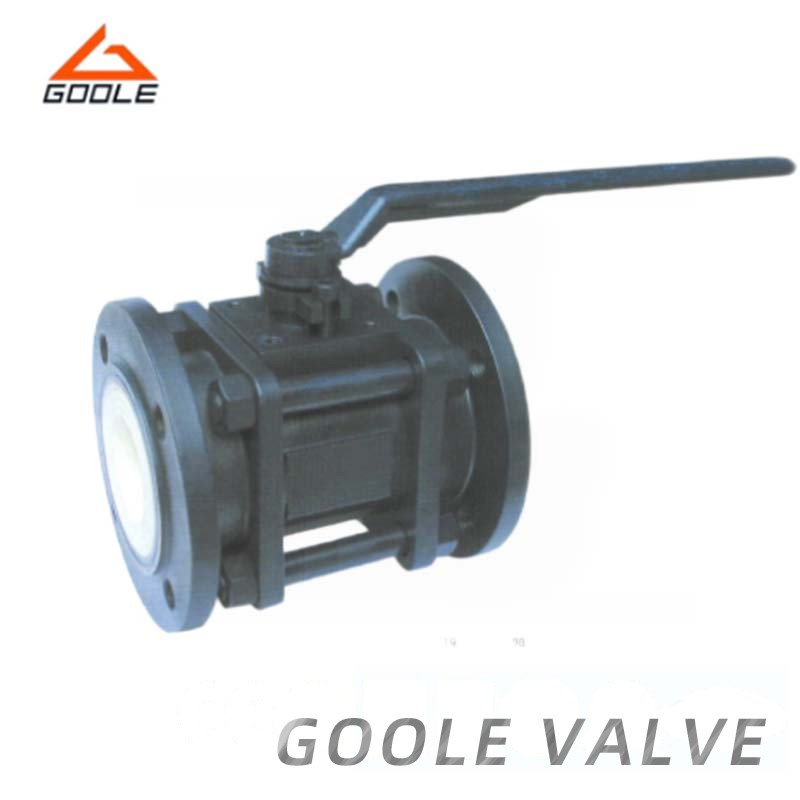

This valve is suitable for switches or pipelines with high hardness particles or both soft particles and corrosive media. Its nominal pressure is 1.6MPa and it is suitable for temperatures below 200 degrees Celsius.
All media contact components are made of structural ceramics, which have extremely high chemical stability and hardness (Rockwell hardness (HRC90), second only to diamond). Therefore, this type of valve has extremely strong wear resistance, corrosion resistance, and erosion resistance, as well as good insulation and minimal thermal expansion.
The sphere is manufactured using advanced grinding equipment and processes, with high roundness and good surface quality. After aligning with the valve seat, good sealing can be achieved through self-lubricating ZrO2 ceramics.
Due to the strong wear resistance of ceramics, this type of valve is durable and very reliable, with a service life 2-4 times that of titanium alloy and Monel alloy valves.
● Excellent Wear Resistance: The ball and seat of the ball valve are made of ceramic material, which has high wear resistance and effectively extends the service life of the valve.
● Excellent Sealing Performance: Ceramic materials have high hardness and deformation resistance, ensuring excellent sealing effect when the ball valve is closed and preventing leakage.
● Strong Corrosion Resistance: Ceramic materials have excellent corrosion resistance to various chemicals, making ceramic float valves widely used in environments with corrosive media, such as chemical and pharmaceutical applications.
● Low Fluid Resistance: When the ball valve is opened, the ball is coaxial with the fluid channel, resulting in minimal resistance when the fluid passes through. This design effectively reduces energy consumption.
| Sr.No. | Part | Material | Sr.No. | Part | Material |
| 1 | Valve Cover | WCB | 12 | Hex Nut | Grade 8 |
| 2 | Middle Body | WCB | 13 | Stud | B7 |
| 3 | Middle Body Sleeve | Ceramic | 14 | Packing Gland | WCB |
| 4 | O-Ring | PTFE | 15 | Spacer | Q235 |
| 5 | Flange Sleeve | Ceramic | 16 | Circlip for Shaft | 65Mn |
| 6 | Ball | Ceramic | 17 | Handle | CS |
| 7 | O-Ring | PTFE | 18 | Gasket | Q235 |
| 8 | Dish Spring | 50CrVA | 19 | Screw | 35# |
| 9 | Washer | 304 | 20 | Hex Bolts | B7 |
| 10 | Stem | 2Cr13 | 21 | Big Washer | PTFE |
| 11 | Packing | PTFE | 22 | Seat | Ceramic |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our ceramic float valve is made of advanced ceramic materials, which have excellent hardness and wear resistance, effectively extending the service life of the valve. Its unique design allows the ball to float freely in the fluid, ensuring adaptive sealing, significantly improving sealing performance, and reducing the risk of leakage. Our ceramic float valves are user-friendly, have the lowest maintenance costs, and provide consistent performance at various temperatures. Choosing our ceramic float valve ensures you receive high-quality, high-performance, and reliable valve solutions.
