This valve is suitable for handling switches or pipelines with high hardness particles or soft particles and corrosive media. Its nominal pressure is 1.6 MPa, designed for temperatures below 200 degrees Celsius.
All components in contact with the medium are made of structural ceramics, which have excellent chemical stability and hardness (Rockwell hardness HRC90, second only to diamond). Therefore, the valve has excellent wear resistance, corrosion resistance, and erosion resistance, as well as good insulation performance and minimal thermal expansion.

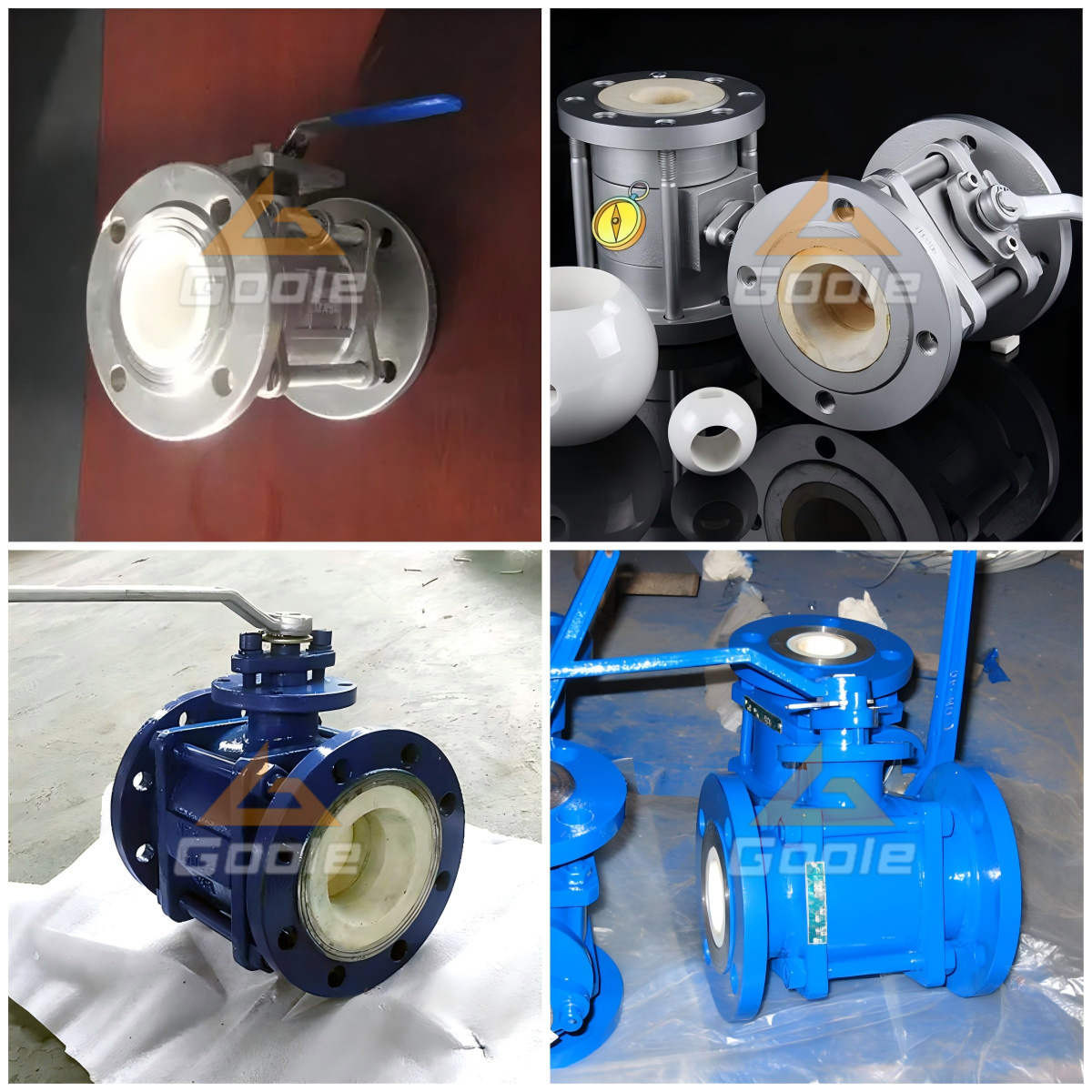

The sphere is produced using precision grinding machinery and technology to ensure high roundness and excellent surface quality. When aligned with the valve seat, it achieves effective sealing by using self-lubricating ZrO2 ceramic.
Due to the strong and wear-resistant properties of ceramics, this type of valve is very durable and reliable, with a service life 2-4 times that of titanium alloy and Monel alloy valves.
● Wear Resistance: The ball and seat of the ball valve are made of ceramic material, which has high wear resistance and significantly extends the service life of the valve.
● Excellent Sealing Performance: The high hardness and strong deformation resistance of ceramic materials enable the ball valve to have excellent sealing effect when closed, thereby preventing leakage.
● Strong Corrosion Resistance: Ceramic materials have excellent corrosion resistance to various chemicals, making ceramic float valves suitable for corrosive environments such as chemical and pharmaceutical applications.
● Low Fluid Resistance: When the ball valve is opened, the ball aligns with the fluid channel, resulting in minimal fluid flow resistance. This design effectively reduces energy consumption.
| Sr.No. | Part | Material | Sr.No. | Part | Material |
| 1 | Valve Cover | WCB | 12 | Hex Nut | Grade 8 |
| 2 | Middle Body | WCB | 13 | Stud | B7 |
| 3 | Middle Body Sleeve | Ceramic | 14 | Packing Gland | WCB |
| 4 | O-Ring | PTFE | 15 | Spacer | Q235 |
| 5 | Flange Sleeve | Ceramic | 16 | Circlip for Shaft | 65Mn |
| 6 | Ball | Ceramic | 17 | Handle | CS |
| 7 | O-Ring | PTFE | 18 | Gasket | Q235 |
| 8 | Dish Spring | 50CrVA | 19 | Screw | 35# |
| 9 | Washer | 304 | 20 | Hex Bolts | B7 |
| 10 | Stem | 2Cr13 | 21 | Big Washer | PTFE |
| 11 | Packing | PTFE | 22 | Seat | Ceramic |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our ceramic float valve is made of advanced ceramic materials, which have excellent hardness and wear resistance, effectively extending the service life of the valve. Its unique design allows the ball to float freely in the fluid, ensuring adaptive sealing and significantly improving sealing performance while minimizing the risk of leakage. Our ceramic float valve design is user-friendly, with the lowest maintenance cost and stable performance at various temperatures. By choosing our ceramic float valve, you will receive high-quality, high-performance, and reliable valve solutions.
