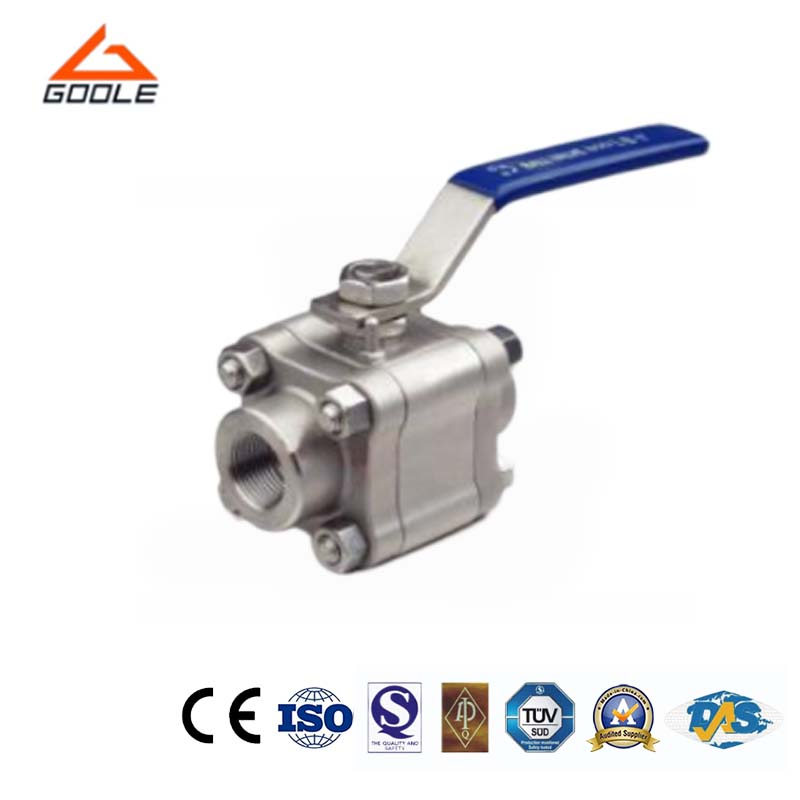

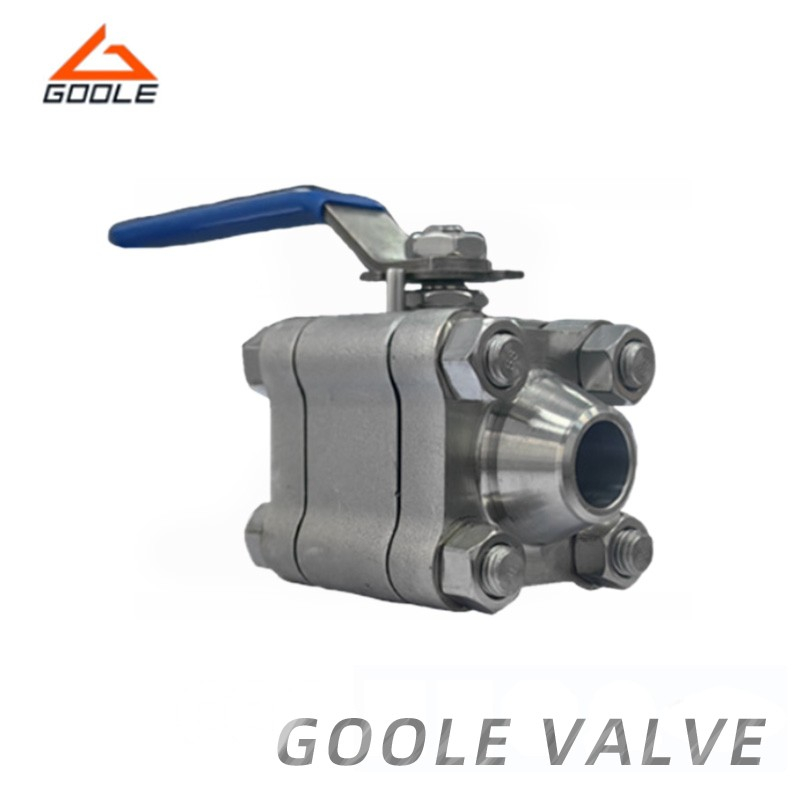

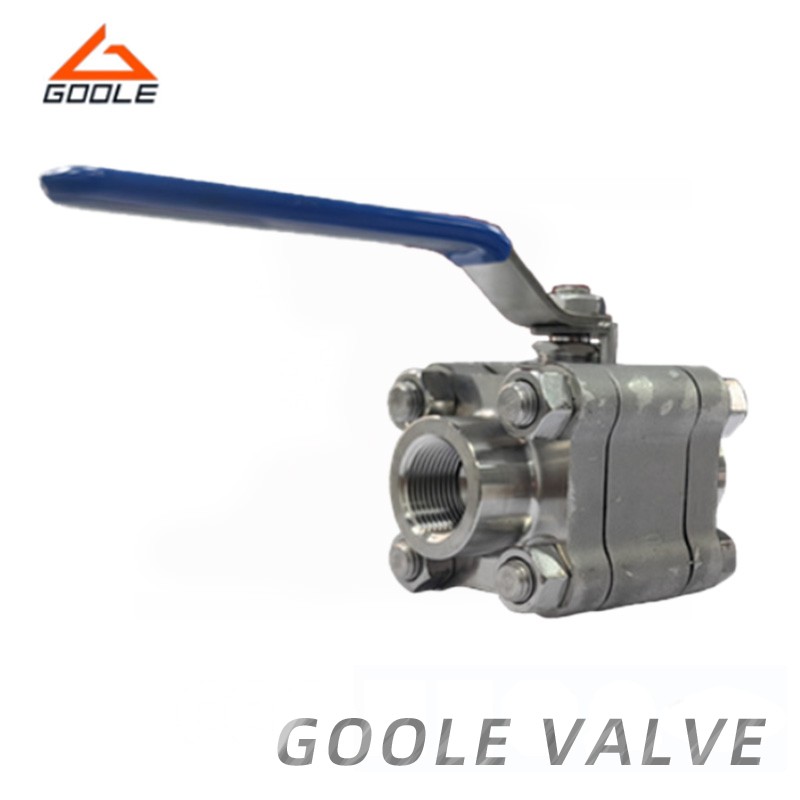

The 3PC forged steel float ball valve is designed to provide safe and efficient flow management for pipeline systems. The valve adopts a three piece structure, which is easy to maintain and quickly replace parts without disconnecting the valve from the pipeline. The floating ball design ensures smooth operation and tight closure, making it an ideal choice for applications that require precise control of fluid flow. This valve has a 90 degree rotation function, which can be quickly opened and closed, making it very suitable for high-pressure systems that require reliable operation.
● Fluid Compatibility: Suitable for handling various fluids such as water, oil, and natural gas, this valve can be applied to multiple industries, including chemical processing, power generation, and petrochemical industries.
● Floating Ball with Auto-Seal Compensation: The floating ball design can be adjusted with pressure, and even if the valve seat is slightly worn, it can maintain consistent sealing.
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
Main Dimensions
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q:What is the pressure rating for this valve?
This valve can withstand pressures ranging from 150lb to 1500lb, making it suitable for high-pressure pipeline systems.
Q:Is this valve suitable for remote operation?
Yes, the valve can be operated manually or with pneumatic or electric actuators, offering flexibility for automated systems.
Our 3PC forged steel floating ball valve is used for safe flow management, providing safe and reliable performance for fluid control in demanding applications. The three piece design simplifies maintenance, while the floating ball mechanism ensures precise sealing and tight closure. We have years of technical expertise in providing valve solutions for key industries such as oil and gas, petrochemicals, and chemical processing. Our experience enables us to provide products that not only meet but also exceed the strict requirements of these industries.
