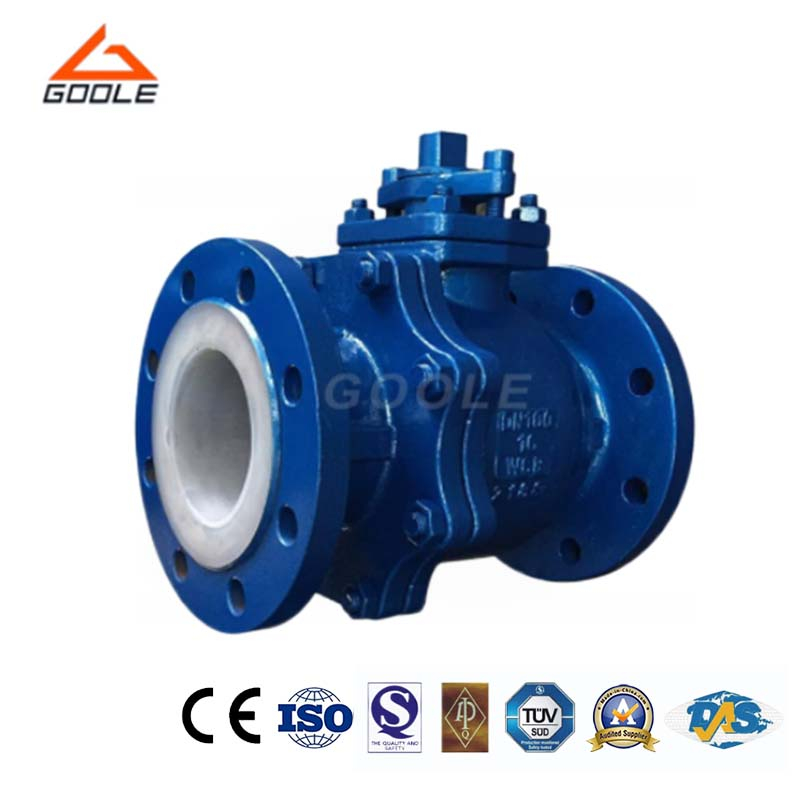

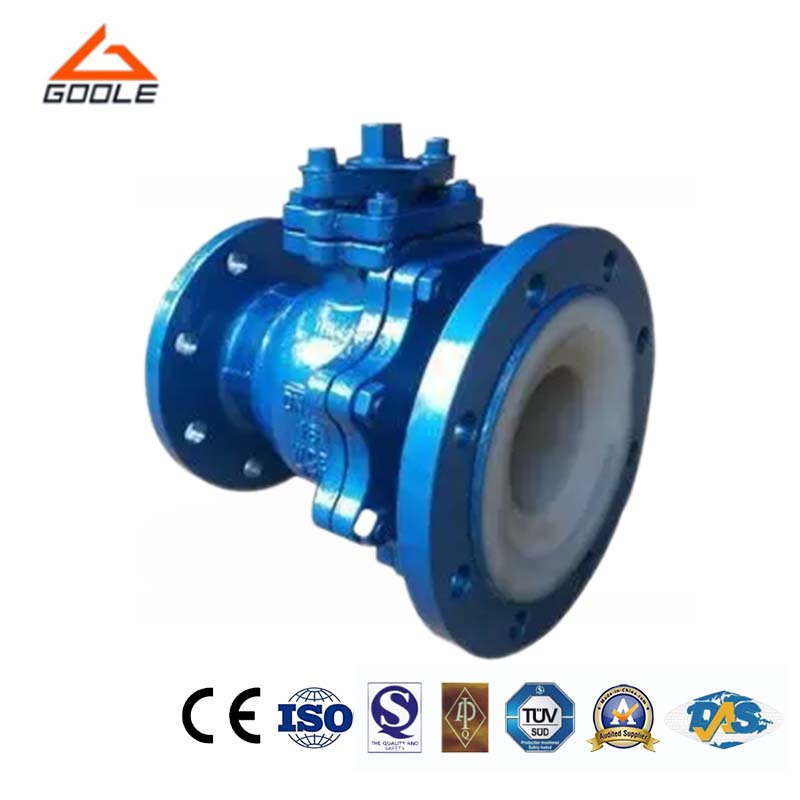

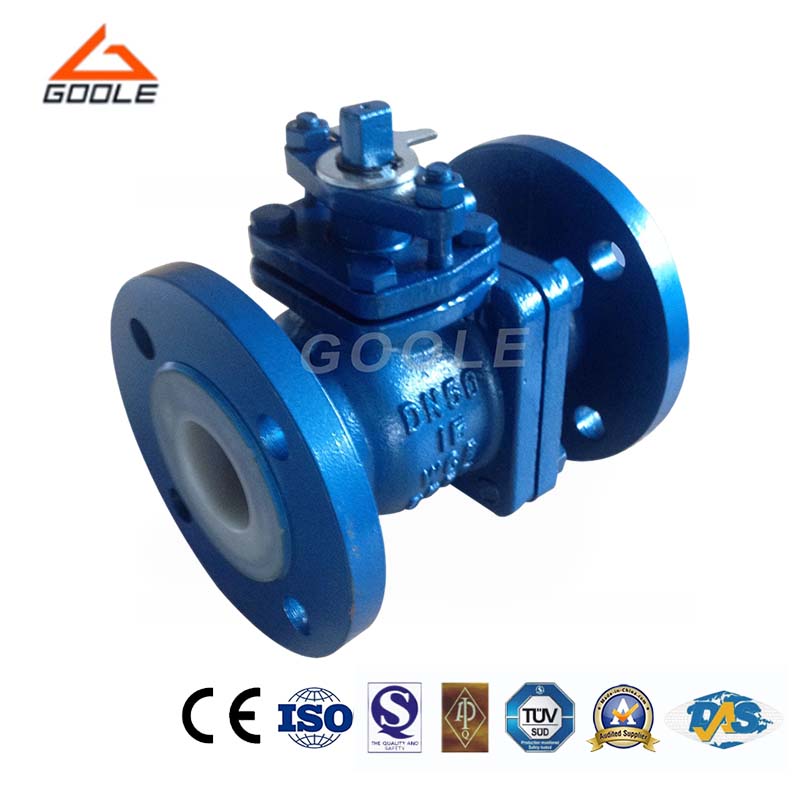

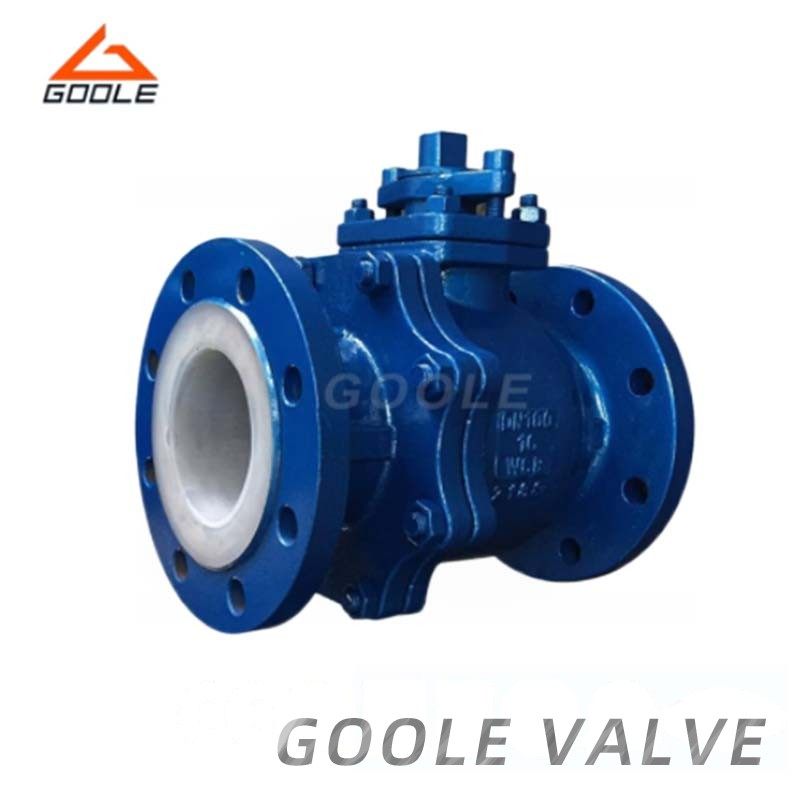

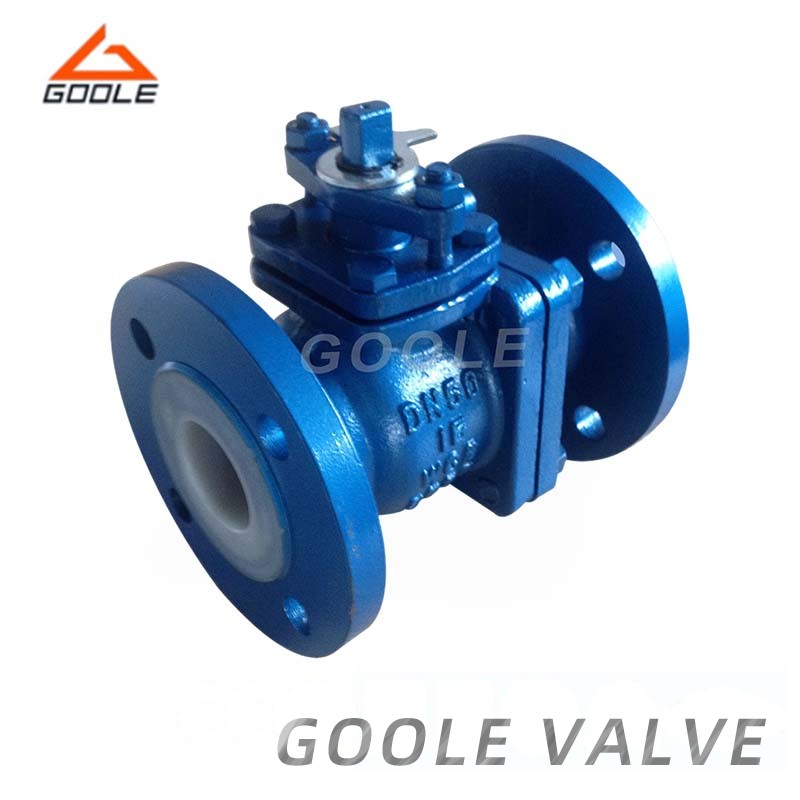

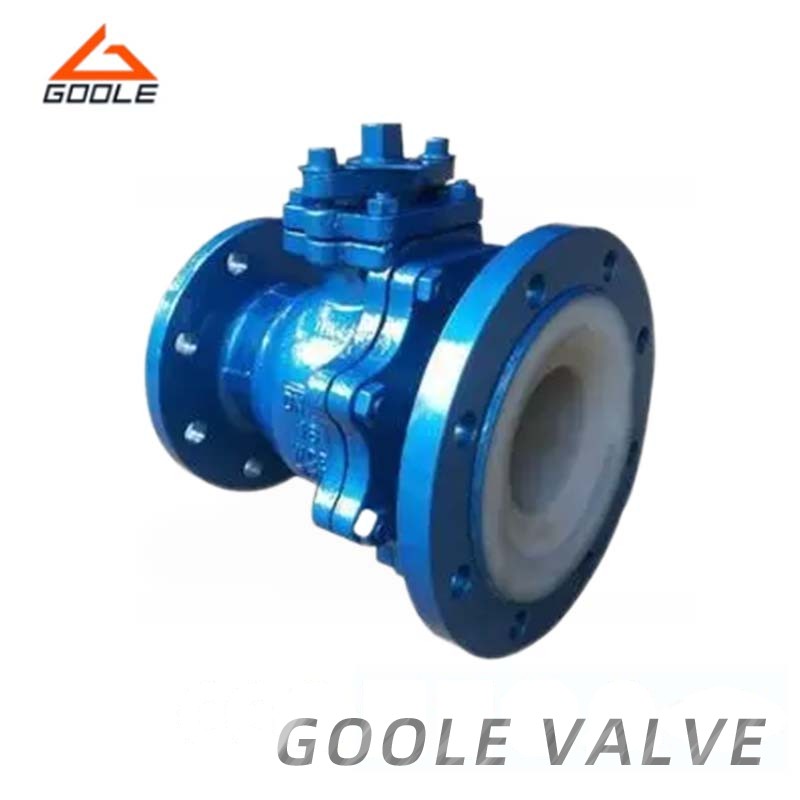

PTFE Flanged Ends 2PCS Floating Ball Valve main parameterNormal Size: 1/2"~8"Pressure rating: 150 LB~900 LBMaterials: WCB, LCB, LCC, CF8...
| Quantity: | |
|---|---|

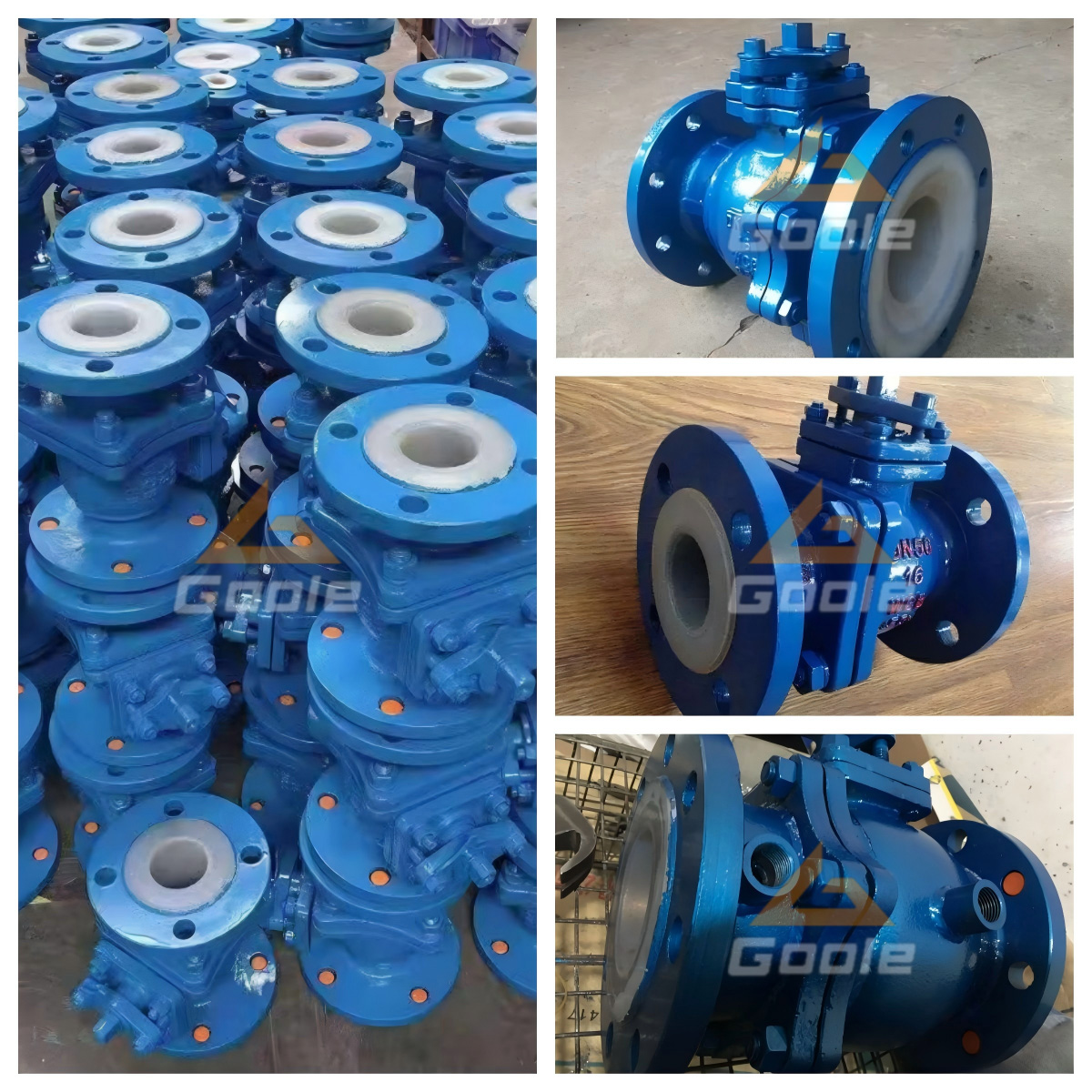

PTFE/PFA Lined ball valve is epecially designed for controlling the usual corrosive medium. Its body inner surface is lined with fluorine plastic like FEP/PTFE/PTFE or some other kinds of rubber. It features a high strength and aprominent performance of corrosion resistance. It can be selected to suit with different working temperature and fluid pipelines.
●Excellent Wear Resistance: Due to the use of ceramic materials, the ball and seat of the ball valve have high wear resistance, which can effectively prolong the service life of the valve.
●Excellent Sealing Performance: The hardness of ceramic materials is high and it is not easy to deform, so it can ensure that the ball valve achieves a good sealing effect when closed to avoid leakage.
●Strong Corrosion Resistance: Ceramic materials have excellent corrosion resistance to a variety of chemical substances, so ceramic floating ball valve can be widely used in chemical, pharmaceutical and other corrosive media occasions.
●Low Fluid Resistance: the ball of the ball valve is coaxial with the fluid channel when it is open, so the resistance is small when the fluid passes through, which can effectively reduce energy consumption.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our ceramic floating ball valve uses advanced ceramic materials, boasting extremely high hardness and wear resistance, effectively extending the service life of the valve. Its unique design allows the ball to float freely in the fluid, achieving self-adaptive sealing, which significantly enhances sealing performance and reduces the risk of leakage. Our ceramic floating ball valve is easy to operate and has low maintenance costs, maintaining stable performance in both high-temperature and low-temperature environments. By choosing our ceramic floating ball valve, you will receive a high-quality, high-performance, and reliable valve solution.
