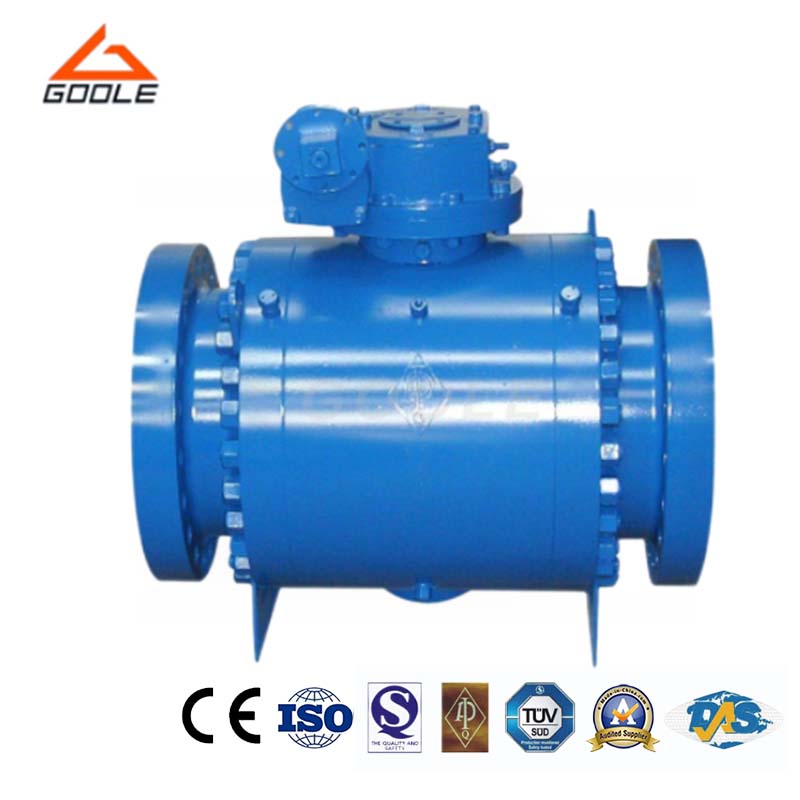

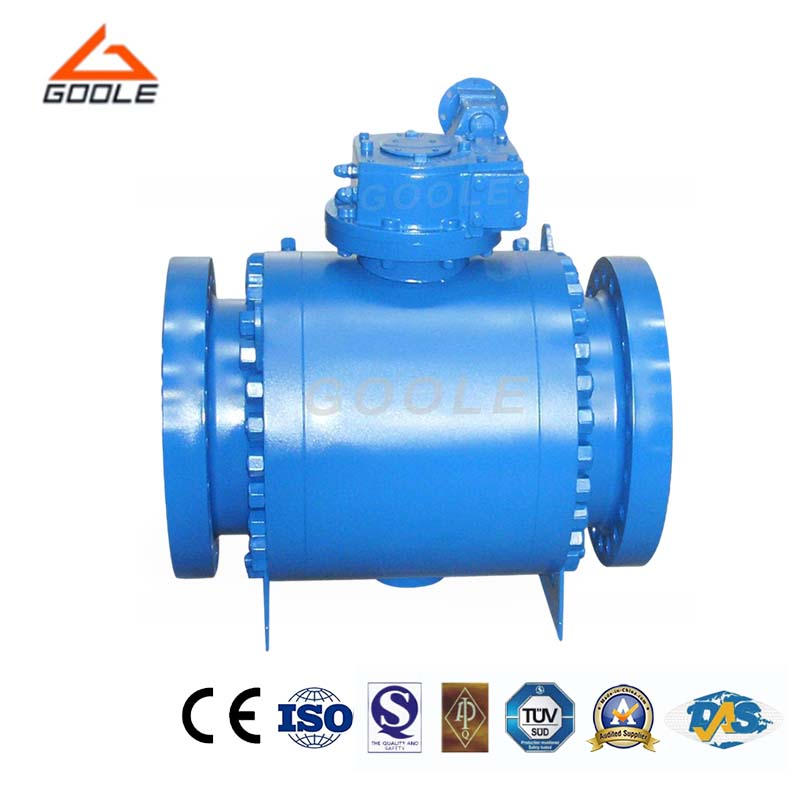

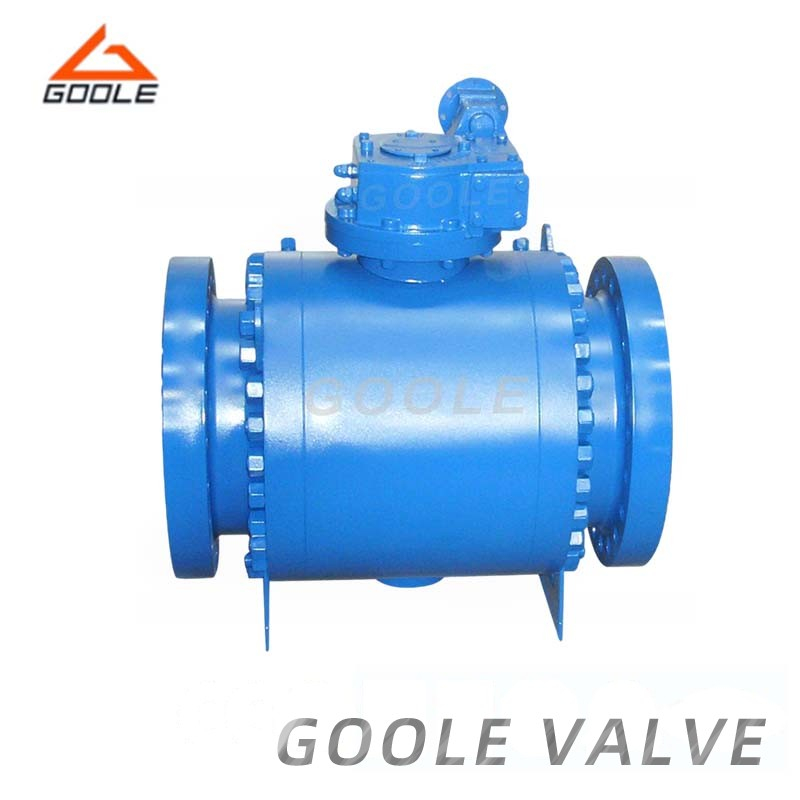

Split body reduce bore trunnion mounted ball valve have two piece and three piece body structure.middle part is bolt connection, RPTFE seal insert into stainless steel ring with spring .keep good sealling...
| Quantity: | |
|---|---|
The 3 PCS standard port forged earball valve is designed to provide robust and long-run operation in a variety of industrial conditions. Unlike conventional valves, the model has a standard port design that ensures the inner hole matches the pipe size, facilitating smooth flow and reducing turbulence. This design is very advantageous for systems requiring stable uninterrupted fluid transport.
The valve body is made of forged steel, which has excellent structural integrity compared to other materials and can withstand heavy load pressure. Whether full or small caliber options, 3 PCS valves can meet various flow requirements. Its spring-loaded valve seat further optimizes the sealing performance to ensure a consistent sealing performance even under pressure fluctuations, ensuring the liquid sealing throughout the valve life cycle.
● Standard Port Design: Ensure effective flow and reduce resistance in a variety of perfectly uninterrupted fluid conditioning applications.
● Flexible Connections:Available with thread, welded, and flange ends, it provides easy integration into various plumbing systems.
●Flow Efficiency：The standard port design minimizes pressure loss, enhances flow characteristics and ensures smooth operation of the pipeline.
| No | Part Name | ASTM Material | ||
| Carbon steel | 18Cr-19Ni-2Mo | Low temperature steel | ||
| 1 | Body | A216-WCB | A351-CF8M | A352-LCB |
| 2 | Bonnet | A216-WCB | A351-CF8M | A352-LCB |
| 3 | Ball | A182-F304 | A182-F316 | A182-F314 |
| 4 | Stem | A276-304 | A276-316 | A276-304 |
| 5 | Seat | A105+ENP | A182-F316 | A350-LF2+ENP |
| 6 | Stem insert | Class filled PTFE | A313-304 | |
| 7 | Seat spring | A313-304 | Inconel X-750 | A313-304 |
| 8 | O-ring | NBR | PTFE | PTFE |
| 9 | O-ring | NBR | PTFE | PTFE |
| 10 | Gasket | Graphite+304 | Graphite+316 | Graphite+304 |
| 12 | Spring | A313-304 | A313-316 | A313-304 |
| 13 | Grounding plunger | A216-WCB | A182-F316 | A182-F304 |
| 14 | Stud | A193-B7 | A193-B8 | A320-L7 |
| 15 | Nut | A194-2H | A194 8 | A194 4 |
| 16 | Trunnion | A276-304 | A276-316 | A276-304 |
| 17 | Trunnion bearing | 304+PTFE | 316+PTFE | 304+PTFE |
| 18 | Gland flange | A193-B7 | A193-8 | A193-B7 |
| 19 | Gland bolt | A193-B7 | A193-B8 | A193-B7 |
| 20 | Stop plate | Carbon steel | Carbon steel+Zn | Carbon steel |
| 21 | Handle | Carbon steel | ||
Main Dimensions
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 36 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 650 | 700 | 750 | 800 | 900 | |
| L(RF) | in | 7 | 7.5 | 8 | 9 | 15.5 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 42 | 45 | 49 | 51 | 54 | 60 |
| mm | 178 | 190 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1143 | 1245 | 1295 | 1372 | 1524 | |
| L1(BW) | in | 8.5 | 9.5 | 11.12 | 12 | 18 | 20.5 | 22 | 25 | 30 | 33 | 36 | 39 | 45 | 49 | 53 | 55 | 60 | 68 |
| mm | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 814 | 991 | 1143 | 1245 | 1346 | 1397 | 1524 | 1727 | |
| H | in | 7 | 7.5 | 8.25 | 9.25 | 20.88 | 24.62 | 25.62 | 30.75 | 31 | 36.25 | 38.25 | 43.38 | 5.25 | 50.75 | 55.12 | 64.12 | 70.88 | 80.75 |
| mm | 177 | 190 | 210 | 235 | 530 | 625 | 650 | 780 | 790 | 920 | 970 | 1100 | 1150 | 1290 | 1400 | 1630 | 1840 | 2050 | |
| W | in | 14 | 16 | 20 | 20 | 24 | 24 | 24 | 24 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| mm | 350 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | |
| WT(Kg) | RF | 15 | 19 | 27 | 38 | 81 | 140 | 160 | 205 | 260 | 390 | 510 | 750 | 1200 | 1400 | 1860 | 2100 | 2530 | 2970 |
| BW | 13.5 | 15.5 | 24.5 | 32.5 | 76 | 132 | 147 | 182 | 241 | 370 | 495 | 726 | 1125 | 1250 | 1640 | 1930 | 2390 | 276 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:What is the advantage of the Standard Port design?Standard Port
The standard port design minimizes flow resistance and prevents any turbulence, ensuring smoother and more efficient flow in the pipeline.
Q:How does the valve handle sealing at high pressure?
The valve is equipped with a self releasing seat design, which ensures effective sealing under high pressure, prevents leakage, and reduces operating torque.
Our 3PCS standard port forged ear ball valve is designed with innovation in mind to provide efficient fluid control while reducing wear and maintaining reliable operation. The ear shaft installation design and standard port configuration enable our valves to have excellent performance in high demand applications. Our team is committed to providing customized solutions to ensure that your unique requirements are accurately and professionally met.
