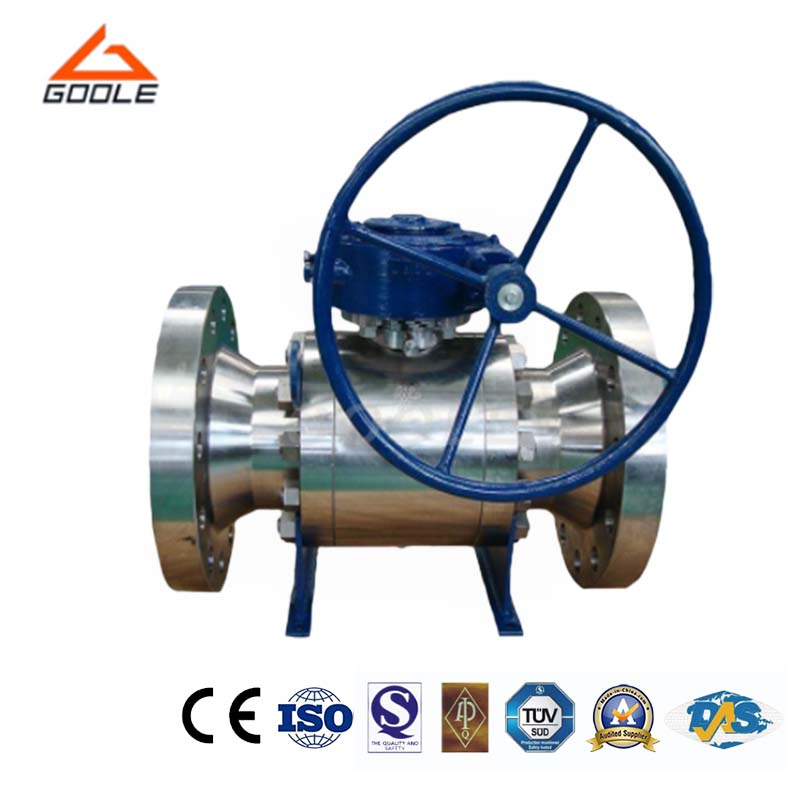

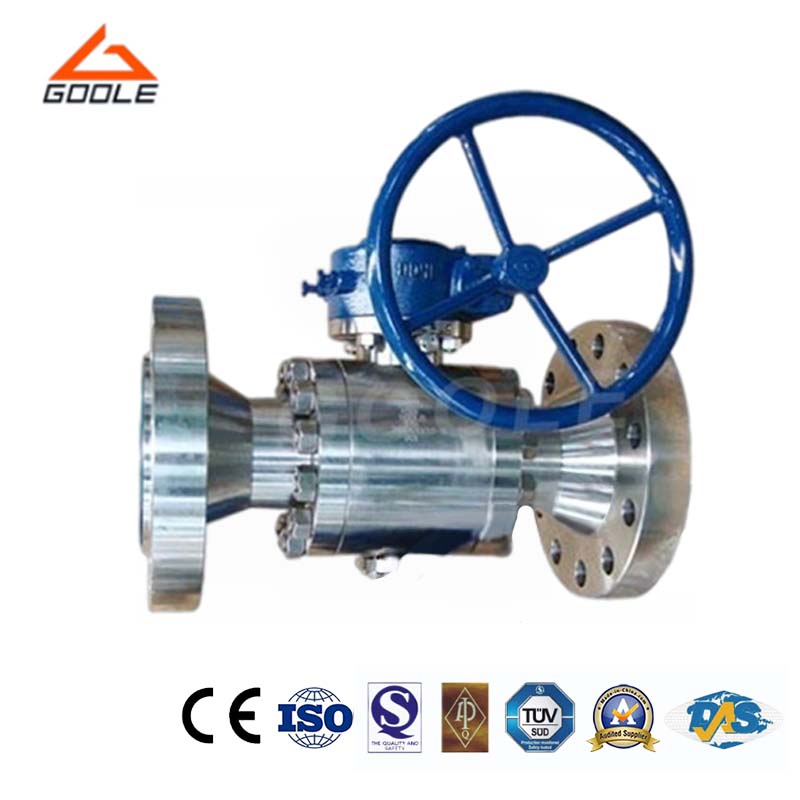

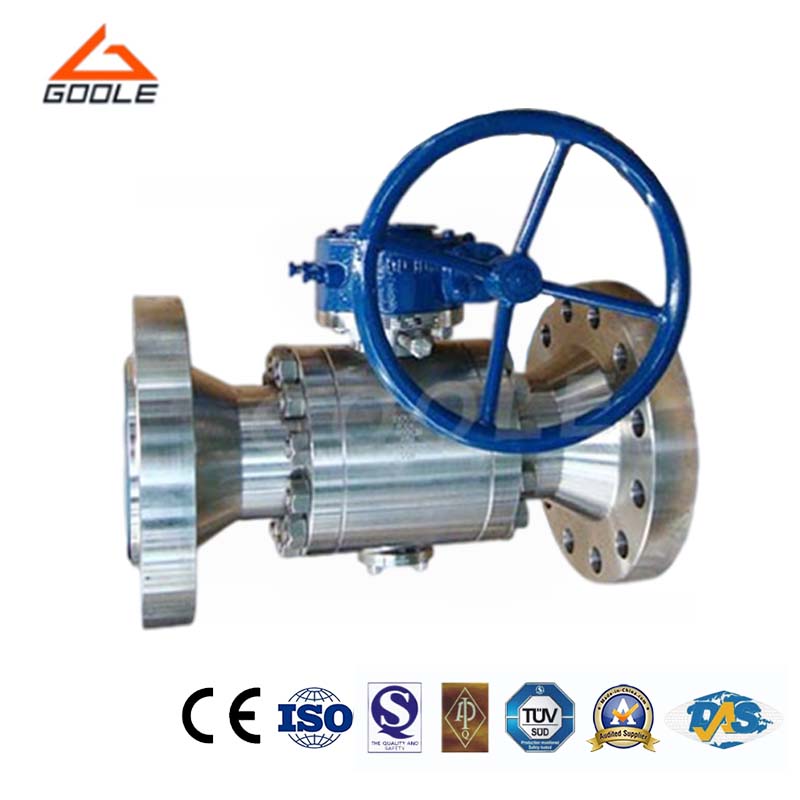

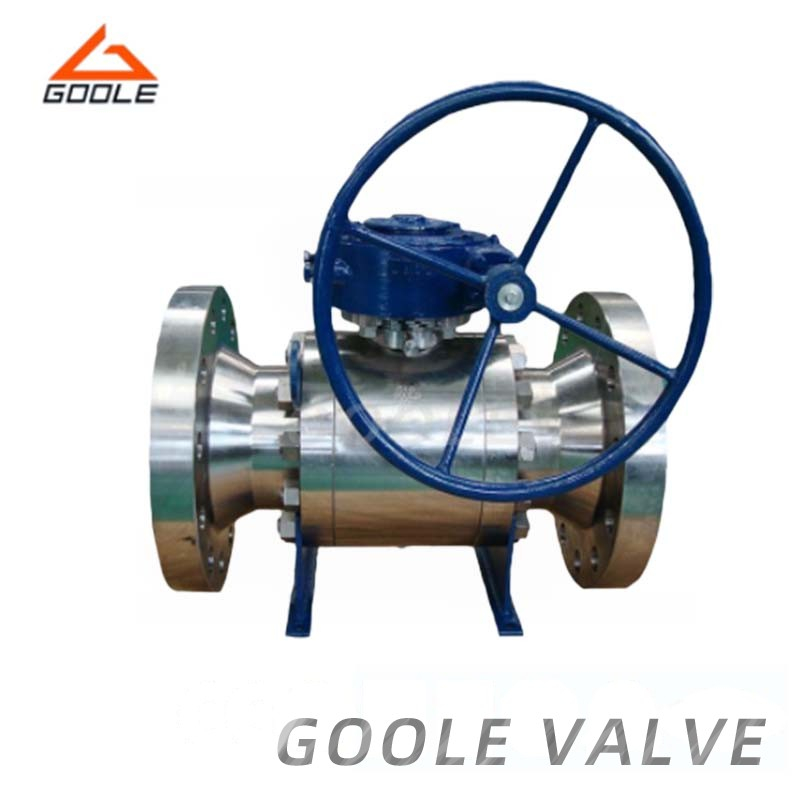

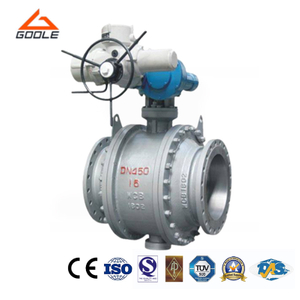

The Optimized Full Bore/Reduced Bore 3PCS Forged Steel Trunnion Ball Valve offers a versatile solution for fluid control in high-pressure pipeline systems. Designed with precision engineering, this valve is available in both full bore and reduced bore options to suit various application needs.
| Quantity: | |
|---|---|

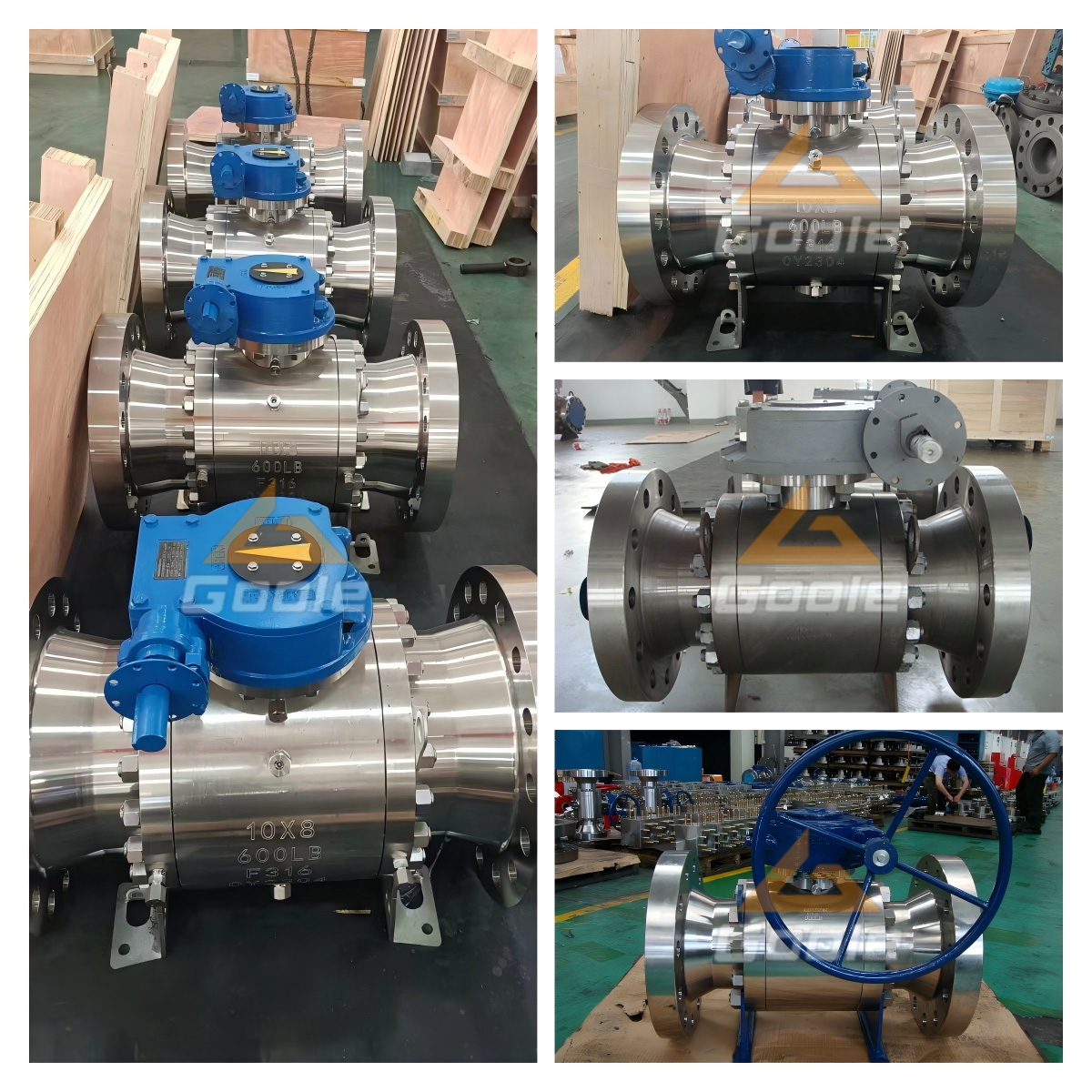

This 3PCS Forged Steel Trunnion Ball Valve is engineered for optimal fluid management in pipeline systems, providing precise flow regulation and reliable isolation. The valve’s unique design allows for the flexibility of both full bore and reduced bore configurations, making it suitable for a wide range of industrial applications.
The full bore configuration ensures minimal flow resistance, which is ideal for systems where maintaining high flow rates with low pressure drops is critical, such as in pump suction pipes. On the other hand, the reduced bore option is designed for systems where space and flow control are more important than the maximum flow capacity. This versatility allows the valve to adapt to different pipeline configurations and operational requirements.
| No | Part Name | ASTM Material | ||
| Carbon steel | 18Cr-19Ni-2Mo | Low temperature steel | ||
| 1 | Body | A216-WCB | A351-CF8M | A352-LCB |
| 2 | Bonnet | A216-WCB | A351-CF8M | A352-LCB |
| 3 | Ball | A182-F304 | A182-F316 | A182-F314 |
| 4 | Stem | A276-304 | A276-316 | A276-304 |
| 5 | Seat | A105+ENP | A182-F316 | A350-LF2+ENP |
| 6 | Stem insert | Class filled PTFE | A313-304 | |
| 7 | Seat spring | A313-304 | Inconel X-750 | A313-304 |
| 8 | O-ring | NBR | PTFE | PTFE |
| 9 | O-ring | NBR | PTFE | PTFE |
| 10 | Gasket | Graphite+304 | Graphite+316 | Graphite+304 |
| 12 | Spring | A313-304 | A313-316 | A313-304 |
| 13 | Grounding plunger | A216-WCB | A182-F316 | A182-F304 |
| 14 | Stud | A193-B7 | A193-B8 | A320-L7 |
| 15 | Nut | A194-2H | A194 8 | A194 4 |
| 16 | Trunnion | A276-304 | A276-316 | A276-304 |
| 17 | Trunnion bearing | 304+PTFE | 316+PTFE | 304+PTFE |
| 18 | Gland flange | A193-B7 | A193-8 | A193-B7 |
| 19 | Gland bolt | A193-B7 | A193-B8 | A193-B7 |
| 20 | Stop plate | Carbon steel | Carbon steel+Zn | Carbon steel |
| 21 | Handle | Carbon steel | ||
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 36 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 650 | 700 | 750 | 800 | 900 | |
| L(RF) | in | 7 | 7.5 | 8 | 9 | 15.5 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 42 | 45 | 49 | 51 | 54 | 60 |
| mm | 178 | 190 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1143 | 1245 | 1295 | 1372 | 1524 | |
| L1(BW) | in | 8.5 | 9.5 | 11.12 | 12 | 18 | 20.5 | 22 | 25 | 30 | 33 | 36 | 39 | 45 | 49 | 53 | 55 | 60 | 68 |
| mm | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 814 | 991 | 1143 | 1245 | 1346 | 1397 | 1524 | 1727 | |
| H | in | 7 | 7.5 | 8.25 | 9.25 | 20.88 | 24.62 | 25.62 | 30.75 | 31 | 36.25 | 38.25 | 43.38 | 5.25 | 50.75 | 55.12 | 64.12 | 70.88 | 80.75 |
| mm | 177 | 190 | 210 | 235 | 530 | 625 | 650 | 780 | 790 | 920 | 970 | 1100 | 1150 | 1290 | 1400 | 1630 | 1840 | 2050 | |
| W | in | 14 | 16 | 20 | 20 | 24 | 24 | 24 | 24 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| mm | 350 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | |
| WT(Kg) | RF | 15 | 19 | 27 | 38 | 81 | 140 | 160 | 205 | 260 | 390 | 510 | 750 | 1200 | 1400 | 1860 | 2100 | 2530 | 2970 |
| BW | 13.5 | 15.5 | 24.5 | 32.5 | 76 | 132 | 147 | 182 | 241 | 370 | 495 | 726 | 1125 | 1250 | 1640 | 1930 | 2390 | 276 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:What is the difference between full bore and reduced bore options?
The full bore option has the same diameter as the pipe, allowing for higher flow rates with minimal resistance, while the reduced bore option has a smaller diameter, making it suitable for smaller systems and more precise flow control.
Q:What is the expected service life of this valve?
The trunnion-mounted design combined with durable materials and spring-loaded seats helps ensure that this valve performs effectively over a long service life. Proper maintenance and regular inspections can extend its operational life significantly, even under high-pressure and high-temperature conditions.
Q:How do full bore and reduced bore valves affect fluid flow?
Full bore valves allow for minimal flow resistance and high flow capacity, making them ideal for applications where large volumes of fluid need to pass through with minimal pressure drop. Reduced bore valves are designed for more precise flow control in systems where space constraints or lower flow capacity are required.
At GOOLE, we are dedicated to delivering high-quality valve solutions tailored to meet the unique demands of your industry. Our Optimized Full Bore/Reduced Bore 3PCS Forged Steel Trunnion Ball Valve combines advanced engineering with exceptional performance, ensuring that your pipeline systems operate efficiently and safely under the toughest conditions.
We prioritize customer satisfaction and offer professional pre-sales consultations and after-sales support, ensuring that you have the guidance you need throughout your valve selection and maintenance process. With customized solutions, reliable performance, and exceptional service, we are your trusted partner in optimizing fluid control systems.
