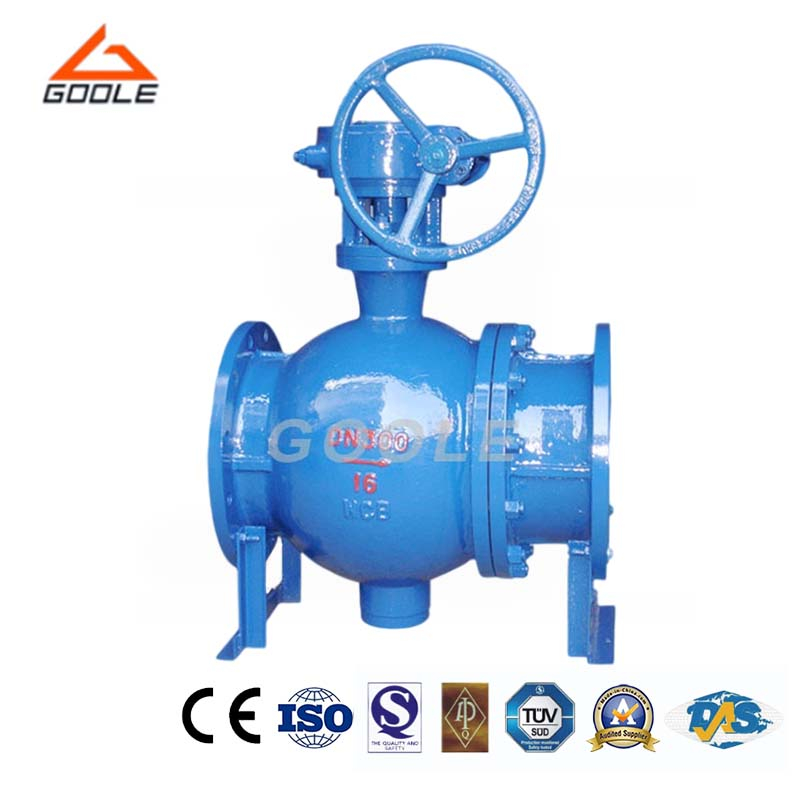

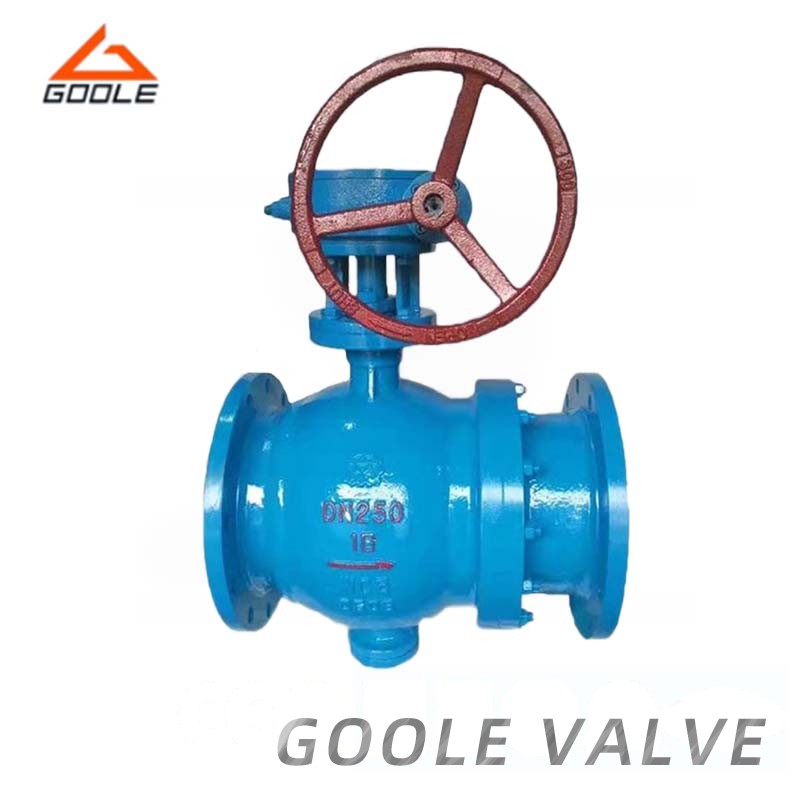

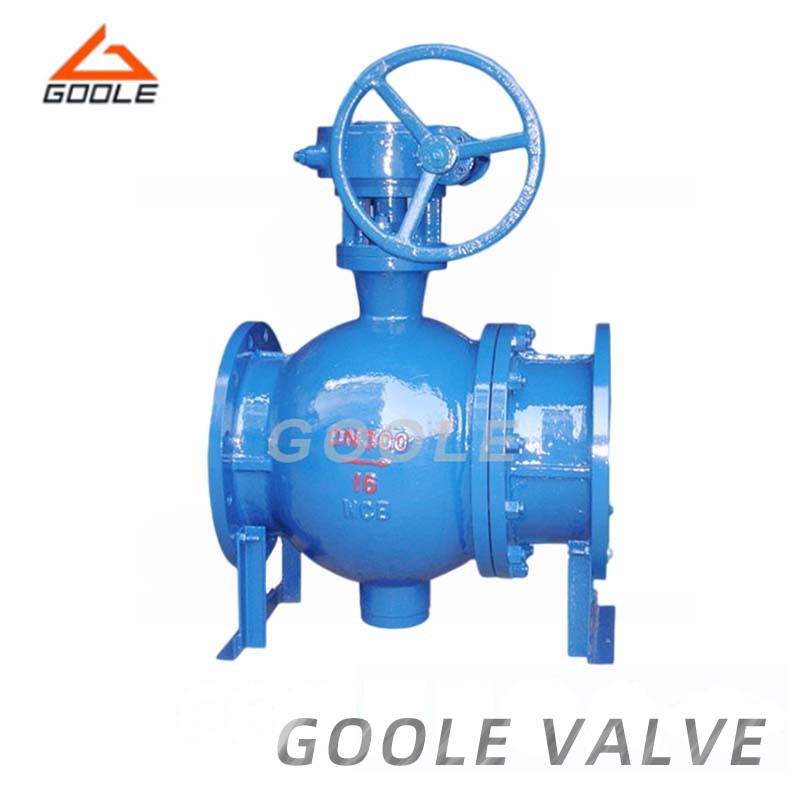

The top mounted eccentric hemisphere valve utilizes an eccentric valve body, eccentric ball, and valve seat. When the valve stem rotates, it automatically centers on a common trajectory, and the closer it is closed, the better the sealing effect is achieved. The ball and valve seat of the valve are completely separated, eliminating the wear of the sealing ring and overcoming the problem of traditional ball valve seat and ball sealing surface always wearing. Non metallic elastic materials are embedded in the metal seat, and the metal surface of the valve seat is well protected. This product is particularly suitable for media such as steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas, etc.
●Its structure adopts the eccentric wedge principle to achieve the purpose of locking:adjusting, and closing through the transmission mechanism. The sealing pair is a metal face ring with a hard contact seal. The double eccentric structure is located in the ball storage chamber when opening, with a large flow cross-section, and the valve is not washed out. When closing, the valve core is not washed out. When opening, the spherical surface of the valve core gradually moves along the valve seat, effectively removing scaling obstacles and achieving reliable sealing.
●The hemisphere of the valve:is made of bimetallic material, with different alloys deposited on the base material. The valve seat is also subjected to corresponding surfacing and special treatment. The sealing surface group is composed of various types such as anti-corrosion, wear-resistant, and high-strength, meeting the needs of different occasions
●Tightly sealed:delivering harmful gases with zero leakage
Item | Part. Name | Material |
1 | Bonnet | PE |
2 | Extension pipe | st37 |
3 | Body | st37 |
4 | Flat washer | st37 |
5 | Butterfly Spring | 60Si2MnA |
6 | Ball seat | SS202 |
7 | O-ring | EPDM |
8 | Ball washer | PTFE+20%C |
9 | Ball | SS304 |
10 | Stem washer | PTFE+20%C |
11 | Stem sleeve | st37 |
12 | Stem | SS410 |
13 | Stem ring | PTFE+20%C |
14 | Stem O-ring | FPM |
15 | Sleeve | st37 |
16 | Positioning PIN | ASTM1035 |
17 | Handle | st37 |
18 | Washer | Q235A |
19 | Nut | Q235A |
20 | Handle cap | ABS |
Main Dimensions
Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 36 |
mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 650 | 700 | 750 | 800 | 900 | |
L(RF) | in | 7 | 7.5 | 8 | 9 | 15.5 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 42 | 45 | 49 | 51 | 54 | 60 |
mm | 178 | 190 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1143 | 1245 | 1295 | 1372 | 1524 | |
L1(BW) | in | 8.5 | 9.5 | 11.12 | 12 | 18 | 20.5 | 22 | 25 | 30 | 33 | 36 | 39 | 45 | 49 | 53 | 55 | 60 | 68 |
mm | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 814 | 991 | 1143 | 1245 | 1346 | 1397 | 1524 | 1727 | |
H | in | 7 | 7.5 | 8.25 | 9.25 | 20.88 | 24.62 | 25.62 | 30.75 | 31 | 36.25 | 38.25 | 43.38 | 5.25 | 50.75 | 55.12 | 64.12 | 70.88 | 80.75 |
mm | 177 | 190 | 210 | 235 | 530 | 625 | 650 | 780 | 790 | 920 | 970 | 1100 | 1150 | 1290 | 1400 | 1630 | 1840 | 2050 | |
W | in | 14 | 16 | 20 | 20 | 24 | 24 | 24 | 24 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
mm | 350 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | |
WT(Kg) | RF | 15 | 19 | 27 | 38 | 81 | 140 | 160 | 205 | 260 | 390 | 510 | 750 | 1200 | 1400 | 1860 | 2100 | 2530 | 2970 |
BW | 13.5 | 15.5 | 24.5 | 32.5 | 76 | 132 | 147 | 182 | 241 | 370 | 495 | 726 | 1125 | 1250 | 1640 | 1930 | 2390 | 276 |
Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
Q41 /61 H-16C | 1.6 | 2.4 | 1.76 | -40~200ºC | Water,Vapour,Oil |
Q41 /61 H-25C | 2.5 | 3.75 | 2.5 |
Q1:What is the main suitable of this valve?
This product is particularly suitable for media such as steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas, etc.
Q2:What type of seating is used?
Non metallic elastic materials are embedded in the metal seat, and the metal surface of the valve seat is well protected.
Our top mounted eccentric hemisphere valve adopts advanced sealing design to ensure that excellent sealing effect can be achieved under various working conditions and effectively prevent leakage. The full path design keeps the fluid unimpeded when passing through the valve, reducing the pressure loss and improving the overall efficiency of the system. Selection of high quality materials manufacturing, after strict process treatment and precision machining, to ensure the valve wear resistance and corrosion resistance, prolong the service life.
