Flange connection Cryogenic ball valve is used for low temperature working condition,especially for some hazard media, such as liquidized natural gas. Applied to LNG plant, LNG receiving station, LNG gasification station and LNG carrier and ship...
| Quantity: | |
|---|---|

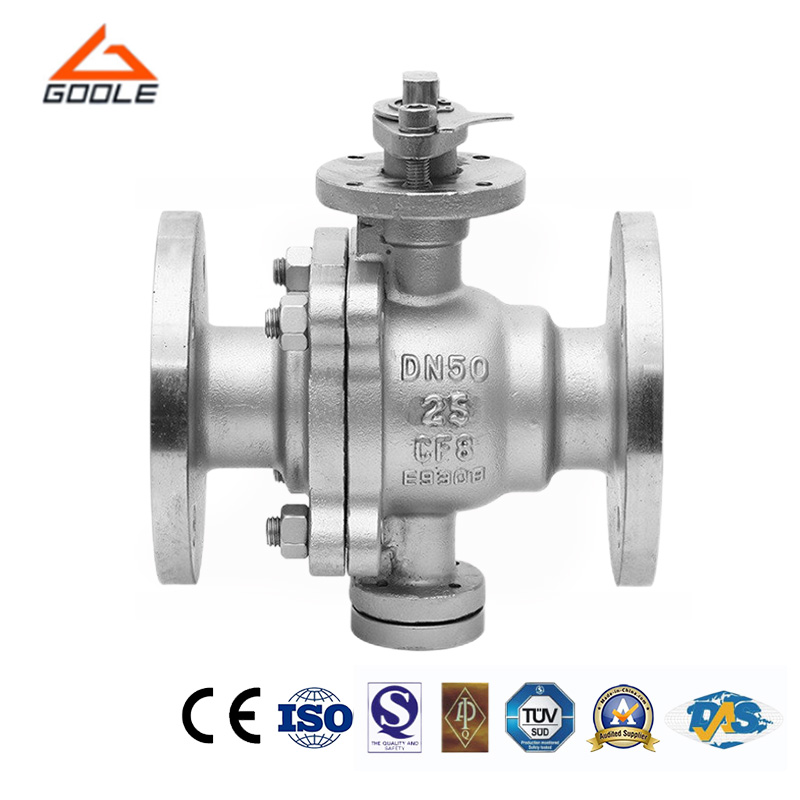

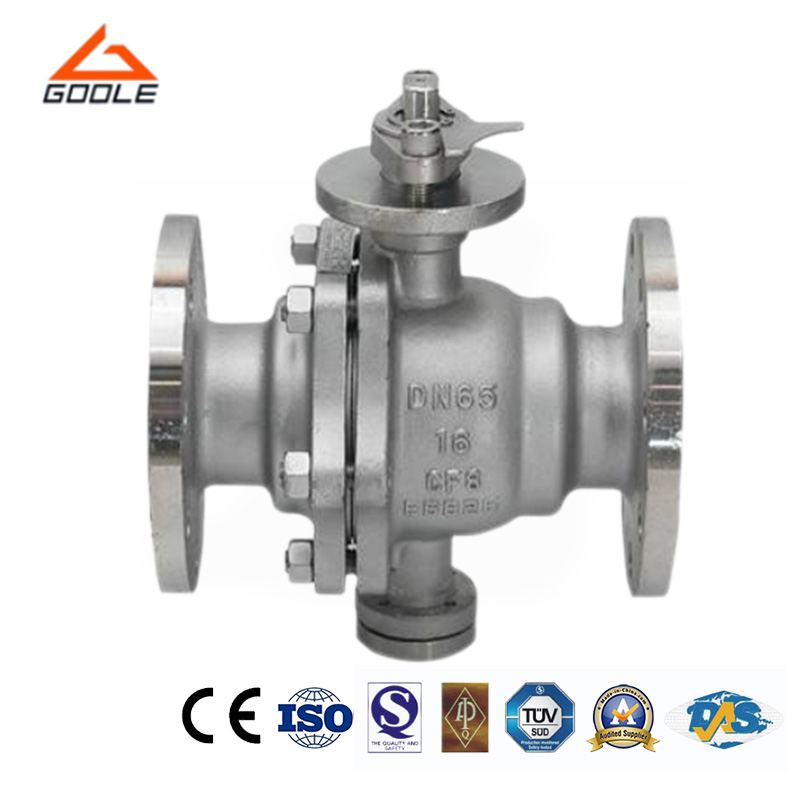

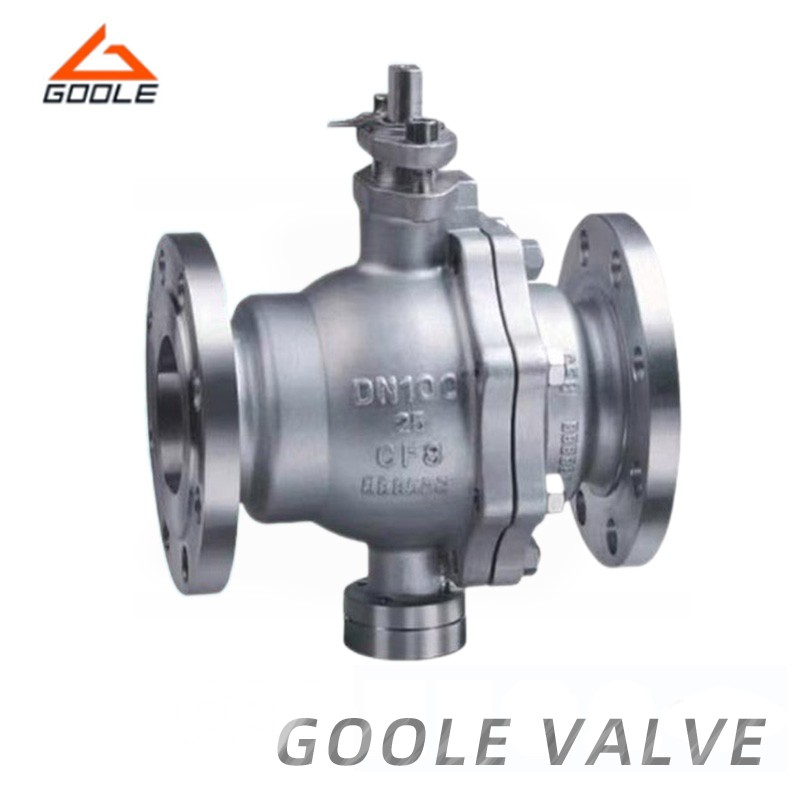

The hemispherical fixed high platform ball valve is suitable for low-temperature working conditions, especially for hazardous media such as liquefied natural gas. Suitable for LNG factories, LNG receiving stations, LNG gasification stations, as well as LNG transport ships and vessels.
● Extended Valve Cover: Can keep the valve and actuator at a greater distance from the low temperature process area, so as to ensure that the valve can be opened and closed normally and prevent damage caused by freezing of low temperature fluid.
● Low Operating Torque: More stable operation.
● Excellent Sealing Design: Minimize leakage.
● Rigid Structure: Reduce thermal shrinkage.
| No | Part Name | Materials |
-46°C~-101°C~-196°C | |||
1 | Left Body | A352-LCB,LCC,LC3,A351-CF8,A351-CF8M | |
2 | Seat | PTFE,RPTFE,PEEK,PPL,POM,KARBATE | |
NYLON,MOLON,DEVLON | |||
3 | Ball | A182-F304,F316 | |
4 | O-ring | VITON | |
5 | Gasket | Flexible graphite+304,flexible graphite+316,PTFE | |
6 | Bolt | A194-4,8,8M | |
7 | Nut | A320-L7,A193-B8,B8M | |
8 | Right body | A352-LCB,LCC,LC3,A351-CF8,CF8M | |
9 | Spring | ss304,316 | |
10 | Small ball | PTFE | |
11 | Thrust washer | A182-F6,F316,F316 | |
12 | Stem | Flexible graphite,PTFE | |
13 | Gasket | A182 F6,F304,F316 | |
14 | Packing | A352 LCB,A351 CF8 | |
15 | Gland | 1025,stainless steel | |
16 | Gland flange | A216 WCB | |
17 | Stop plate | 1025 | |
18 | Lever | 1035,stainless steel | |
19 | Screw | A352-LCB,LCC,LC3,A351-CF8,CF8M | |
20 | Screw | 1035,stainless steel | |
21 | Extended bonnet | A352-LCB,LCC,LC3,A351-CF8,CF8M, | |
22 | Screw | 1035,stainless steel | |
23 | Bushing | A182-F6,F304,F316 |

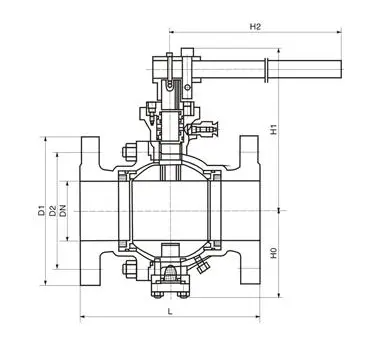

Main Dimensions
| Size(in) | H | ||
-46°C | -101°C | -196°C | ||
1/2 | 90 | 110 | 130 | |
3/4 | 100 | 110 | 140 | |
1 | 100 | 120 | 150 | |
1 1/2 | 110 | 130 | 160 | |
2 | 110 | 130 | 170 | |
3 | 120 | 150 | 190 | |
4 | 130 | 160 | 200 | |
6 | 140 | 170 | 220 | |
8 | 140 | 170 | 220 | |
10 | 150 | 180 | 240 | |
12 | 150 | 180 | 240 | |
14 | 160 | 190 | 250 | |
16 | 160 | 190 | 250 | |
18 | 160 | 190 | 250 | |
20 | 170 | 200 | 260 | |
24 | 170 | 200 | 260 | |
| Nominal diameter | DN15- DN250 |
| Nominal pressure | 150LB- 300LB |
| Working temperature | -196 - +29ºC |
| Driving means | handle, electric actuator |
| Material | Stainless steel, Forged Steel , LCC/LCB, CF8/CFM8 |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.

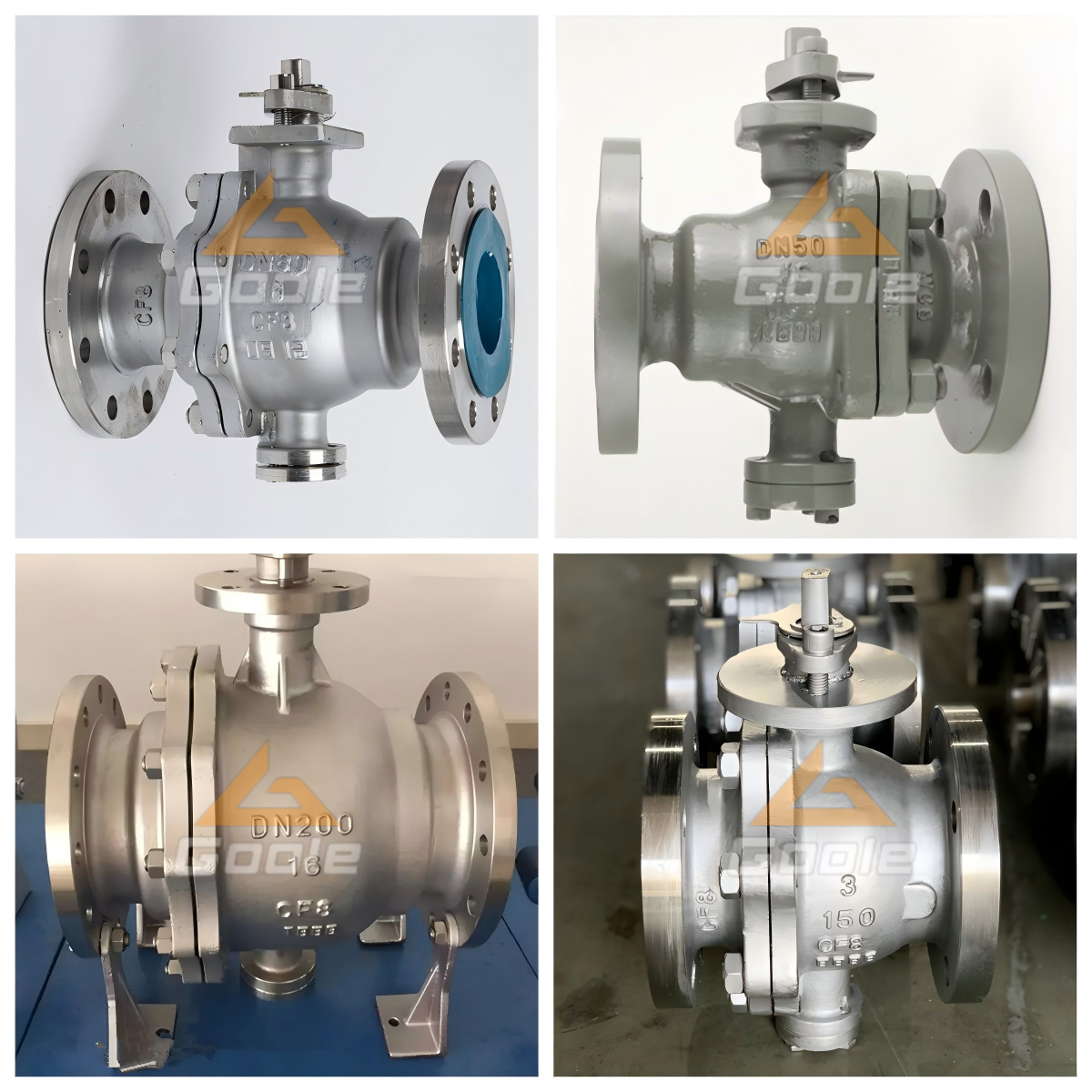

We use high-quality cast steel materials to ensure that valves have high strength, corrosion resistance, and wear resistance, enabling them to operate stably in harsh working environments for a long time. The flange cast steel fixed high platform ball valve adopts advanced sealing technology to ensure zero leakage when closed, effectively preventing medium leakage and ensuring system safety. Suitable for industrial fields such as petroleum, chemical, power, metallurgy, etc., meeting the requirements of medium control under various complex conditions.
