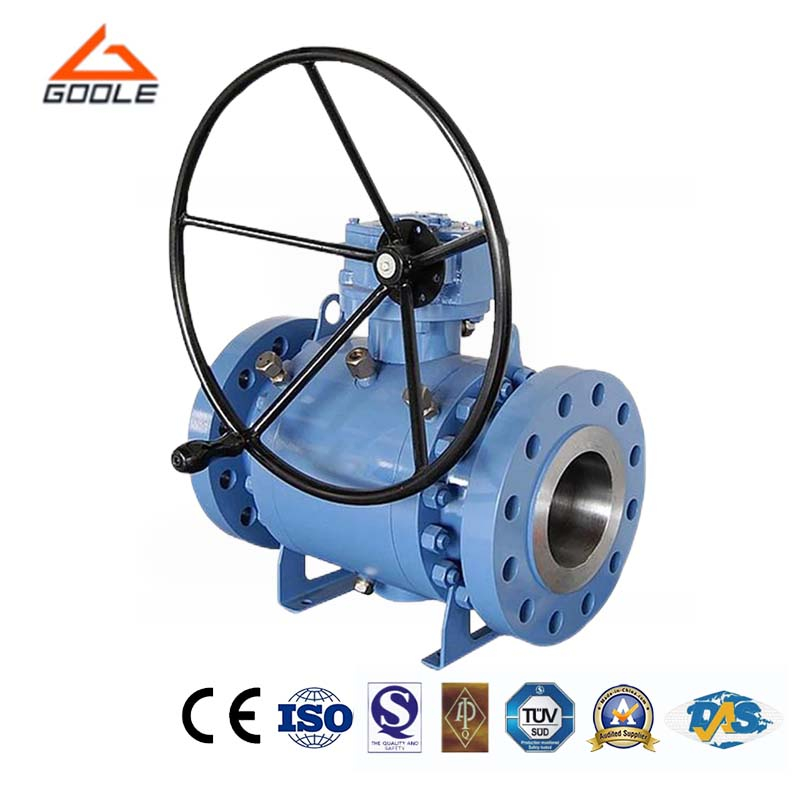

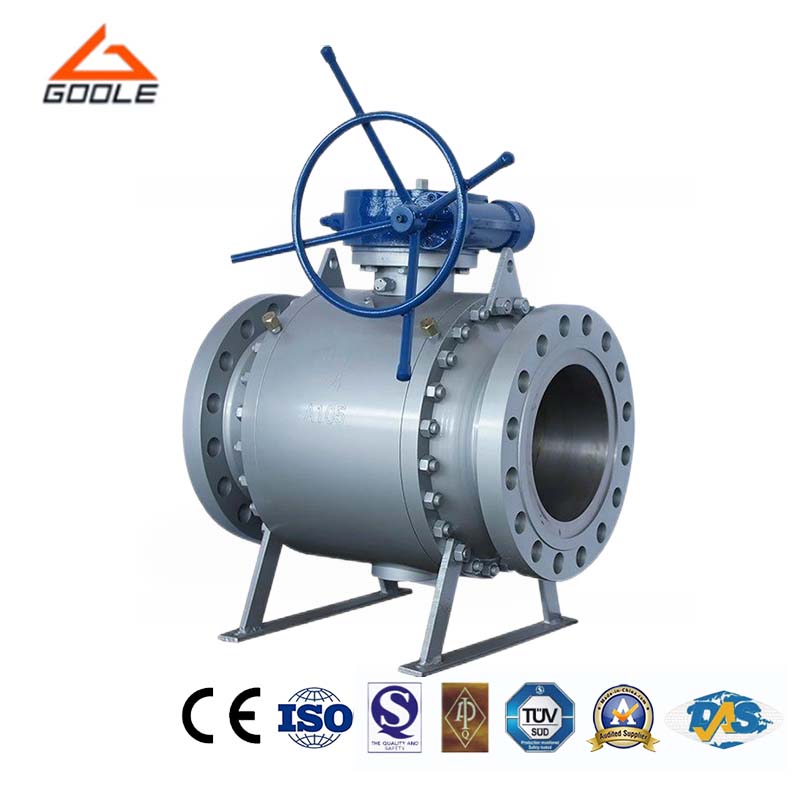

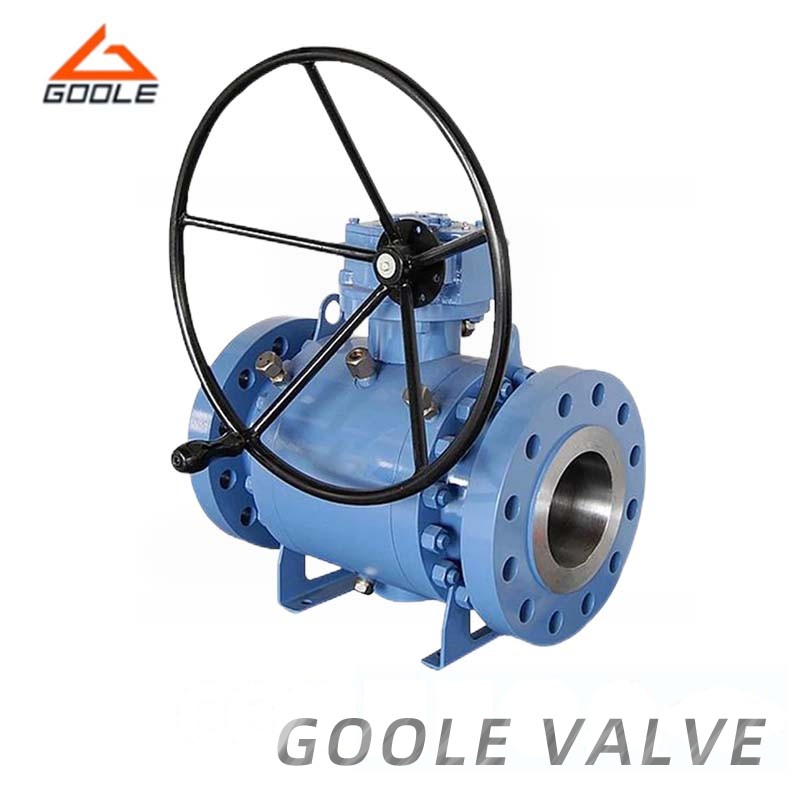

Split body reduce bore trunnion mounted ball valve have two piece and three piece body structure.middle part is bolt connection, RPTFE seal insert into stainless steel ring with spring .keep good sealling...
| Quantity: | |
|---|---|

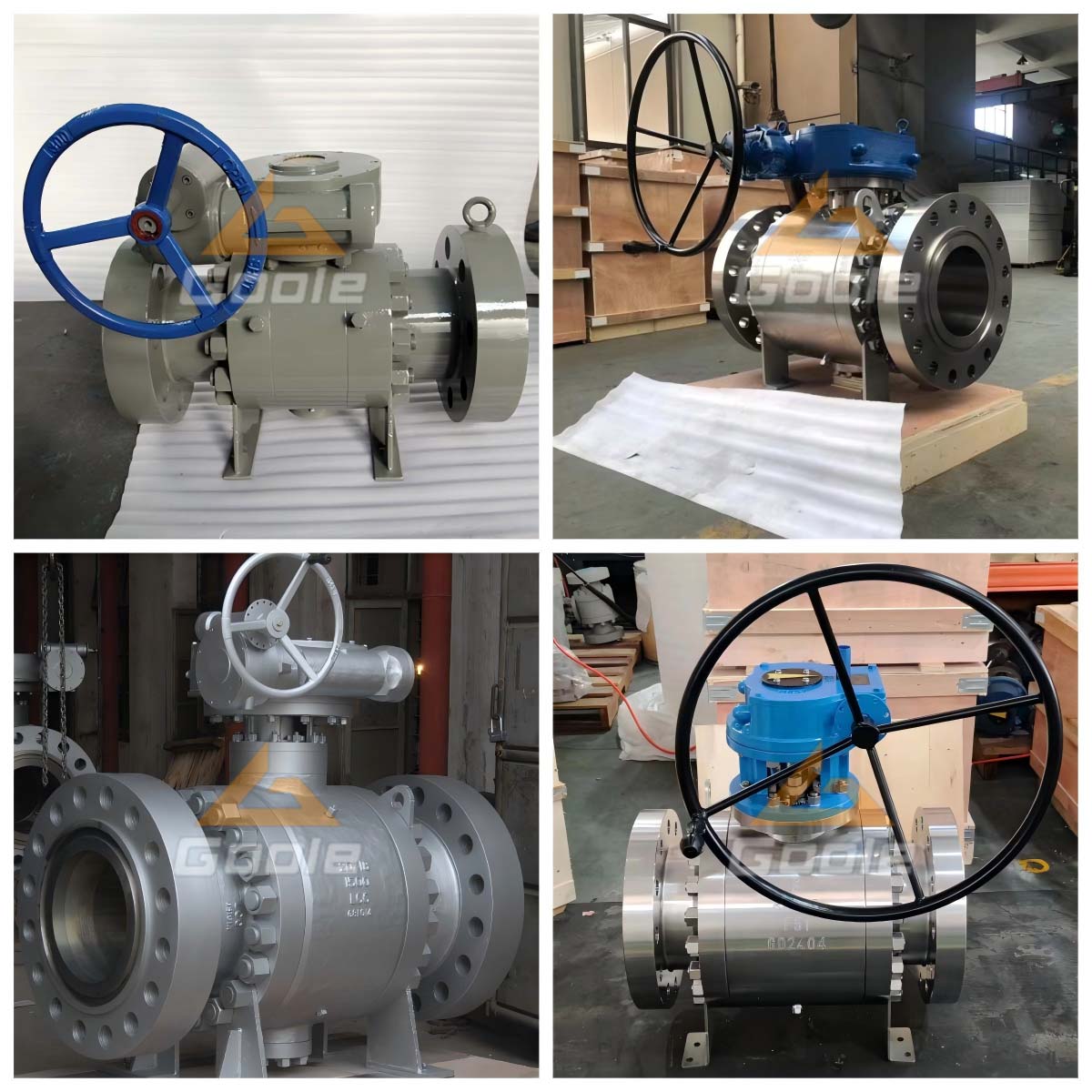

3 PCS forged steel ball valve represents the latest development of ball valve technology, suitable for long-haul transportation pipelines and general industrial pipelines. In design, it is able to withstand a variety of corrosive and non-corrosive media in harsh environments, ensuring its strength, safety, and precise tolerance. Unlike traditional floating ball valves, with this fixed ball valve running, the force exerted by the fluid pressure on the ball is completely transmitted to the bearing, thus preventing the sphere from moving to the seat. Therefore, the seat does not under excessive stress. This reduces the torque demand of the fixed ball valve, reduces the significant deformation of the seat, ensures stable sealing performance and long service life, making it particularly suitable for high pressure and large diameter application scenarios. Its unique spring-loaded seat assembly provides a self-tightening function to ensure an upstream sealing effect. Each valve is equipped with two-way sealing seats without flow limit and recommended horizontal installation.
● Standard port Design: ensuring efficient flow and reduce resistance, is an ideal choice for uninterrupted fluid adjustment in various applications.
● Flexible Connections: thread, welding, and flange end options are easily integrated into a wide range of piping systems.
● Flow Efficiency: the standard port design can reduce pressure loss, improve flow performance, and ensure the smooth operation of the pipeline system.
| No | Part Name | ASTM Material | ||
| Carbon steel | 18Cr-19Ni-2Mo | Low temperature steel | ||
| 1 | Body | A216-WCB | A351-CF8M | A352-LCB |
| 2 | Bonnet | A216-WCB | A351-CF8M | A352-LCB |
| 3 | Ball | A182-F304 | A182-F316 | A182-F314 |
| 4 | Stem | A276-304 | A276-316 | A276-304 |
| 5 | Seat | A105+ENP | A182-F316 | A350-LF2+ENP |
| 6 | Stem insert | Class filled PTFE | A313-304 | |
| 7 | Seat spring | A313-304 | Inconel X-750 | A313-304 |
| 8 | O-ring | NBR | PTFE | PTFE |
| 9 | O-ring | NBR | PTFE | PTFE |
| 10 | Gasket | Graphite+304 | Graphite+316 | Graphite+304 |
| 12 | Spring | A313-304 | A313-316 | A313-304 |
| 13 | Grounding plunger | A216-WCB | A182-F316 | A182-F304 |
| 14 | Stud | A193-B7 | A193-B8 | A320-L7 |
| 15 | Nut | A194-2H | A194 8 | A194 4 |
| 16 | Trunnion | A276-304 | A276-316 | A276-304 |
| 17 | Trunnion bearing | 304+PTFE | 316+PTFE | 304+PTFE |
| 18 | Gland flange | A193-B7 | A193-8 | A193-B7 |
| 19 | Gland bolt | A193-B7 | A193-B8 | A193-B7 |
| 20 | Stop plate | Carbon steel | Carbon steel+Zn | Carbon steel |
| 21 | Handle | Carbon steel | ||
Main Dimensions
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 36 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 650 | 700 | 750 | 800 | 900 | |
| L(RF) | in | 7 | 7.5 | 8 | 9 | 15.5 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 42 | 45 | 49 | 51 | 54 | 60 |
| mm | 178 | 190 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1143 | 1245 | 1295 | 1372 | 1524 | |
| L1(BW) | in | 8.5 | 9.5 | 11.12 | 12 | 18 | 20.5 | 22 | 25 | 30 | 33 | 36 | 39 | 45 | 49 | 53 | 55 | 60 | 68 |
| mm | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 814 | 991 | 1143 | 1245 | 1346 | 1397 | 1524 | 1727 | |
| H | in | 7 | 7.5 | 8.25 | 9.25 | 20.88 | 24.62 | 25.62 | 30.75 | 31 | 36.25 | 38.25 | 43.38 | 5.25 | 50.75 | 55.12 | 64.12 | 70.88 | 80.75 |
| mm | 177 | 190 | 210 | 235 | 530 | 625 | 650 | 780 | 790 | 920 | 970 | 1100 | 1150 | 1290 | 1400 | 1630 | 1840 | 2050 | |
| W | in | 14 | 16 | 20 | 20 | 24 | 24 | 24 | 24 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| mm | 350 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | |
| WT(Kg) | RF | 15 | 19 | 27 | 38 | 81 | 140 | 160 | 205 | 260 | 390 | 510 | 750 | 1200 | 1400 | 1860 | 2100 | 2530 | 2970 |
| BW | 13.5 | 15.5 | 24.5 | 32.5 | 76 | 132 | 147 | 182 | 241 | 370 | 495 | 726 | 1125 | 1250 | 1640 | 1930 | 2390 | 276 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:What is the advantage of the Standard Port design?
The standard port design minimizes flow resistance and prevents any turbulence, ensuring smoother and more efficient flow in the pipeline.
Q:How does the valve handle sealing at high pressure?
The valve is equipped with a self releasing seat design, which ensures effective sealing under high pressure, prevents leakage, and reduces operating torque.
Our 3 PCS forged steel ball valves are dedicated to innovation, designed to reduce wear, ensure operational reliability, and achieve effective fluid control. By adopting an earshaft mounting design and standard port configuration, our valves perform well in high demand applications. Our team is committed to providing customized solutions to ensure that your specific needs are accurately and professionally met.
