DescriptionThree pieces body. Valve is designed in accordance with the requirements of API 6D for pipeline service. Anti-static and anti blow-out stem design. Seat design gives perfect tighness and is available as either self-relieving type or double piston effect type. Disign minimizes friction leading to low operating torque. Available as double block and bleed execution,which allows for venting and draining of ling fluid from the body cavity. Avaiable Full and Reduced bore. Ball valves firesafe tested according to BS EN 12266-2,API 6FA and API 607. Electric,pneumatic and hydravlic actuators are available on customer's requirement...
| Quantity: | |
|---|---|

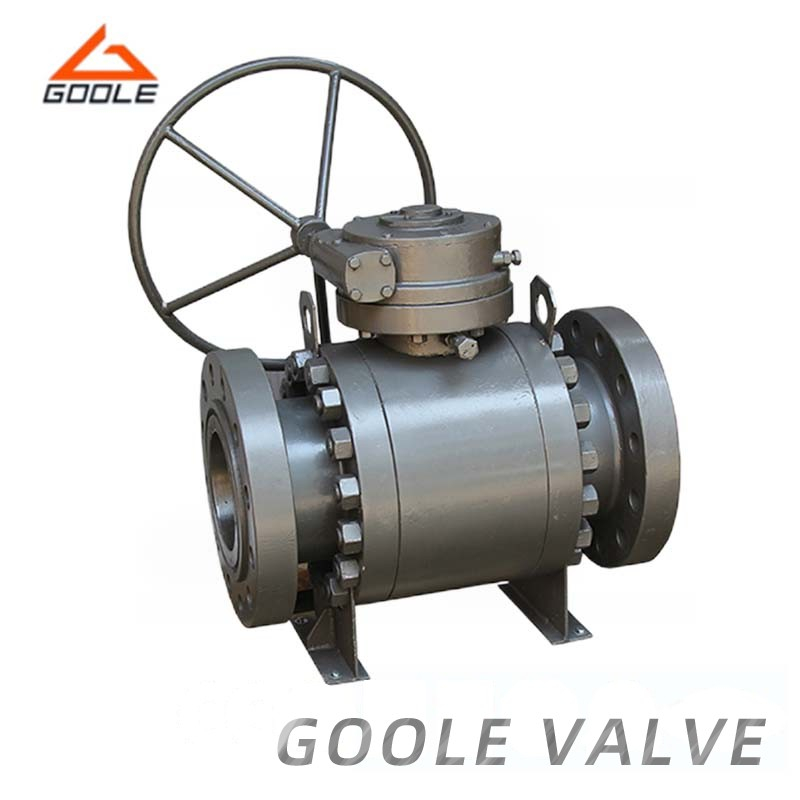

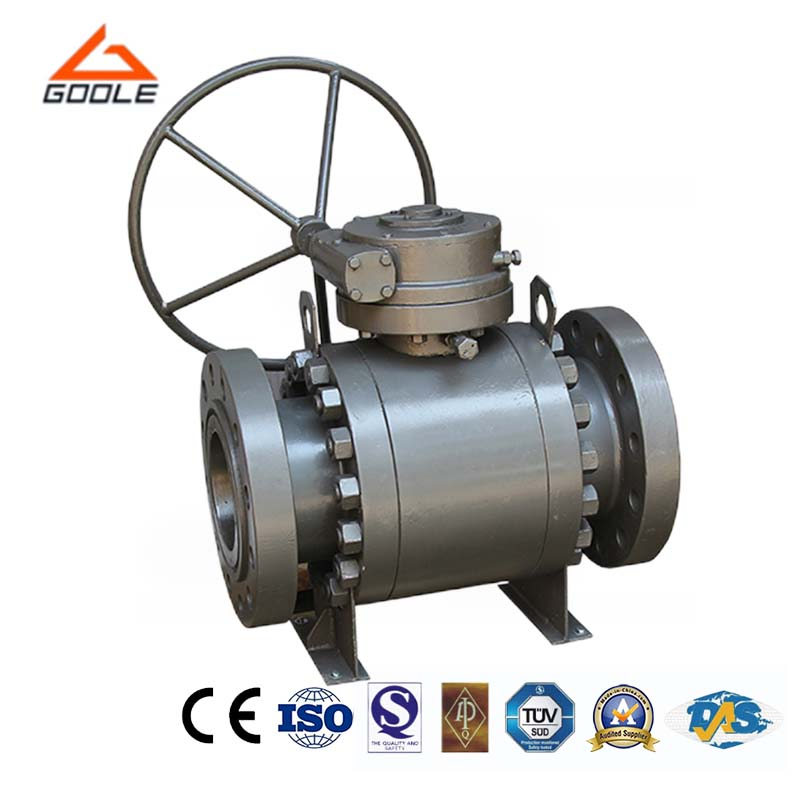

3PCS forged steel ball valve is the latest development in ball valve technology, suitable for long-distance transportation pipelines and ordinary industrial pipelines. In the design process, the harsh environment of strength, safety, and tolerance can withstand various corrosive and non corrosive media. Unlike traditional floating ball valves, when this fixed ball valve is in operation, the force generated by fluid pressure on the ball will be completely transmitted to the bearing, avoiding the ball from moving onto the valve seat, so the seat will not bear too much pressure. This reduces the torque of the fixed ball valve, causes significant seat deformation, ensures stable sealing performance, and has a long service life, making it particularly suitable for high-pressure and large-diameter application environments. Its unique spring preloaded valve seat assembly has a self tightening function to ensure upstream sealing effect. Each valve is equipped with two bi-directional sealed seats without flow restrictions, and it is usually recommended to install horizontally.
● Standard Port Design: Ensuring efficient flow and reducing resistance are the best choices for uninterrupted fluid regulation in various applications.
● Flexible Connection: Provides threaded, welded, and flanged ends that can be easily integrated into various piping systems.
● Flow Efficiency: Standard port design can minimize pressure loss, enhance flow characteristics, and ensure smooth operation of pipelines.
| No | Part Name | ASTM Material | ||
| Carbon steel | 18Cr-19Ni-2Mo | Low temperature steel | ||
| 1 | Body | A216-WCB | A351-CF8M | A352-LCB |
| 2 | Bonnet | A216-WCB | A351-CF8M | A352-LCB |
| 3 | Ball | A182-F304 | A182-F316 | A182-F314 |
| 4 | Stem | A276-304 | A276-316 | A276-304 |
| 5 | Seat | A105+ENP | A182-F316 | A350-LF2+ENP |
| 6 | Stem insert | Class filled PTFE | A313-304 | |
| 7 | Seat spring | A313-304 | Inconel X-750 | A313-304 |
| 8 | O-ring | NBR | PTFE | PTFE |
| 9 | O-ring | NBR | PTFE | PTFE |
| 10 | Gasket | Graphite+304 | Graphite+316 | Graphite+304 |
| 12 | Spring | A313-304 | A313-316 | A313-304 |
| 13 | Grounding plunger | A216-WCB | A182-F316 | A182-F304 |
| 14 | Stud | A193-B7 | A193-B8 | A320-L7 |
| 15 | Nut | A194-2H | A194 8 | A194 4 |
| 16 | Trunnion | A276-304 | A276-316 | A276-304 |
| 17 | Trunnion bearing | 304+PTFE | 316+PTFE | 304+PTFE |
| 18 | Gland flange | A193-B7 | A193-8 | A193-B7 |
| 19 | Gland bolt | A193-B7 | A193-B8 | A193-B7 |
| 20 | Stop plate | Carbon steel | Carbon steel+Zn | Carbon steel |
| 21 | Handle | Carbon steel | ||
Main Dimensions
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 36 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 650 | 700 | 750 | 800 | 900 | |
| L(RF) | in | 7 | 7.5 | 8 | 9 | 15.5 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 42 | 45 | 49 | 51 | 54 | 60 |
| mm | 178 | 190 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1143 | 1245 | 1295 | 1372 | 1524 | |
| L1(BW) | in | 8.5 | 9.5 | 11.12 | 12 | 18 | 20.5 | 22 | 25 | 30 | 33 | 36 | 39 | 45 | 49 | 53 | 55 | 60 | 68 |
| mm | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 814 | 991 | 1143 | 1245 | 1346 | 1397 | 1524 | 1727 | |
| H | in | 7 | 7.5 | 8.25 | 9.25 | 20.88 | 24.62 | 25.62 | 30.75 | 31 | 36.25 | 38.25 | 43.38 | 5.25 | 50.75 | 55.12 | 64.12 | 70.88 | 80.75 |
| mm | 177 | 190 | 210 | 235 | 530 | 625 | 650 | 780 | 790 | 920 | 970 | 1100 | 1150 | 1290 | 1400 | 1630 | 1840 | 2050 | |
| W | in | 14 | 16 | 20 | 20 | 24 | 24 | 24 | 24 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| mm | 350 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | |
| WT(Kg) | RF | 15 | 19 | 27 | 38 | 81 | 140 | 160 | 205 | 260 | 390 | 510 | 750 | 1200 | 1400 | 1860 | 2100 | 2530 | 2970 |
| BW | 13.5 | 15.5 | 24.5 | 32.5 | 76 | 132 | 147 | 182 | 241 | 370 | 495 | 726 | 1125 | 1250 | 1640 | 1930 | 2390 | 276 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
