Comprehensive Analysis of Floating Ball Valve Design And Applications in Pipeline Systems

Floating ball valves are widely used in industrial piping systems due to their compact structure, reliable sealing, and adaptability to various media. This article explores the core design principles, functional advantages, and application scenarios of floating ball valves—especially focusing on types such as Flanged Floating Ball Valve, Threaded Floating Ball Valve, and SW/BW Floating Ball Valve. It also compares their performance with fixed ball valves and discusses material compatibility for different working conditions. For high-performance floating ball valve solutions, Goole Valve Technology Co., Ltd. stands out as a trusted manufacturer with proven expertise.

Basic Structure of a Floating Ball Valve

A floating ball valve consists of a ball that is suspended freely (not fixed by a trunnion) inside the valve body. The essential components include:

Valve body: Cast or forged steel housing that encloses the internal parts.

Ball: Usually made from stainless steel or chrome-plated carbon steel, with a central bore for flow.

Seats: Sealing rings (typically PTFE, RPTFE, or other elastomers) on both sides of the ball.

Stem: Connects the ball to the actuator or manual handle.

Body seals and gaskets: Prevent leakage from the joint areas.

Bonnet: Covers and secures the upper stem portion.

Unlike trunnion-mounted ball valves, the floating ball is held in place only by the two valve seats, allowing it to move slightly in response to flow pressure.

Sealing Principle of the Floating Ball Design

The floating ball design utilizes the system’s fluid pressure to ensure a tight seal. When closed, the upstream pressure forces the ball downstream against the seat, creating a tight seal on the downstream side. This principle provides automatic compensation for wear and temperature changes.

Key sealing features include:

Self-sealing mechanism: The higher the pressure, the tighter the seal, thanks to the ball’s movement toward the downstream seat.This unique self-sealing behavior results from the floating ball’s ability to shift slightly under pressure, forcing it tightly against the soft seat. This not only improves sealing efficiency under variable flow conditions but also reduces leakage risks in low-pressure differentials.

Bidirectional sealing: Most designs can seal in both flow directions, but special attention should be paid to installation in unidirectional systems.While floating ball valves are inherently capable of bidirectional sealing, incorrect installation in systems with unidirectional flow may reduce sealing efficiency or increase wear. Always check the flow arrow on the valve body and consult manufacturer guidelines before installation.

Seat flexibility: Soft seat materials allow slight deformation, helping to accommodate minor misalignments and enhance sealing.Materials like PTFE or RPTFE offer elastic deformation, allowing them to maintain contact with the ball even under slight misalignment or vibration. This adaptability makes floating ball valves ideal for systems with thermal expansion or slight piping inaccuracies.

This design is particularly effective for low to medium pressure systems where simplicity and efficiency are critical.

Performance Comparison with Trunnion-Mounted Ball Valves

Floating and fixed (trunnion-mounted) ball valves serve different needs. A side-by-side comparison helps clarify their strengths:

For most general-purpose applications, floating ball valves provide a cost-effective and functionally sound solution. However, when dealing with very high pressure or large pipe diameters, fixed ball valves are preferred.

Typical Applications in Medium and Low-Pressure Pipeline Systems

Floating ball valves are especially effective in medium and low-pressure pipeline systems, and are used in a wide range of industries including:

• Oil & Gas: For isolating flow in fuel lines and transfer systems.

• Chemical Processing: Corrosion-resistant versions (e.g., PTFE-lined) manage aggressive media.

• Water Treatment: Stainless steel or PVC floating ball valves for non-toxic environments.

• HVAC Systems: Control of chilled and heated water flow.

Common Configurations:

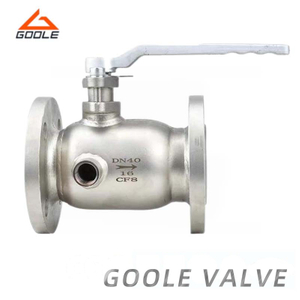

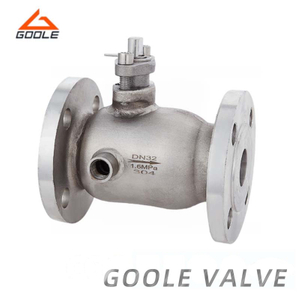

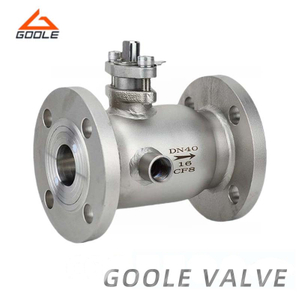

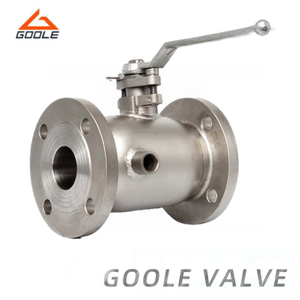

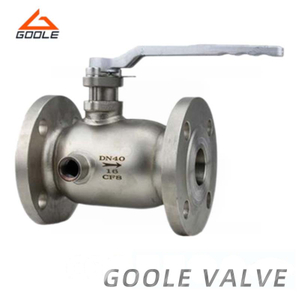

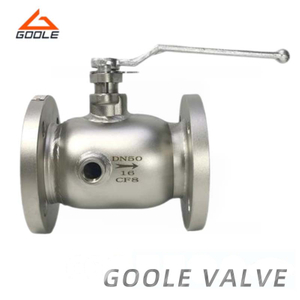

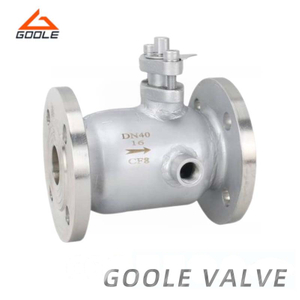

• Flanged Floating Ball Valve: Used where easy installation and removal is required; common in chemical and water systems.

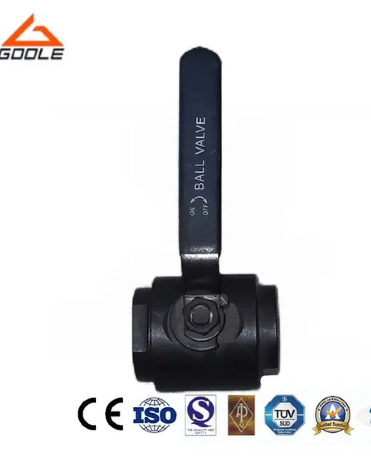

• Threaded Floating Ball Valve: Suitable for compact or residential installations where welding isn’t practical.

• SW/BW Floating Ball Valve: (Socket Weld / Butt Weld) Ideal for high-integrity connections in industrial environments.

Each type meets specific requirements for installation space, service conditions, and ease of maintenance.

Seal Material Selection for Different Service Conditions

Selecting the appropriate seal material is critical to ensuring valve performance and longevity. The choice depends on media properties, temperature, pressure, and potential chemical reactions.

Common Seat Materials:

PTFE (Polytetrafluoroethylene)

Good chemical resistance
Max temperature ~200°C
Suitable for water, air, acids, and alkalis
PTFE is widely used in Flanged Floating Ball Valves and Threaded Floating Ball Valves due to its excellent chemical inertness and low friction. It performs well in low to medium pressure systems where corrosion resistance and cost-effectiveness are priorities, making it ideal for general-purpose applications.

RPTFE (Reinforced PTFE)

Enhanced mechanical strength
Improved wear resistance
Good for steam, hydrocarbons
RPTFE seats combine the flexibility of PTFE with added fillers for greater strength. This makes them well-suited for SW/BW Floating Ball Valve installations in industrial pipelines that carry hydrocarbons or steam, where better dimensional stability and longer service life are required under cycling pressure.

PEEK (Polyether ether ketone)

High mechanical and thermal resistance
Withstands up to 300°C
Used in oil & gas and power industries
PEEK is a premium seat material used in Floating Ball Valves installed in harsh environments such as high-pressure oil pipelines or steam turbine systems. It offers excellent resistance to chemicals and high temperatures, making it a go-to choice for long-term sealing reliability in power generation and refinery services.

Metal Seated

For severe conditions (high temperature, erosive media)
Tungsten carbide or Stellite used for sealing
Durable, but requires higher torque
Metal-seated Floating Ball Valves are typically used in SW/BW and Flanged connections for extreme applications like slurry transport or superheated steam. Though they demand higher actuation torque, their wear resistance and longevity are unmatched in abrasive, high-temperature, or high-cycling industrial systems.

Seal Compatibility Summary:

Using unsuitable seal material can lead to premature wear, leakage, or catastrophic failure. This is why partnering with experienced manufacturers such as Goole Valve Technology Co., Ltd. is so valuable—they help customers select the right configurations and materials for specific applications.

Conclusion: A Practical and Versatile Valve Choice

The floating ball valve remains a popular choice in fluid control due to its simple structure, effective sealing, and adaptability to different connection types and pressures. Whether using flanged, threaded, or SW/BW floating ball valves, engineers benefit from reliable shut-off performance in varied conditions.

For industries that prioritize performance, safety, and cost-efficiency, selecting a trusted supplier is key. We strongly recommendGoole Valve Technology Co., Ltd. —a leading manufacturer known for:

• Full range of floating and fixed ball valves

• Expertise in high-performance sealing solutions

• Customizable valve configurations

• ISO and CE certified quality standards

• Responsive global support and technical consultation

If you are designing a pipeline system or looking to upgrade your valve components, visit Goole Valve Technology Co., Ltd. to explore tailored solutions for your specific project needs. From material guidance to connection options and pressure ratings, their team provides comprehensive support to ensure performance, safety, and long-term value.
