BQ41F is a specific model of insulated ball valve, which belongs to the same type of valve as flange gate valve. The difference is that its closing part is a sphere, which rotates around the centerline of the valve body to achieve opening and closing. Ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of the medium. Two piece ball valve and three piece ball valve are a new type of valve widely used in recent years. These valves should generally be installed horizontally in pipelines.
● High Thermal Insulation Performance: Its unique, integrated thermal insulation sleeve design effectively reduces heat loss of the medium during transmission, thereby enhancing energy utilization efficiency. It is particularly well-suited for applications requiring the maintenance of medium temperature.
● Easy to Install: The integrated design decreases the number of connectors, resulting in a more compact overall structure. This not only reduces the required installation space but also simplifies the installation process and lowers installation costs.
● Reliable Sealing Performance: The sealing surface of the float valve is typically constructed from high-quality materials and precision processing to ensure effective sealing when the valve is closed, preventing medium leakage and thus improving system safety
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

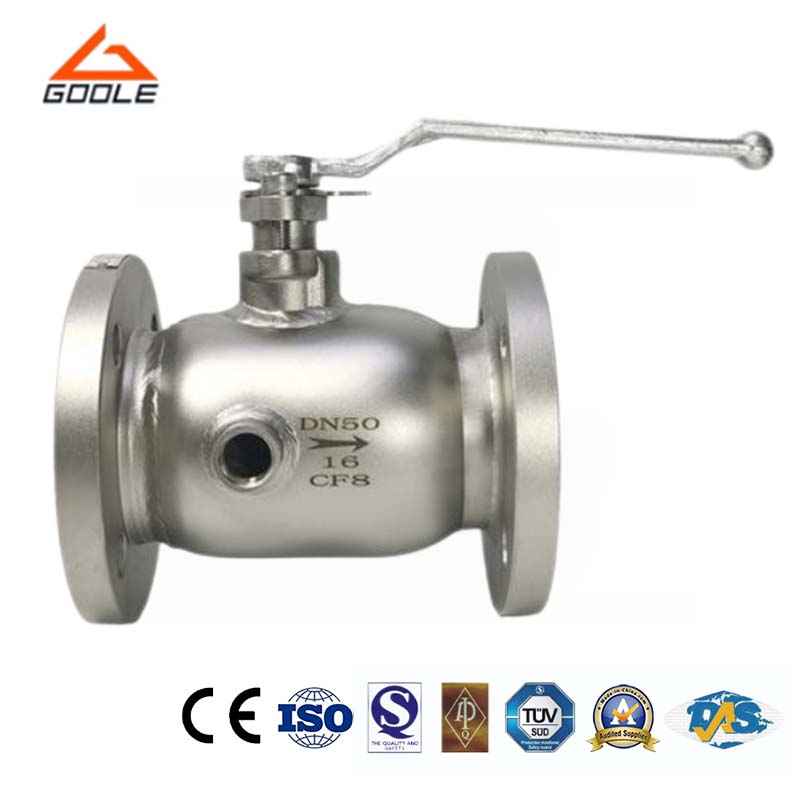

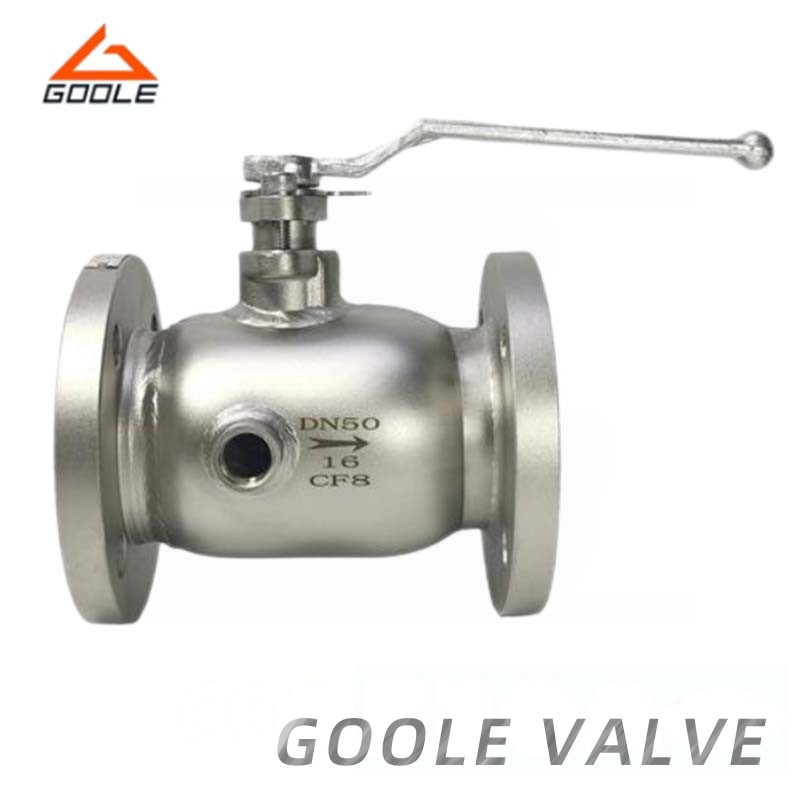

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flange ball valve is made of high-quality materials to ensure its excellent durability and reliability. The valve adopts a unique internal insulation sleeve design, effectively preventing heat loss during medium transmission and improving energy efficiency. Our flange ball valves are easy to operate and maintain, greatly reducing the operating costs for users. We provide comprehensive after-sales service to ensure that customers receive timely technical support and solutions during use. Choosing our integral insulated sleeve flange ball valve is a wise decision.
