BQ41F is a specialized insulating ball valve, falling under the same category as flanged gate valves. The difference lies in its closing mechanism, where the ball rotates around the centerline of the valve body, making it easy to open and close. Ball valves are primarily used for isolation, distribution, and changing the direction of fluid flow in pipelines. In recent years, two-piece and three-piece ball valves have been widely adopted as innovative valves. These valves are typically installed horizontally in pipeline systems.
● High Thermal Insulation Performance: Its unique integrated thermal insulation sleeve design effectively reduces the heat loss of the medium in the transmission process, and improves the energy utilization efficiency. It is especially suitable for applications that need to maintain medium temperature.
● Easy to Install: The integrated design reduces the number of connectors, making the overall structure more compact. This not only minimizes the installation space, but also simplifies the installation process and reduces the installation cost.
● Reliable Sealing Performance: The sealing surface of the float valve is usually made of high quality materials and precision processing to ensure effective sealing when the valve is closed, prevent medium leakage, so as to improve the safety of the system.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

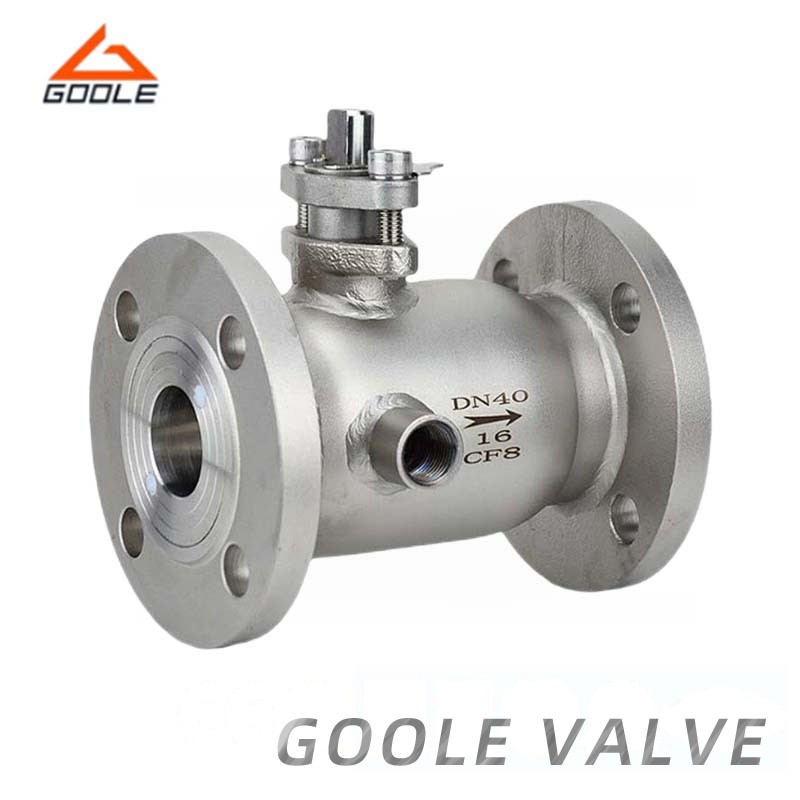

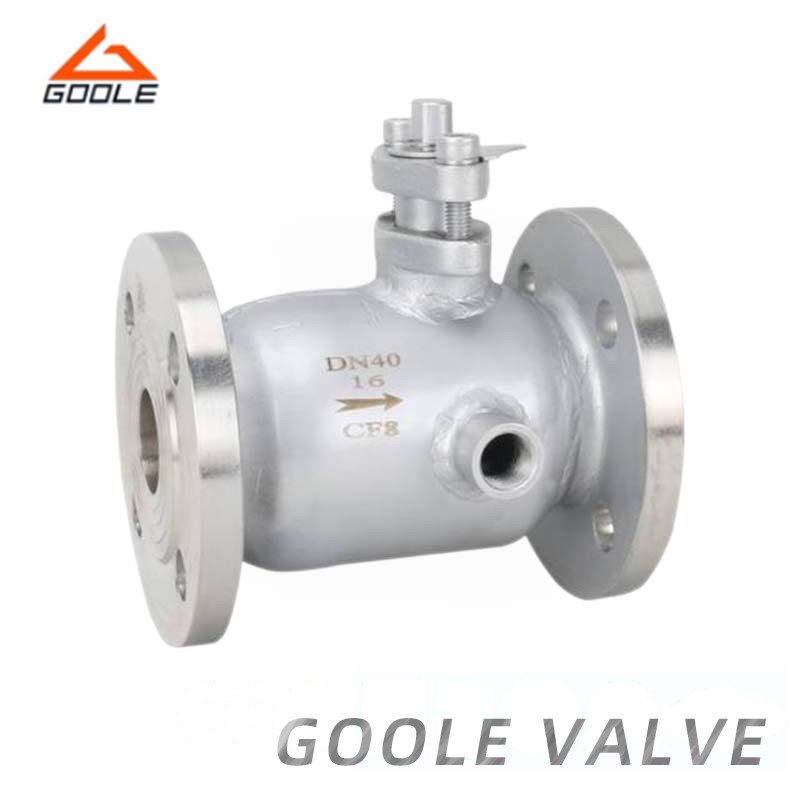

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flanged ball valve is made from high-quality materials to ensure its exceptional durability and reliability. The valve features a unique design with an internal insulation sleeve, effectively preventing heat loss during medium transmission and enhancing energy efficiency. Our flanged ball valve is easy to operate and maintain, significantly reducing operational costs for users. We offer comprehensive after-sales service to ensure that customers receive timely technical support and solutions throughout their use. Choosing our integral insulated sleeve flanged ball valve is a wise decision.
