The BQ41F is a specialized thermal insulation ball valve, falling within the same category as flanged gate valves. The distinction is in its closure mechanism, which features a sphere rotating about the valve body's centerline to facilitate opening and closing. Ball valves are primarily utilized for isolating, distributing, and altering the flow direction of media within pipelines. Two-piece and three-piece ball valves represent innovative types of valves that have gained widespread use in recent years. These valves are generally intended for horizontal installation in pipeline systems.
● High Thermal Insulation Performance: Its unique, integrated insulation sheath design effectively reduces heat loss of the medium during transmission, enhancing energy utilization efficiency. It is particularly suitable for applications requiring the maintenance of medium temperature.
● Easy Installation: The integrated design leads to a reduction in the number of connectors, resulting in a more compact overall structure. This not only minimizes installation space but also simplifies the installation process and reduces installation costs.
● Reliable Sealing Performance: The sealing surface of the floating ball valve is typically constructed from high-quality materials and precision processing to ensure effective sealing when the valve is closed. This prevents medium leakage, thereby improving system safety.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

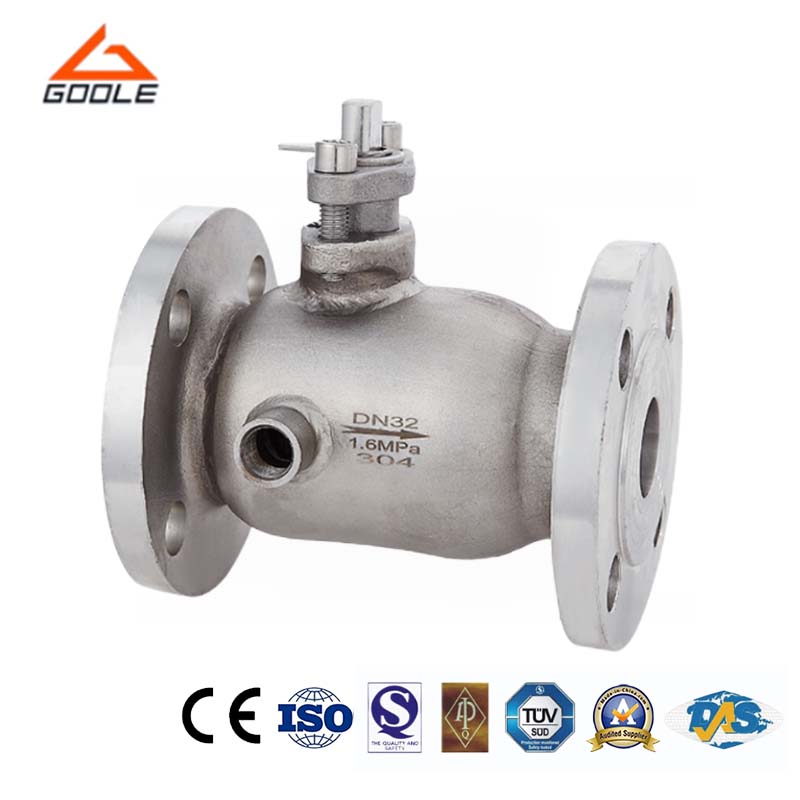

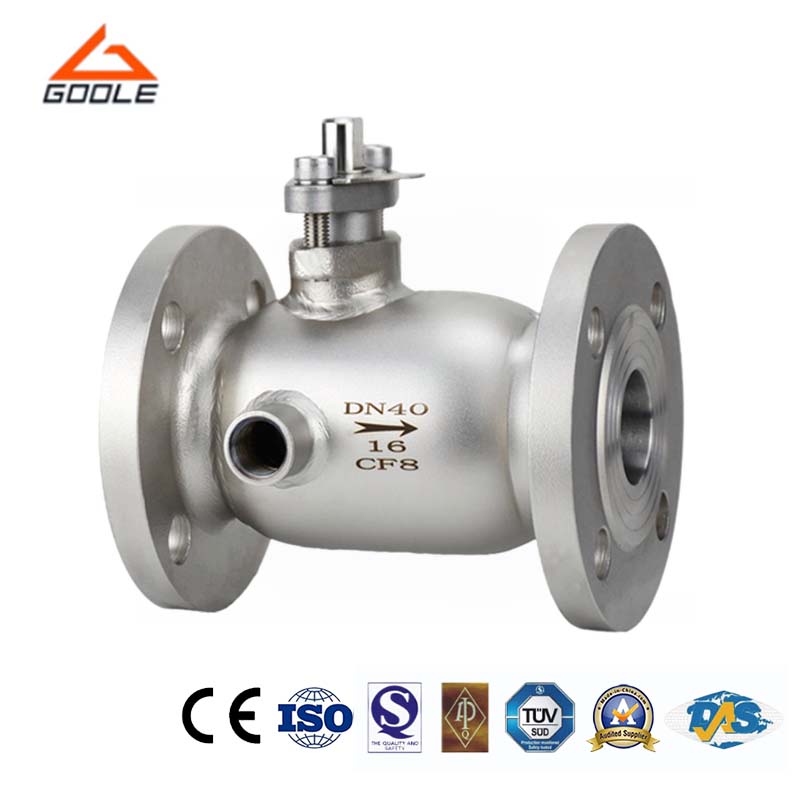

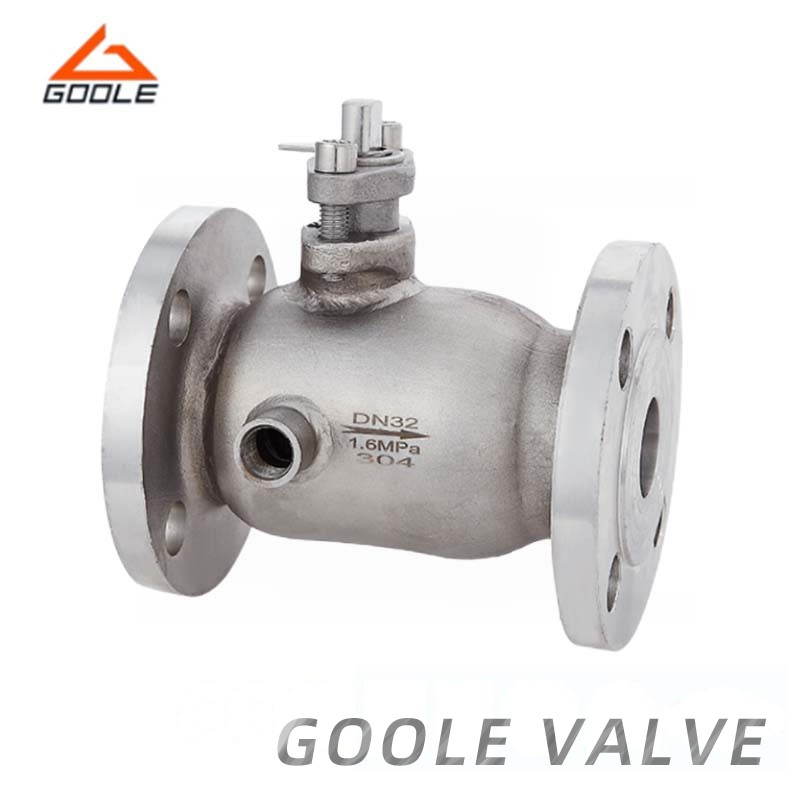

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flanged ball valve is crafted from high-quality materials to ensure its exceptional durability and reliability. The valve features a unique design with an internal insulation sleeve, effectively preventing heat loss during medium transmission and enhancing energy efficiency. Our flanged ball valve is easy to operate and maintain, significantly reducing operational costs for users. We provide comprehensive after-sales service to ensure customers receive timely technical support and solutions during use. Choosing our integral insulated sleeve flanged ball valve is a wise decision.
