BQ41F is a specific type of insulated ball valve, belonging to the same category as flanged gate valves. The difference lies in its closure part being a sphere that rotates around the centerline of the valve body to achieve opening and closing. Ball valves are primarily used for cutting off, distributing, and changing the direction of media flow in pipelines. Double-piece and triple-piece ball valves are new types of valves that have been widely used in recent years. These valves should typically be installed horizontally in pipelines.
● High Thermal Insulation Performance: Its unique integrated thermal insulation sleeve design effectively reduces the heat loss of the medium in the transmission process, thus improving energy utilization efficiency. It is especially suitable for applications that need to maintain the temperature of the medium.
● Easy to Install: The integrated design reduces the number of connectors, resulting in a more compact overall structure. This not only reduces the required installation space, but also simplifies the installation process and reduces installation costs.
● Reliable Sealing Performance: The sealing surface of the float valve is usually made of high quality materials and precision processing to ensure effective sealing when the valve is closed, prevent medium leakage, so as to improve the safety of the system.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

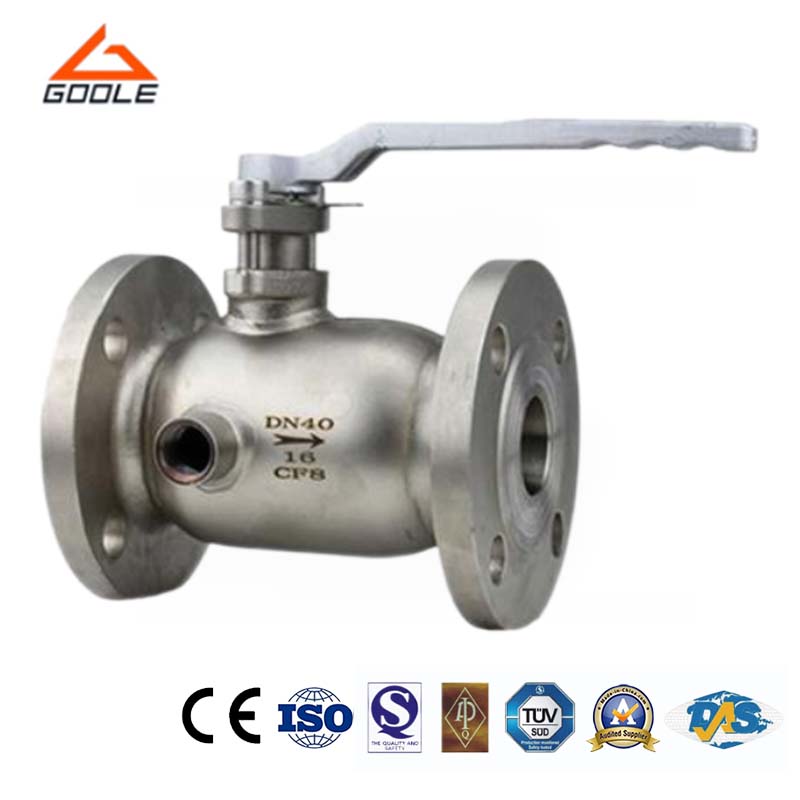

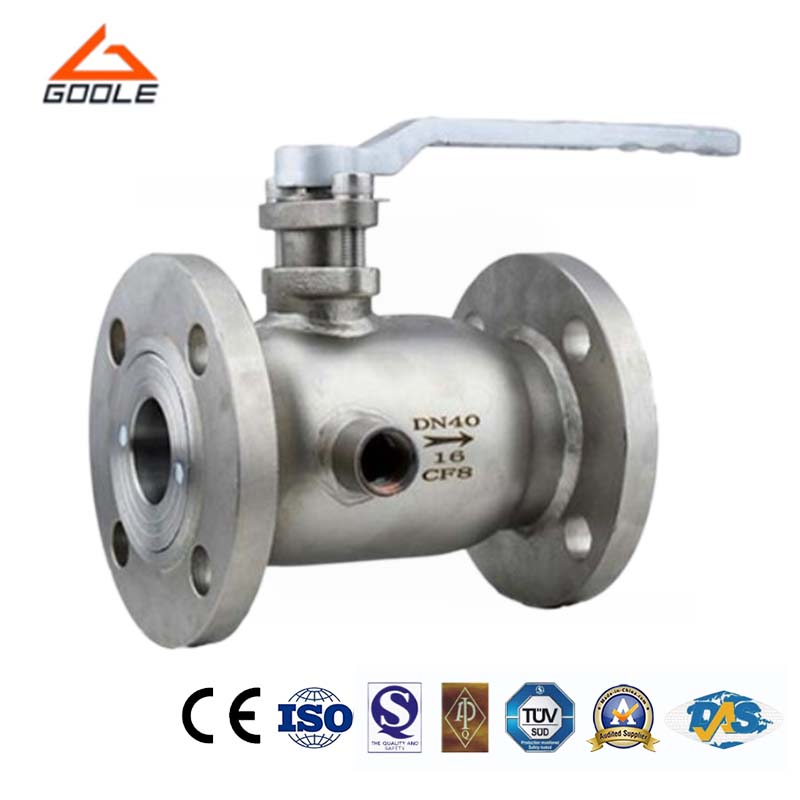

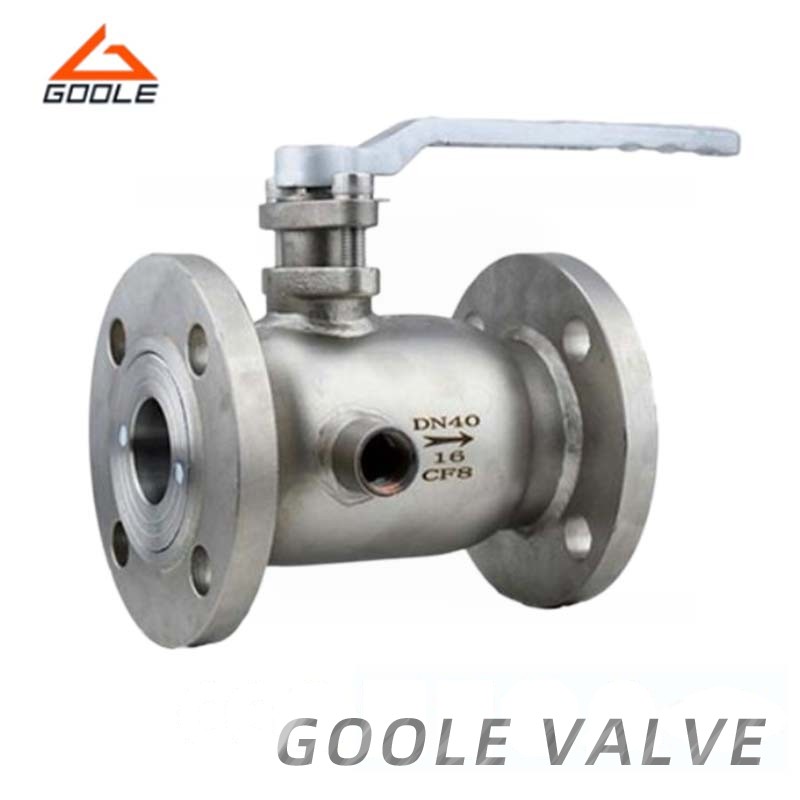

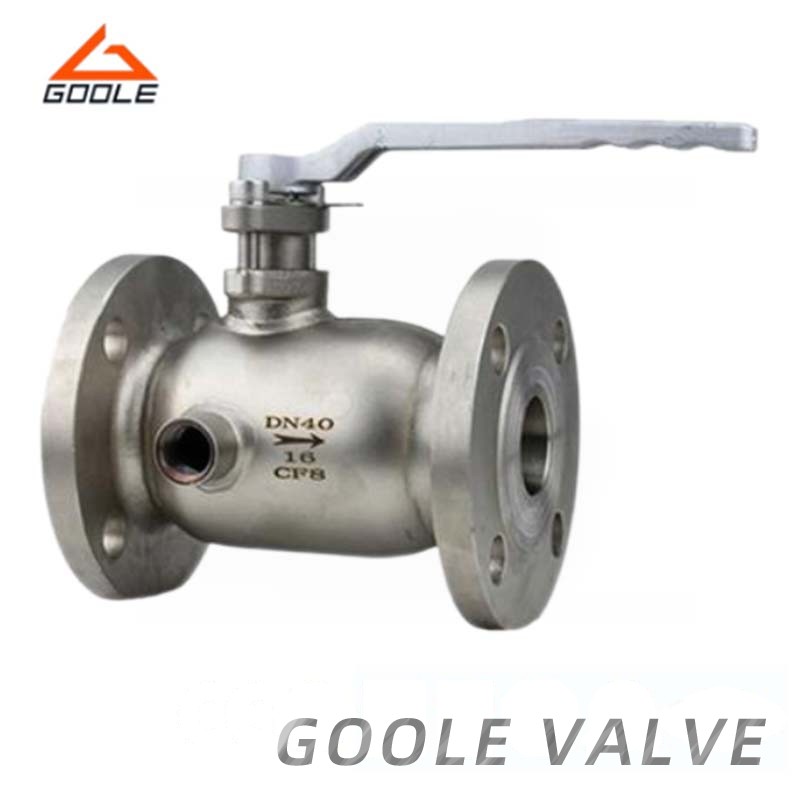

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flanged ball valve is made from high-quality materials to ensure its exceptional durability and reliability. The valve features a unique internal insulation sleeve design that effectively prevents heat loss during the medium transfer process, enhancing energy efficiency. Our flanged ball valve is easy to operate and maintain, significantly reducing operational costs for users. We offer comprehensive after-sales service to ensure customers receive timely technical support and solutions during use. Choosing our integral insulated sleeve flanged ball valve is a wise decision.
