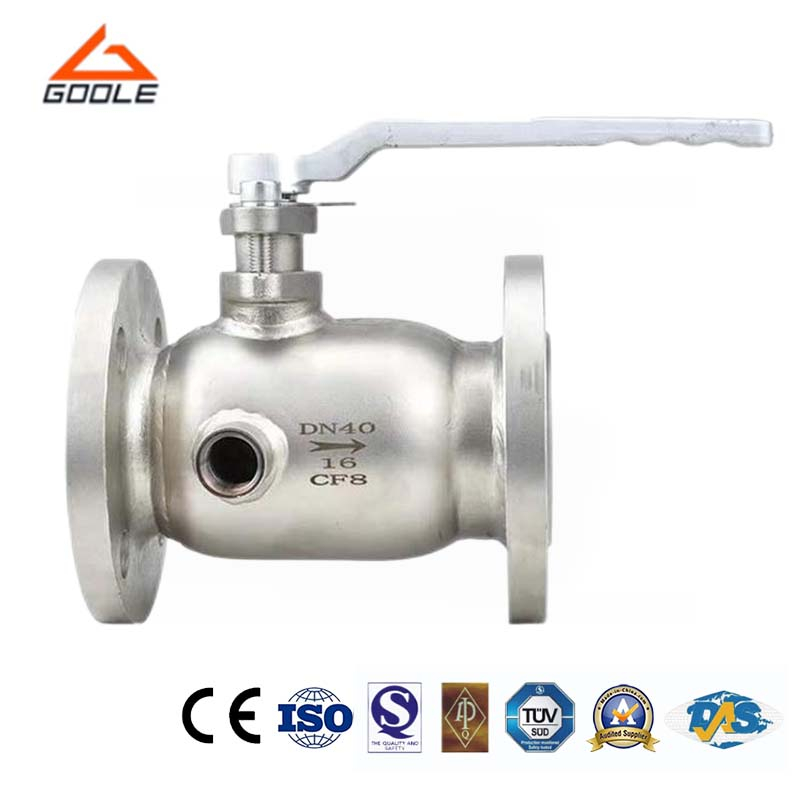

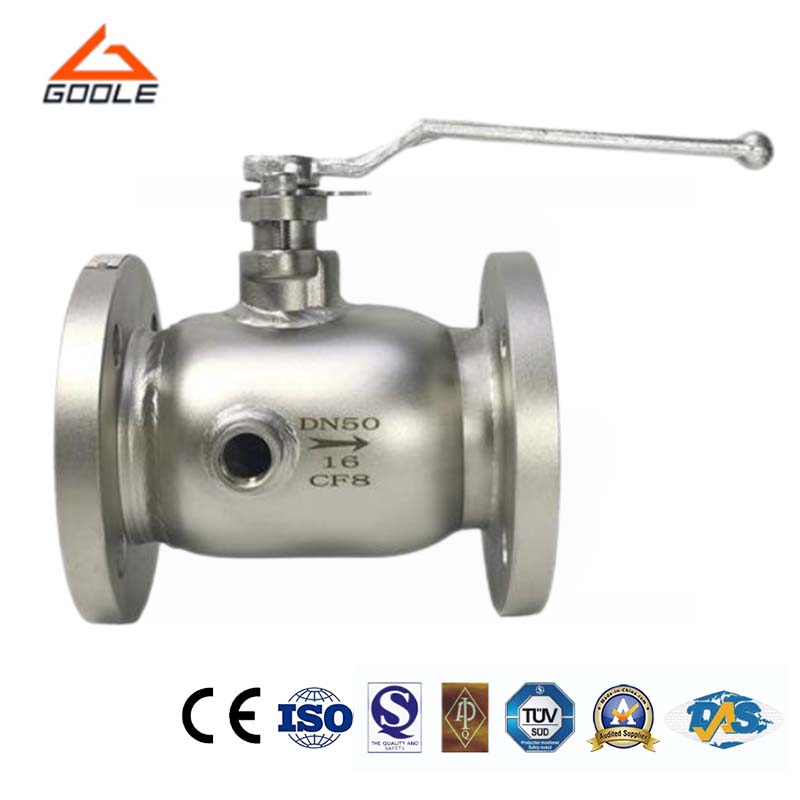

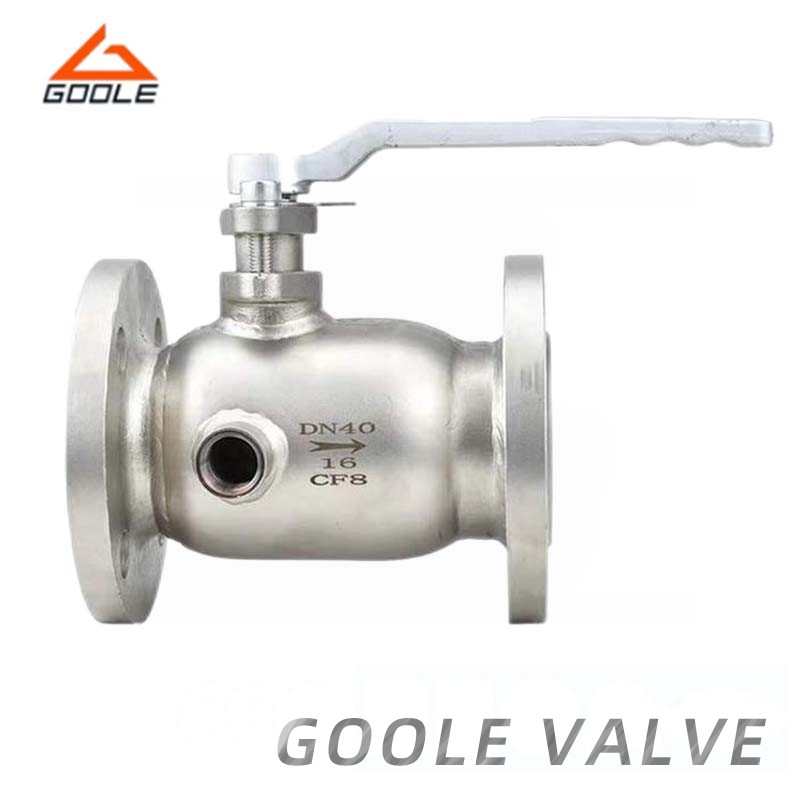

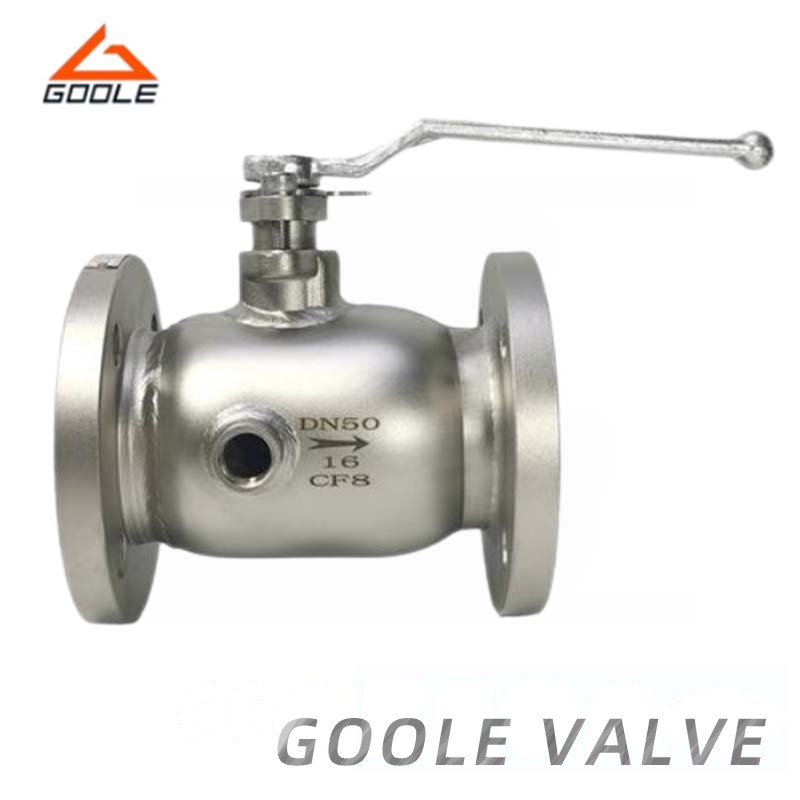

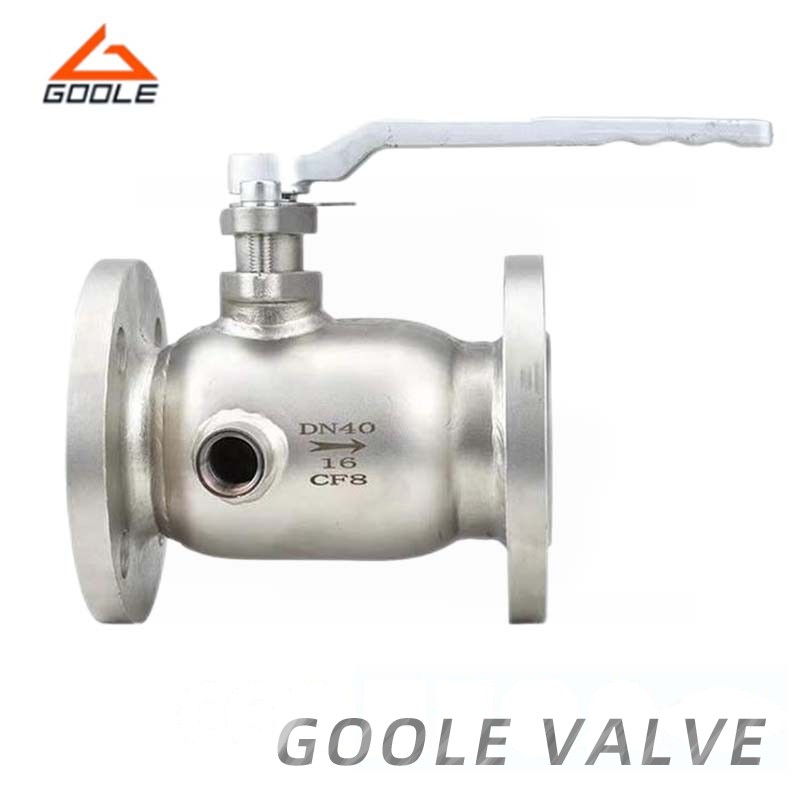

BQ41F represents a specific type of thermal ball valve, which falls under the same category as flanged gate valves. The main difference lies in the fact that the closing element of a ball valve is a sphere that rotates around the central axis of the valve to achieve opening and closing. Ball valves are primarily used in pipeline systems to cut off, distribute, and alter the flow direction of media. In recent years, two-piece and three-piece ball valves have been widely adopted as new types of valves. These valves are typically installed horizontally in pipelines.
● High Thermal Insulation Performance: Its unique, integrated thermal insulation sleeve design effectively reduces heat loss of the medium during transmission, thereby enhancing energy utilization efficiency. It is particularly well-suited for applications requiring the maintenance of medium temperature.
● Easy to Install: The integrated design decreases the number of connectors, resulting in a more compact overall structure. This not only reduces the required installation space but also simplifies the installation process and lowers installation costs.
● Reliable Sealing Performance: The sealing surface of the float valve is typically constructed from high-quality materials and precision processing to ensure effective sealing when the valve is closed, preventing medium leakage and thus improving system safety.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

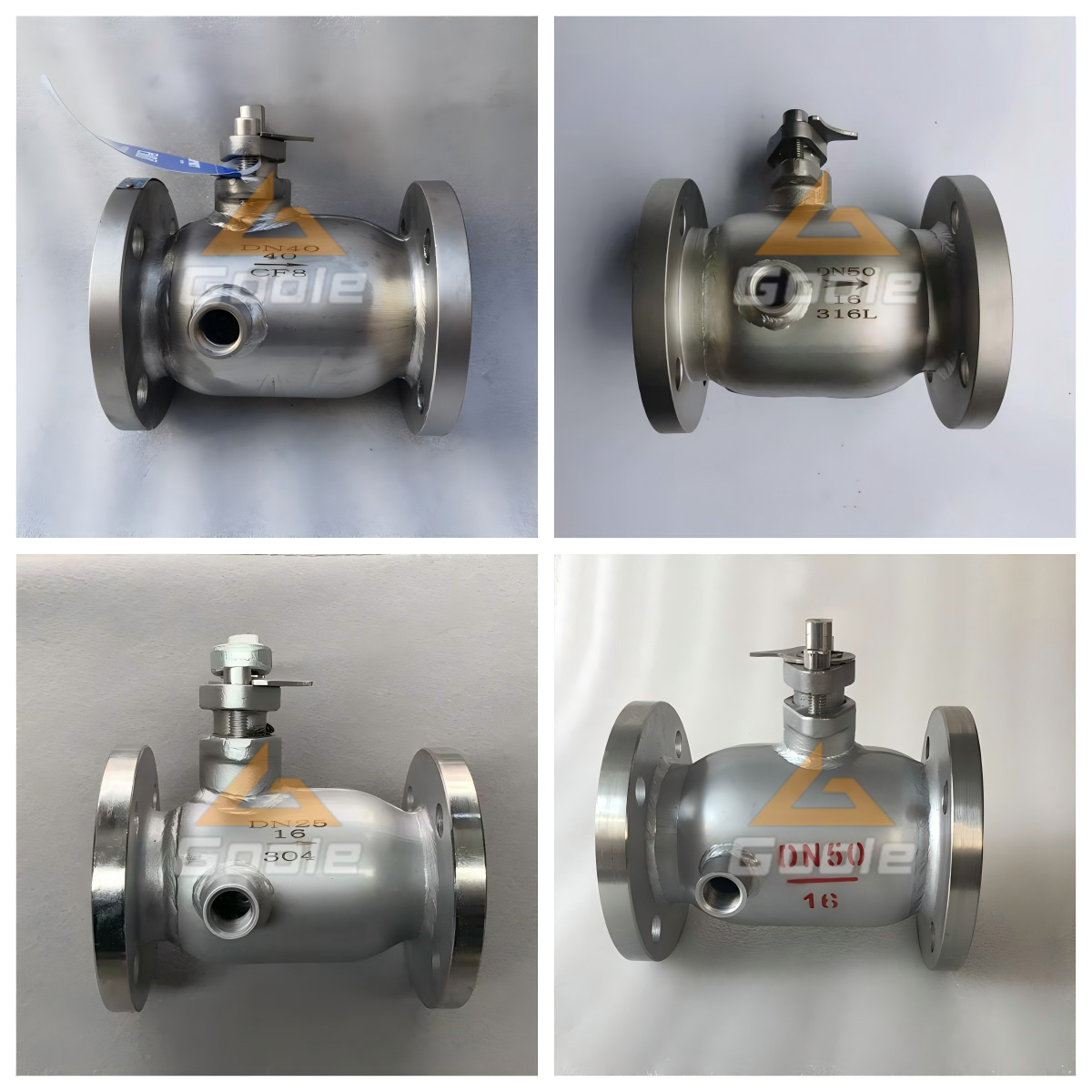

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flanged ball valve is made from high-quality materials to ensure its exceptional durability and reliability. The valve features a unique internal insulation sleeve design that effectively prevents heat loss during medium transmission, enhancing energy efficiency. Our flanged ball valve is easy to operate and maintain, significantly reducing operational costs for users. We offer comprehensive after-sales service to ensure customers receive timely technical support and solutions throughout their use. Choosing our integral insulated sleeve flanged ball valve is a wise decision.
