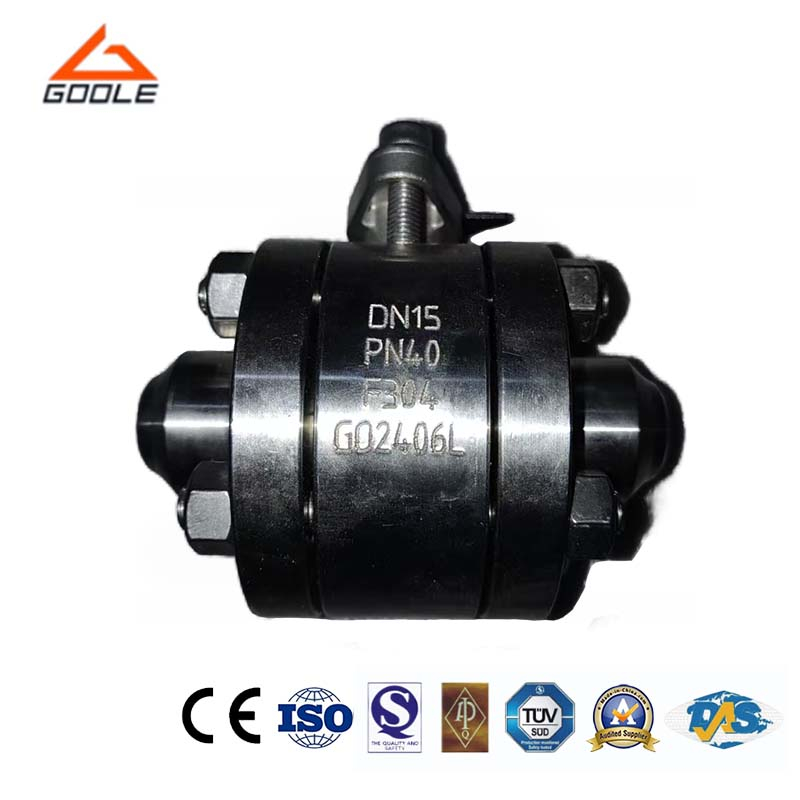

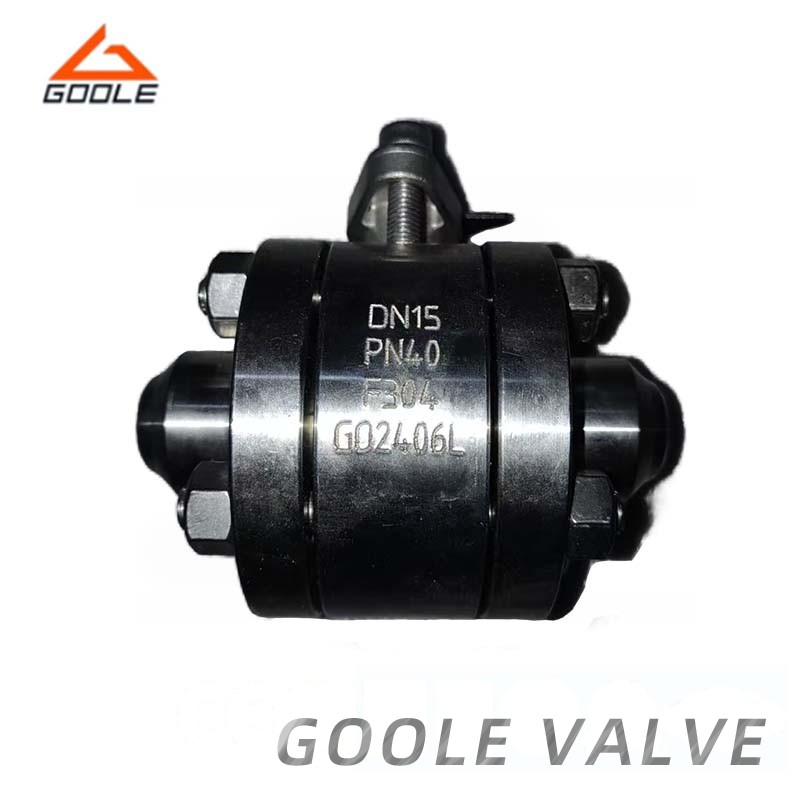

The flange floating ball valve used for safe and efficient fluid regulation is designed to provide precise control and safe flow management for pipeline systems. Its flange connection ensures a secure leak proof fit, allowing it to be quickly and easily installed into existing pipeline infrastructure. The floating ball mechanism automatically adjusts according to the flow rate of the medium, ensuring reliable sealing and smooth and uninterrupted flow regulation.
● Flanged Connection for Easy Integration: Flange connection ensures a safe and stable fit, allowing for quick installation and seamless integration into your pipeline system. This type of connection ensures a persistent and leak free installation to achieve long-lasting performance.
● Adaptable Floating Ball Design: The floating ball mechanism automatically adapts to pressure changes in the system, maintains reliable sealing, and ensures smooth and uninterrupted fluid flow. This dynamic design improves operational efficiency under different pressure conditions.
● Quick 90-Degree Valve Action: The 90 degree rotation of the valve enables fast and precise fluid control, providing quick closure or flow regulation for systems that require fast response time (such as high demand applications).
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
Main Dimensions
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q1:What fluids can the Flanged Floating Ball Valve handle?
The valve is suitable for a wide range of fluids, including water, oil, gas, and various chemicals, making it highly versatile for many industrial applications.
Q2:Can the valve be automated?
Yes, the Flanged Floating Ball Valve can be equipped with pneumatic or electric actuators, providing easy automation for precise control in remote or complex systems.
The flange connection ensures quick installation and secure fit, while the floating ball design ensures smooth and effective adjustment. This valve has a wide pressure rating and temperature range, making it ideal for applications that require safe and efficient fluid management in challenging environments. Don't compromise on reliability - choose a flange floating ball valve for your next project and easily experience the best flow control! Contact us immediately for more information or to request a quote.
