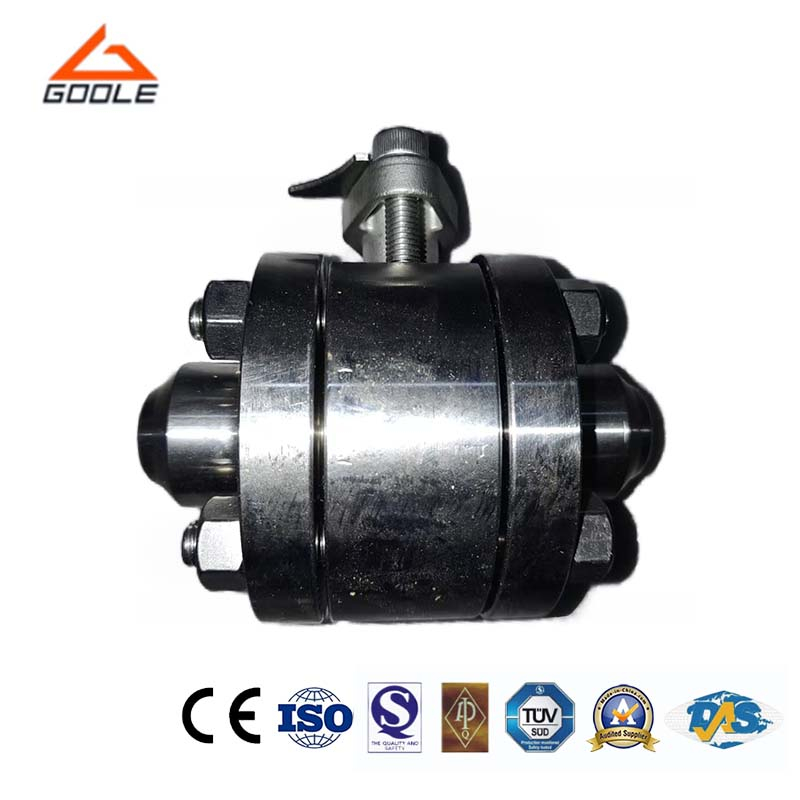

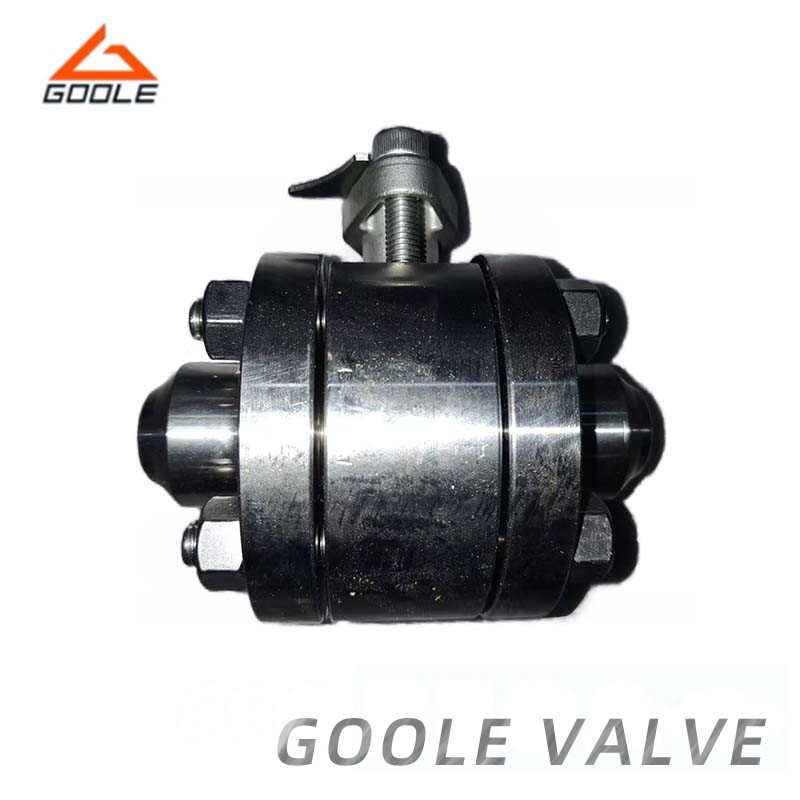

The flanged float valve is designed for safe and efficient fluid regulation, aiming to provide precise control and reliable flow management for piping systems. Its flange connection ensures leak-proof sealing, facilitating quick and seamless installation into existing pipeline infrastructure. The float mechanism automatically adjusts according to the medium flow, ensuring reliable sealing and smooth, uninterrupted flow regulation.
● Flanged Connection for Easy Integration: Flange connections ensure safe and stable fit, allowing for quick installation and seamless integration into your piping system. This type of connection ensures a long-lasting and leak-proof installation for lasting performance.
● Adaptable Floating Ball Design: The float ball mechanism automatically adapts to system pressure changes, maintaining a reliable seal and ensuring smooth and uninterrupted fluid flow. This dynamic design improves operational efficiency under different pressure conditions.
● Quick 90-Degree Valve Action: The 90 degree rotation of the valve enables fast and precise fluid control, providing quick closure or flow regulation for systems that require fast response time (such as high demand applications).
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
Main Dimensions
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q1:What fluids can the Flanged Floating Ball Valve handle?
The valve is suitable for a wide range of fluids, including water, oil, gas, and various chemicals, making it highly versatile for many industrial applications.
Q2:Can the valve be automated?
Yes, the Flanged Floating Ball Valve can be equipped with pneumatic or electric actuators, providing easy automation for precise control in remote or complex systems.
