BQ41F is a specialized insulated ball valve that belongs to the same category as flange gate valves. The difference lies in its closing mechanism, which is characterized by the sphere rotating around the centerline of the valve body for easy opening and closing. Ball valves are mainly used for isolating, distributing, and changing the flow direction of media in pipelines. Two piece and three piece ball valves represent innovative valves widely used in recent years. These valves are typically used for horizontal installation in pipeline systems.
● High Thermal Insulation Performance: Its unique integrated insulation sheath design effectively reduces the heat loss of the medium during transmission and improves energy utilization efficiency. It is particularly suitable for applications that require maintaining moderate temperatures.
● Easy Installation: The integrated design reduces the number of connectors, making the overall structure more compact. This not only minimizes installation space to the greatest extent possible, but also simplifies the installation process and reduces installation costs.
● Reliable Sealing Performance: The sealing surface of float valves is usually made of high-quality materials and precision machining to ensure effective sealing when the valve is closed. This prevents medium leakage, thereby improving system security.
| Connection rating : | JIS10K, ASME 150# |
| Size | 15A(1/2")~300A(12") |
| Material | SCS13A, SCS14A, SCS16A, others |
| Connection rating | JIS20K, ASME 300# |
| Size | 15A(1/2")~250A(10") |
| Material | SCS13A, SCS14A, SCS16A, others |

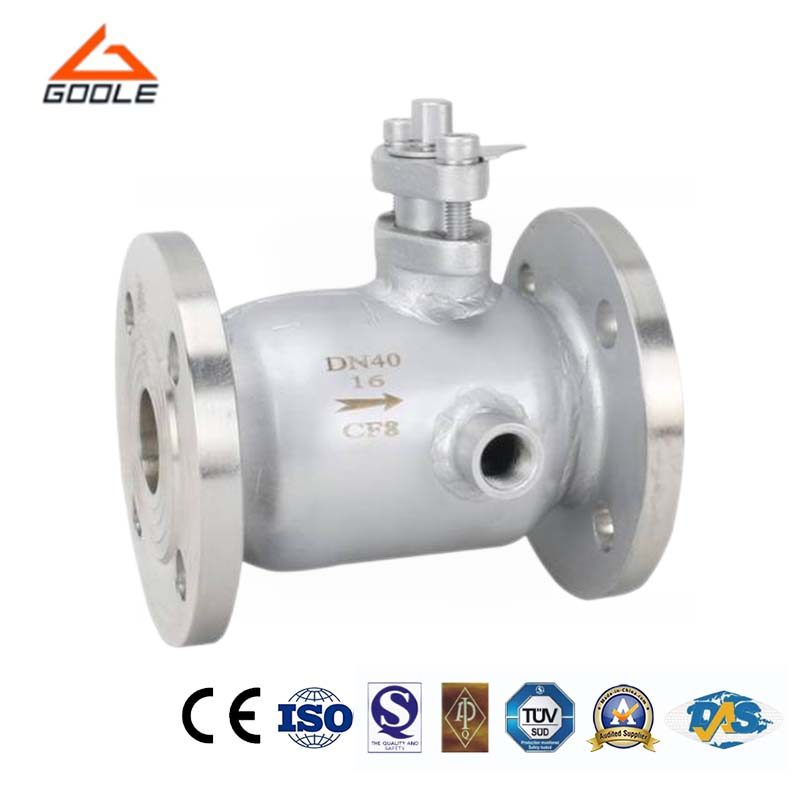

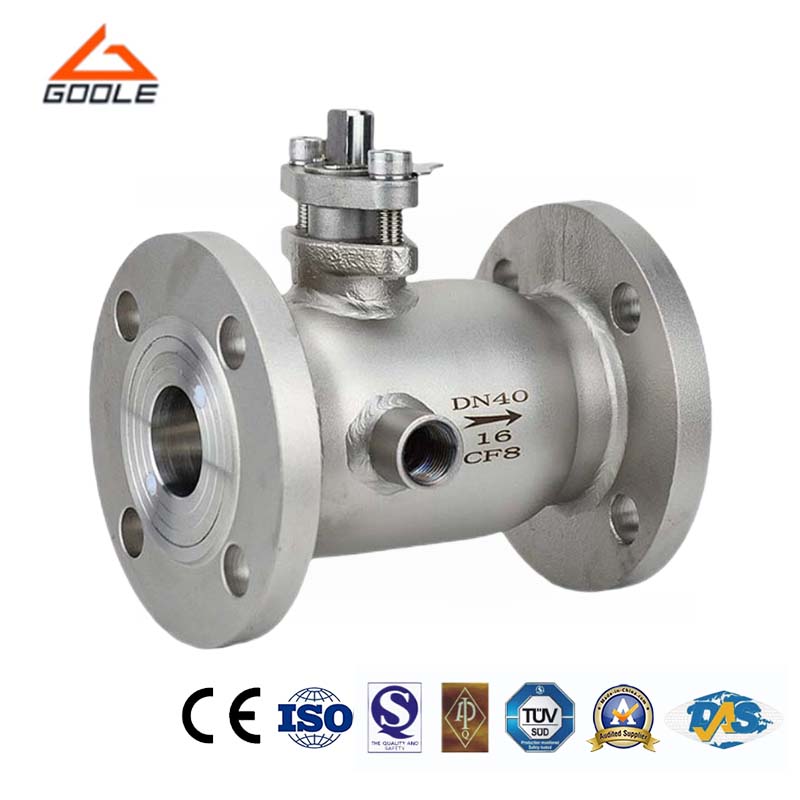

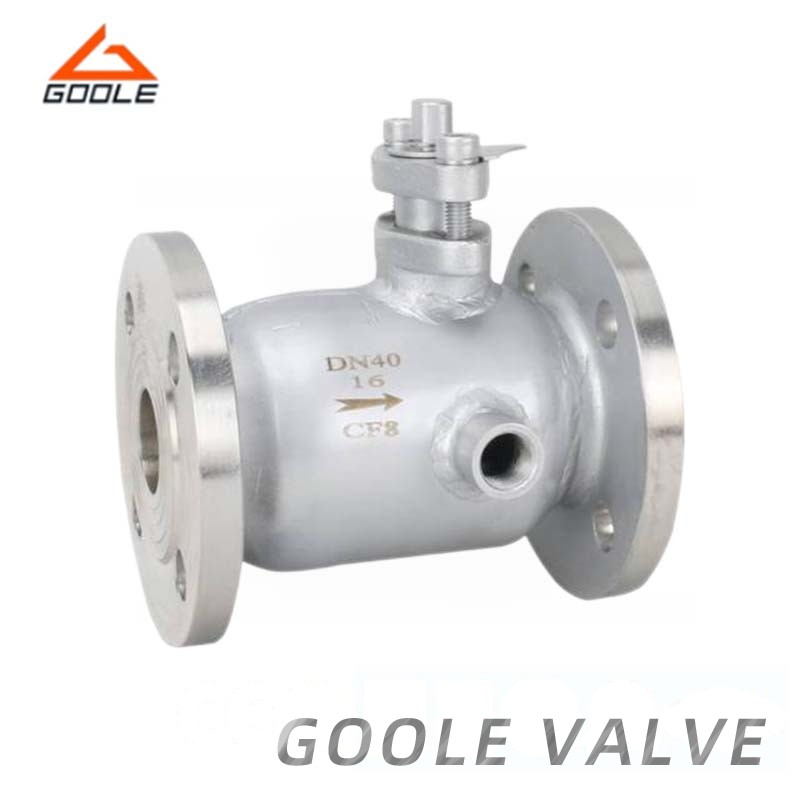

Product Display
Q1:What is the benefit of the floating ball design?
The floating ball design allows for smooth, efficient flow control as the ball moves with the flow of the fluid, ensuring minimal resistance and optimal performance.
Q2:What is the valve's temperature and pressure range?
The valve can handle temperatures from -40ºC to 300ºC (hard seal) or -40ºC to 180ºC (soft seal) and is rated for nominal pressures from PN1.6 to 6.4 MPa.
Our integral insulated sleeve flange ball valve is made of high-quality materials to ensure its excellent durability and reliability. This valve adopts a unique design and is equipped with an internal insulation sleeve, effectively preventing heat loss during medium transmission and improving energy efficiency. Our flange ball valves are easy to operate and maintain, greatly reducing the operating costs for users. We provide comprehensive after-sales service to ensure that customers receive timely technical support and solutions during use. Choosing our integral insulated sleeve flange ball valve is a wise decision.
