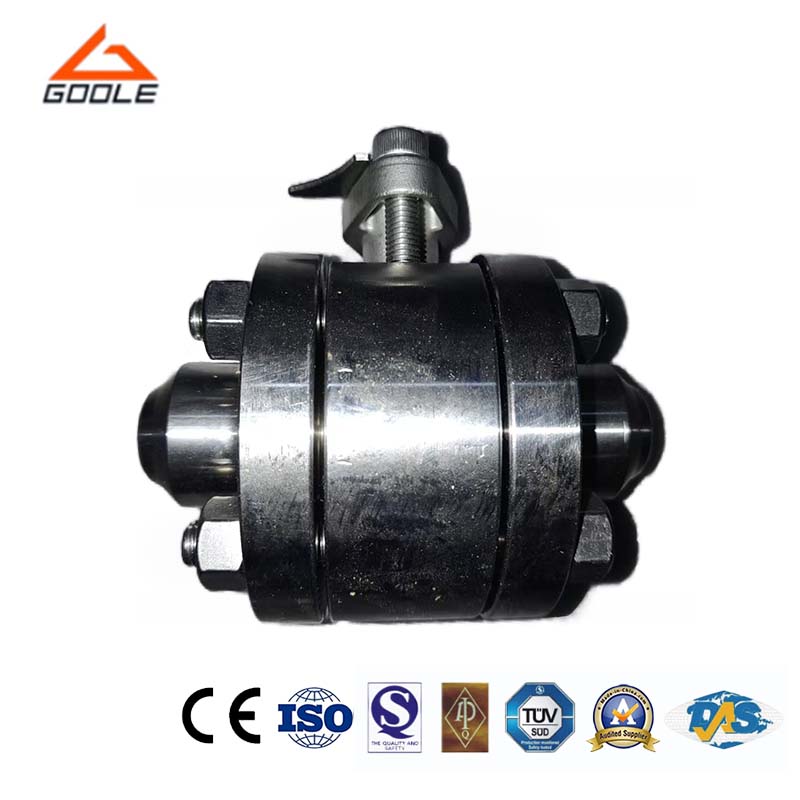

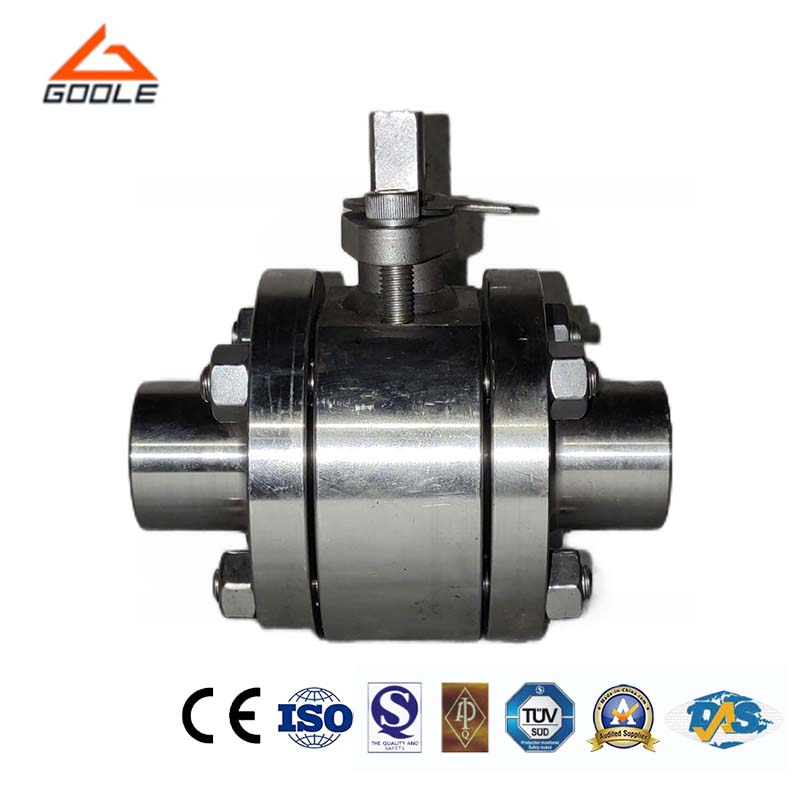

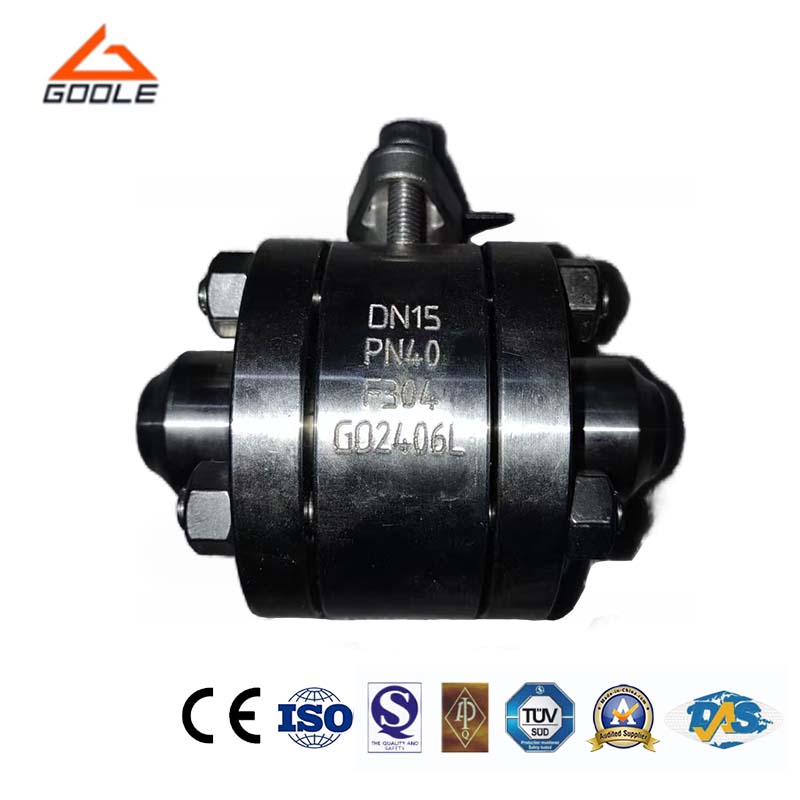

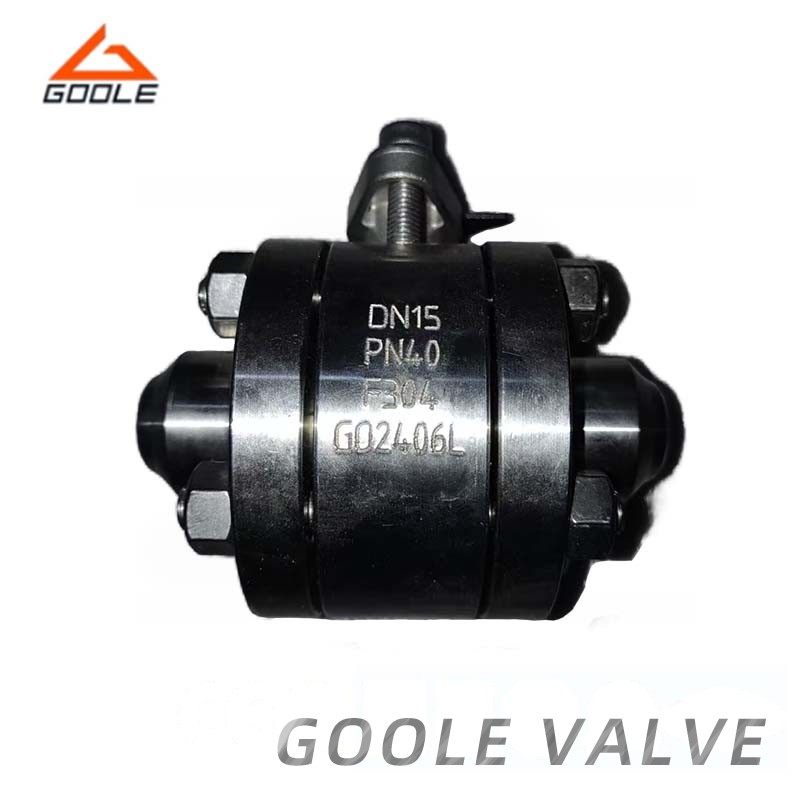

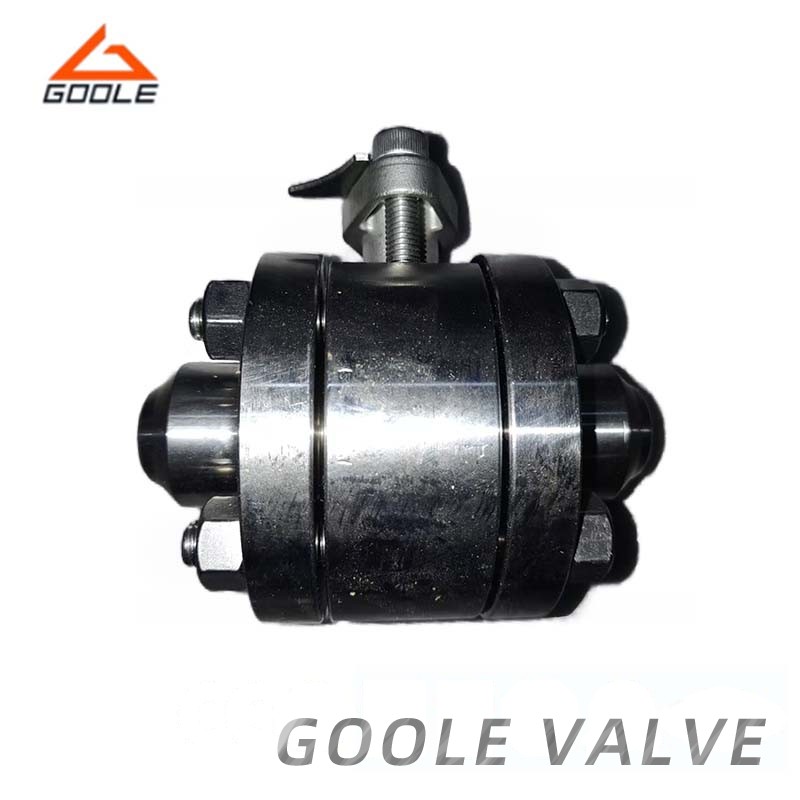

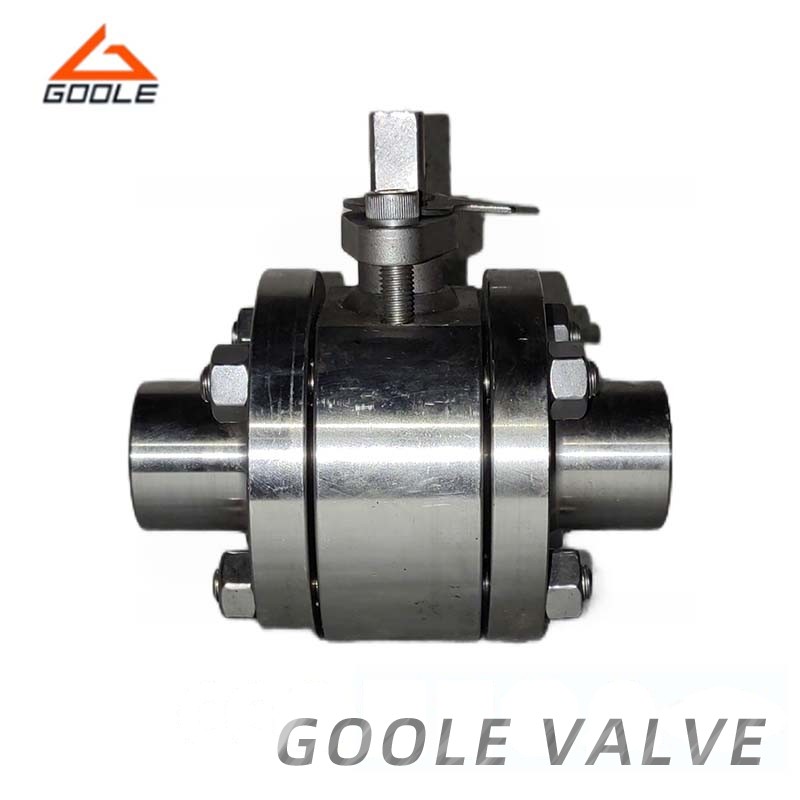

The Flanged Floating Ball Valve for Safe and Efficient Fluid Regulation is designed to provide precise control and secure flow management in pipeline systems. Its flanged connection ensures a solid, leak-proof fit, enabling quick and easy installation into existing piping infrastructure. The floating ball mechanism adjusts automatically based on the medium's flow, ensuring reliable sealing and smooth, uninterrupted flow regulation.
● Flanged Connection for Easy Integration: The flanged connection ensures a secure and stable fit, allowing for quick installation and seamless integration into your pipeline systems. This connection type guarantees a durable, leak-free installation for long-lasting performance.
● Adaptable Floating Ball Design: The floating ball mechanism automatically adjusts to the system’s pressure changes, maintaining a reliable seal and ensuring smooth, uninterrupted fluid flow. This dynamic design improves operational efficiency in varied pressure conditions.
● Quick 90-Degree Valve Action: The valve's 90-degree rotation allows for rapid and precise fluid control, offering swift shut-off or flow modulation for systems that require fast response times, such as high-demand applications.

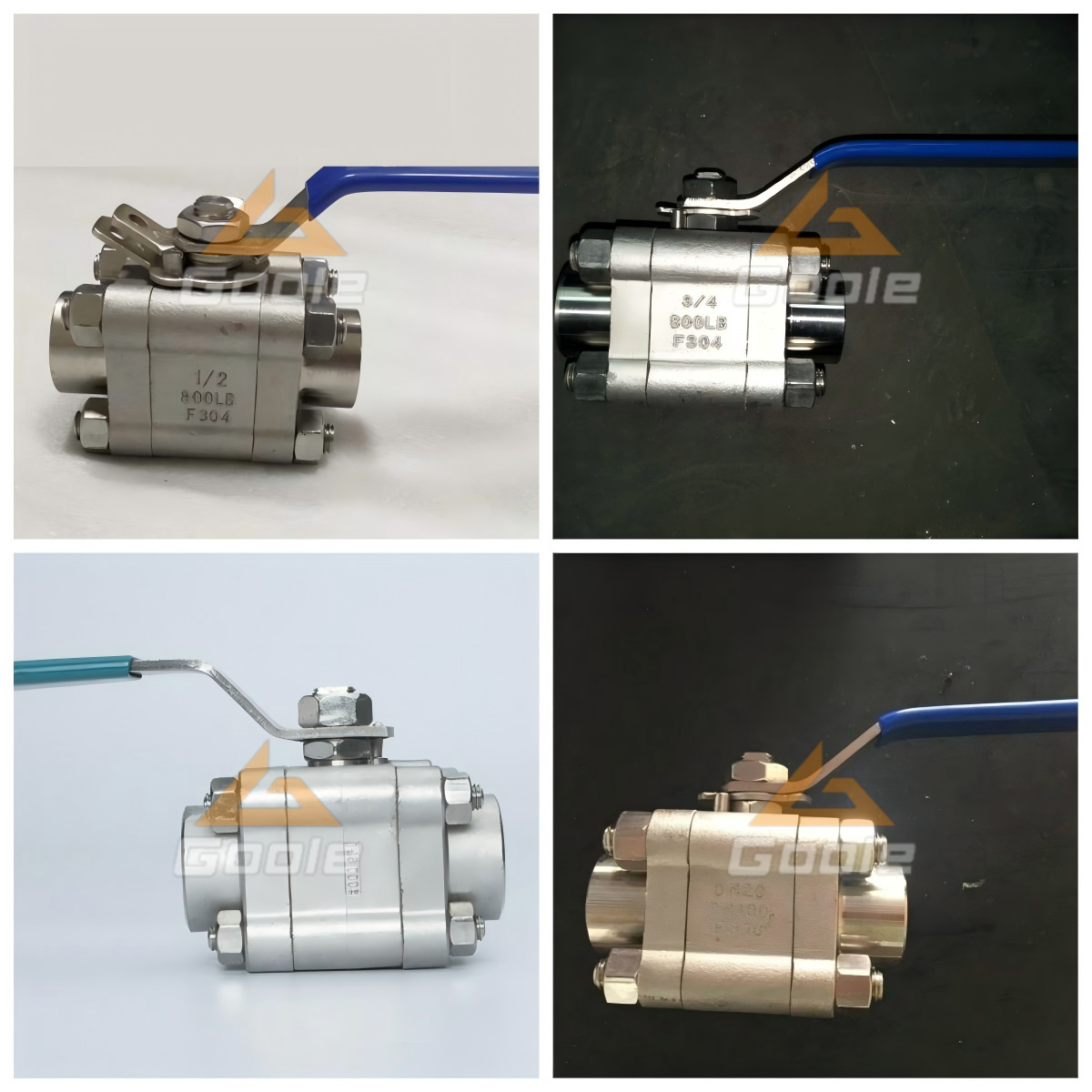

| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| End Connection | threaded (THD) / butt welded (BW) / socket welded (SW) |
| Pressure Rating | 150lb- 1500lb |
| Specification | 3/8"- 2" |
| Material | A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Executive Standard | API602 |
Note: The dimension of the connecting end can be designed according to customers' special requirements.
Q1:What fluids can the Flanged Floating Ball Valve handle?
The valve is suitable for a wide range of fluids, including water, oil, gas, and various chemicals, making it highly versatile for many industrial applications.
Q2:Can the valve be automated?
Yes, the Flanged Floating Ball Valve can be equipped with pneumatic or electric actuators, providing easy automation for precise control in remote or complex systems.
