DescriptionThree pieces body. Valve is designed in accordance with the requirements of API 6D for pipeline service. Anti-static and anti blow-out stem design. Seat design gives perfect tighness and is available as either self-relieving type or double piston effect type. Disign minimizes friction leading to low operating torque. Available as double block and bleed execution,which allows for venting and draining of ling fluid from the body cavity. Avaiable Full and Reduced bore. Ball valves firesafe tested according to BS EN 12266-2,API 6FA and API 607. Electric,pneumatic and hydravlic actuators are available on customer's requirement...
| Quantity: | |
|---|---|

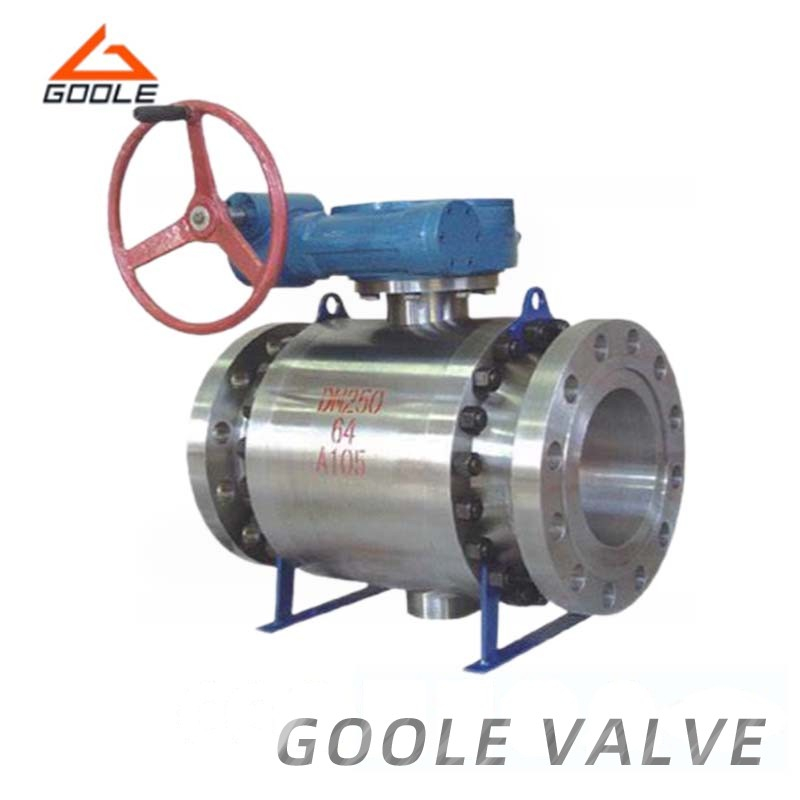

The 3PCS forged steel ball valve represents the latest advancement in ball valve technology, suitable for long-distance conveying pipelines and general industrial pipelines. During the design process, it is designed to withstand harsh environments with high strength, safety, and durability, capable of handling various corrosive and non-corrosive media. Unlike traditional floating ball valves, when this fixed ball valve operates, the force exerted by fluid pressure on the ball is entirely transmitted to the bearing, preventing the ball from moving onto the seat, thus reducing the pressure on the seat. This results in less torque and greater deformation of the seat, ensuring stable sealing performance and a longer service life, making it particularly suitable for high-pressure and large-diameter applications. Its unique spring-loaded valve seat assembly has self-tightening capabilities, ensuring effective upstream sealing. Each valve is equipped with two bidirectionally sealed seats, with no flow restriction, and it is typically recommended for horizontal installation.
● Standard Port Design: ensuring efficient flow and reducing resistance is the best choice for uninterrupted fluid regulation in various applications.
● Flexible Connection: Provide thread, welding, and flange ends that can be easily integrated into various piping systems.
● Flow Efficiency: The standard port design can minimize the pressure loss, enhance the flow characteristics, and ensure the smooth and stable operation of the pipeline.
| No | Part Name | ASTM Material | ||
| Carbon steel | 18Cr-19Ni-2Mo | Low temperature steel | ||
| 1 | Body | A216-WCB | A351-CF8M | A352-LCB |
| 2 | Bonnet | A216-WCB | A351-CF8M | A352-LCB |
| 3 | Ball | A182-F304 | A182-F316 | A182-F314 |
| 4 | Stem | A276-304 | A276-316 | A276-304 |
| 5 | Seat | A105+ENP | A182-F316 | A350-LF2+ENP |
| 6 | Stem insert | Class filled PTFE | A313-304 | |
| 7 | Seat spring | A313-304 | Inconel X-750 | A313-304 |
| 8 | O-ring | NBR | PTFE | PTFE |
| 9 | O-ring | NBR | PTFE | PTFE |
| 10 | Gasket | Graphite+304 | Graphite+316 | Graphite+304 |
| 12 | Spring | A313-304 | A313-316 | A313-304 |
| 13 | Grounding plunger | A216-WCB | A182-F316 | A182-F304 |
| 14 | Stud | A193-B7 | A193-B8 | A320-L7 |
| 15 | Nut | A194-2H | A194 8 | A194 4 |
| 16 | Trunnion | A276-304 | A276-316 | A276-304 |
| 17 | Trunnion bearing | 304+PTFE | 316+PTFE | 304+PTFE |
| 18 | Gland flange | A193-B7 | A193-8 | A193-B7 |
| 19 | Gland bolt | A193-B7 | A193-B8 | A193-B7 |
| 20 | Stop plate | Carbon steel | Carbon steel+Zn | Carbon steel |
| 21 | Handle | Carbon steel | ||
Main Dimensions
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 36 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 650 | 700 | 750 | 800 | 900 | |
| L(RF) | in | 7 | 7.5 | 8 | 9 | 15.5 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 42 | 45 | 49 | 51 | 54 | 60 |
| mm | 178 | 190 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1143 | 1245 | 1295 | 1372 | 1524 | |
| L1(BW) | in | 8.5 | 9.5 | 11.12 | 12 | 18 | 20.5 | 22 | 25 | 30 | 33 | 36 | 39 | 45 | 49 | 53 | 55 | 60 | 68 |
| mm | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 814 | 991 | 1143 | 1245 | 1346 | 1397 | 1524 | 1727 | |
| H | in | 7 | 7.5 | 8.25 | 9.25 | 20.88 | 24.62 | 25.62 | 30.75 | 31 | 36.25 | 38.25 | 43.38 | 5.25 | 50.75 | 55.12 | 64.12 | 70.88 | 80.75 |
| mm | 177 | 190 | 210 | 235 | 530 | 625 | 650 | 780 | 790 | 920 | 970 | 1100 | 1150 | 1290 | 1400 | 1630 | 1840 | 2050 | |
| W | in | 14 | 16 | 20 | 20 | 24 | 24 | 24 | 24 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| mm | 350 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | |
| WT(Kg) | RF | 15 | 19 | 27 | 38 | 81 | 140 | 160 | 205 | 260 | 390 | 510 | 750 | 1200 | 1400 | 1860 | 2100 | 2530 | 2970 |
| BW | 13.5 | 15.5 | 24.5 | 32.5 | 76 | 132 | 147 | 182 | 241 | 370 | 495 | 726 | 1125 | 1250 | 1640 | 1930 | 2390 | 276 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:What is the advantage of the Standard Port design?
The standard port design minimizes flow resistance and prevents any turbulence, ensuring smoother and more efficient flow in the pipeline.
Q:How does the valve handle sealing at high pressure?
The valve is equipped with a self releasing seat design, which ensures effective sealing under high pressure, prevents leakage, and reduces operating torque.
In building our 3 PCS forged steel ball valves, we are committed to innovation with the goal to reduce wear and ensure operational reliability while achieving efficient fluid control. With an earshaft installation design and standard port configuration, our valves perform in high-demand applications. Our team is committed to providing customized solutions that ensure your particular needs are met precisely and professionally addressed.
