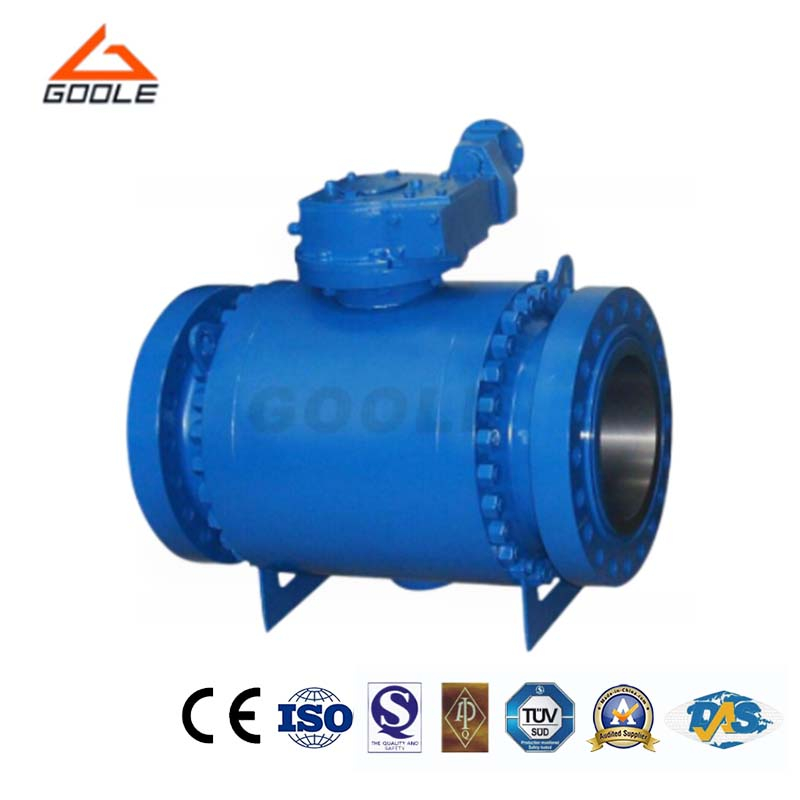

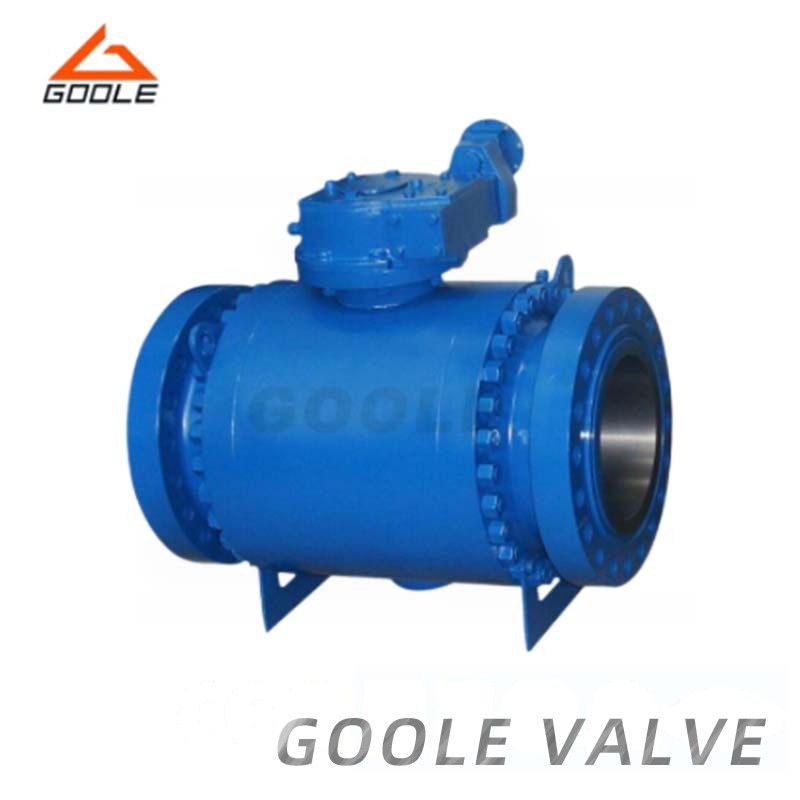

Split body reduce bore trunnion mounted ball valve have two piece and three piece body structure.middle part is bolt connection, RPTFE seal insert into stainless steel ring with spring .keep good sealling...
| Quantity: | |
|---|---|
3 PCS ball valves are designed for ASME150,300,600,900,1500 and 2500 classes according to API 6D. Cast steel and three forged steel side inlet design bolt connection between the valve body and the seal, earshaft bolt connection, the valve body thickness meets ANSI B16.34. The seat ring is floating and loaded with springs to ensure contact with the ball, providing an effective tight seal even at the low pressure difference between the cavity and the downstream seal. The standard design is soft-seated. Different soft seat materials can be provided according to the customer's work conditions. Be available in sufficient and reduced holes. Electrical, pneumatic and hydraulic actuators may be provided upon customer request.
●Metal-to-Metal Seats: The valve seat is designed for high pressure conditions to ensure excellent sealing and durability in harsh conditions.
●Full-Bore and Reduced-Bore Options: Provides flexibility in flow control for various pipeline applications.
| No | Part Name | ASTM Material | ||
| Carbon steel | 18Cr-19Ni-2Mo | Low temperature steel | ||
| 1 | Body | A216-WCB | A351-CF8M | A352-LCB |
| 2 | Bonnet | A216-WCB | A351-CF8M | A352-LCB |
| 3 | Ball | A182-F304 | A182-F316 | A182-F314 |
| 4 | Stem | A276-304 | A276-316 | A276-304 |
| 5 | Seat | A105+ENP | A182-F316 | A350-LF2+ENP |
| 6 | Stem insert | Class filled PTFE | A313-304 | |
| 7 | Seat spring | A313-304 | Inconel X-750 | A313-304 |
| 8 | O-ring | NBR | PTFE | PTFE |
| 9 | O-ring | NBR | PTFE | PTFE |
| 10 | Gasket | Graphite+304 | Graphite+316 | Graphite+304 |
| 12 | Spring | A313-304 | A313-316 | A313-304 |
| 13 | Grounding plunger | A216-WCB | A182-F316 | A182-F304 |
| 14 | Stud | A193-B7 | A193-B8 | A320-L7 |
| 15 | Nut | A194-2H | A194 8 | A194 4 |
| 16 | Trunnion | A276-304 | A276-316 | A276-304 |
| 17 | Trunnion bearing | 304+PTFE | 316+PTFE | 304+PTFE |
| 18 | Gland flange | A193-B7 | A193-8 | A193-B7 |
| 19 | Gland bolt | A193-B7 | A193-B8 | A193-B7 |
| 20 | Stop plate | Carbon steel | Carbon steel+Zn | Carbon steel |
| 21 | Handle | Carbon steel | ||
Main Dimensions
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 36 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 650 | 700 | 750 | 800 | 900 | |
| L(RF) | in | 7 | 7.5 | 8 | 9 | 15.5 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 42 | 45 | 49 | 51 | 54 | 60 |
| mm | 178 | 190 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1143 | 1245 | 1295 | 1372 | 1524 | |
| L1(BW) | in | 8.5 | 9.5 | 11.12 | 12 | 18 | 20.5 | 22 | 25 | 30 | 33 | 36 | 39 | 45 | 49 | 53 | 55 | 60 | 68 |
| mm | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 814 | 991 | 1143 | 1245 | 1346 | 1397 | 1524 | 1727 | |
| H | in | 7 | 7.5 | 8.25 | 9.25 | 20.88 | 24.62 | 25.62 | 30.75 | 31 | 36.25 | 38.25 | 43.38 | 5.25 | 50.75 | 55.12 | 64.12 | 70.88 | 80.75 |
| mm | 177 | 190 | 210 | 235 | 530 | 625 | 650 | 780 | 790 | 920 | 970 | 1100 | 1150 | 1290 | 1400 | 1630 | 1840 | 2050 | |
| W | in | 14 | 16 | 20 | 20 | 24 | 24 | 24 | 24 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| mm | 350 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | |
| WT(Kg) | RF | 15 | 19 | 27 | 38 | 81 | 140 | 160 | 205 | 260 | 390 | 510 | 750 | 1200 | 1400 | 1860 | 2100 | 2530 | 2970 |
| BW | 13.5 | 15.5 | 24.5 | 32.5 | 76 | 132 | 147 | 182 | 241 | 370 | 495 | 726 | 1125 | 1250 | 1640 | 1930 | 2390 | 276 |
| TYPE | TRUNNION BALL VALVE | SIZE | 1/2"--48"(DN15--DN1200) |
| STRUCTURE | TRUNNION BALL VALVE | PRESSURE RATING | ANSI CLASS 150--2500(1.6MPa--42.0MPa) |
| CONNECTION | THREADED, WELDED,FLANGE END | FUCTION | BLOW-DOWN VALVE |
| OPERATION | MANUAL,PNEUMATIC,ELECTRIC | APPLICATION | INDUSTRIAL USAGE |
| PRODUCTION CAPACITY | 1000000PCSNEAR | PACKAGE | PLYWOOD CASE |
| WARRANTY PERIOD | 12 MONTHS | TRADE MARK | GOOLE,OEM |
| ORIGIN | WENZHOU ZHEJIANG | HS CODE | 84819090 |
Q:What is the advantage of the Standard Port design?
The standard port is designed to minimize flow resistance and prevent any turbulence, thus ensuring a smoother and more efficient flow in the pipeline.
Q:How does the valve handle sealing at high pressure?
The valve uses high strength and corrosion resistant materials to enhance its durability and service life. The precision manufacturing technology of the valve ensures its sealing effect and control of the fluid, enabling it to adapt to a variety of harsh working environments and media.
Through the design of 3PCS ball valves, effective fluid control is achieved, wear is reduced, and operational reliability is ensured. With carefully designed and standardized port configurations, our valves demonstrate outstanding performance in high demand applications. Our team focuses on providing customized solutions to ensure accuracy and professionalism, meeting your specific needs.
