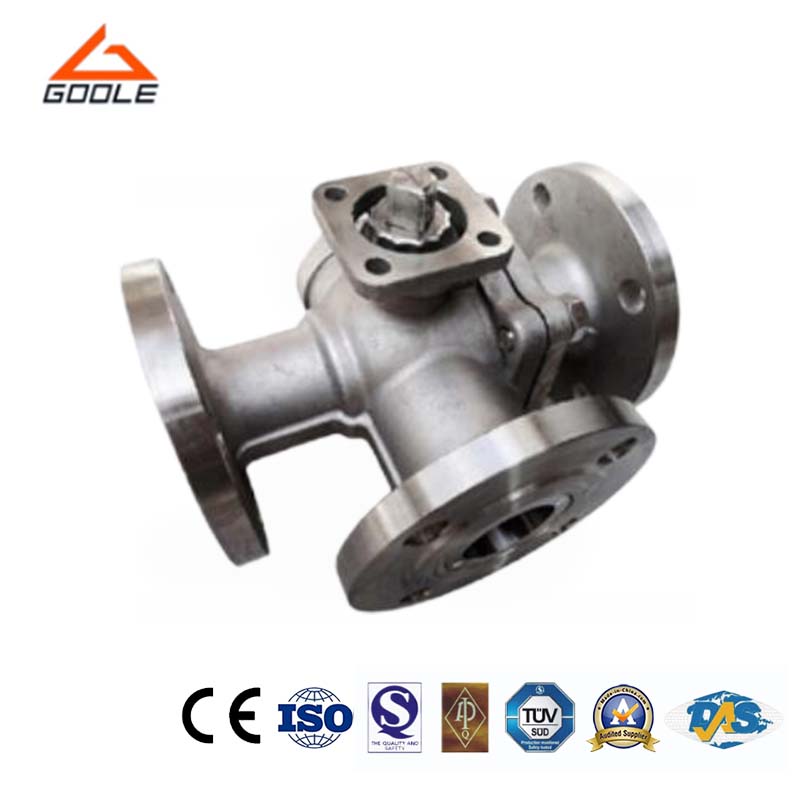

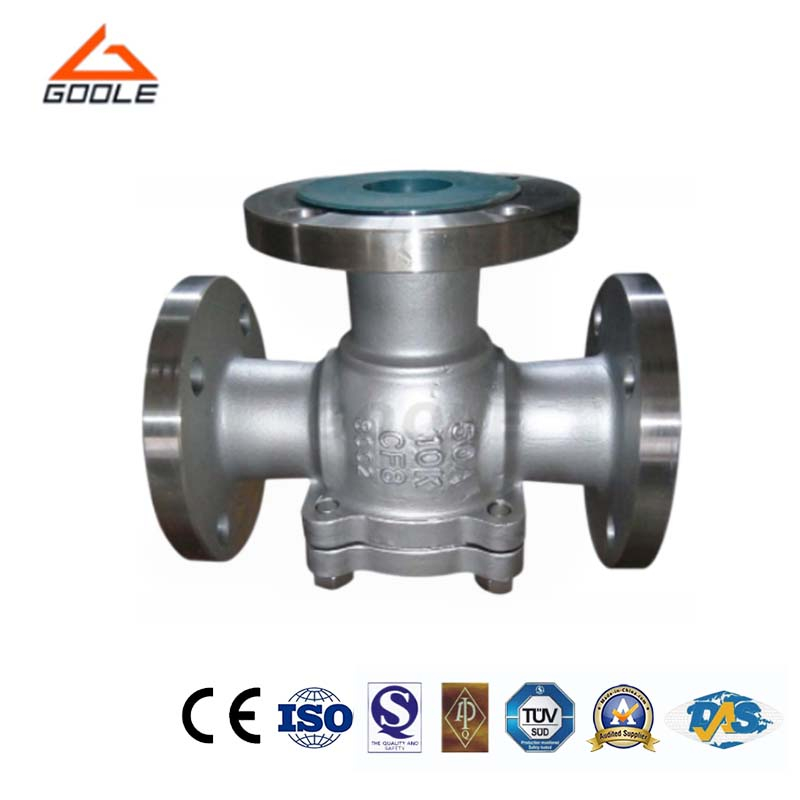

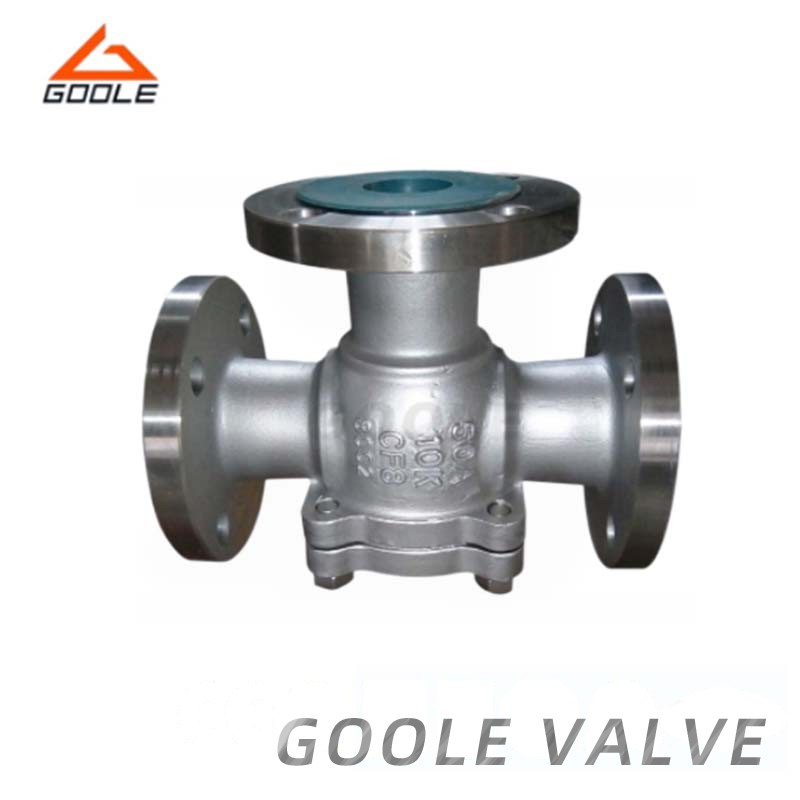

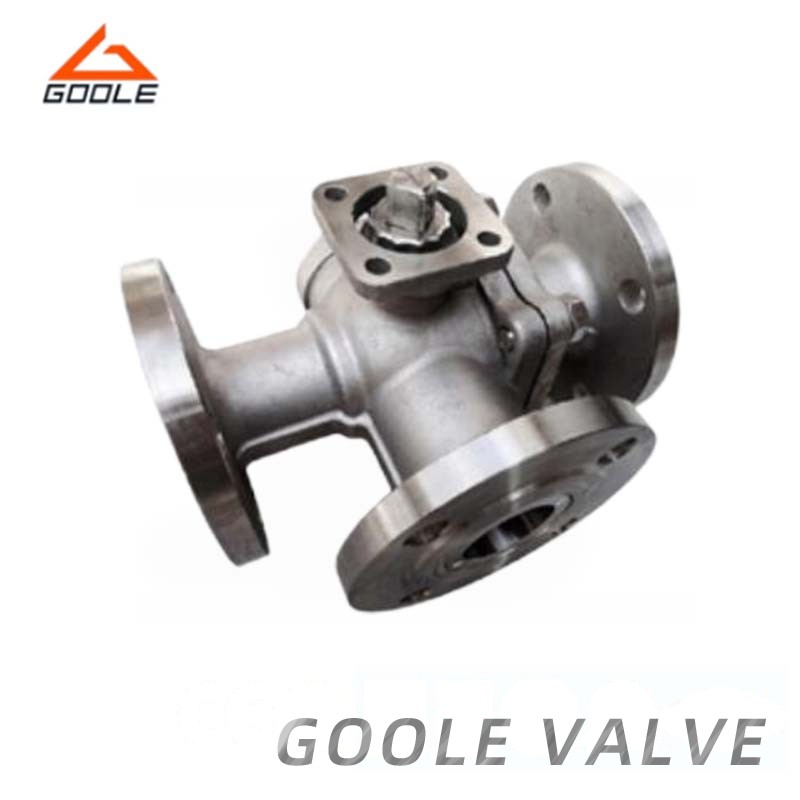

L PORT Three Way Floating Ball Valve ( Q44F) Features:1. Cast Type with 2 Pcs Split Body Deisgn or Forged Type with 3 PCS Body Design, Cast Material: WCB, CF8, CF8M, CF8C, Duplex Stainless Steel, etc.Forged Material: A105, F304, F316, F317, F347, F11, F51, F59, ETC.Other Materials available upon Request, available in Various Trim and Seat (Resilient and Metal) Materials To Suit Different Service Conditions.2. Available Operation:Normal Handle or Lockable Handle Operated...
| Quantity: | |
|---|---|
Three way floating ball valve is a common type of valve commonly used in pipeline systems that require control of fluid direction. Its unique T-shaped design enables fluid control between one inlet and two outlets, making it suitable for situations where fluid needs to be diverted or merged.
1.Three or two seat sealing ball valve enjoys compact structure,beautiful appearance, good sealing performance.
It can realize the switch the flow in pipe, also can make the two channels are perpendicular to each other
connection or close.
2. Switch the four seat sealing three ball valve can not only realize the flow, also can make the Three channels are
connected to each other, but also to turn off any channel, connected to the other two channels,flexibility control
line in medium mixing or shunt.
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L/L1(RF/BW) | in | 17.75 | 20.00 | 22.75 | 26.5 | 36.00 | 40.25 | 50.00 | 56.00 | / | / |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | / | / | |
| L2(RTJ) | in | 17.88 | 21.25 | 23.00 | 26.88 | 36.50 | 40.88 | 50.88 | 56.88 | / | / |
| mm | 454 | 540 | 584 | 683 | 927 | 1038 | 1292 | 1445 | / | / | |
| H | in | 7.50 | 9.00 | 11.00 | 14.12 | 15.75 | 18.88 | 20.50 | 26.38 | / | / |
| mm | 190 | 230 | 280 | 360 | 400 | 480 | 520 | 670 | / | / | |
| W | in | 24 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | / | / |
| mm | 600 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | / | / | |
| WT(Kg) | RF/RTJ | 68 | 95 | 120 | 185 | 675 | 1100 | 1650 | 2300 | / | / |
| BW | 54 | 74 | 91 | 122 | 555 | 918 | 1355 | 2950 | / | / |
| Form | Type T,L three way ball valve |
| Inside nominal diameter DN(mm) | DN15-DN300 |
| Nominal pressure | 1.6 2.5 4.0 6.4Mpa |
| Liquid range | Air ,water, gas ,oil and petrochemical products corrosive medium |
| Working temperature | Hard seal:-40 --300 Soft seal:-40 --180 |
| Spillage | 0 conform to ANSIB16.104standard |
| Main material | Valve body : WCB 304 316 316L Spool: 304 316 316L |
| Seat form | Stainless steel movable hard seal, PTFE soft seal |
| Surface preparation | Polishing |
