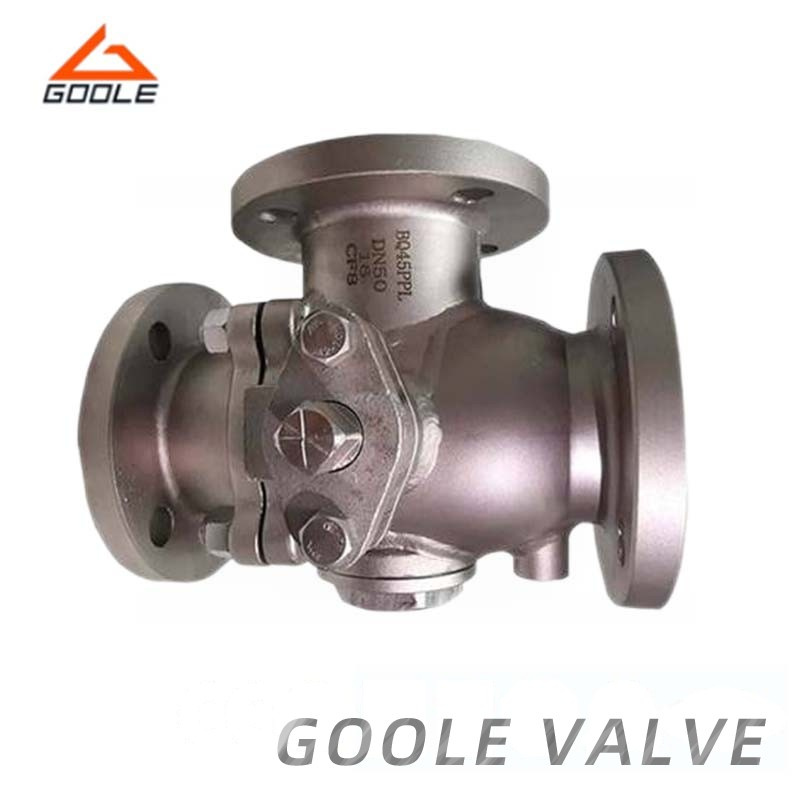

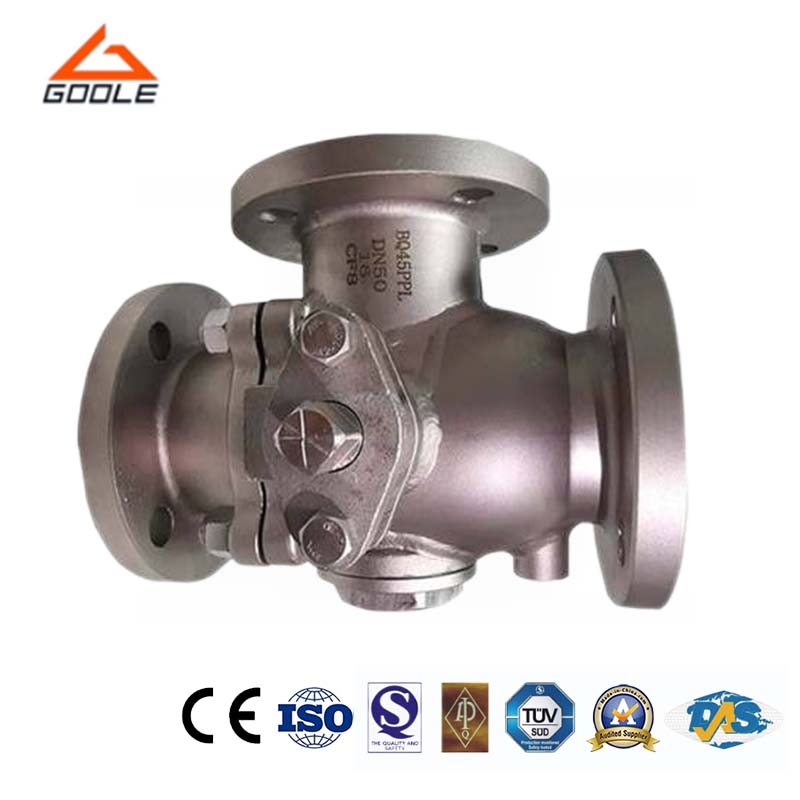

The L-type three-way ball valve with a steam jacket is a commonly used valve in pipeline systems that require fluid flow control. Its distinctive L-shaped design facilitates fluid control between two inlets and one outlet, making it particularly suitable for scenarios where fluid diversion or merging is necessary.
● Compact Structure: Featuring low flow resistance, it operates efficiently within a range of fluid control systems, thereby minimizing energy loss.
● Easy to Operate: The switch incorporates a unique spherical design, enabling rapid opening and closing. It requires only a 90-degree rotation to complete the action, significantly enhancing work efficiency.
● Good Sealing Performance: Utilizing advanced sealing materials and structures, it ensures reliable sealing across various working conditions, preventing fluid leakage.
| Packaging & Delivery | Plywood case or buyer request |
| Body | WCB, CF8(304), CF8(304L), CF8M(316), CF3M(316L) |
| Ball/Stem | 2Cr13, 0Cr18Ni9Ti(304) 00Cr19Ni11(304L), 0Cr17Ni12Mo2(316), 00Cr17Ni14Mo2(316L) |
| Sealing | PTFE, PPL |
| Packing/ Washer | V-shape PTFE, Flexible Graphite, Flexible Graphite Wounded Gasket |
| Port Size | 2"--12" |
| Pressure | 150LB--1500LB |
| Temperature of Media | High Temperature |
| Media | gas oil and water ect |
| Drive means | Manual , pneumatic , electric |
| Type of connection | Flange , thread , butt welded |
| Form | Type T,L three way ball valve |
| Inside nominal diameter DN(mm) | DN15-DN300 |
| Nominal pressure | 1.6 2.5 4.0 6.4Mpa |
| Liquid range | Air ,water, gas ,oil and petrochemical products corrosive medium |
| Working temperature | Hard seal:-40 --300 Soft seal:-40 --180 |
| Spillage | 0 conform to ANSIB16.104standard |
| Main material | Valve body : WCB 304 316 316L Spool: 304 316 316L |
| Seat form | Stainless steel movable hard seal, PTFE soft seal |
| Surface preparation | Polishing |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valves are crafted from premium materials, ensuring exceptional durability and reliability. Their innovative design guarantees precise and efficient fluid control, catering to the needs of a wide range of industrial applications. We provide comprehensive after-sales service to ensure that any issues encountered during use are promptly and effectively resolved. By choosing our three-way ball valves, you will experience superior product performance and a worry-free user experience.
