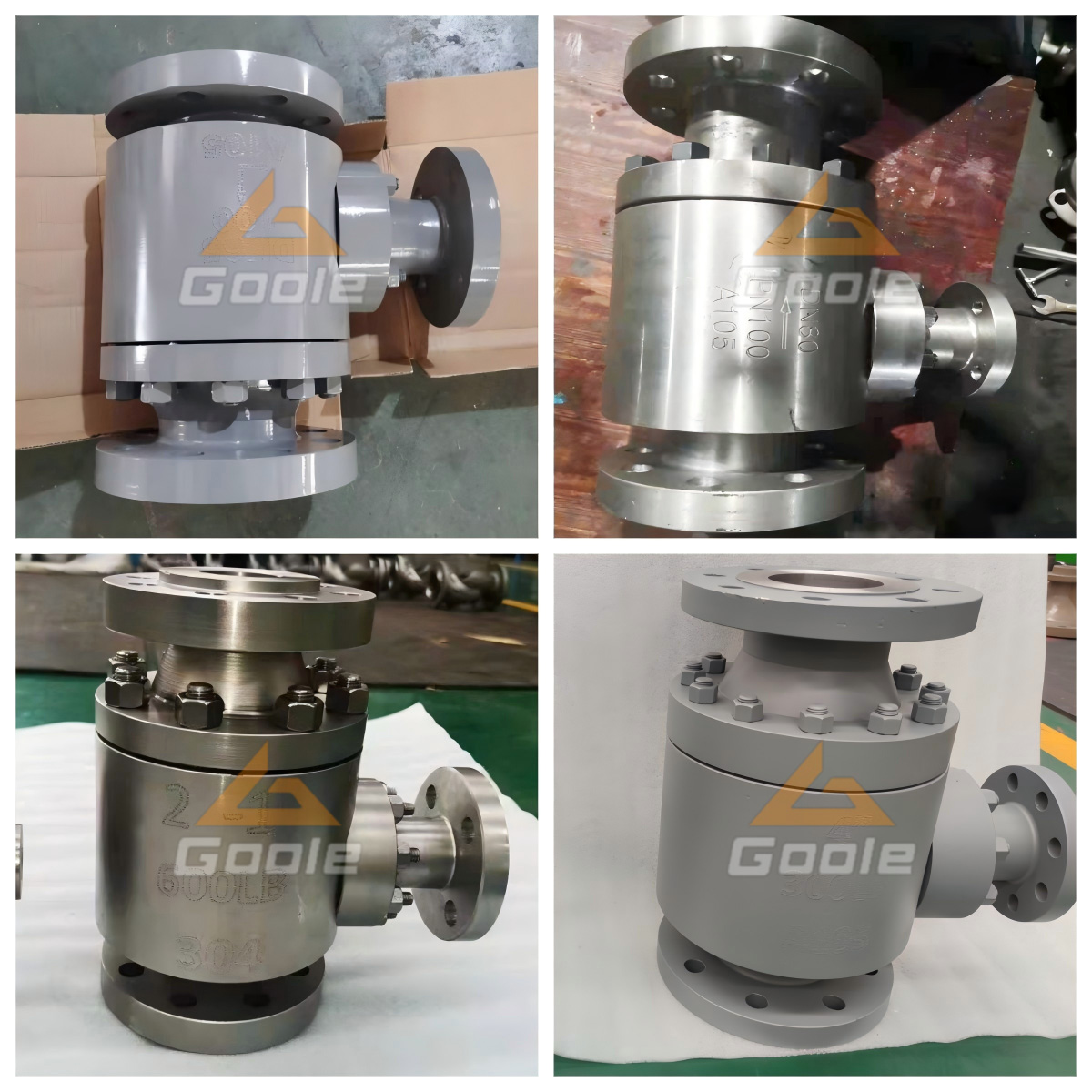

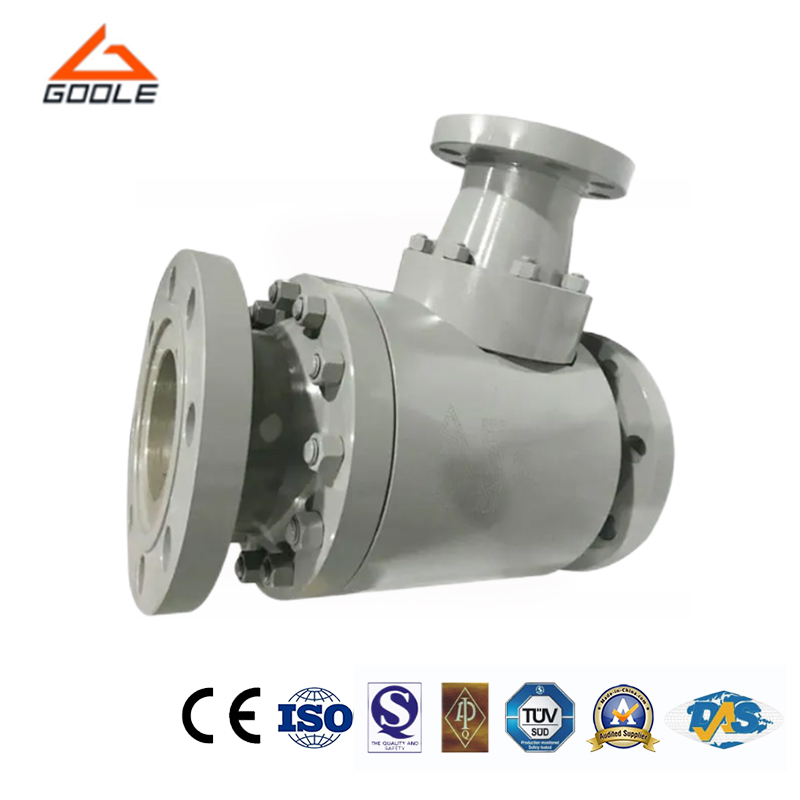

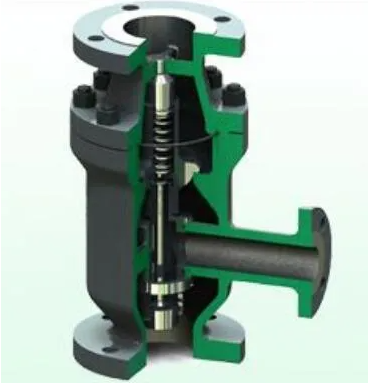

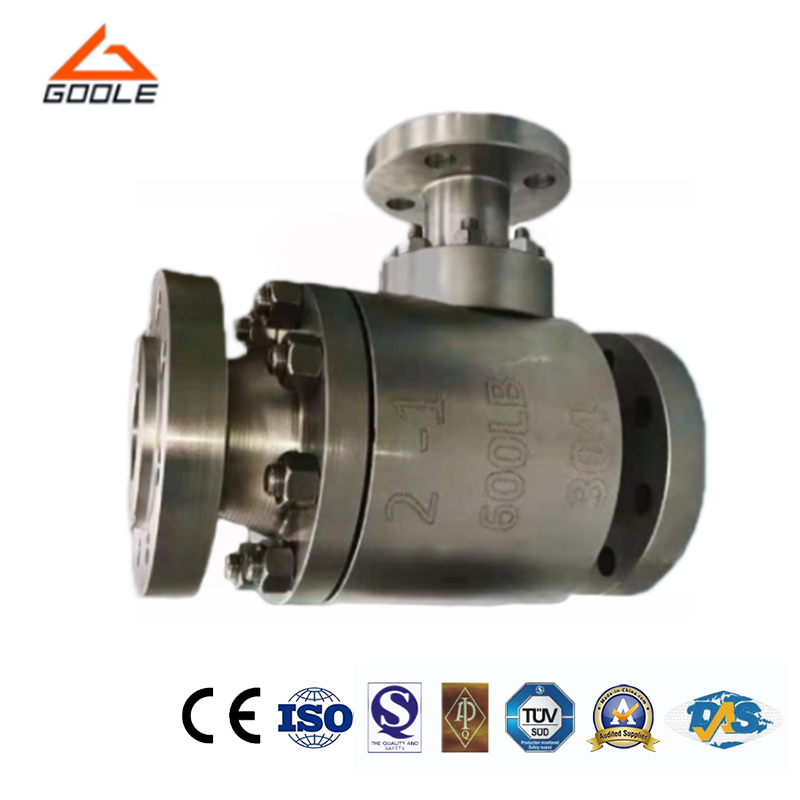

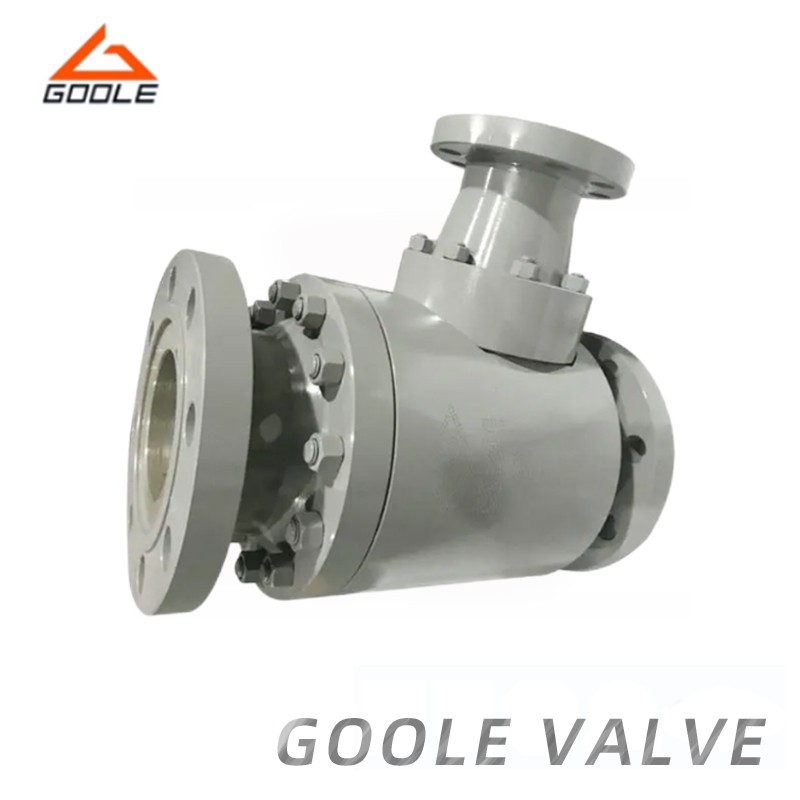

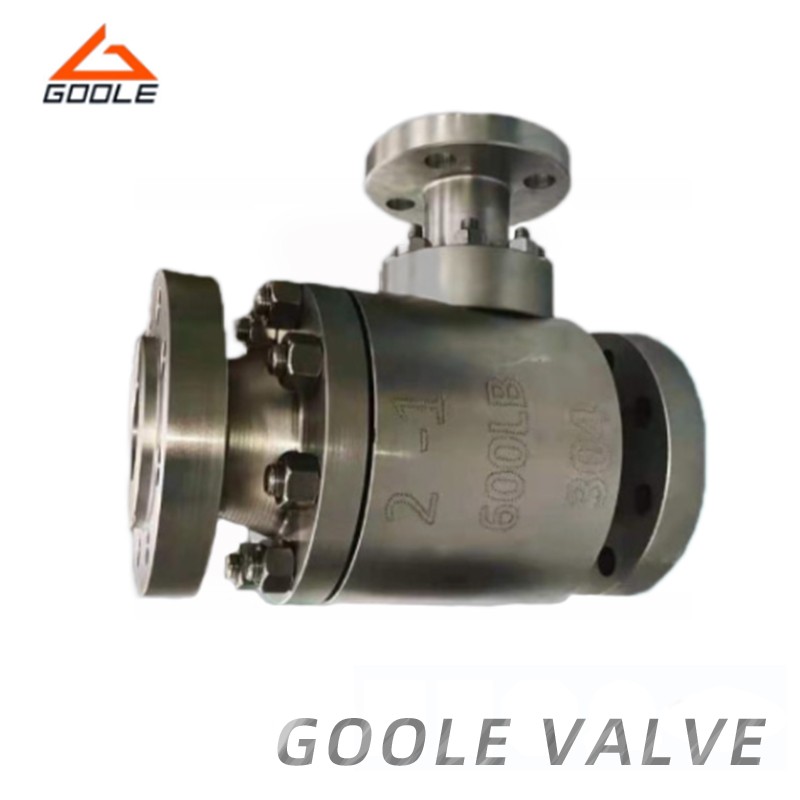

The ZDM series automatic circulation pump protection valve is a pump protection device designed to automatically safeguard the pump against cavitation and instability during low-load operation, particularly when conveying hot water. When the pump flow rate falls below the preset threshold, the bypass valve opens fully to ensure the pump maintains a minimum flow rate. Even if the main line is completely closed, with zero flow, the bypass can still circulate the minimum flow. The integrated multi-stage throttling pressure relief valve in the bypass aids in reducing pressure. The ZDM series bypass is engineered for high-pressure differential environments, capable of managing up to 30 MPa pressure differences. The specific selection is determined by the factory. The multi-stage pressure reduction M-type bypass effectively mitigates noise from high-speed fluid and prevents damage to valve components caused by cavitation and flashing.
● L-Shaped Design: Achieves precise fluid control and streamlined flow regulation within the pipeline network.
● Forged Structure: Offers superior structural integrity and an extended service life, engineered for operation under extreme conditions.
● Reliable Sealing: Ensures airtight safety with zero leakage accuracy, making it an essential component of mission-critical systems.
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L/L1(RF/BW) | in | 17.75 | 20.00 | 22.75 | 26.5 | 36.00 | 40.25 | 50.00 | 56.00 | / | / |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | / | / | |
| L2(RTJ) | in | 17.88 | 21.25 | 23.00 | 26.88 | 36.50 | 40.88 | 50.88 | 56.88 | / | / |
| mm | 454 | 540 | 584 | 683 | 927 | 1038 | 1292 | 1445 | / | / | |
| H | in | 7.50 | 9.00 | 11.00 | 14.12 | 15.75 | 18.88 | 20.50 | 26.38 | / | / |
| mm | 190 | 230 | 280 | 360 | 400 | 480 | 520 | 670 | / | / | |
| W | in | 24 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | / | / |
| mm | 600 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | / | / | |
| WT(Kg) | RF/RTJ | 68 | 95 | 120 | 185 | 675 | 1100 | 1650 | 2300 | / | / |
| BW | 54 | 74 | 91 | 122 | 555 | 918 | 1355 | 2950 | / | / |
| Valve brand | GOOLE |
| Valve Model | HDTM |
| Connection form | flange; welding |
| Product material | Forged steel A105/F304 |
| Nominal diameter | DN40~DN500 |
| Adapt to medium | water, steam, etc |
| Pressure rating | PN16-PN420 |
Q1:What is the primary function?
This valve is used for fluid diversion in pipeline systems, allowing precise control of fluid flow between different paths.
Q2:What material is used?
The valve is made from forged steel, providing added strength and durability for long-term use in industrial applications.
Our valves offer exceptional sealing performance in critical applications, ensuring zero leakage even under extreme conditions. The streamlined L-shaped design is engineered to improve spatial efficiency, allowing for seamless integration into confined spaces. The forged body provides robust durability, ensuring long-term stable operation in harsh industrial environments. Forged L-shaped three-way ball valves are the ideal solution for industries that demand precise flow management, optimized space utilization, and consistent durability throughout high-intensity operating cycles.
