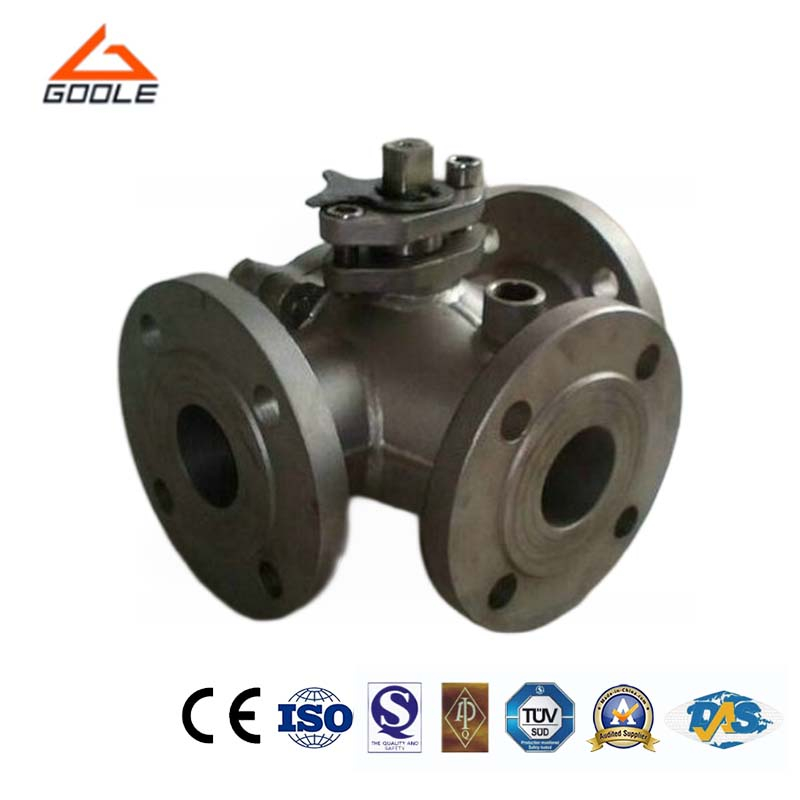

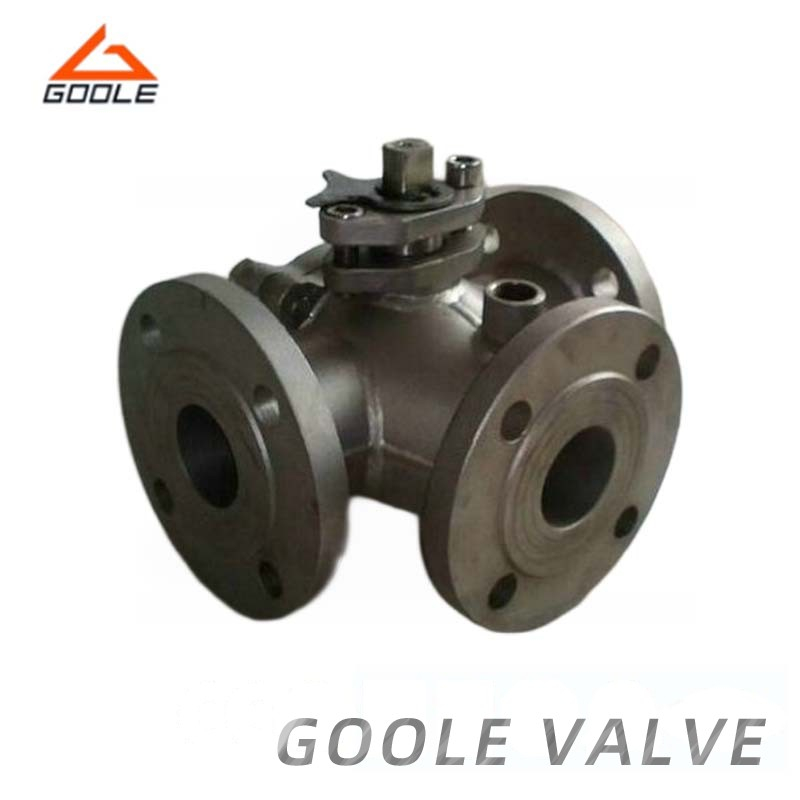

Steam Jacketed L Port Three Way Ball Valve is a common type of valve commonly used in pipeline systems that require control of fluid direction. Its unique L-shaped design enables fluid control between two inlets and one outlet, making it suitable for situations where fluid needs to be diverted or merged.
● Compact Structure: Featuring low flow resistance, it functions efficiently across a variety of fluid control systems, minimizing energy loss.
● Easy to Operate: The switch's operation is swift due to its unique spherical design, allowing for full opening or closing with just a 90-degree rotation, significantly enhancing work efficiency.
● Good Sealing Performance: Utilizing advanced sealing materials and structures, it ensures a reliable seal under various working conditions, preventing fluid leakage.
| Packaging & Delivery | Plywood case or buyer request |
| Body | WCB, CF8(304), CF8(304L), CF8M(316), CF3M(316L) |
| Ball/Stem | 2Cr13, 0Cr18Ni9Ti(304) 00Cr19Ni11(304L), 0Cr17Ni12Mo2(316), 00Cr17Ni14Mo2(316L) |
| Sealing | PTFE, PPL |
| Packing/ Washer | V-shape PTFE, Flexible Graphite, Flexible Graphite Wounded Gasket |
| Port Size | 2"--12" |
| Pressure | 150LB--1500LB |
| Temperature of Media | High Temperature |
| Media | gas oil and water ect |
| Drive means | Manual , pneumatic , electric |
| Type of connection | Flange , thread , butt welded |
| Form | Type T,L three way ball valve |
| Inside nominal diameter DN(mm) | DN15-DN300 |
| Nominal pressure | 1.6 2.5 4.0 6.4Mpa |
| Liquid range | Air ,water, gas ,oil and petrochemical products corrosive medium |
| Working temperature | Hard seal:-40 --300 Soft seal:-40 --180 |
| Spillage | 0 conform to ANSIB16.104standard |
| Main material | Valve body : WCB 304 316 316L Spool: 304 316 316L |
| Seat form | Stainless steel movable hard seal, PTFE soft seal |
| Surface preparation | Polishing |
Q1:What is a Three-Way Ball Valve?
It is a three-way ball valve is a valve with three passages and a spherical valve core.
Q2:Can the valve handle high-pressure applications?
Yes, the three-way ball valvee is specifically designed to handle high-pressure environments while ensuring reliable performance.
Our three-way ball valves are crafted from high-quality materials, ensuring exceptional durability and reliability. Their innovative design ensures precise and efficient fluid control, meeting the needs of a wide range of industrial applications. We offer comprehensive after-sales service to ensure that any issues encountered during use are promptly and effectively resolved. By choosing our three-way ball valves, you will enjoy superior product performance and worry-free user experience.
