Product Description name of commodity: Class 150~600 LB Floating Ball ValveNominal diameter:1/2"-12"Nominal pressure:150Lb-600Lb , 10K-40K...
| Quantity: | |
|---|---|

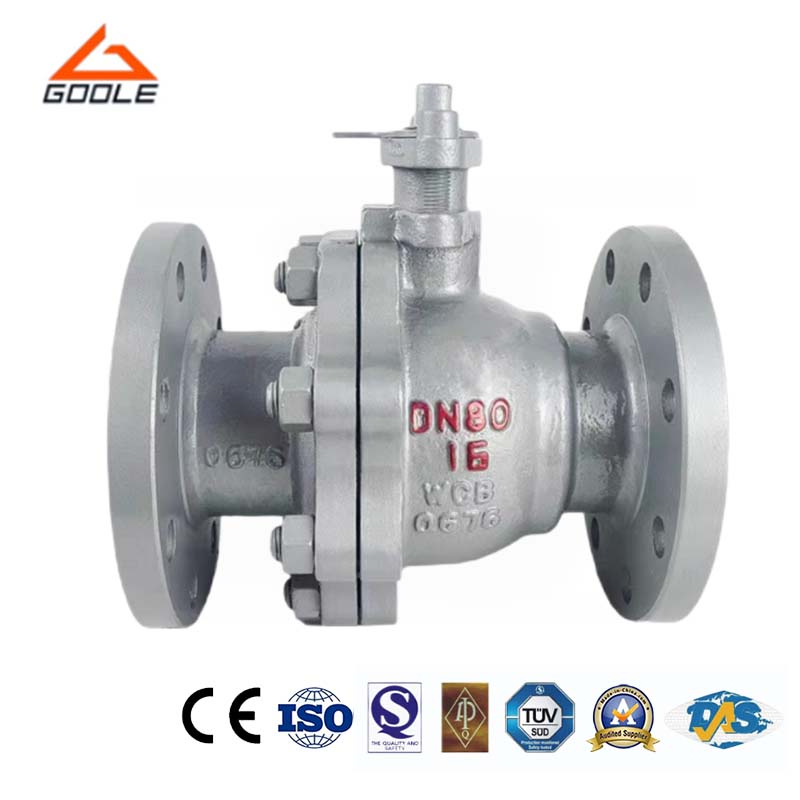

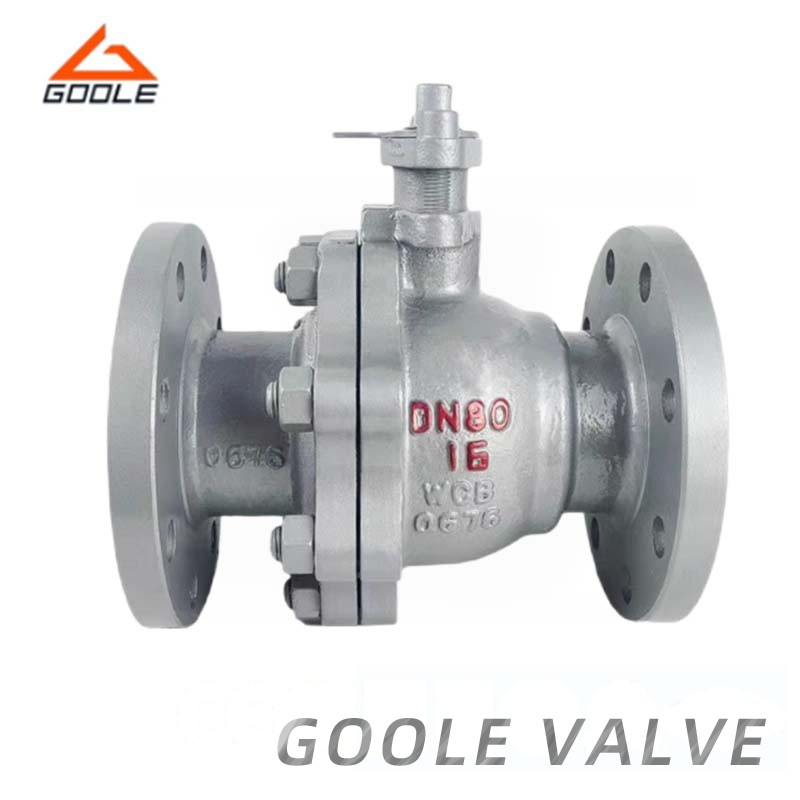

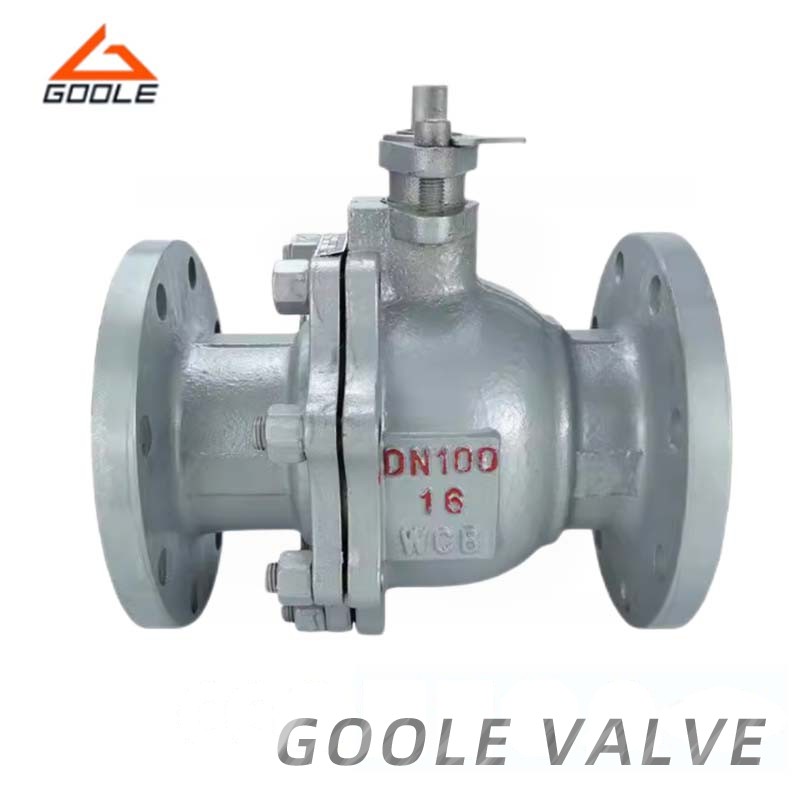

Cast Steel Flange ball valve has the same 90 degree rotation action, but the difference is that the plug body is a sphere with a circular through-hole or channel passing through its axis. Ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of the medium. They can be tightly closed with only a 90 degree rotation and a small rotational torque.
● Fire Safe Design: The valve with fire protection characteristics can ensure the integrity of its structure and normal operation in case of fire.
● Anti-Static Device: These devices help reduce the likelihood of fire and keep the operating environment safe by ensuring that static electricity is effectively released.
● Low Emission Control: Low emission control valves are designed to minimize the amount of harmful gases or vapors emitted into the atmosphere.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
We use high-quality cast steel as the primary materials to ensure the strength and corrosion resistance of the valves, effectively extending their service life. Combined with advanced precision casting and machining techniques, each valve undergoes rigorous quality testing to ensure excellent sealing performance and smooth operation. We offer a variety of sizes, pressure ratings, and temperature ratings to fully meet the specific needs of various industrial applications.
