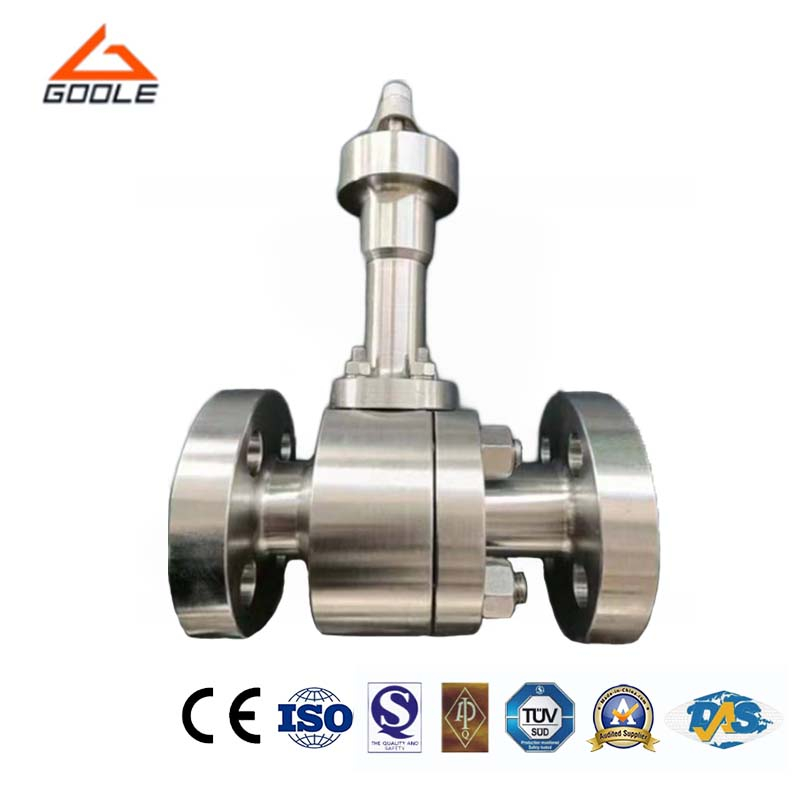

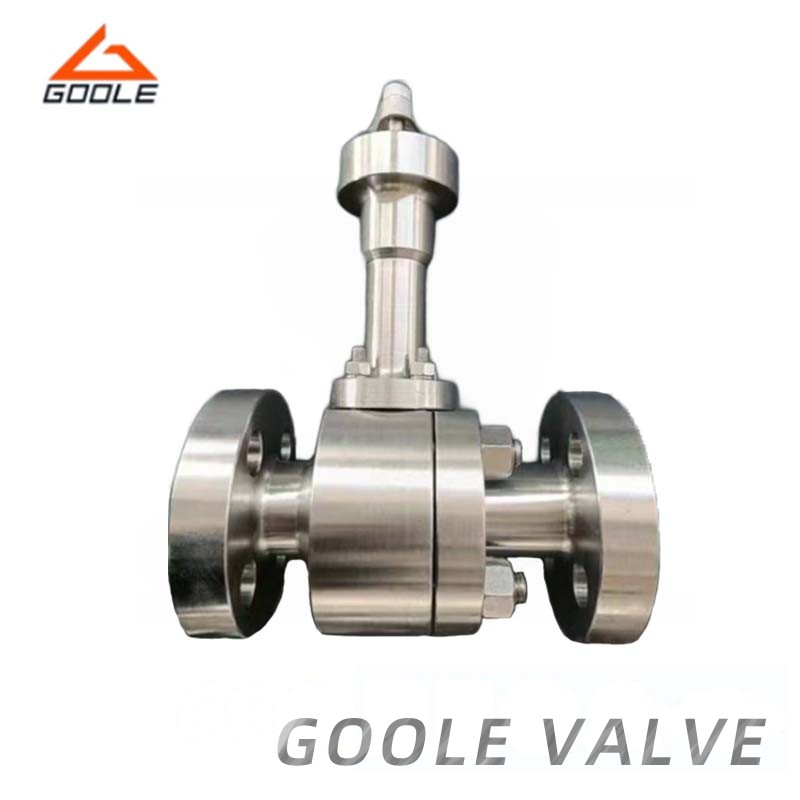

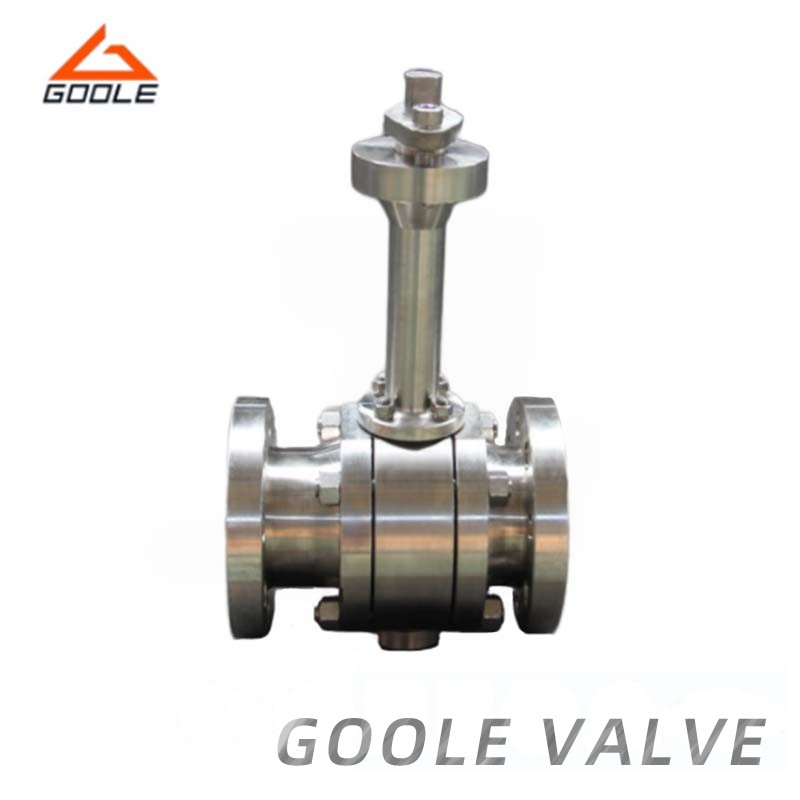

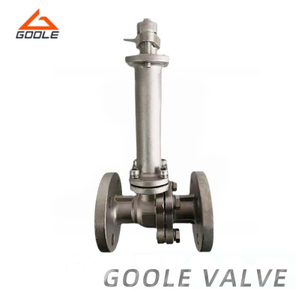

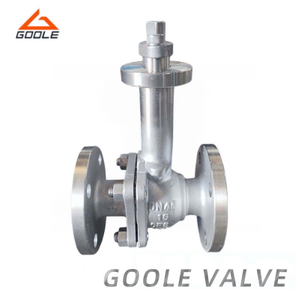

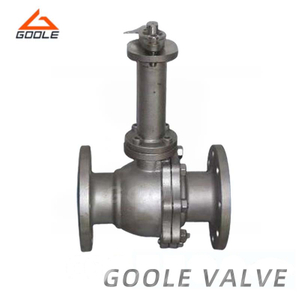

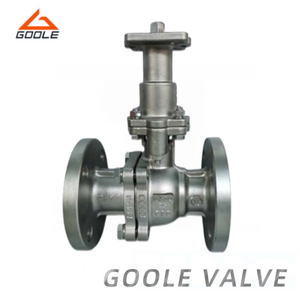

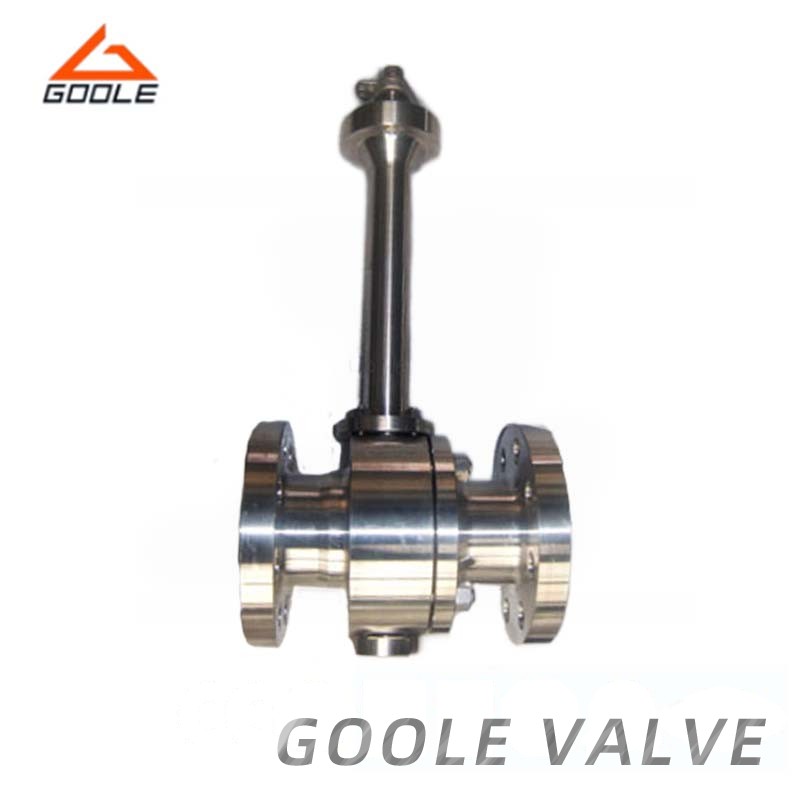

Flange connection Cryogenic ball valve is used for low temperature working condition,especially for some hazard media, such as liquidized natural gas. Applied to LNG plant, LNG receiving station, LNG gasification station and LNG carrier and ship...
| Quantity: | |
|---|---|

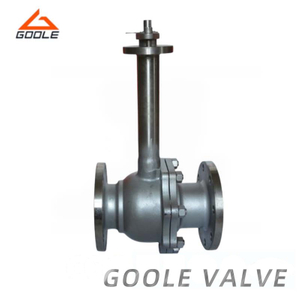

The Hastelloy steel ball valve is specifically designed for efficient operation in extremely cold environments. It features a metal valve seat design to ensure reliable sealing, making it an ideal choice for handling liquefied natural gas (LNG) and other cold materials under low-temperature conditions such as liquefied gases. The valve is made from robust forged steel, providing strength and durability that ensures long-term performance even in harsh conditions like LNG plants, receiving stations, vaporization plants, and LNG carriers.
● Cryogenic Design: The valve is designed for low temperature applications to ensure stable and reliable performance when handling liquefied gases and other cold materials at low temperatures.
● Metal-Seated: The metal valve seat is designed to provide a reliable seal at extreme temperatures, ensuring leak-free operation in challenging low temperature conditions.
● Reliable Performance in Hazardous Media: Specially designed to handle hazardous and flammable media, such as liquefied natural gas, ensuring the safety of critical operations.
| No | Part Name | Materials | |
| -46°C~-101°C~-196°C | |||
| 1 | Left Body | A352-LCB,LCC,LC3,A351-CF8,A351-CF8M | |
| 2 | Seat | PTFE,RPTFE,PEEK,PPL,POM,KARBATE | |
| NYLON,MOLON,DEVLON | |||
| 3 | Ball | A182-F304,F316 | |
| 4 | O-ring | VITON | |
| 5 | Gasket | Flexible graphite+304,flexible graphite+316,PTFE | |
| 6 | Bolt | A194-4,8,8M | |
| 7 | Nut | A320-L7,A193-B8,B8M | |
| 8 | Right body | A352-LCB,LCC,LC3,A351-CF8,CF8M | |
| 9 | Spring | ss304,316 | |
| 10 | Small ball | PTFE | |
| 11 | Thrust washer | A182-F6,F316,F316 | |
| 12 | Stem | Flexible graphite,PTFE | |
| 13 | Gasket | A182 F6,F304,F316 | |
| 14 | Packing | A352 LCB,A351 CF8 | |
| 15 | Gland | 1025,stainless steel | |
| 16 | Gland flange | A216 WCB | |
| 17 | Stop plate | 1025 | |
| 18 | Lever | 1035,stainless steel | |
| 19 | Screw | A352-LCB,LCC,LC3,A351-CF8,CF8M | |
| 20 | Screw | 1035,stainless steel | |
| 21 | Extended bonnet | A352-LCB,LCC,LC3,A351-CF8,CF8M, | |
| 22 | Screw | 1035,stainless steel | |
| 23 | Bushing | A182-F6,F304,F316 | |
Main Dimensions
| Size(in) | H | ||
| -46°C | -101°C | -196°C | |
| 1/2 | 90 | 110 | 130 |
| 3/4 | 100 | 110 | 140 |
| 1 | 100 | 120 | 150 |
| 1 1/2 | 110 | 130 | 160 |
| 2 | 110 | 130 | 170 |
| 3 | 120 | 150 | 190 |
| 4 | 130 | 160 | 200 |
| 6 | 140 | 170 | 220 |
| 8 | 140 | 170 | 220 |
| 10 | 150 | 180 | 240 |
| 12 | 150 | 180 | 240 |
| 14 | 160 | 190 | 250 |
| 16 | 160 | 190 | 250 |
| 18 | 160 | 190 | 250 |
| 20 | 170 | 200 | 260 |
| 24 | 170 | 200 | 260 |
| Valve body, side cover | Hastelloy C-276 |
| Sphere Ball | Hastelloy C-276 + cobalt base + tungsten carbide |
| Valve seat | Hastelloy C-276 + cobalt base + tungsten carbide; (Hastelloy G30 for ball valves) |
| Stem | XM-19 |
| Spring | Inconel X-750 |
| Fastener | B7+ fluorine spray |
| Middle flange sealing material | graphite + O-ring (fluorine rubber) |
Q1:What is the main use of this valve?
This valve is ideal for cryogenic applications, especially for handling liquefied gases such as LNG, in low-temperature environments.
Q2:What type of seating is used?
It uses a metal seat, designed to maintain reliable sealing performance at extreme low temperatures.
Our company's low temperature application forged steel low temperature metal valve seat float valve has excellent performance in low temperature environment. The metal valve seat design of this valve ensures reliable sealing under extreme cold conditions, while the forged steel structure provides strength to handle liquefied gas and other low temperature materials for a long time reliably.
