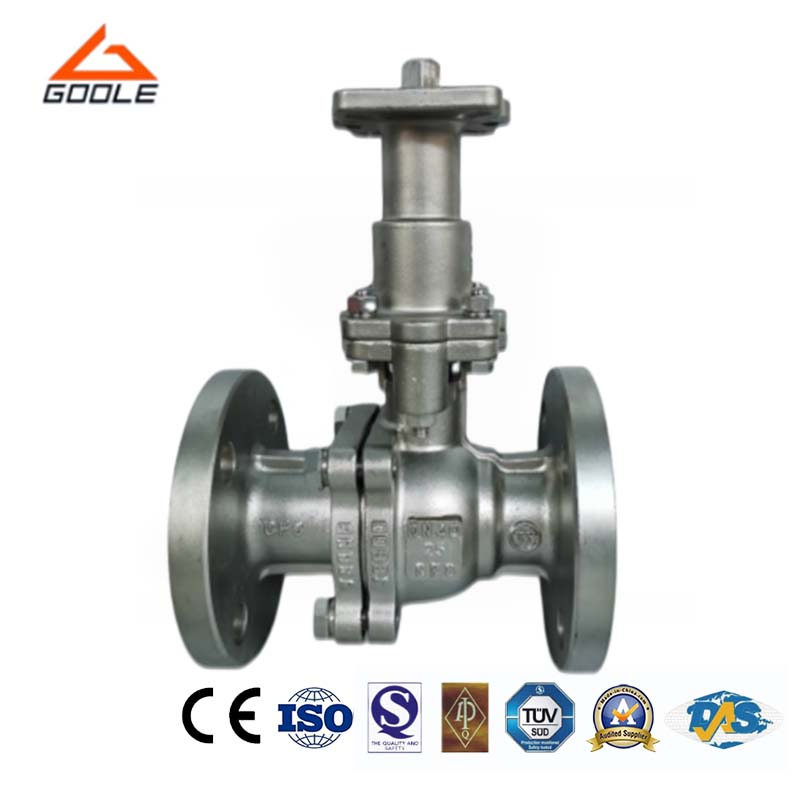

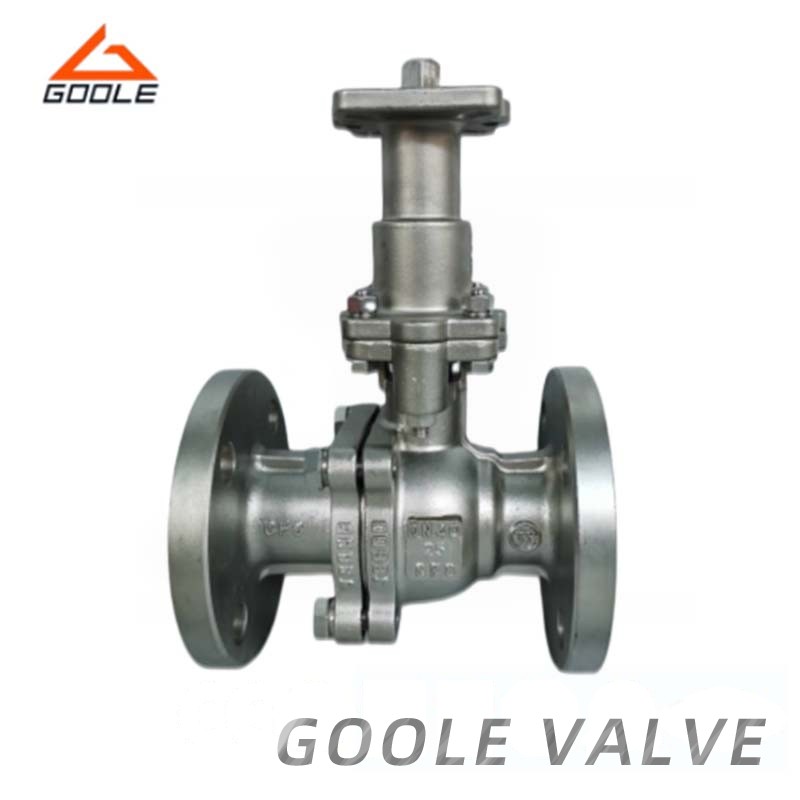

Flange connection Cryogenic ball valve is used for low temperature working condition,especially for some hazard media, such as liquidized natural gas. Applied to LNG plant, LNG receiving station, LNG gasification station and LNG carrier and ship...
| Quantity: | |
|---|---|

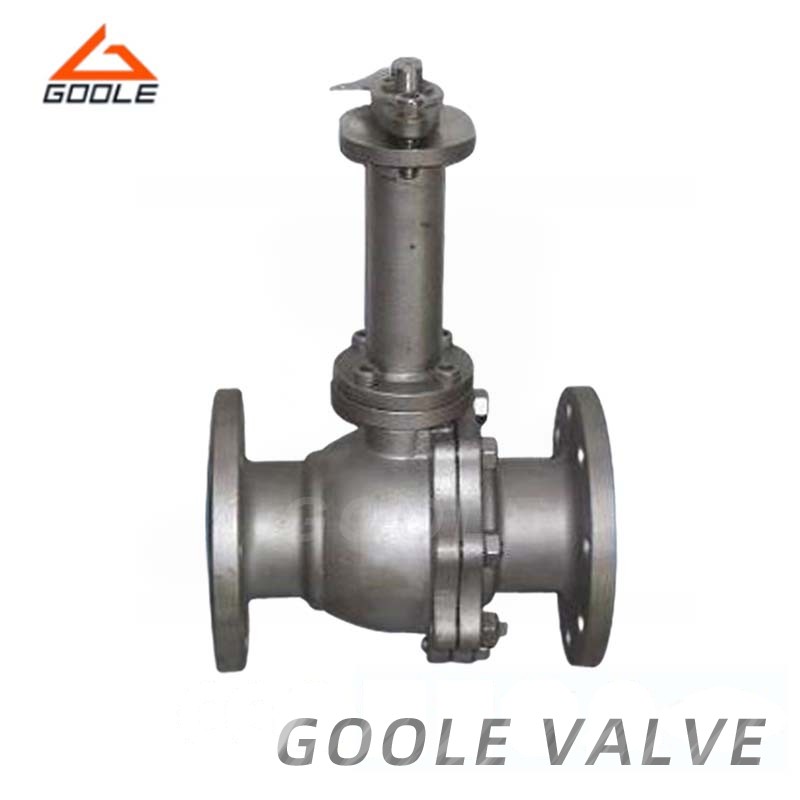

The flanged low temperature ball valve is suitable for low temperature conditions, especially dangerous media such as liquefied natural gas. It is suitable for LNG plants, LNG terminals, LNG gasification stations, LNG transport ships and ships.
● Cryogenic Design: The valve is designed for low temperature applications to ensure stable and reliable performance when handling liquefied gases and other cold materials at low temperatures.
● Metal-Seated: The metal valve seat is designed to provide a reliable seal at extreme temperatures to ensure leak-free operation in challenging low temperature conditions.
● Reliable Performance in Hazardous Media: The valve is specifically designed to handle hazardous and flammable media, such as liquefied natural gas, ensuring the safety of critical operations.
| No | Part Name | Materials | |
| -46°C~-101°C~-196°C | |||
| 1 | Left Body | A352-LCB,LCC,LC3,A351-CF8,A351-CF8M | |
| 2 | Seat | PTFE,RPTFE,PEEK,PPL,POM,KARBATE | |
| NYLON,MOLON,DEVLON | |||
| 3 | Ball | A182-F304,F316 | |
| 4 | O-ring | VITON | |
| 5 | Gasket | Flexible graphite+304,flexible graphite+316,PTFE | |
| 6 | Bolt | A194-4,8,8M | |
| 7 | Nut | A320-L7,A193-B8,B8M | |
| 8 | Right body | A352-LCB,LCC,LC3,A351-CF8,CF8M | |
| 9 | Spring | ss304,316 | |
| 10 | Small ball | PTFE | |
| 11 | Thrust washer | A182-F6,F316,F316 | |
| 12 | Stem | Flexible graphite,PTFE | |
| 13 | Gasket | A182 F6,F304,F316 | |
| 14 | Packing | A352 LCB,A351 CF8 | |
| 15 | Gland | 1025,stainless steel | |
| 16 | Gland flange | A216 WCB | |
| 17 | Stop plate | 1025 | |
| 18 | Lever | 1035,stainless steel | |
| 19 | Screw | A352-LCB,LCC,LC3,A351-CF8,CF8M | |
| 20 | Screw | 1035,stainless steel | |
| 21 | Extended bonnet | A352-LCB,LCC,LC3,A351-CF8,CF8M, | |
| 22 | Screw | 1035,stainless steel | |
| 23 | Bushing | A182-F6,F304,F316 | |
Main Dimensions
| Size(in) | H | ||
| -46°C | -101°C | -196°C | |
| 1/2 | 90 | 110 | 130 |
| 3/4 | 100 | 110 | 140 |
| 1 | 100 | 120 | 150 |
| 1 1/2 | 110 | 130 | 160 |
| 2 | 110 | 130 | 170 |
| 3 | 120 | 150 | 190 |
| 4 | 130 | 160 | 200 |
| 6 | 140 | 170 | 220 |
| 8 | 140 | 170 | 220 |
| 10 | 150 | 180 | 240 |
| 12 | 150 | 180 | 240 |
| 14 | 160 | 190 | 250 |
| 16 | 160 | 190 | 250 |
| 18 | 160 | 190 | 250 |
| 20 | 170 | 200 | 260 |
| 24 | 170 | 200 | 260 |
| Nominal diameter | DN15- DN250 |
| Nominal pressure | 150LB- 300LB |
| Working temperature | -196 - +29ºC |
| Driving means | handle, electric actuator |
| Material | Stainless steel, Forged Steel , LCC/LCB, CF8/CFM8 |
Q1:What is the main use of this valve?
This valve is ideal for cryogenic applications, especially for handling liquefied gases such as LNG, in low-temperature environments.
Q2:What type of seating is used?
It uses a metal seat, designed to maintain reliable sealing performance at extreme low temperatures.
Our forged steel low-temperature metal valve ball seat is specifically designed for low-temperature applications and performs excellently in such environments. The metal valve seat design ensures leak-proof and reliable sealing even under extreme cold conditions, while the forged steel structure provides strength. It is specifically designed to handle liquefied gases and other low-temperature materials reliably over long periods.
