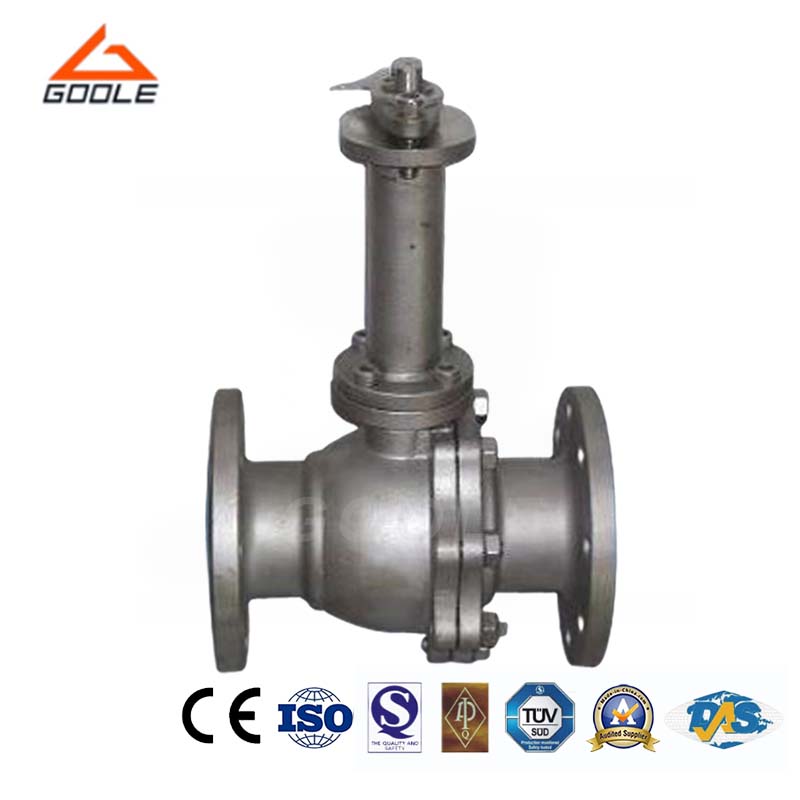

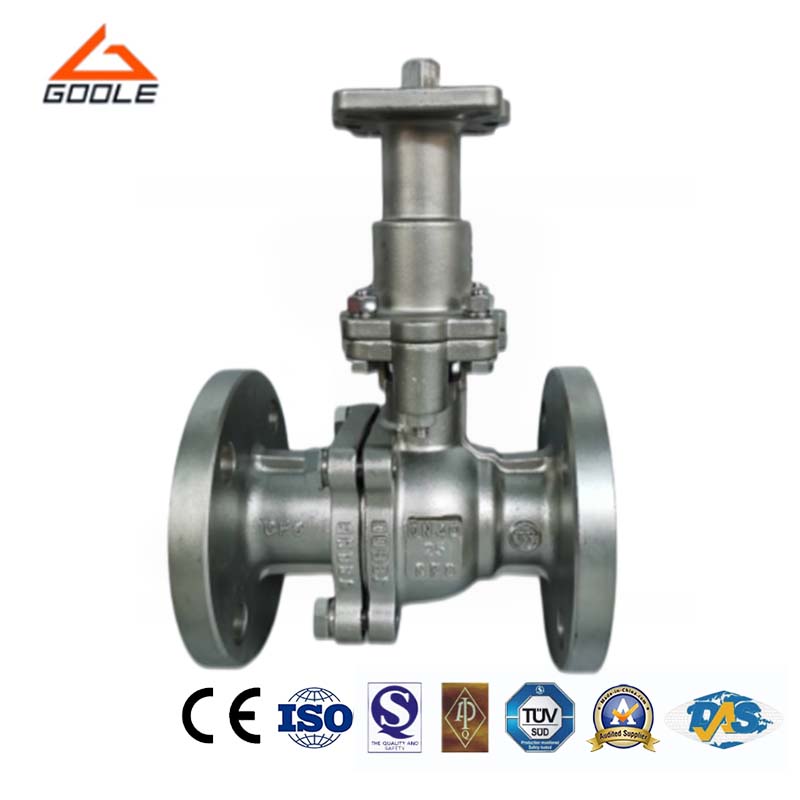

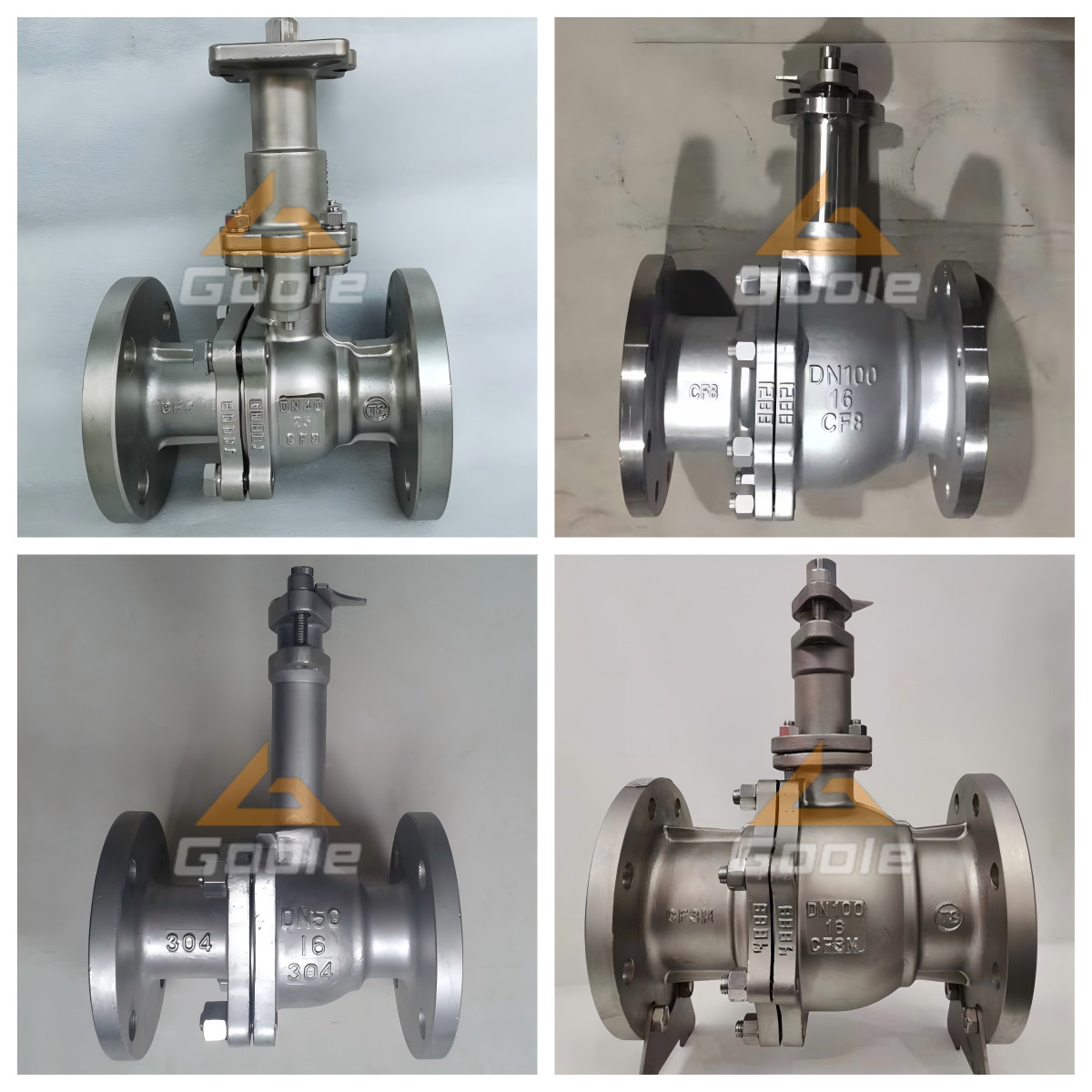

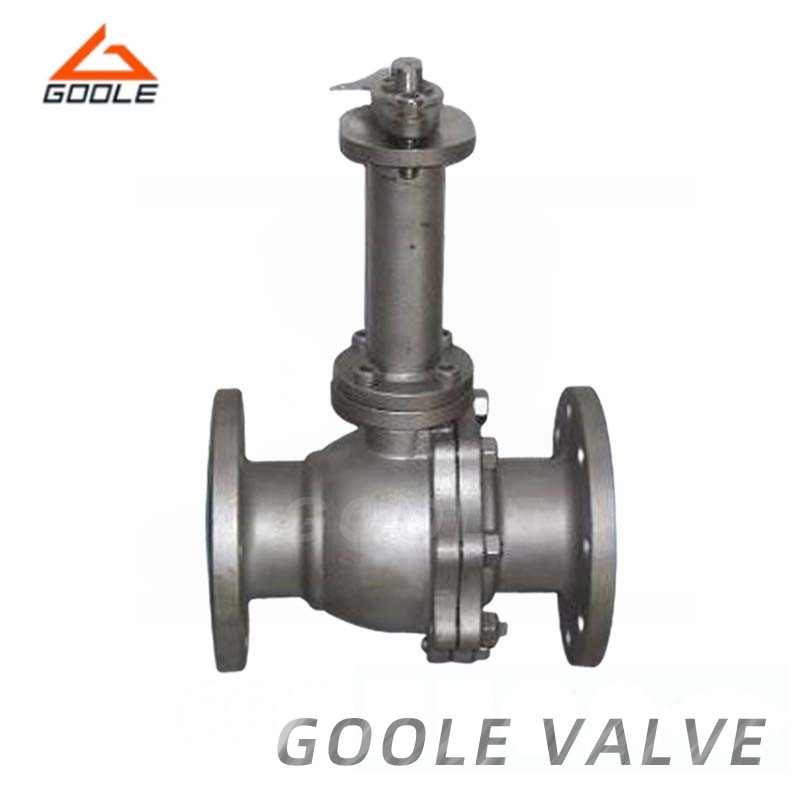

Flange connection Cryogenic ball valve is used for low temperature working condition,especially for some hazard media, such as liquidized natural gas. Applied to LNG plant, LNG receiving station, LNG gasification station and LNG carrier and ship...
| Quantity: | |
|---|---|
The flange-type low-temperature ball valve is designed for use in low-temperature environments, particularly for handling hazardous media like liquefied natural gas. It is appropriate for LNG plants, LNG receiving stations, LNG vaporization facilities, LNG transport vessels, and other ships.
● Cryogenic Design: This valve is specifically engineered for low-temperature applications to guarantee stable and reliable performance when managing liquefied gases and other materials at cryogenic temperatures.
● Metal-Seated: The metal valve seat is engineered to offer dependable sealing at extreme temperatures, ensuring leak-free operation in challenging low-temperature conditions.
● Reliable Performance in Hazardous Media: This valve is designed to handle hazardous and flammable media, such as liquefied natural gas, to ensure the safety of critical operations.
| No | Part Name | Materials | |
| -46°C~-101°C~-196°C | |||
| 1 | Left Body | A352-LCB,LCC,LC3,A351-CF8,A351-CF8M | |
| 2 | Seat | PTFE,RPTFE,PEEK,PPL,POM,KARBATE | |
| NYLON,MOLON,DEVLON | |||
| 3 | Ball | A182-F304,F316 | |
| 4 | O-ring | VITON | |
| 5 | Gasket | Flexible graphite+304,flexible graphite+316,PTFE | |
| 6 | Bolt | A194-4,8,8M | |
| 7 | Nut | A320-L7,A193-B8,B8M | |
| 8 | Right body | A352-LCB,LCC,LC3,A351-CF8,CF8M | |
| 9 | Spring | ss304,316 | |
| 10 | Small ball | PTFE | |
| 11 | Thrust washer | A182-F6,F316,F316 | |
| 12 | Stem | Flexible graphite,PTFE | |
| 13 | Gasket | A182 F6,F304,F316 | |
| 14 | Packing | A352 LCB,A351 CF8 | |
| 15 | Gland | 1025,stainless steel | |
| 16 | Gland flange | A216 WCB | |
| 17 | Stop plate | 1025 | |
| 18 | Lever | 1035,stainless steel | |
| 19 | Screw | A352-LCB,LCC,LC3,A351-CF8,CF8M | |
| 20 | Screw | 1035,stainless steel | |
| 21 | Extended bonnet | A352-LCB,LCC,LC3,A351-CF8,CF8M, | |
| 22 | Screw | 1035,stainless steel | |
| 23 | Bushing | A182-F6,F304,F316 | |
Main Dimensions
| Size(in) | H | ||
| -46°C | -101°C | -196°C | |
| 1/2 | 90 | 110 | 130 |
| 3/4 | 100 | 110 | 140 |
| 1 | 100 | 120 | 150 |
| 1 1/2 | 110 | 130 | 160 |
| 2 | 110 | 130 | 170 |
| 3 | 120 | 150 | 190 |
| 4 | 130 | 160 | 200 |
| 6 | 140 | 170 | 220 |
| 8 | 140 | 170 | 220 |
| 10 | 150 | 180 | 240 |
| 12 | 150 | 180 | 240 |
| 14 | 160 | 190 | 250 |
| 16 | 160 | 190 | 250 |
| 18 | 160 | 190 | 250 |
| 20 | 170 | 200 | 260 |
| 24 | 170 | 200 | 260 |
| Nominal diameter | DN15- DN250 |
| Nominal pressure | 150LB- 300LB |
| Working temperature | -196 - +29ºC |
| Driving means | handle, electric actuator |
| Material | Stainless steel, Forged Steel , LCC/LCB, CF8/CFM8 |
Q1:What is the main use of this valve?
This valve is ideal for cryogenic applications, especially for handling liquefied gases such as LNG, in low-temperature environments.
Q2:What type of seating is used?
It uses a metal seat, designed to maintain reliable sealing performance at extreme low temperatures.
Our forged steel low-temperature metal valve seats are specifically designed for low-temperature applications and perform exceptionally well in such environments. The metal valve seat design ensures leak prevention and reliable sealing, even under extreme cold conditions, while the forged steel structure provides strength. They are specifically designed for the long-term and reliable handling of liquefied gases and other low-temperature materials.
