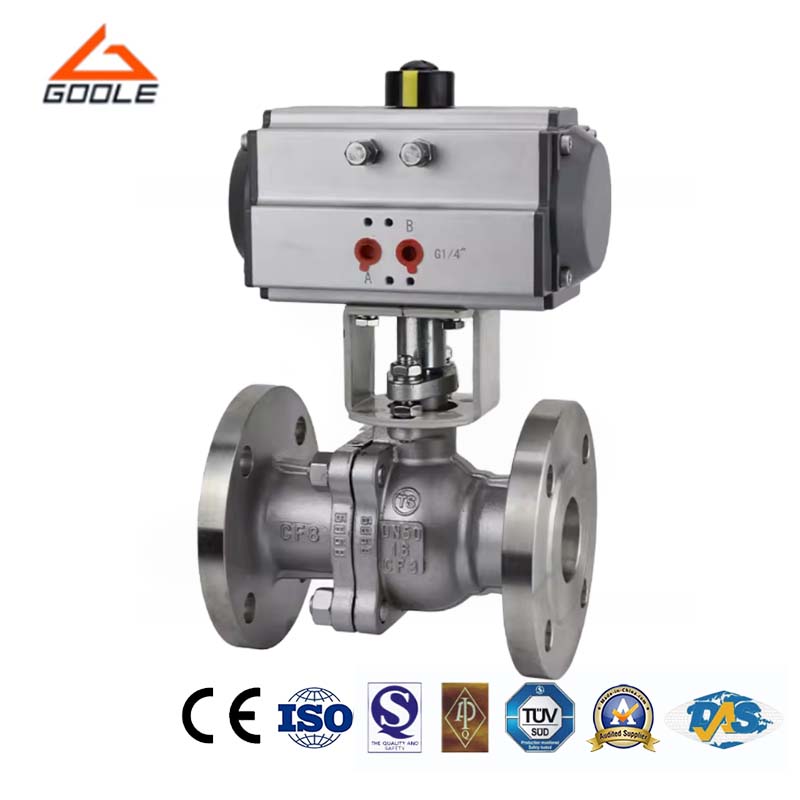

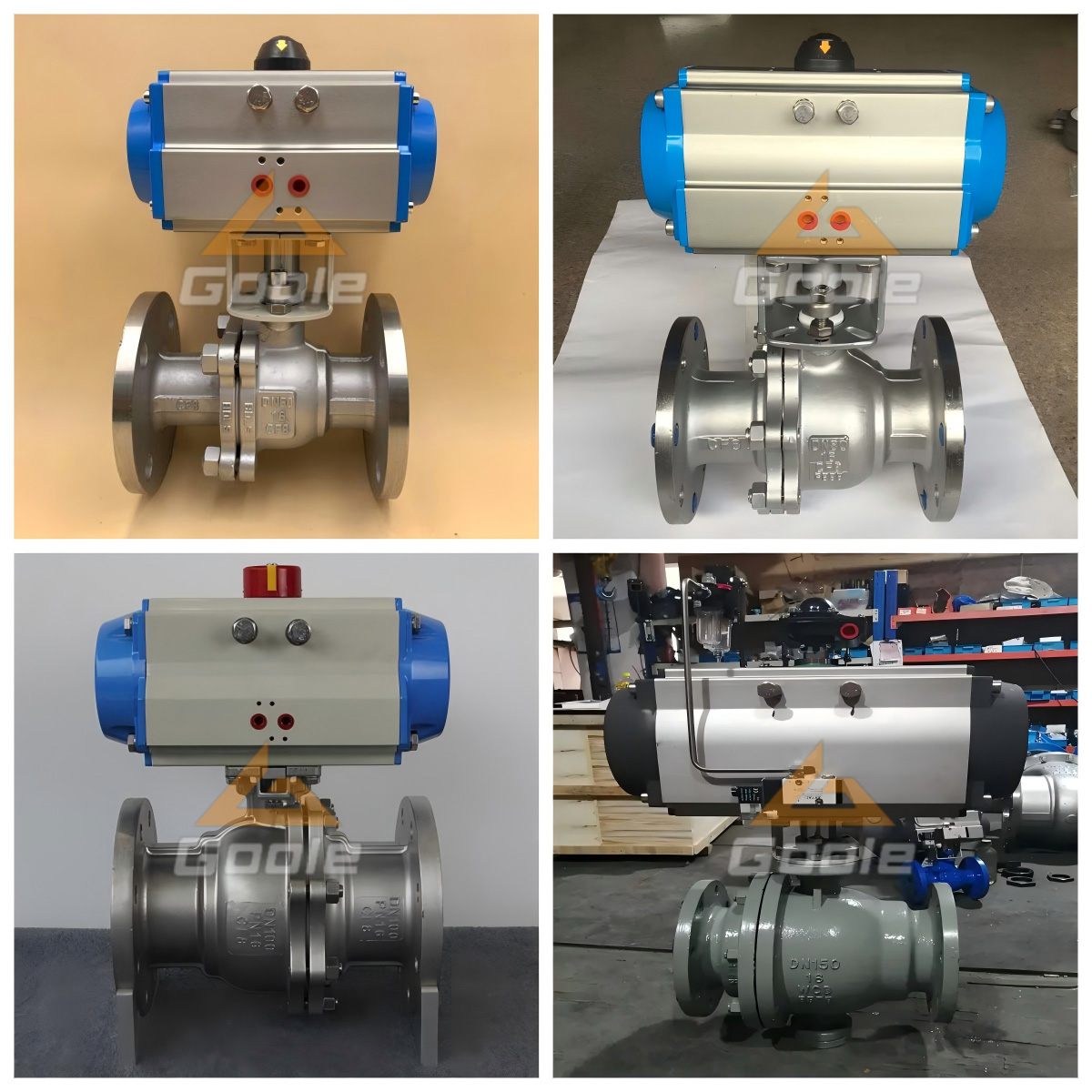

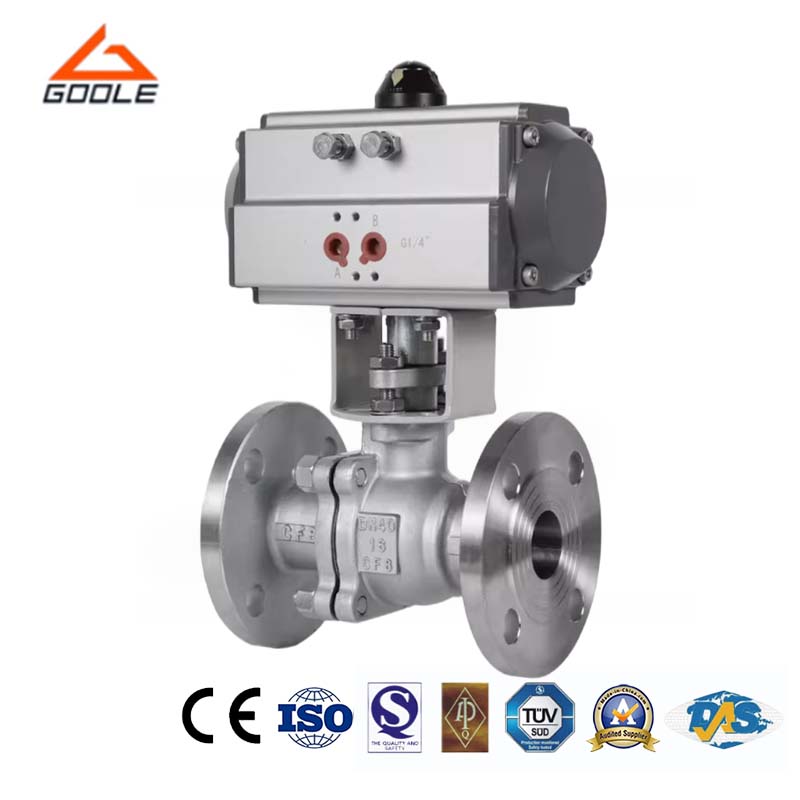

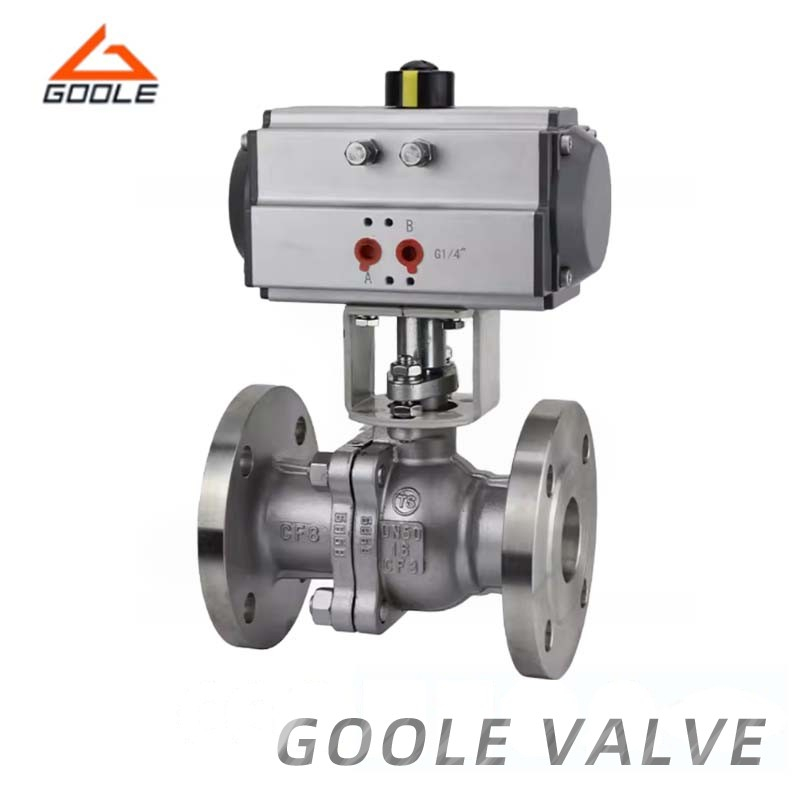

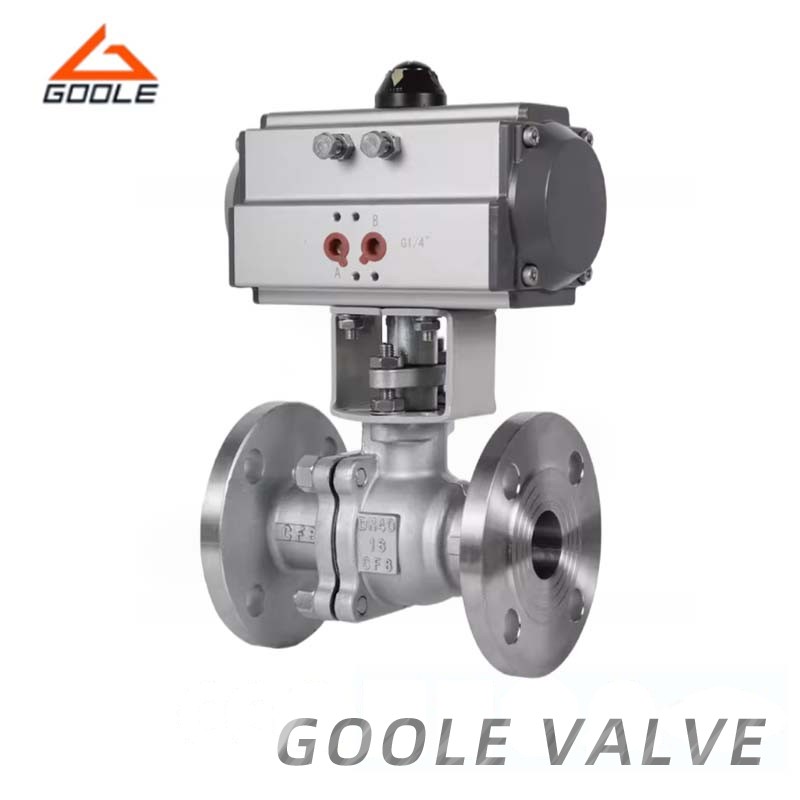

The pneumatic dual-action actuator is popular for its simple design, small size, light weight and convenient operation, and is often used with the O pneumatic valve. They are widely used in automatic control and remote operation in industrial fields such as petroleum, chemical, power and textile. O-type pneumatic valve has excellent sealing performance to ensure the smooth flow of medium in the pipeline and effectively prevent leakage. In addition, its high pressure and high temperature tolerance enable it to maintain excellent performance even under harsh working conditions. In addition, the installation and maintenance of the valve is simple, helping to reduce production costs and improve efficiency.
● Rapid Response: In emergency situations, the pneumatic emergency cut-off ball valve can quickly close, effectively blocking fluid channels and avoiding further spread of accidents. This rapid response capability is crucial for ensuring production safety.
●Excellent Sealing Performance: High quality sealing materials are selected to ensure that the valve can achieve complete sealing in the closed state, avoiding fluid leakage. This is of great significance for avoiding environmental pollution and ensuring stable operation of equipment.
● Easy Operation: The pneumatic device is responsible for opening and closing the valve without manual intervention, reducing the complexity and labor intensity of the operation. In addition, the pneumatic device is equipped with remote control function, allowing operators to operate the valve from a safe distance.
| information | |
| Rated pressure (PN) | 1.6MPa, 2.5MPa, 4.0MPa, etc |
| Rated diameter (DN) | from 15mm to 1000mm; |
| Applicable media | liquids, gases, vapors, etc |
| Applicable temperature | -20 ° C to+200 ° C; |
| Sealing materials | PTFE,PE, PP, etc |
| Control mode | electric actuator control |
| Flange standards | usually GB, ANSI, DIN and other standards |
| Valve body structure | full bore, reduced diameter, V-shaped, etc |
| Material | stainless steel, carbon steel, alloy steel |
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
Through mechanical principles, the valve is connected to the connecting shaft. Inside the cylinder, the input air pressure acts on the piston, generating thrust that drives the gear to rotate under the piston's push. The output shaft of the gear then rotates, subsequently driving the valve shaft to rotate, causing the ball valve inside to turn, changing the flow area, thus achieving regulation of the medium flow.
We have carefully designed the pneumatic emergency cut-off ball valves to ensure their durability and excellent reliability. Valve design is elegant, easy to operate, can quickly respond to emergency, effectively block fluid media, to ensure the safety of the production process. We are committed to providing comprehensive after-sales service to ensure that customers receive timely technical support and maintenance services during use. Select our pneumatic emergency cut-off ball valve, you will enjoy high quality, high performance and worry-free after-sales service.
