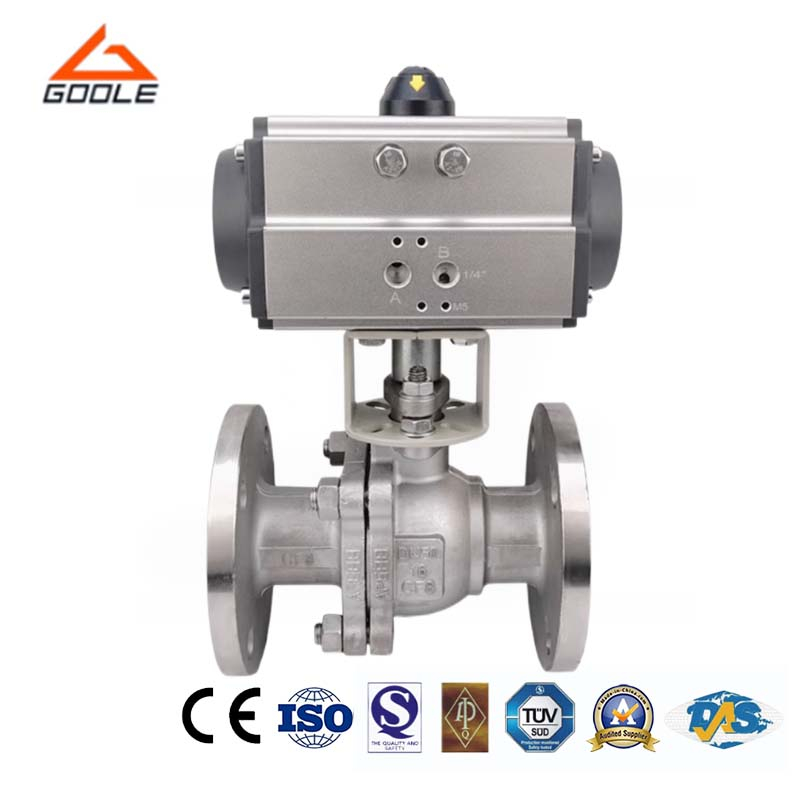

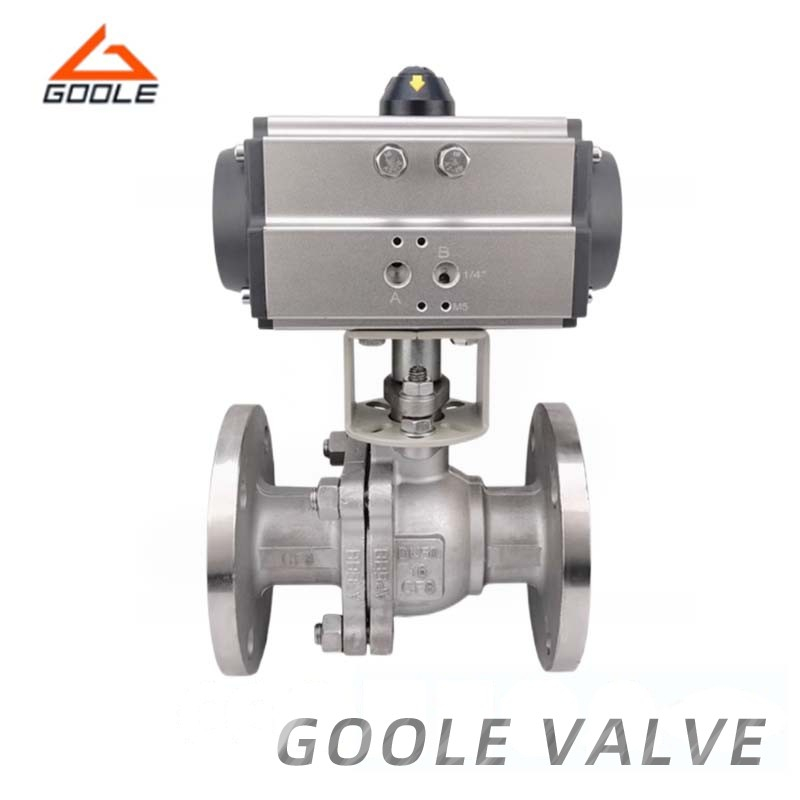

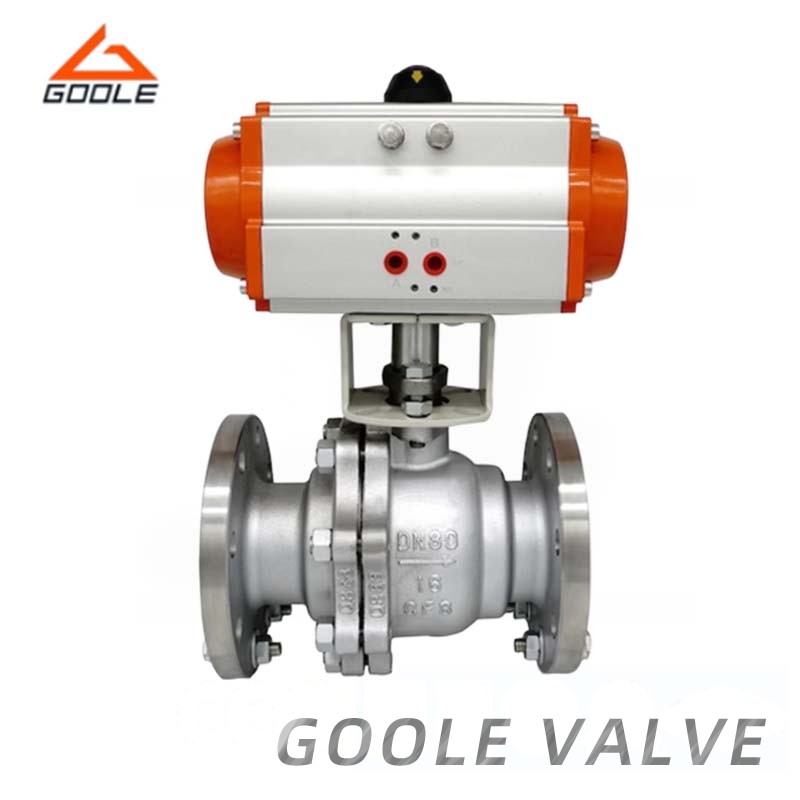

O-type pneumatic valves are usually assembled with pneumatic double acting actuators. It has the advantages of simple structure, small size, light weight, and easy operation, and can be widely used for automatic and remote control of industrial production processes such as petroleum, chemical, power, textile, etc. The O-type pneumatic globe valve has excellent sealing performance, which can ensure stable flow of medium in the pipeline and effectively prevent leakage. Its high pressure and high temperature resistance characteristics enable the valve to maintain good working condition even under harsh working conditions. At the same time, the installation and maintenance of valves are simple, reducing production costs and improving production efficiency.
●Quick Response: In emergency situations, pneumatic emergency shut-off ball valves can quickly close, effectively cutting off fluid channels and preventing accidents from further escalating. This rapid response capability is crucial for ensuring production safety.
●Excellent Sealing Performance: Using high-quality sealing materials to ensure that the valve can be completely sealed in the closed state, preventing fluid leakage. This is of great significance for preventing environmental pollution and ensuring the normal operation of equipment.
●Easy Operation: The valve is opened and closed by a pneumatic device, without the need for manual operation, reducing the difficulty and labor intensity of operation. At the same time, the pneumatic device also has remote control function, allowing operators to control the valve within a safe distance.
| information | |
| Rated pressure (PN) | 1.6MPa, 2.5MPa, 4.0MPa, etc |
| Rated diameter (DN) | from 15mm to 1000mm; |
| Applicable media | liquids, gases, vapors, etc |
| Applicable temperature | -20 ° C to+200 ° C; |
| Sealing materials | PTFE,PE, PP, etc |
| Control mode | electric actuator control |
| Flange standards | usually GB, ANSI, DIN and other standards |
| Valve body structure | full bore, reduced diameter, V-shaped, etc |
| Material | stainless steel, carbon steel, alloy steel |
Q1:What is the main suitable of this valve?
This product is particularly suitable for media such as steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas, etc.
Q2:What mechanical principle is used?
Using the principle of Mechanism and the valve connected with the connecting shaft. The input air pressure inside the cylinder, acting on the piston to produce certain thrust, so that the gear output in piston driven, so that the gear output shaft to rotate, and drives the valve shaft to rotate, so that the ball valve in the valve with the valve to rotate, changing the circulation area, to change the media flow valve purpose.
Our pneumatic emergency shut-off ball valve is made of high-quality materials to ensure excellent durability and reliability of the valve. The valve is ingeniously designed, easy to operate, capable of quickly responding to emergency situations, effectively cutting off fluid media, and ensuring production safety. We provide comprehensive after-sales service to ensure that customers receive timely technical support and maintenance services during use. By choosing our pneumatic emergency cut-off ball valve, you will receive high-quality, high-performance, and worry free after-sales support.
