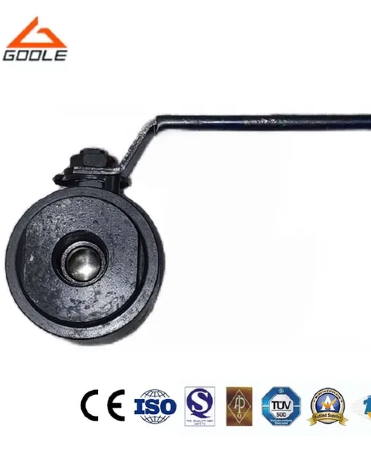

Floating ball valves have long been a mainstay in industrial fluid control thanks to their efficient sealing and reliable performance. Among the various connection types, the Flanged Floating Ball Valve stands out for its ease of installation, robustness, and suitability in high-cycle applications. This article delves into the core characteristics of flanged connections, their operational advantages, key flange standards (ANSI, DIN, GB), best practices for installation, and application cases across industries such as chemical processing, energy production, and water treatment.
If you're seeking reliable floating ball valves with consistent performance and expert customization, Goole Valve Technology Co., Ltd. offers dependable solutions with global recognition.
A flanged connection is a mechanical joint that uses matching flanges, gaskets, and bolts to connect two piping components securely. When applied to floating ball valves, it provides several advantages:
High structural integrity: Flanged ends offer robust support against pipeline stress and vibration.
Ease of maintenance: Unlike welded or threaded types, flanged valves are easily removed or replaced without cutting or rethreading pipes.
Alignment accuracy: Flanges allow for better alignment between connected components, which reduces the risk of leakage or mechanical stress.
Standardization: International standards (ANSI, DIN, GB, etc.) ensure compatibility across global markets.
For pipelines requiring frequent access to valves for inspection or cleaning, flanged connections are the preferred choice.
Flanged Floating Ball Valves are particularly advantageous in systems with frequent open-close cycles, such as batch processing units, utility water supply, or flow control in energy systems. Reasons include:
The floating ball design relies on the ball’s slight movement to press against the downstream seat, ensuring a tight seal—even after thousands of cycles.
This self-adjusting mechanism in Floating Ball Valves delivers excellent sealing even under frequent cycling. The design minimizes seat wear, which is especially beneficial in automated Flanged Floating Ball Valve setups exposed to constant start-stop operations.
Because the flange distributes mechanical stress across a wide surface area, it protects the valve and piping from wear due to repeated actuation.
In high-cycle systems, especially with large-diameter Flanged Floating Ball Valves, uniform flange load distribution reduces vibration, misalignment, and pipe fatigue. This extends the service life of both the valve and connected pipelines.
These valves are often used with pneumatic or electric actuators for automated control. The rigid flange mounting helps maintain precise valve alignment during actuation.
Floating Ball Valves, including Threaded and SW/BW designs, benefit from precise mounting surfaces. Flanged ends provide a stable platform for automation, ensuring accurate, repeatable motion without stem misalignment or actuation delays.
If internal parts require replacement or cleaning, the flanged design allows for swift removal without disturbing adjacent pipework.
In high-throughput facilities, Flanged Floating Ball Valves can be serviced quickly, reducing maintenance time. Their bolted connection allows easy disassembly, unlike welded SW/BW Floating Ball Valves, which require cutting and re-welding for repairs.
In selecting a Flanged Floating Ball Valve, compatibility with existing piping standards is crucial. The most frequently used standards include:
Feature | ANSI (USA) | DIN (Europe) | GB (China) |
Common Pressure Ratings | Class 150, 300, 600 | PN10, PN16, PN40 | PN10, PN16, PN25 |
Flange Face Types | RF, RTJ | RF, FF | RF, FF |
Bolt Hole Pattern | Inch-based | Metric | Metric |
Dimensions | ASME B16.5 | EN 1092-1 | GB/T 9112-9131 |
ANSI flanges use imperial dimensions and tend to be more robust for high-pressure applications.
DIN and GB standards are metric and more commonly found in Europe and Asia.
Interchangeability: Direct interchange is not possible between ANSI and DIN/GB flanges due to differences in bolt hole patterns and thickness.
Before procurement, always verify that the valve flange standard matches the pipeline’s standard to avoid misalignment or leakage issues.
Proper installation of a flanged floating ball valve is crucial to ensure leak-free and safe operation. Follow these best practices:
Ensure both valve and pipe flange faces are clean and free of debris, rust, or paint before installing the gasket.Proper surface preparation is critical for Flanged Floating Ball Valve installation. Any foreign material can compromise sealing integrity, leading to leaks. Cleaning ensures full gasket contact and avoids premature gasket failure in service.
Select gaskets based on operating temperature, pressure, and media. Common types include:
Spiral wound gaskets for high-pressure and high-temperature applications
PTFE gaskets for chemical resistance.
Gasket material must match the service conditions of your Floating Ball Valve. A mismatch can result in chemical attack, thermal degradation, or pressure blowout—especially in aggressive or fluctuating media environments.
Always use a crisscross torqueing pattern to evenly distribute pressure across the gasket. This prevents warping and uneven sealing.
Uneven torqueing during Flanged Floating Ball Valve installation can cause misalignment or overstress one side of the seal. A star-pattern torque sequence ensures a balanced load, improving both performance and service life.
Use a calibrated torque wrench and follow manufacturer-recommended torque values. Over-tightening may crush the gasket; under-tightening can cause leaks.
Ensure the valve is properly supported during installation. Misalignment or unsupported piping can stress the flange connection and reduce valve life.
Goole Valve Technology Co., Ltd. provides installation guides and offers technical assistance to help users avoid common installation mistakes and ensure optimal valve performance.
Flanged floating ball valves are ideal for chemical plants due to their:
Corrosion-resistant materials (e.g., SS316 or PTFE-lined)
Safe and tight shutoff for hazardous or volatile fluids
Compliance with explosion-proof actuator standards when used in automated control
Example: In a fertilizer plant, flanged ball valves are used in acid handling systems where reliability and sealing integrity are vital for worker safety.
Power plants and oil & gas facilities rely on flanged ball valves for:
High-cycle isolation of steam, condensate, or fuel lines
Long-term durability under pressure and temperature cycling
Integration with DCS (Distributed Control Systems) via actuators
Example: In a natural gas processing station, flanged floating ball valves regulate flow between compression and storage units, operating in Class 300 pressure ranges with high-frequency switching.
Water and wastewater treatment facilities benefit from:
Ease of installation and replacement
Non-toxic sealing materials (e.g., EPDM, PTFE)
Resistance to sediment and chemical additives
Example: In municipal waterworks, flanged valves are used at pump discharge outlets where easy maintenance and secure shutoff are essential.
When selecting floating ball valves, it’s essential to work with a manufacturer that understands your industry’s technical demands. Goole Valve Technology Co., Ltd. brings decades of experience, offering:
Wide product range: Flanged, Threaded, SW/BW Floating Ball Valves for all pressure classes
Global compliance: Valves manufactured to ANSI, DIN, GB, and other international standards
Custom-engineered solutions: Material and connection customization based on operating media and environment
On-time delivery & responsive service: Trusted by chemical, energy, and infrastructure clients worldwide
Whether you’re sourcing valves for a new project or upgrading an existing pipeline system, Goole Valve Technology Co., Ltd. provides the expertise, quality, and technical support to ensure long-term success.
