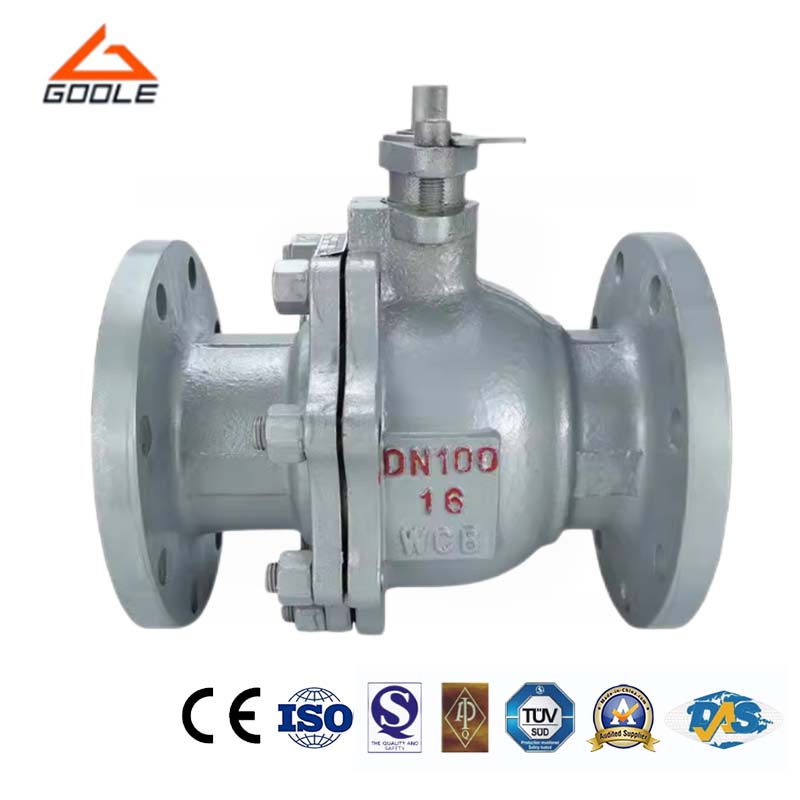

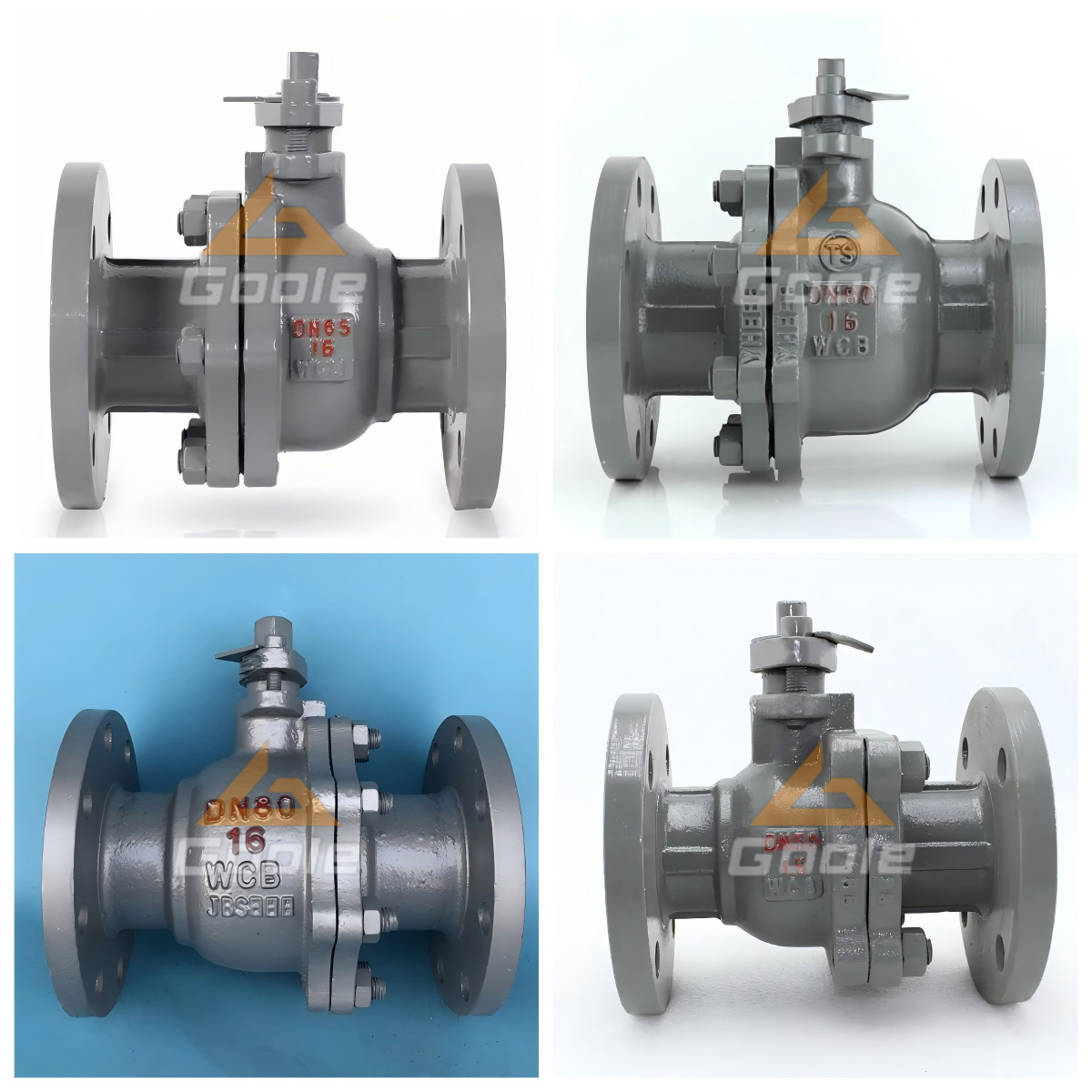

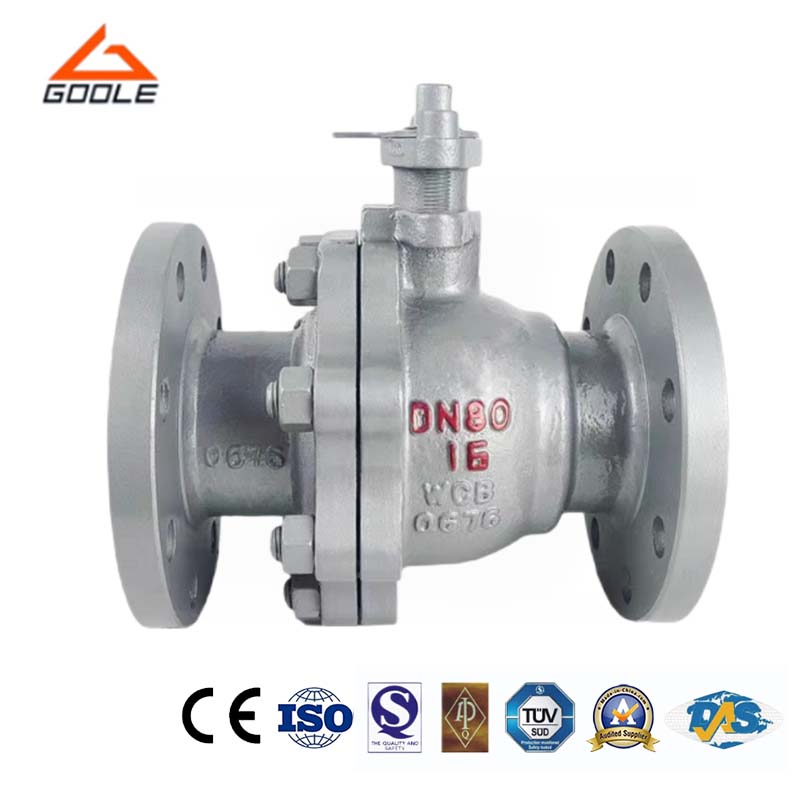

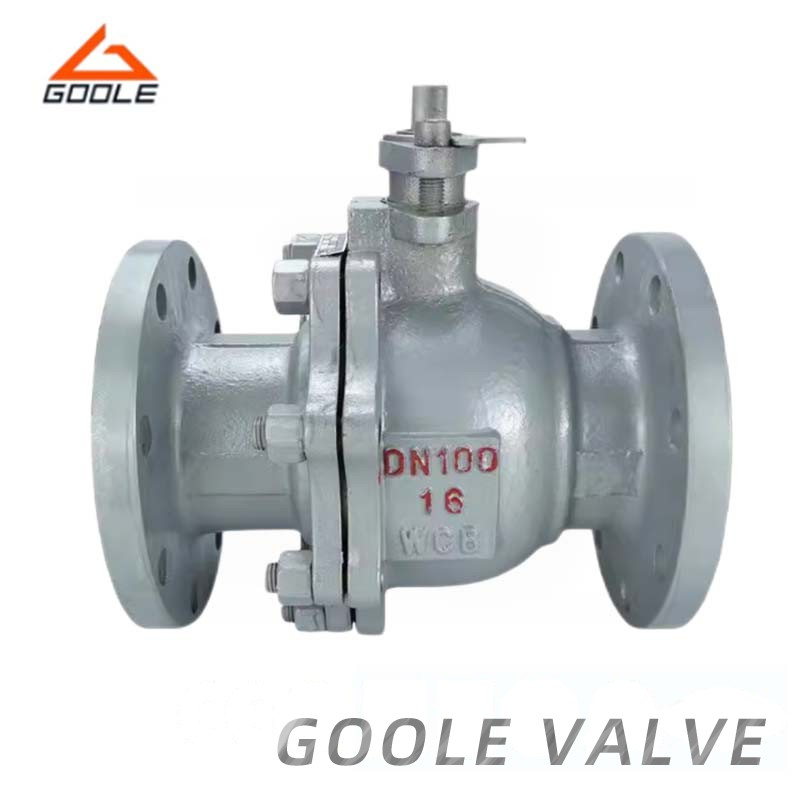

Product Description name of commodity: Class 150~600 LB Floating Ball ValveNominal diameter:1/2"-12"Nominal pressure:150Lb-600Lb , 10K-40K...
| Quantity: | |
|---|---|
The cast steel flange ball valve has the same 90 degree rotation action, but the difference is that the plug body is a sphere with a circular through-hole or channel on its axis. Ball valves are mainly used to cut off, distribute, and change the flow direction of media in pipelines. They only require a 90 degree rotation and a small rotational torque to tightly close.
● Fire Safe Design: Valves with fire resistance characteristics can ensure the integrity of their structure and normal operation in the event of a fire.
● Anti-Static Device: These devices help reduce the likelihood of fire and maintain a safe operating environment by ensuring effective discharge of static electricity.
● Low Emission Control: Low emission control valves are designed to minimize the amount of harmful gases or vapors emitted into the atmosphere.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
We use high-quality cast steel as the main material to ensure the strength and corrosion resistance of the valve, effectively extending its service life. Combining advanced precision casting and processing technology, each valve undergoes strict quality testing to ensure excellent sealing performance and smooth operation. We offer various sizes, pressure ratings, and temperature ratings to fully meet the specific needs of various industrial applications.
