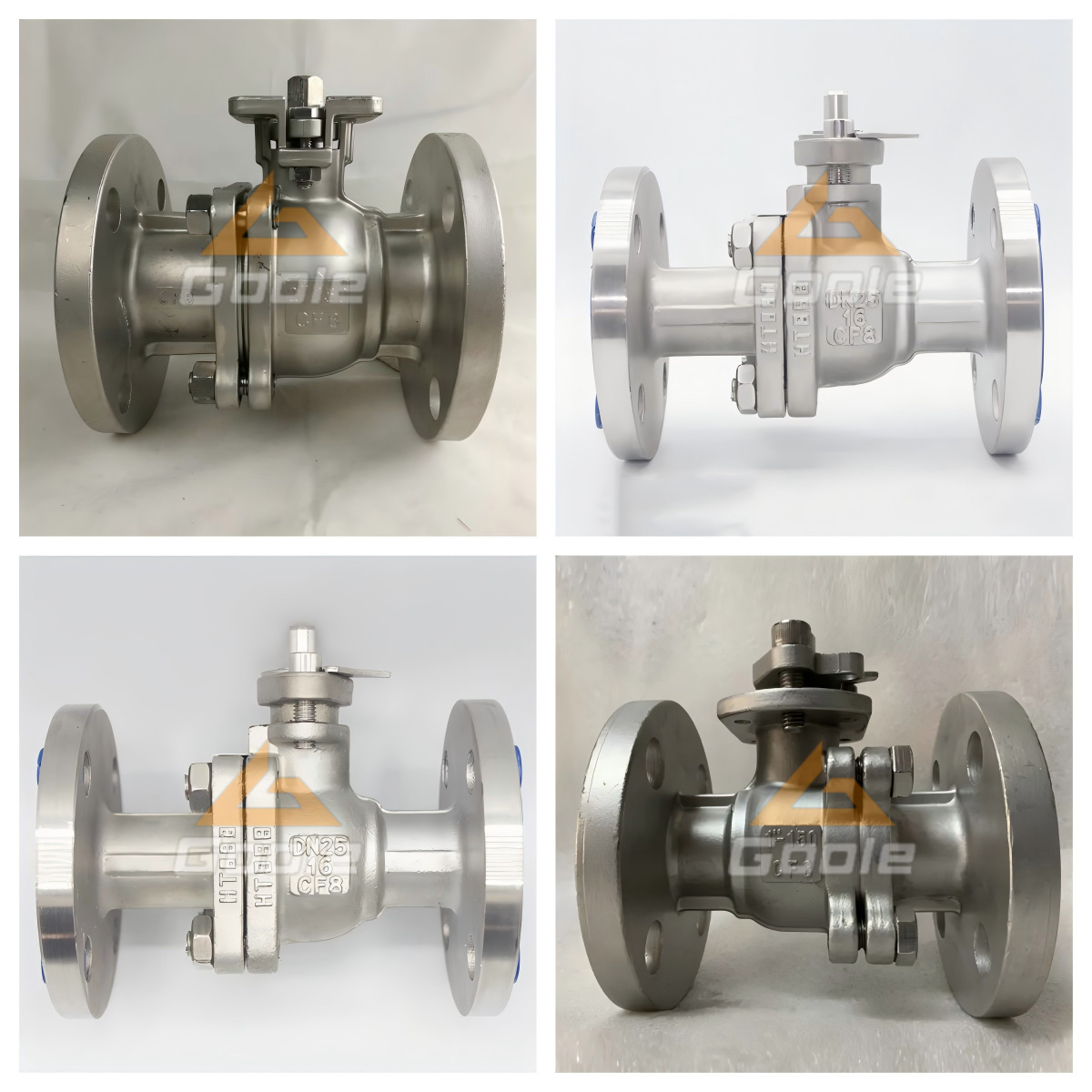

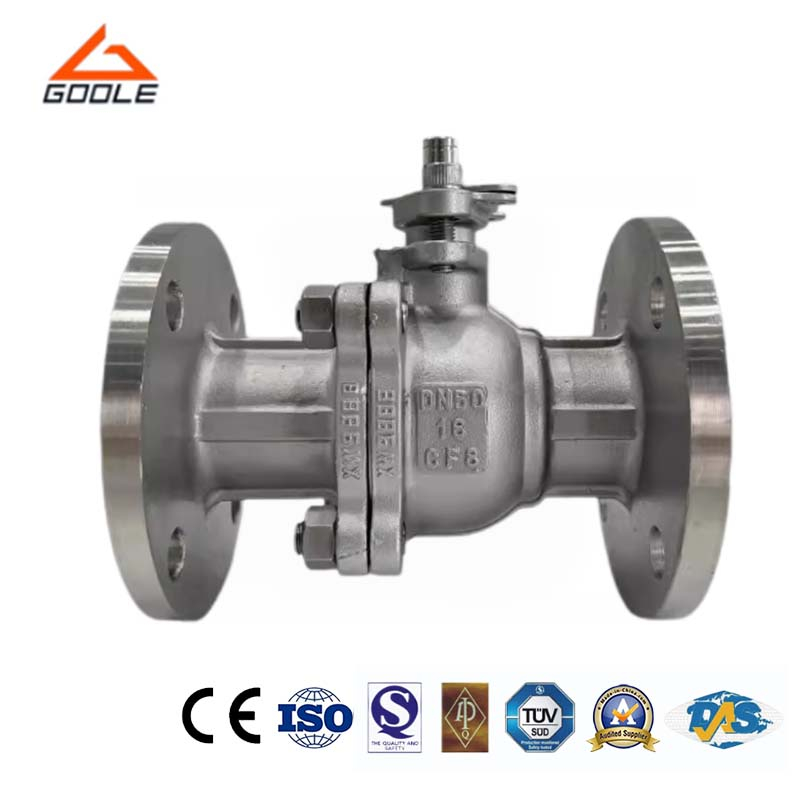

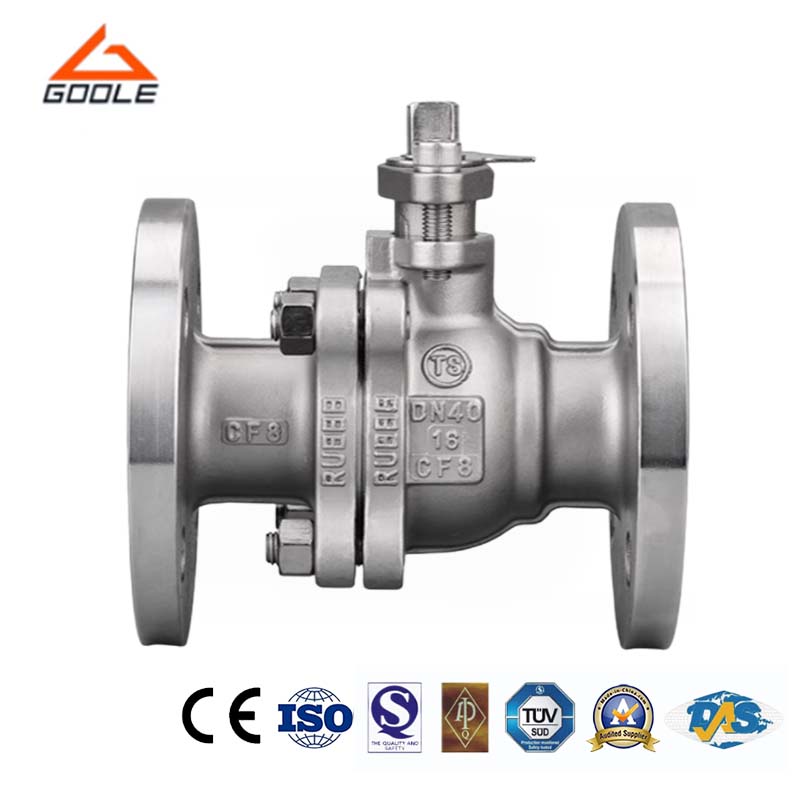

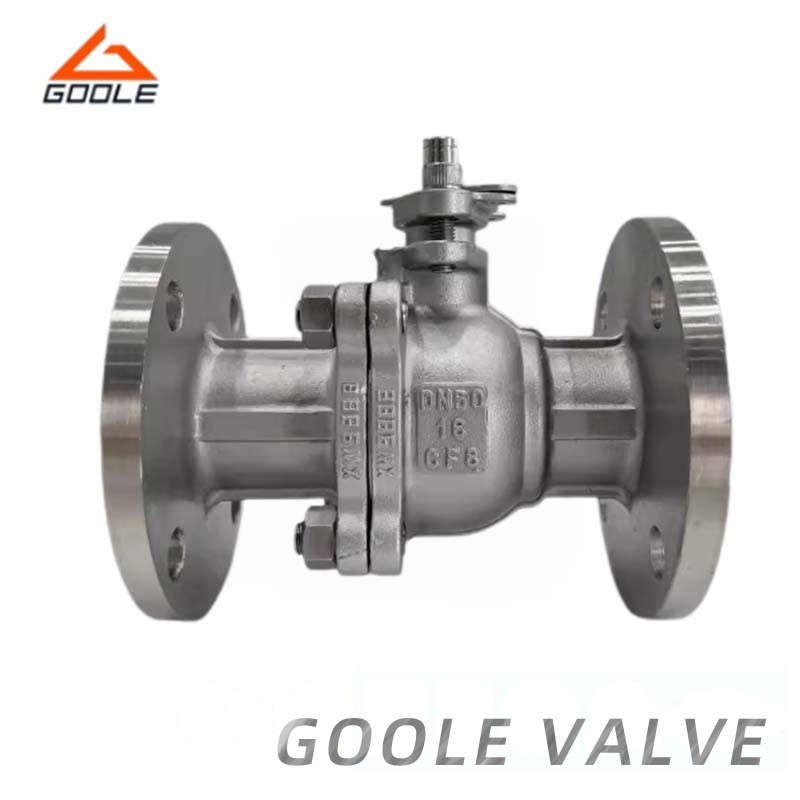

This 2PCS stainless steel flanged floating ball valve adopts side-entry two-piece split structure and floating ball design. It realizes medium cut-off and flow direction switching via 90-degree rotation, featuring fire-safe, anti-static and low emission performance. It covers size 1/2''-12'' and 150LB/300LB/600LB pressure grade. It supports flange and butt welding connection, with optional manual, pneumatic and electric driving modes. Made of corrosion-resistant stainless steel and carbon steel, it has low fluid resistance, suitable for general industrial pipeline fluid control.
| Quantity: | |
|---|---|
The 2PCS stainless steel flanged floating ball valve is a Q41F standard industrial floating ball valve with side-entry two-piece split body structure. Different from fixed ball valve, its spherical core adopts floating design, which can move slightly to press the sealing seat tightly to achieve zero leakage sealing effect. It only needs small torque to finish 90° rotary opening and closing action, with ultra-low fluid resistance in fully open state.
The valve supports full bore and reduced bore flow channel customization, equipped with integrated fire-safe structure, built-in anti-static device and low-emission optimized stem. It has multiple pressure grades and connection types, compatible with diversified automatic driving parts, widely used in water treatment, petroleum, chemical, gas and food industrial pipelines for medium cut-off and diversion work.
● Fire Safe Design: Standard fireproof structure inside the valve, keep structural integrity and sealing performance stable under sudden fire conditions, avoid medium leakage safety accidents.
● Built-in Anti-Static Device: Professional static conduction structure can export static electricity generated by fluid friction timely, eliminate static ignition risk for flammable gas and oil medium.
● Low Emission Optimized Stem: Polished packing and sealing structure reduce volatile harmful gas leakage, meet global environmental protection emission standards.
● Labor-saving 90° Operation: Floating ball match optimized sealing surface, small rotary torque, easy manual or automatic switch control.
● Detachable 2PCS Structure: Side entry split design, convenient on-site disassembly, cleaning and maintenance without cutting pipeline.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Floating Ball Self-sealing: Floating ball can automatically compensate sealing clearance under medium pressure, achieve bidirectional tight shutoff, long service life of sealing seat.
Integrated Safety Structure: One-piece fireproof + anti-static + low emission triple design, meet petrochemical flammable medium safety use standard.
Easy On-site Maintenance: 2PCS split side entry structure, maintain internal parts directly on-site, no need to dismantle whole pipeline, cut maintenance cost.
Multi-material Customization: Diversified valve trim optional, adapt clean, corrosive, oily different industrial medium working conditions.
Universal Automation Interface: Standard top mounting bracket, directly install pneumatic and electric actuator, fast upgrade automatic control.
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Yes. It adopts standard fire-safe structure, can keep basic sealing performance when external fire occurs, avoid massive medium leakage.
It provides RF raised face flange connection and BW butt welding connection, matching ANSI standard pipeline installation.
Yes. Equipped with ISO standard top mounting platform, users can replace driving device freely without modifying valve body.
We use high-quality stainless steel and alloy steel as the main materials to ensure the strength and corrosion resistance of the valve, effectively extending its service life. Combining advanced precision casting and processing technology, each valve undergoes strict quality testing to ensure excellent sealing performance and smooth operation. We offer various sizes, pressure ratings, and temperature ratings to fully meet the specific needs of various industrial applications.
