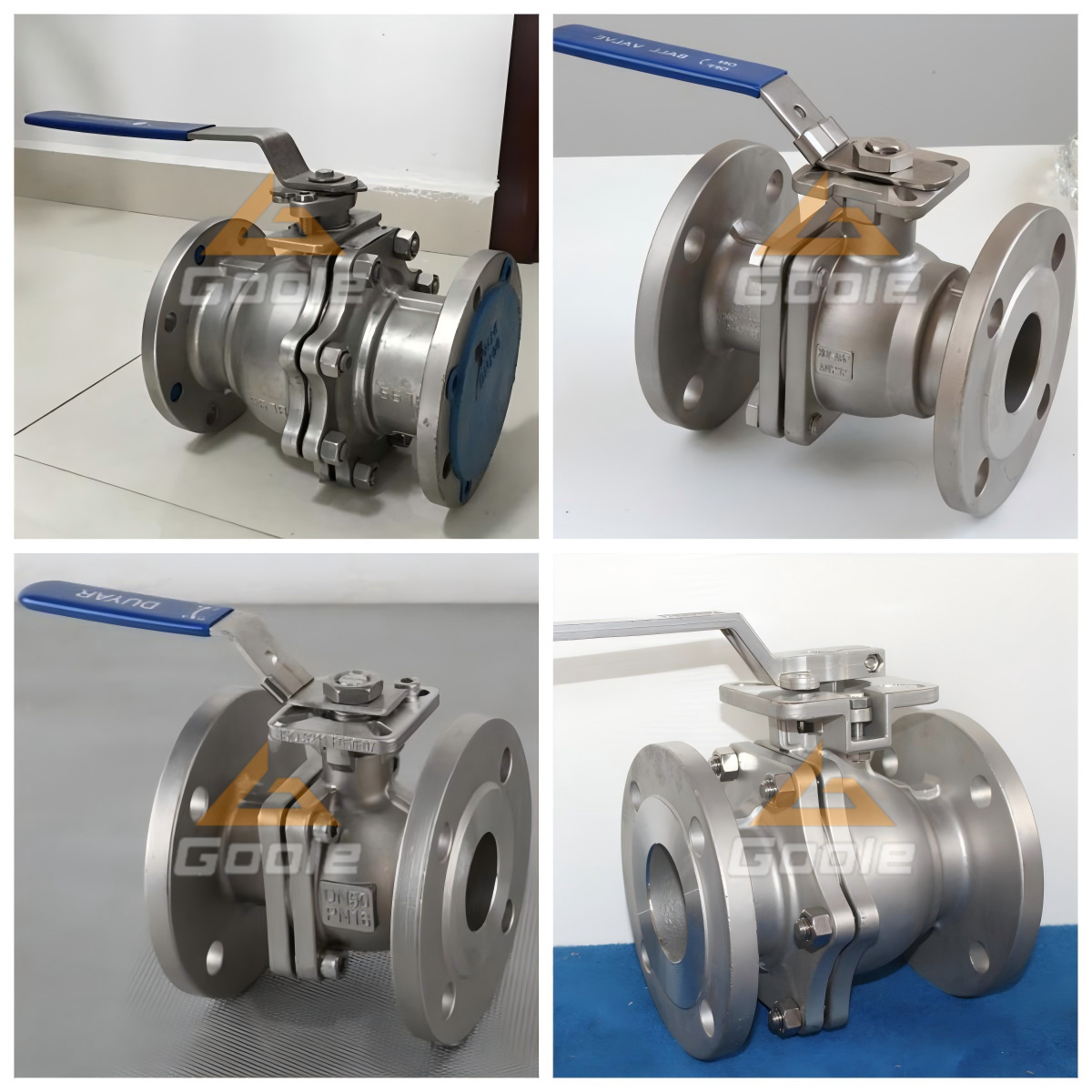

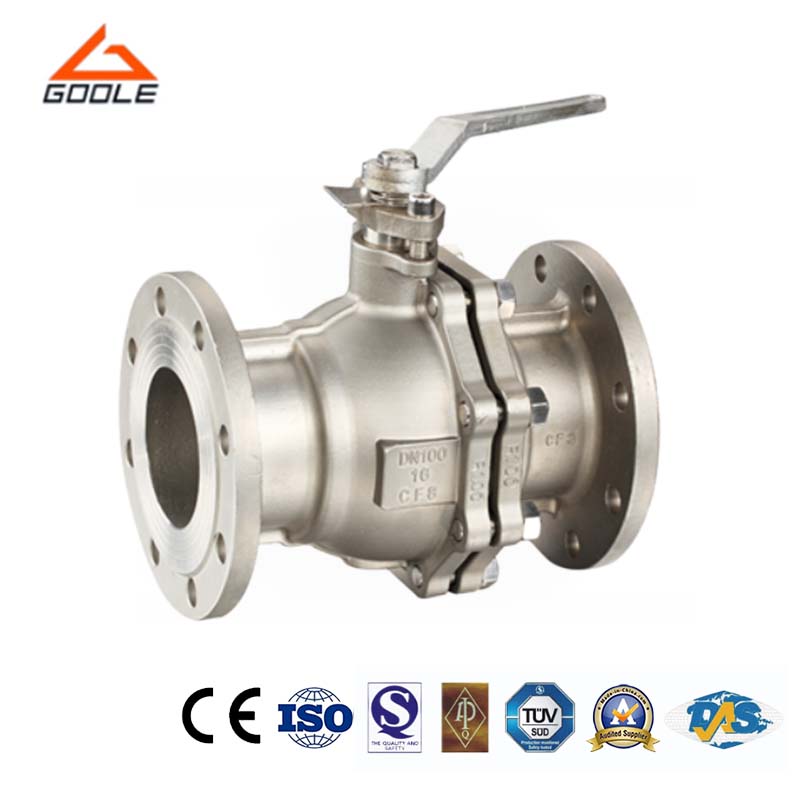

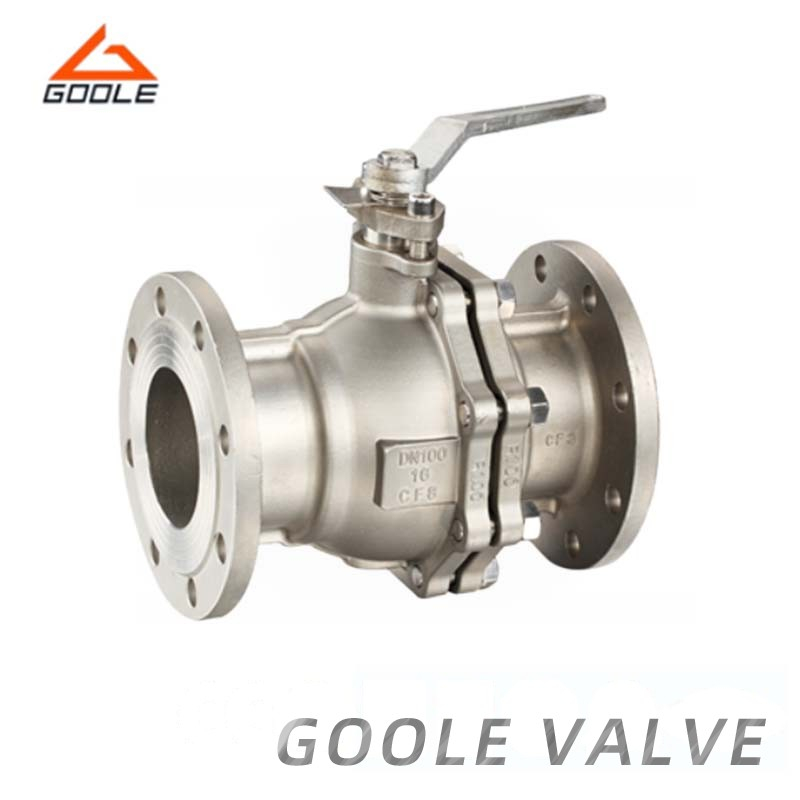

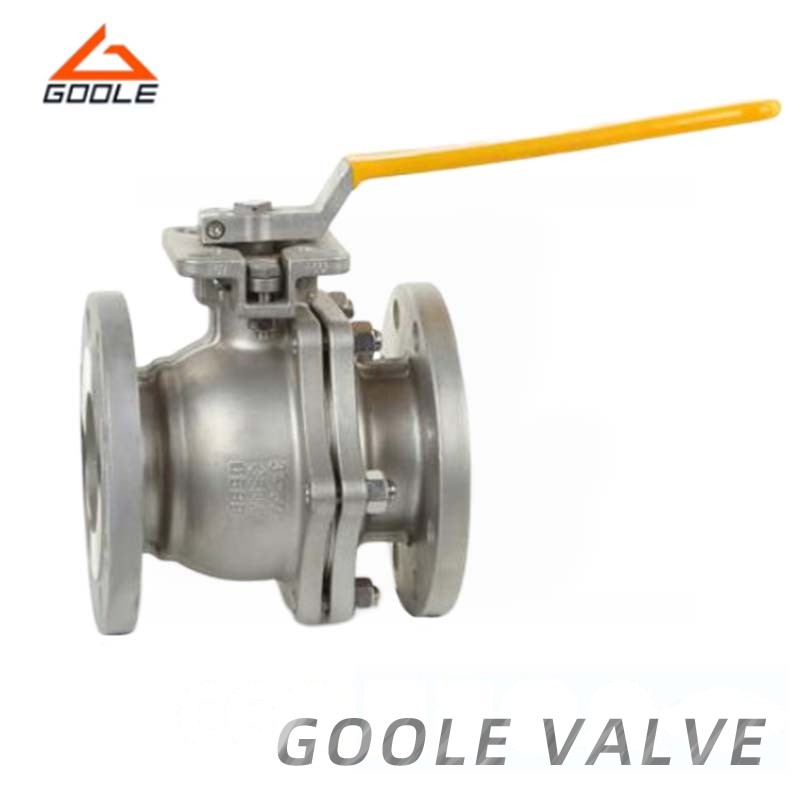

Side entry type stainless steel floating ball valve main parameterNormal Size: 1/2"~8"Pressure rating: 150 LB~900 LBMaterials: WCB, LCB, LCC, CF8...
| Quantity: | |
|---|---|
The Q41F ball valve is controlled through a 90-degree rotation operation. Its uniqueness lies in the design of the valve core, which features a circular passage inside the ball. This type of ball valve is widely used in pipeline systems to achieve functions such as fluid cutting, distribution, and regulation. By simply rotating 90 degrees and applying minimal torque, the ball valve can achieve a tight shut-off effect.
● Fire Safe Design: Valves with fire protection structure can maintain their structural and functional integrity in the event of fire.
● Anti-Static Device: These devices effectively reduce fire risk and maintain a safe operating environment by ensuring the safe release of static electricity.
● Low Emission Control: Valves designed to reduce the release of harmful gases or vapors into the atmosphere with the aim of minimizing emissions.

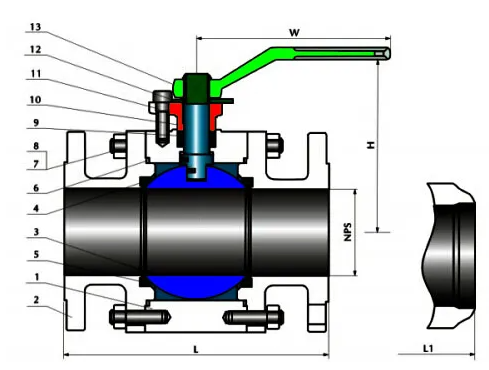

| No | Part Name | ASTM Material | ||
| Carbon steel | 18Cr-9Ni-2Mo | Low temp steel | ||
| 1 | Body | A105 | A182-F316 | A350-LF2 |
| 2 | Bonnet | A105 | A182-F316 | A350-LF2 |
| 3 | Ball | A182-F304 | A182-F316 | A182-F304 |
| 4 | Stem | A276-304 | A276-316 | A276-304 |
| 5 | Seat ring | R.PTFE | ||
| 6 | Gasket | Graphite+304 | PTFE | Graphite+304 |
| 7 | Stud | A193-B7 | A193-B8 | A320-L7 |
| 8 | Nut | A194-2H | A194-8 | A194-4 |
| 9 | Packing | PTFE | ||
| 10 | Gland | A105 | A182-F316 | A350-LF2 |
| 11 | Gland bolt | A193-B7 | A193-B8 | A193-B7 |
| 12 | Stop plate | Carbon steel | Carbon steel+Zn | Carbon steel |
| 13 | Handle | Carbon steel | ||
Main Dimensions
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 15-300mm |
| The inherent flow characteristics | quick opening |
| Appliable Temperature | Hard Seal:-40~300ºC |
| Soft Seal | -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on. |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Flange Type | ANSI, JIS, DIN, GB/T 9113, JB/T 79 |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Valve Seat | PTFE, 0Crl7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M. |
| Ball Type | DN200 and below sizes----Floating Ball DN200 and above sizes----Trunnion Ball |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
We use high-end stainless steel and alloy steel as core materials to ensure the robustness and corrosion resistance of the valves, thereby extending their service life. By integrating advanced precision casting and machining techniques, each valve undergoes rigorous quality inspection to guarantee its sealing performance and smooth operation. We offer a variety of specifications, pressure ratings, and temperature categories to fully meet the specific needs of various industrial applications.
