Side entry type stainless steel floating ball valve main parameterNormal Size: 1/2"~8"Pressure rating: 150 LB~900 LBMaterials: WCB, LCB, LCC, CF8...
| Quantity: | |
|---|---|

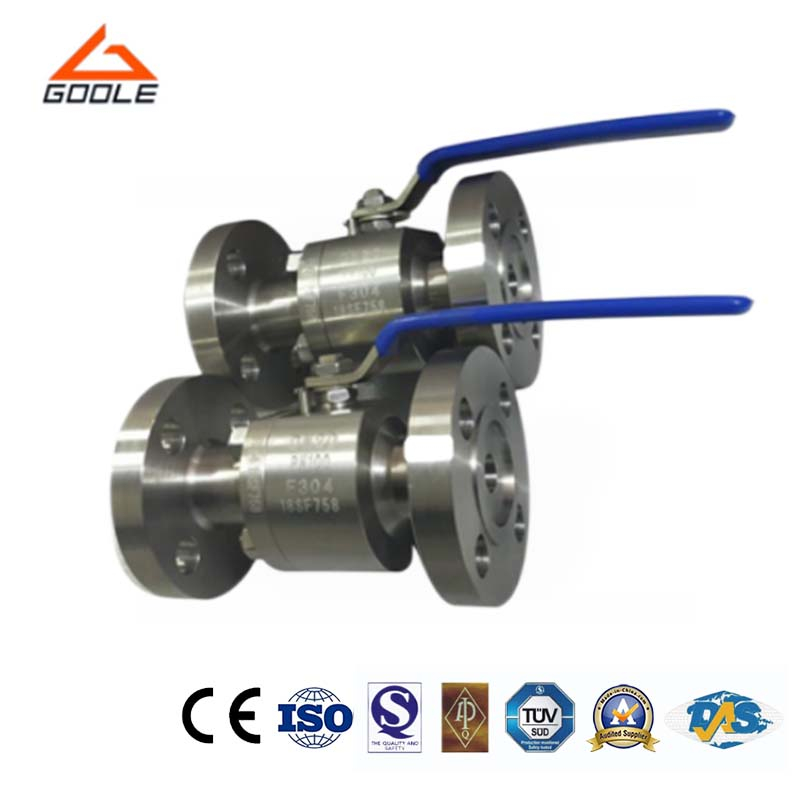

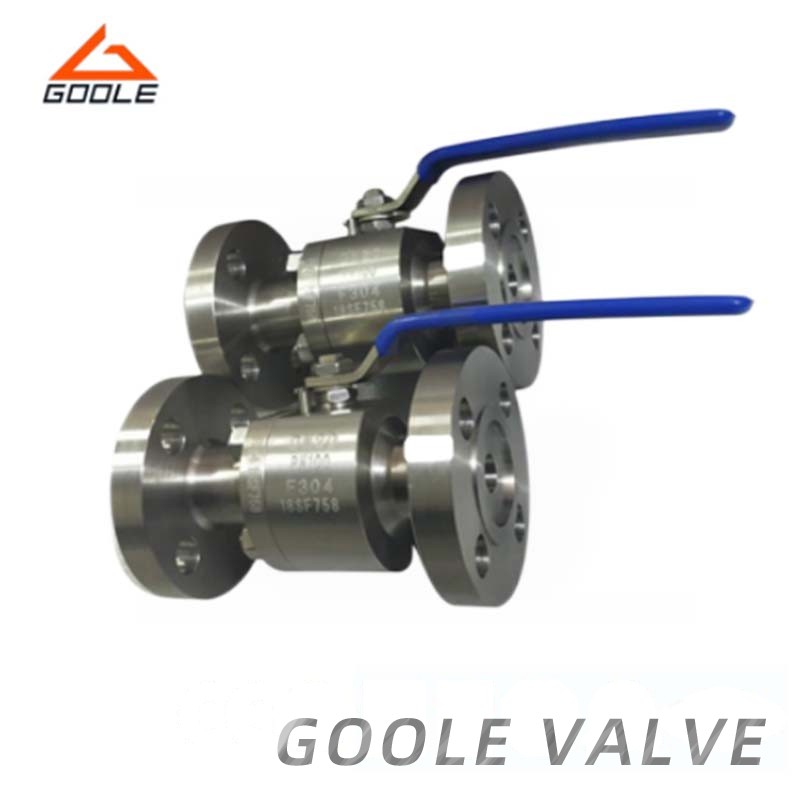

The forged steel 2PCS ball valve is designed specifically for stable flow control in high-pressure pipelines. Its side entry two-piece structure simplifies maintenance, while the forged steel body enhances mechanical strength and structural integrity. This valve supports 90 degree rotation for quick switching and is suitable for systems that require medium cutoff, flow diversion, or directional control. The valve adopts a flange end for safe installation, which can seamlessly adapt to environments with high reliability and safety requirements.
● Side-Entry Structure: The valve body allows entry from the side, and internal parts can be replaced without disassembling the entire valve from the pipeline.
● One-Piece Forged Body: Compared with cast structures, it has higher strength and fewer weaknesses, ensuring long-term mechanical performance.
● Quick 90° Operation: Enables quick shutdown or switching, making it an ideal choice for time sensitive applications.
| No | Part Name | ASTM Material | ||
| Carbon steel | 18Cr-9Ni-2Mo | Low temp steel | ||
| 1 | Body | A105 | A182-F316 | A350-LF2 |
| 2 | Bonnet | A105 | A182-F316 | A350-LF2 |
| 3 | Ball | A182-F304 | A182-F316 | A182-F304 |
| 4 | Stem | A276-304 | A276-316 | A276-304 |
| 5 | Seat ring | R.PTFE | ||
| 6 | Gasket | Graphite+304 | PTFE | Graphite+304 |
| 7 | Stud | A193-B7 | A193-B8 | A320-L7 |
| 8 | Nut | A194-2H | A194-8 | A194-4 |
| 9 | Packing | PTFE | ||
| 10 | Gland | A105 | A182-F316 | A350-LF2 |
| 11 | Gland bolt | A193-B7 | A193-B8 | A193-B7 |
| 12 | Stop plate | Carbon steel | Carbon steel+Zn | Carbon steel |
| 13 | Handle | Carbon steel | ||
Main Dimensions
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.50 | 3.38 | 4.00 | 6.00 | 7.00 | 9.25 | 9.88 | 11.00 | 12.62 | / |
| mm | 55 | 55 | 65 | 85 | 100 | 150 | 180 | 235 | 250 | 280 | 320 | / | |
| W | in | 8 | 8 | 12 | 12 | 16 | 16 | 24 | 24 | 24 | 24 | 32 | / |
| mm | 200 | 200 | 300 | 300 | 400 | 400 | 600 | 600 | 600 | 600 | 800 | / | |
| WT(Kg) | RF | 3.1 | 4.1 | 6 | 9.5 | 12.8 | 20 | 26 | 45 | 126 | 216 | 270 | / |
| BW | 2.6 | 3.9 | 5.2 | 8.7 | 11.8 | 19 | 28 | 47 | 131 | 226 | 295 | / |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 15-300mm |
| The inherent flow characteristics | quick opening |
| Appliable Temperature | Hard Seal:-40~300ºC |
| Soft Seal | -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on. |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Flange Type | ANSI, JIS, DIN, GB/T 9113, JB/T 79 |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Valve Seat | PTFE, 0Crl7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M. |
| Ball Type | DN200 and below sizes----Floating Ball DN200 and above sizes----Trunnion Ball |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Our forged steel 2PCS ball valve is not only sturdy, but also designed for intelligent maintenance, automation compatibility, and reliable sealing under pressure. Equipped with side entry inlet, float ball with automatic seat compensation, and forged steel valve body, it can provide reliable performance under various complex operating conditions. Whether used for closing, switching, or distribution, this valve is designed to maintain smooth operation of the system.
