Product Description name of commodity: Class 150~600 LB Floating Ball ValveNominal diameter:1/2"-12"Nominal pressure:150Lb-600Lb , 10K-40K...
| Quantity: | |
|---|---|

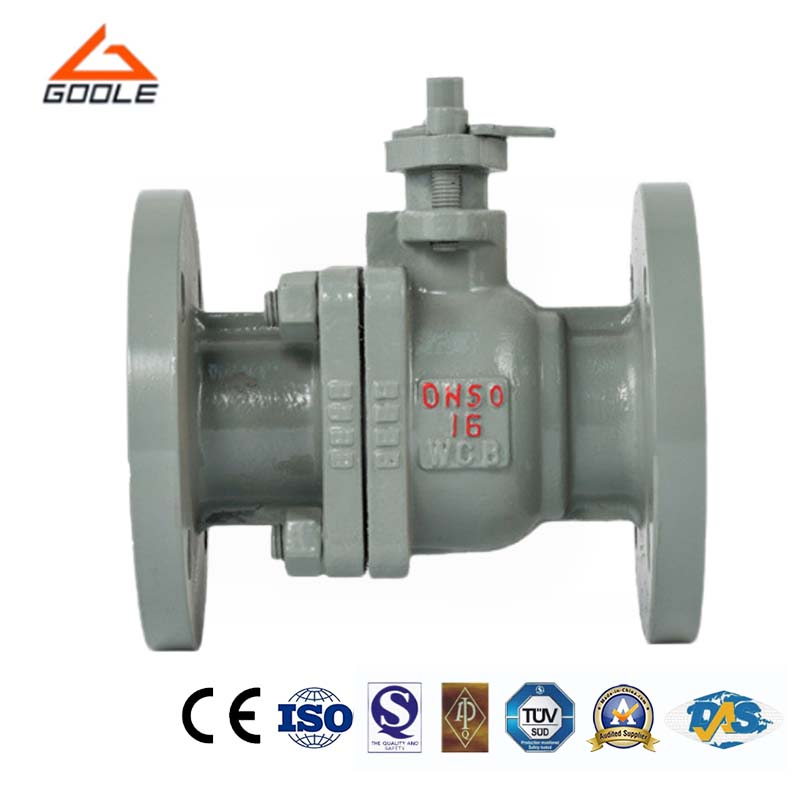

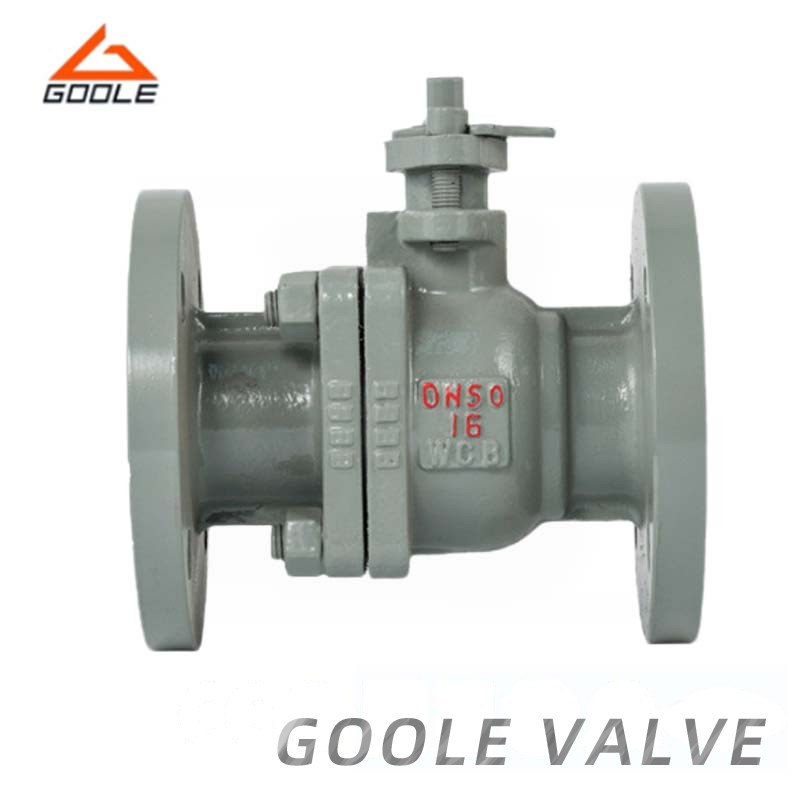

A cast steel flanged ball valve that rotates 90 degrees, its characteristic lies in the valve core being a sphere with a circular hole or passage inside. The ball valve is mainly used in pipeline systems to achieve the cutting off, distribution, and redirection of media flow. This type of valve only requires a 90-degree rotation and minimal torque to achieve a tight seal.
● Fire Safe Design: Valves with fire protection function can ensure that their structure is not damaged and maintain normal function in case of fire.
● Anti-Static Device: These devices help reduce fire risk and ensure the safety of the operating environment by facilitating the release of static electricity.
● Low Emission Control:Low emission control valves are designed to minimize the amount of harmful gases or vapors emitted into the atmosphere.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
Using high-quality cast steel as the core material, we ensure the robustness and corrosion resistance of the valves, significantly extending their service life. By employing advanced precision casting and machining techniques, each valve undergoes meticulous quality inspection to guarantee superior sealing performance and smooth operation. We offer a wide range of sizes, pressures, and temperature specifications to fully meet the precise requirements of various industrial applications.
