Product Description name of commodity: Class 150~600 LB Floating Ball ValveNominal diameter:1/2"-12"Nominal pressure:150Lb-600Lb , 10K-40K...
| Quantity: | |
|---|---|

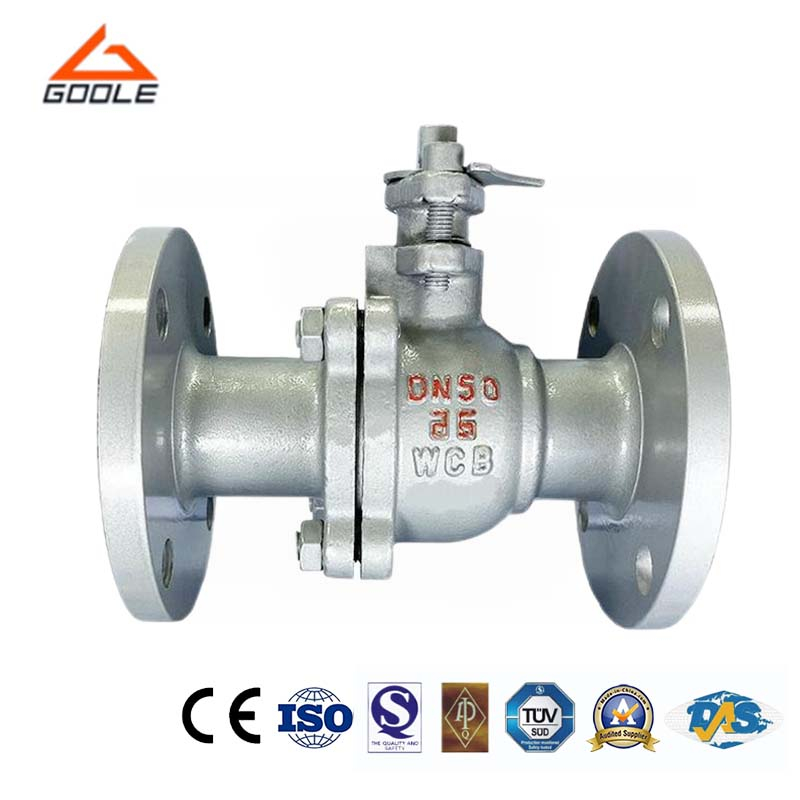

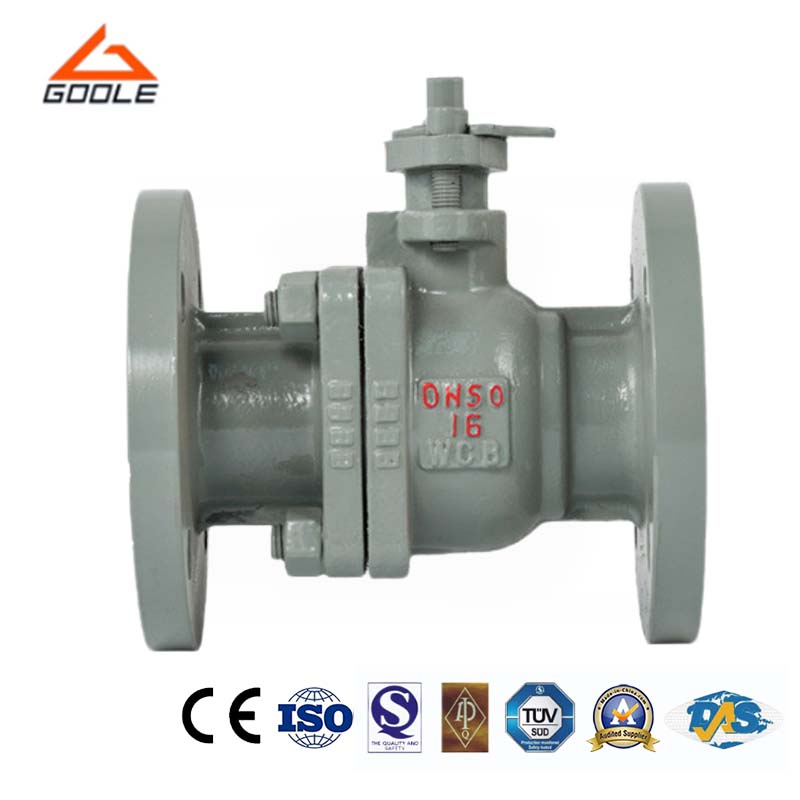

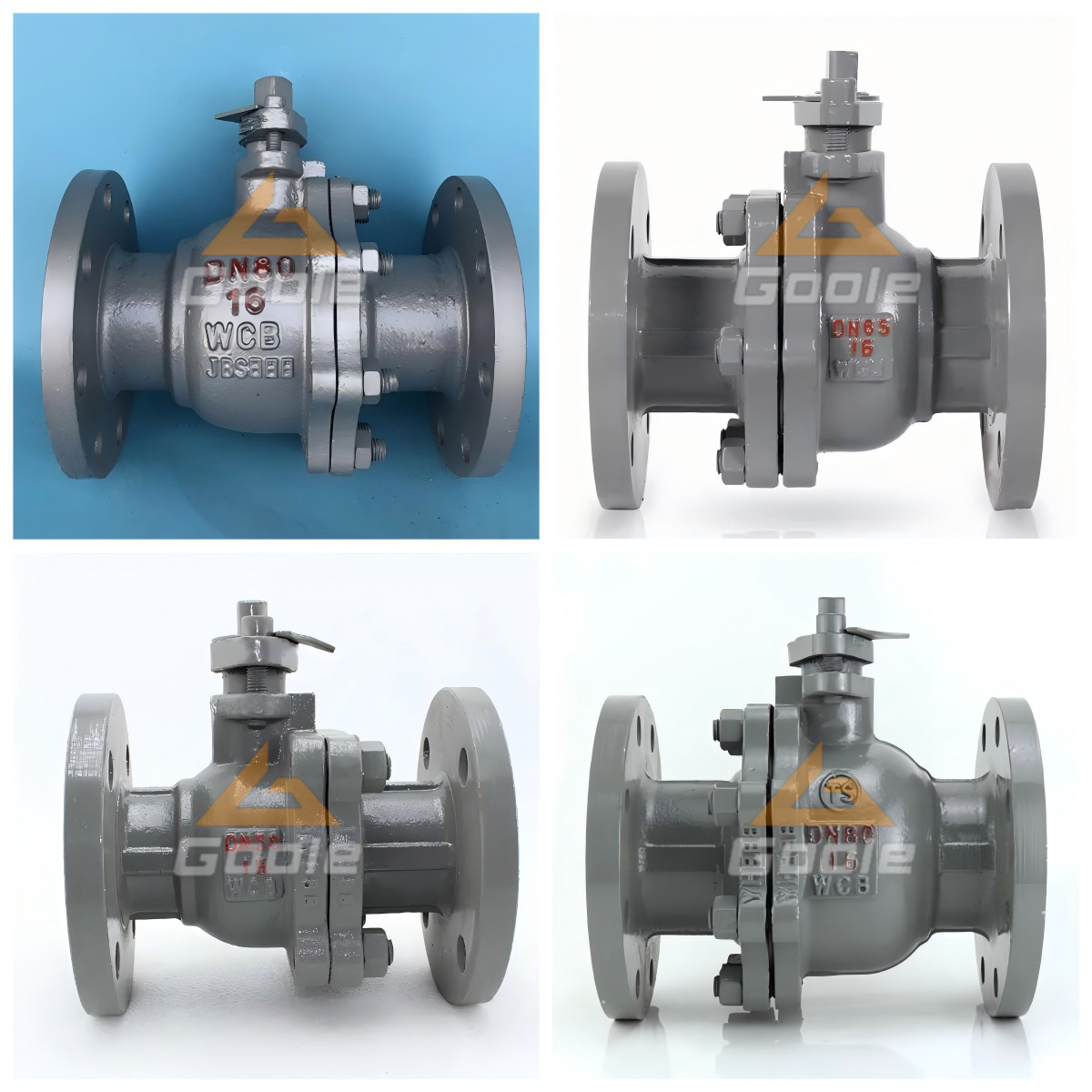

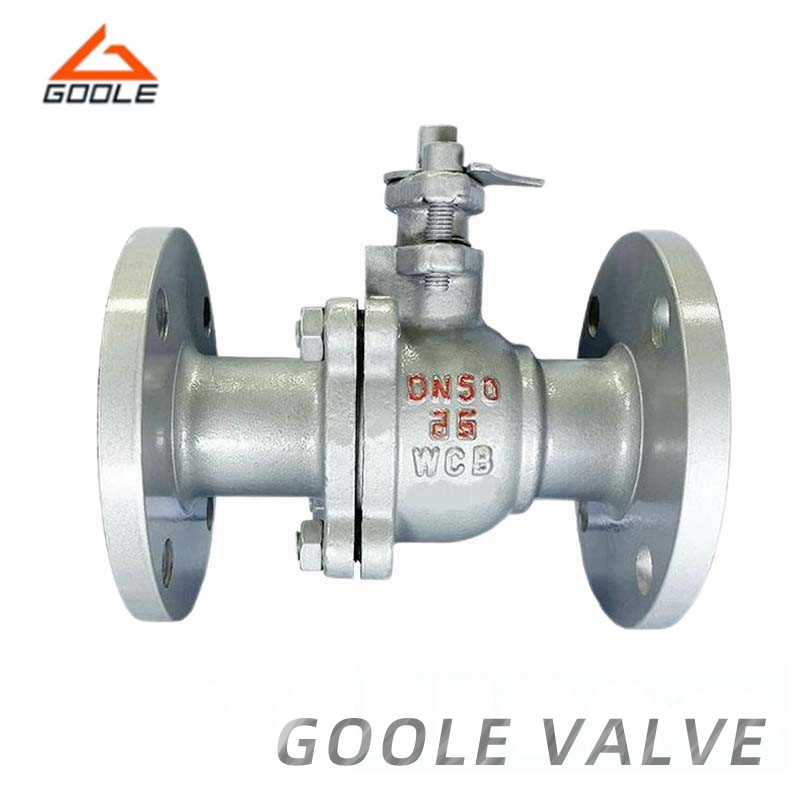

A cast steel flanged ball valve that can rotate 90 degrees, characterized in that the valve core is a sphere with a round hole or passage inside. The ball valve is mainly used in pipeline systems to cut off, distribute, and redirect the flow of media. This type of valve achieves a tight seal with just a 90-degree rotation and minimal torque.
● Fire Safe Design: Valves with fire protection function can ensure that their structure will not be damaged in fire and maintain normal function.
● Anti-Static Device: These devices help reduce fire risk and ensure the safety of the operating environment by promoting the release of static electricity.
● Low Emission Control: Low emission control valves are designed to minimize the amount of harmful gases or vapors emitted into the atmosphere.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
We select high-quality cast steel as the core material to ensure the robustness and corrosion resistance of the valves, significantly extending their service life. By employing advanced precision casting and machining techniques, each valve undergoes rigorous quality inspection to guarantee superior sealing performance and smooth operation. We offer a variety of sizes, pressures, and temperature specifications to fully meet the precise requirements of various industrial applications.
