Product Description name of commodity: Class 150~600 LB Floating Ball ValveNominal diameter:1/2"-12"Nominal pressure:150Lb-600Lb , 10K-40K...
| Quantity: | |
|---|---|

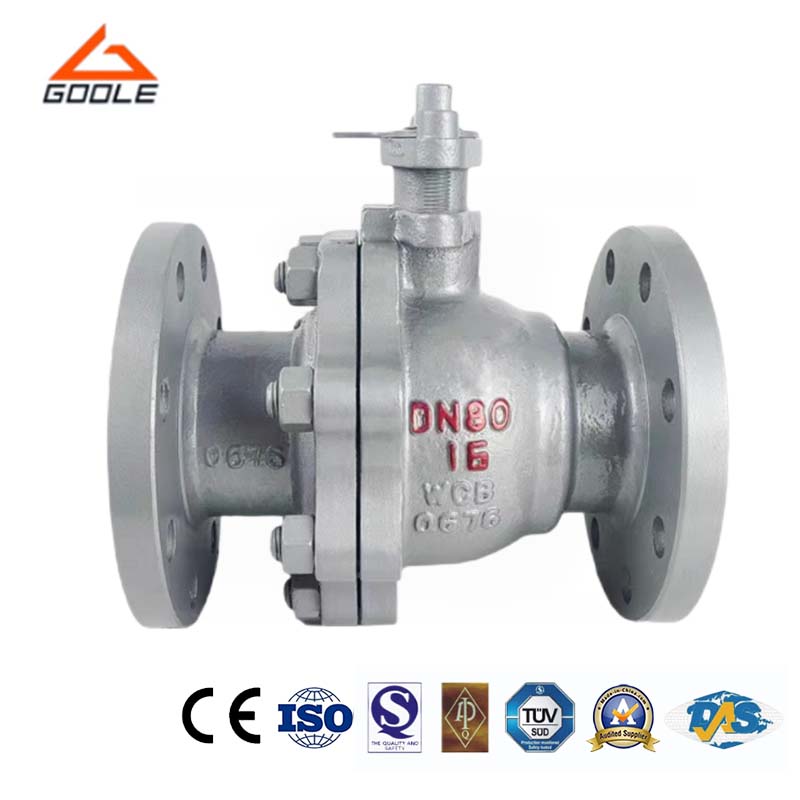

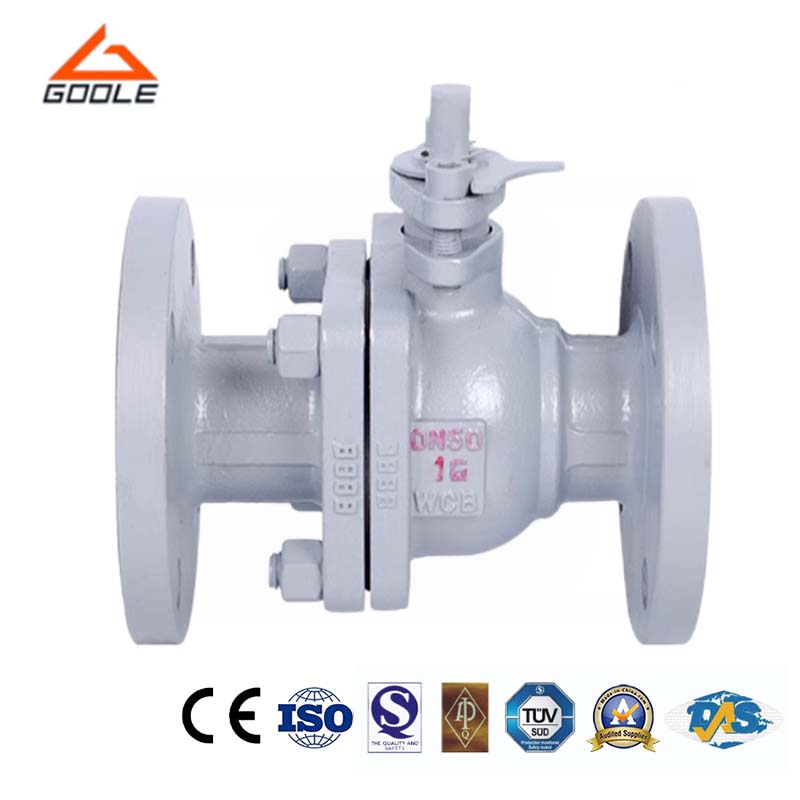

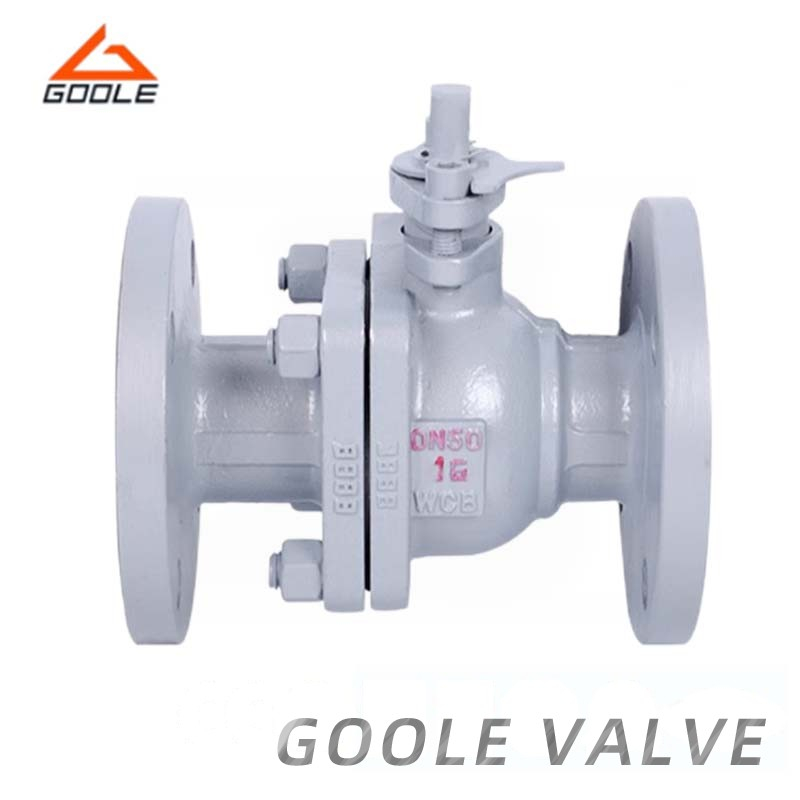

A cast steel flange ball valve that can rotate 90 degrees, characterized in that the valve core is a spherical body with a circular hole or channel inside. Ball valves are mainly used in pipeline systems to cut off, distribute, and redirect the flow of media. This type of valve only requires a 90 degree rotation and minimum torque to achieve a tight seal.
● Fire Safe Design: Valves with fire prevention functions can ensure that their structure is not damaged in the event of a fire and maintain normal functionality.
● Anti-Static Device: These devices help reduce the risk of fire and ensure the safety of the operating environment by promoting the release of static electricity.
● Low Emission Control: Low emission control valves are designed to minimize the amount of harmful gases or vapors emitted into the atmosphere.
| Size | in | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 | / |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | / | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 | / |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | / | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 | / |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | / | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 | / |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | / | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 | / |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 | / |
| Size | 1/2"~12" |
| Pressure rating | 150LB/300LB/600LB |
| Body material | Carbon steel,stainless steel or other material |
| Trim material | CS+ENP,13Cr,F304,F316,INCONEL,MONEL,DUPLEX.,etc |
| Driving modes | Lever,Gear,Pneumatic,Electric |
Q1: What makes the side-entry structure beneficial?
A: It allows for easy internal maintenance without removing the valve from the line, reducing downtime and service complexity.
Q2: Is this valve suitable for automation?
A: Yes, the valve supports manual, pneumatic, and electric actuation for flexible control options.
We use high-quality cast steel as the core material to ensure the robustness and corrosion resistance of the valve, significantly extending its service life. By adopting advanced precision casting and processing technology, each valve undergoes meticulous quality inspection to ensure excellent sealing performance and smooth operation. We offer various sizes, pressures, and temperature specifications to fully meet the precise requirements of various industrial applications.
