Electric V-port ball valve main parameters.Nominal pressure: PN1.6~6.4MPaNominal diameter: 20~400mmAppliable Temperature : Hard Seal:-40~300ºC...
| Quantity: | |
|---|---|

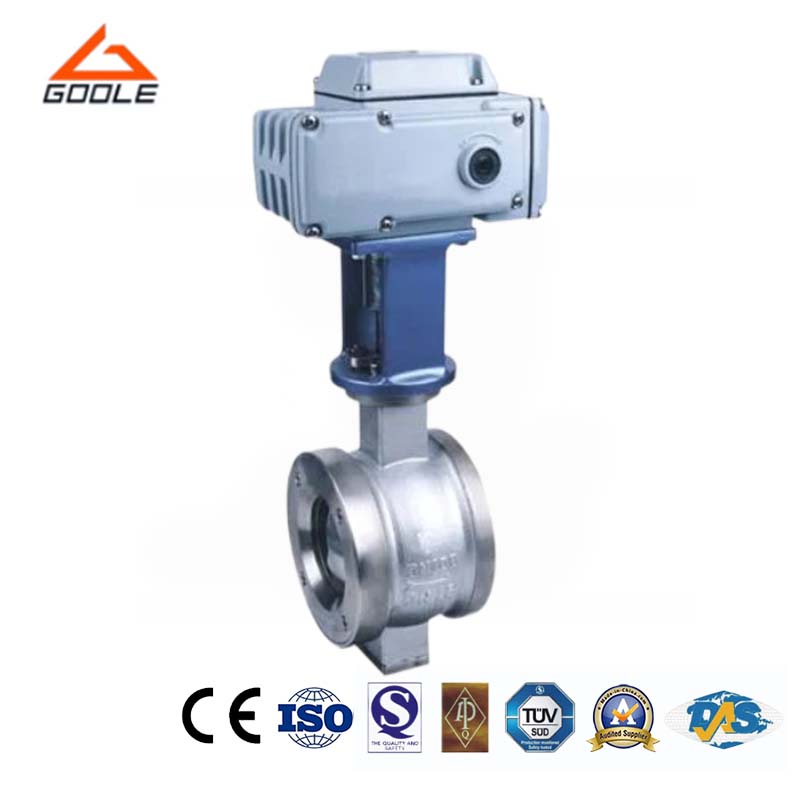

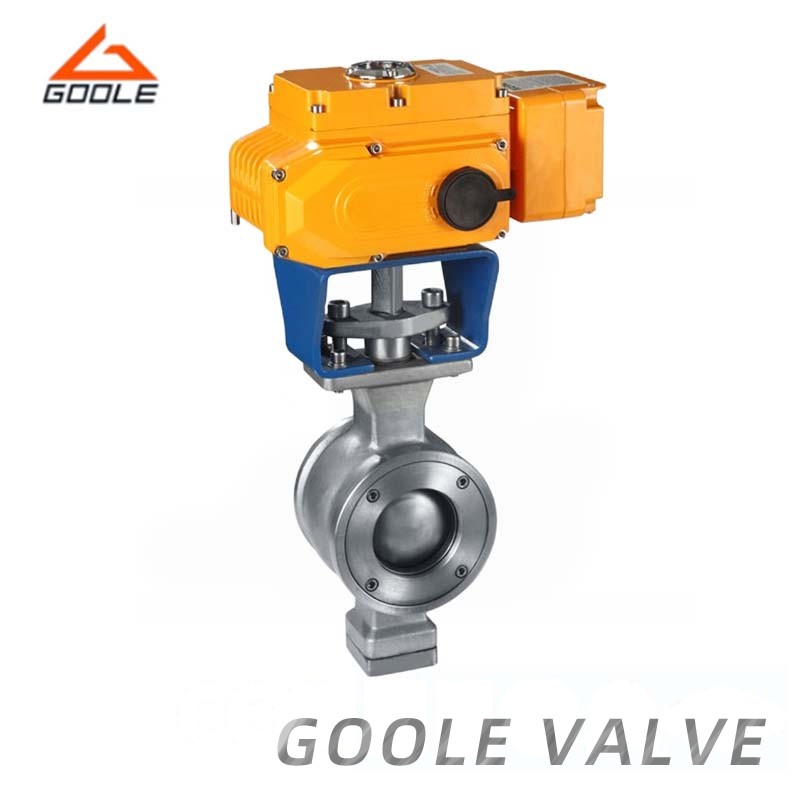

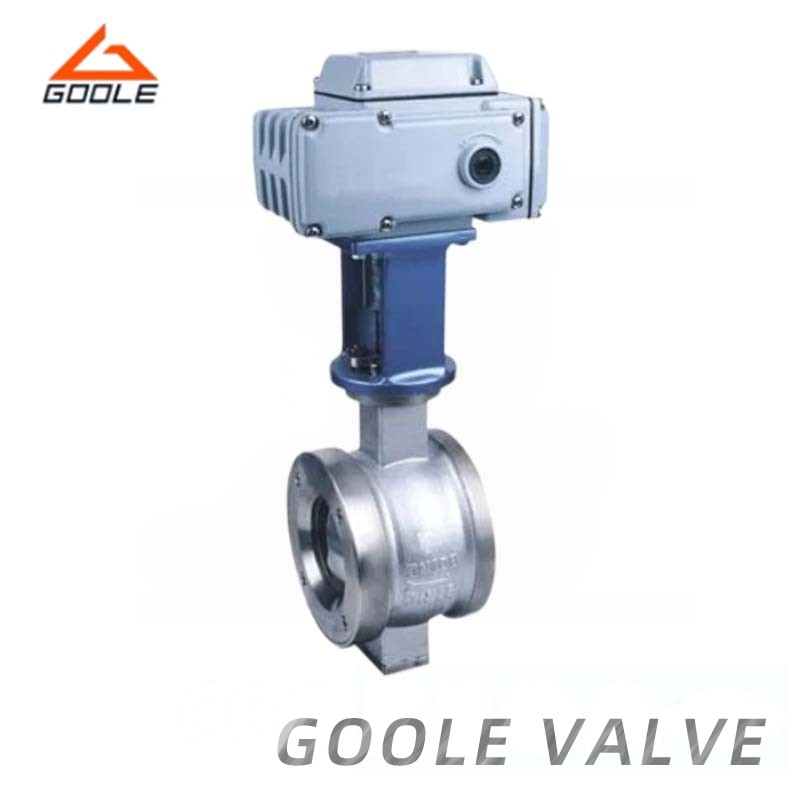

Electric V-shaped regulating ball valve is a rotary ball valve with a core seat made of metal or metal to PTFE sealing and matching. It combines the best control characteristics of the ball valve and butterfly valve into one, and can be used as both a control regulating valve and a shut-off valve.
●V Incision Design:The shear force between the ball and the metal seat type V incision, especially suitable for containing fiber and small solid particle, pulp and other medium.
●Small Pressure Loss:Fully open flow capacity, small pressure loss, and the media will not deposit in the body cavity.
●Long Service Life:Using a spring-loaded movable seat structure , Preventing the occurrence of ball core and valve seat from jamming or other issues, reliable sealing and long service life.
●Accurate Regulation:The valve has the advantages of accurate regulation and reliable positioning function, approximately equal percentage flow characteristics, large adjustable range, the maximum adjustable ratio 100:1.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
| Nominal pressure | PN1.6~6.4MPa |
| Nominal diameter | 20~400mm |
| Appliable Temperature | Hard Seal:-40~300ºC Soft Seal: -40~180ºC |
| Applicable medium | Water,gas,oil quality and so on |
| Driving Means | Manual ,Electric, Worm wheels, Pneumatic |
| Body materials | WCB, CF8, CF8M, CF3M |
| Stem | 2Cr13, 304, 316 |
| Rotary angle | 90° |
| Valve Seat | PTFE, 0Crl, 7Ni4Cu4Nb |
| Core Material | CF8, CF8M, CF3M |
Q:What is the purpose of the V Incision design?
The unique V-port design not only optimizes fluid flow but also reduces pressure loss and improves the efficiency of the overall system.
Q:What types of media can this valve handle?
This type of valve is very suitable for high-viscosity media, such as heavy oil, glue, and other substances that are easily cured at room temperature.
Our company's electric V-type ball valve has been widely tested and applied in various industrial fields due to its outstanding performance and stability. Even under extreme and harsh conditions, the valve can still ensure precise operation, meeting the demand for accurate flow control. The design focuses on humanization, making installation, maintenance, and operation simple and efficient. The V-shaped structure not only improves fluid flow performance but also reduces pressure loss, thereby enhancing the overall system efficiency. We also commit to providing comprehensive after-sales service and technical support, ensuring that customers can quickly resolve any issues encountered during use.
