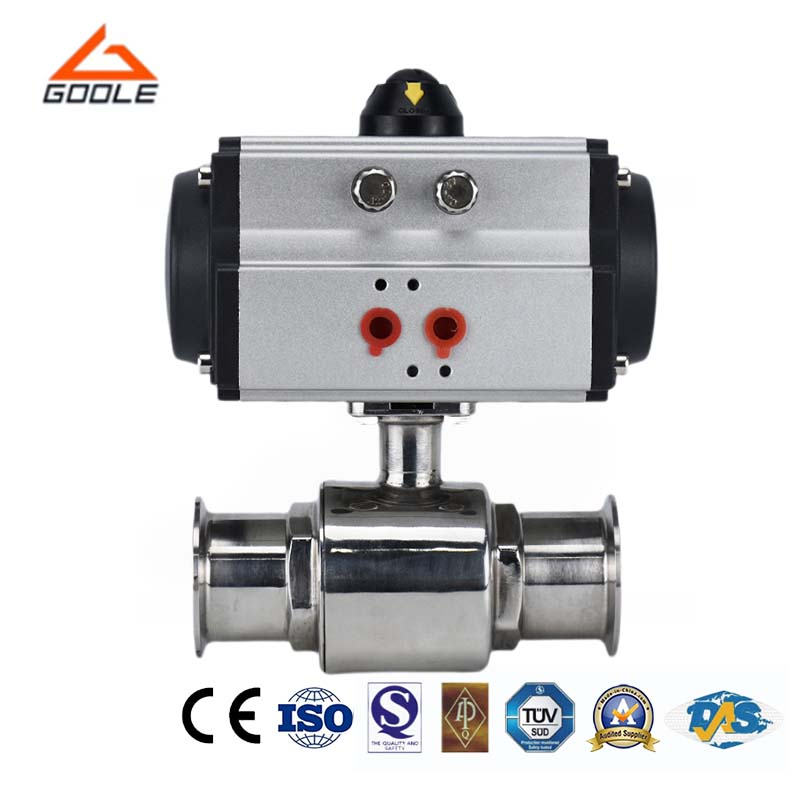

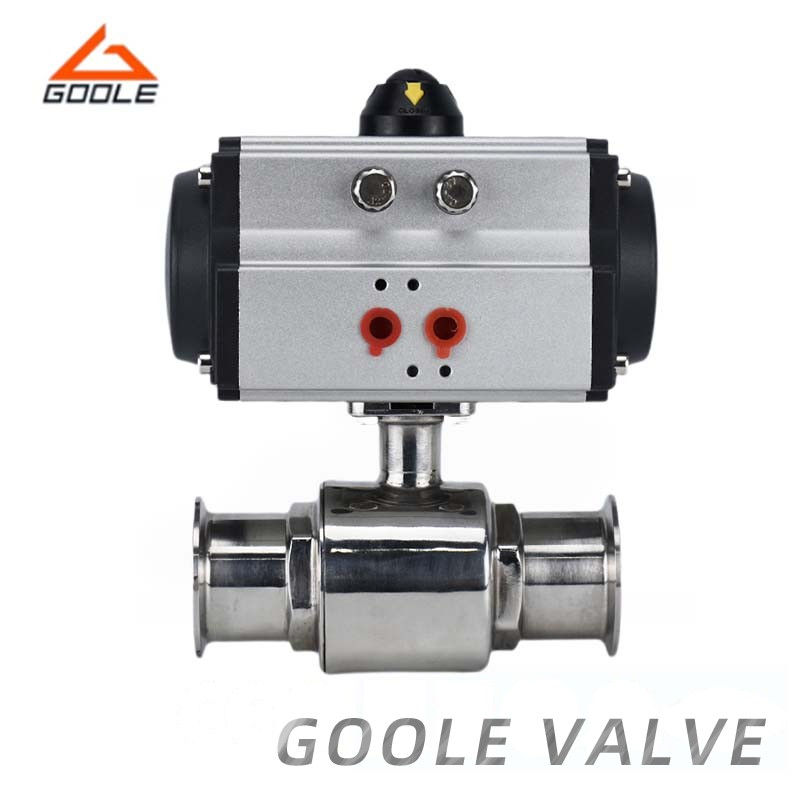

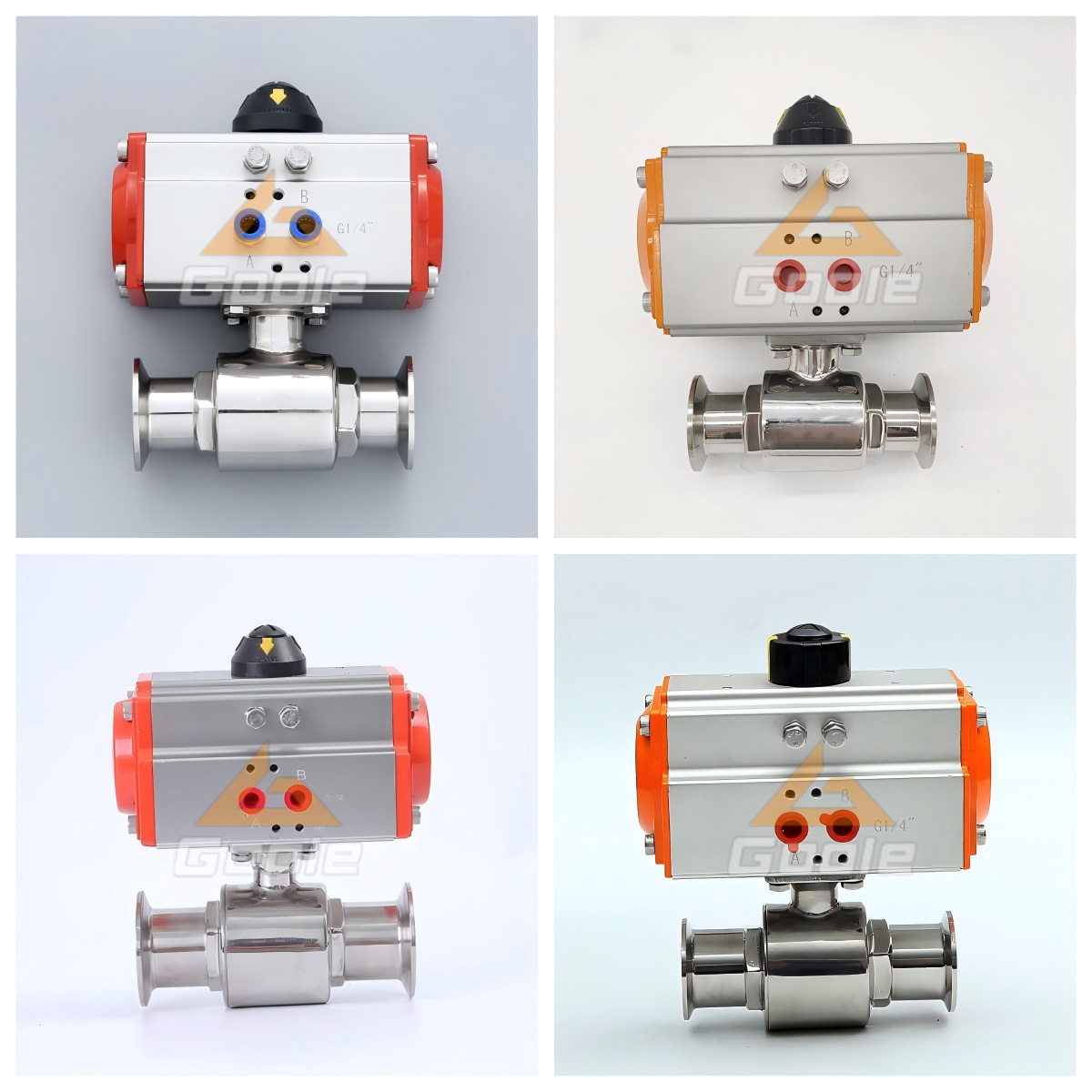

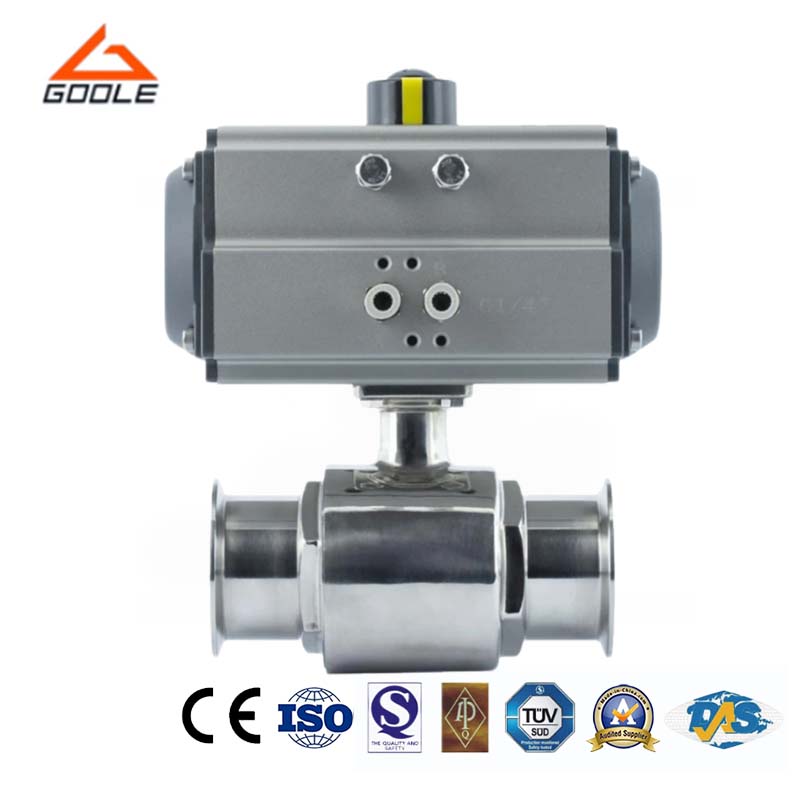

The pneumatic sanitary ball valve adopts an upper installation structure, which reduces the connection bolts of the valve body under high pressure and large diameter conditions, improves the reliability of the valve, and can overcome the influence of system weight on the normal operation of the valve. Pneumatic sanitary ball valves also have the characteristics of easy cleaning and maintenance, and their smooth inner surface design effectively prevents medium residue, meeting high hygiene standards in industries such as food and pharmaceuticals.
● Unique Design: Its unique upper installation structure design greatly improves the stability and durability of the valve, especially in high-pressure and large-diameter applications. This design greatly reduces the number of connecting bolts, thereby reducing the risk of leakage caused by bolt loosening or damage.
● Easy to Slean: The smooth inner surface design of the valve not only facilitates cleaning and effectively avoids medium residue and pollution problems, but also reduces maintenance costs and extends service life, especially in line with industry standards such as food and pharmaceuticals that require high hygiene.
| NO. | PART NAME. | MATERIAL | QTY. |
| 1 | BODY | CF8M | 1 |
| 2 | BONNET | CF8M | 1 |
| 3 | BALL | SS316 | 1 |
| 4 | SEAT | PTFE/RPTFE | 2 |
| 5 | GASKET | PTFE | 2 |
| 6 | STEAM SEAL | PTFE/RPTFE | 1 |
| 7 | STEM | SS316 | 1 |
| 8 | PACKING | PTFE | 1 |
| 9 | PACKING GLAND | SS304 | 1 |
| 10 | BELLEVILE WASHER | SS301 | 2 |
| 11 | SPRING WASHER | SS301 | 1 |
| 12 | PIN NUT | SS304 | 2 |
| 13 | HANDLE SLEEVE | SS304 | 1 |
| 14 | SPRING WASHER | SS301 | 1 |
| 15 | HANDLE | SS304 | 1 |
| 16 | STOP PIN | SS304 | 1 |
| 17 | NUT | SS304 | 1 |
| 18 | LOCKING DEVICE | SS304 | 1 |
Dimension List.
| NPS | d | E | d1 | d2 | F | G | H | H1 | H2 | L | W | ISO5211(K/1) |
| 1/4" | 11.5 | 139 | 6 | 6 | 9 | 1/4"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 3/8" | 12.5 | 139 | 6 | 6 | 9 | 3/8"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | F03/F04 |
| 1/2" | 15 | 139 | 6 | 6 | 9 | 1/2"NPT/BSP | 38.6 | 6.6 | 73.6 | 65 | 16 | F03/F04 |
| 3/4" | 20 | 139 | 6 | 6 | 9 | 3/4"NPT/BSP | 46.15 | 7.1 | 80.15 | 74.6 | 17 | F03/F04 |
| 1" | 25 | 165 | 6 | 7 | 11 | 1"NPT/BSP | 56.6 | 10.9 | 95.4 | 88.5 | 21 | F04/F05 |
| 1-1/4" | 32 | 165 | 6 | 7 | 11 | 1-1/4"NPT/BSP | 61.0 | 10.9 | 99.8 | 102 | 22 | F04/F05 |
| 1-1/2" | 38 | 215 | 7 | 9 | 14 | 1-1/2"NPT/BSP | 77.5 | 13.9 | 126.3 | 110 | 22.5 | F05/F07 |
| 2" | 49 | 215 | 7 | 9 | 14 | 2"NPT/BSP | 85.2 | 139.9 | 134 | 125 | 24 | F05/F07 |
| 2-1/2" | 65 | 263 | 10 | 12 | 17 | 2-1/2"NPT/BSP | 108.7 | 16.8 | 166.7 | 160.6 | 31 | F07/F10 |
| 3" | 80 | 263 | 10 | 12 | 17 | 3"NPT/BSP | 117.4 | 18.1 | 175.4 | 178 | 34 | F07/F10 |
Pressure Test.
| Test Item | Shell Test | Sealing Test | Back Seal Test | Air Test | |||||
| Medium | Water | Air | |||||||
| Unit | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| Test Pressure | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 | |||
| 400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 | |||
| 600 | 15.3 | 2225 | 11.2 | 1630 | 11.2 | 1630 | |||
| 900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 | |||
Q1:What is the main suitable of this valve?
This product is especially suitable for steel, aluminum, fiber, small solid particles, pulp, coal ash, petroleum gas and other media.
Q2:What mechanical principle is used?
The mechanical principle of pneumatic sanitary ball valves is mainly based on their precise ball and seat fitting design. When the pneumatic actuator receives a control signal, it will drive the sphere to rotate through air pressure. The ball and valve seat are made of special materials to ensure sealing performance while also achieving smooth switching action. In the open state, the sphere rotates 90 degrees to completely clear the channel and allow the medium to flow freely; In the closed state, the sphere tightly adheres to the valve seat, effectively preventing medium leakage. In addition, the pneumatic sanitary ball valve is equipped with limit and positioning devices to ensure the precise position of the ball during the opening and closing process, further improving the stability and reliability of the valve.
The unique upper installation structure not only reduces the number of connecting bolts, but also significantly improves the overall reliability of the valve, ensuring stable operation under high pressure and large diameter conditions. The valve design fully considers the convenience of cleaning and maintenance, and the smooth inner surface effectively avoids medium residue, thus meeting the strict requirements of high hygiene standards in industries such as food and pharmaceuticals. We also pay attention to product durability and performance optimization, ensuring that every pneumatic sanitary ball valve can provide stable and reliable support for customers' production processes.
